RSM1-152P-05T6 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> filter> RSM1-152P-05T6

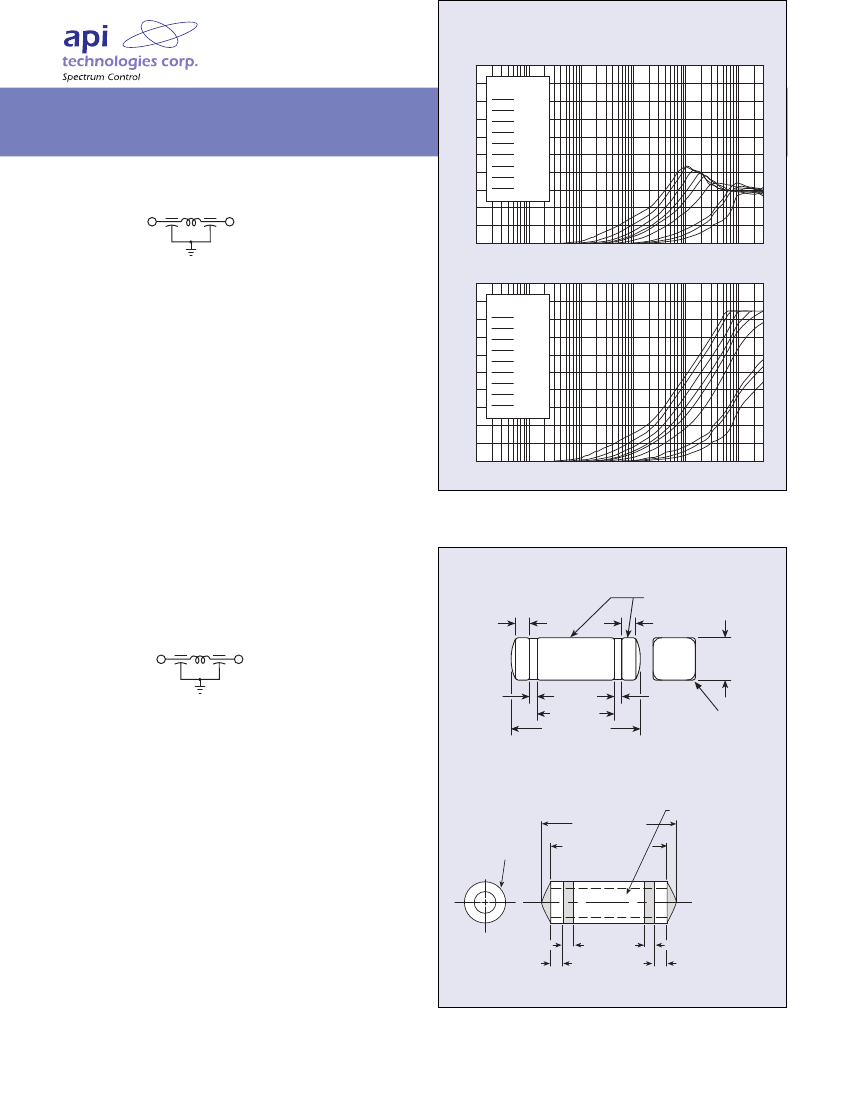

RSM1-152P-05T6: DescriptionData Line Filter, 1 Function(s), 100V, 5A,; CategoryAnalog mixed-signal IC filter; File Size184KB，2 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api

Download Datasheet Parametric View All

RSM1-152P-05T6 Overview

Data Line Filter, 1 Function(s), 100V, 5A,

RSM1-152P-05T6 Parametric

Parameter Name	Attribute value
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	PI-TYPE CIRCUIT
capacitance	1500 µF
diameter	2.1 mm
filter type	DATA LINE FILTER
high	8 mm
Minimum insulation resistance	10000 MΩ
JESD-609 code	e3
Installation type	SURFACE MOUNT
Number of functions	1
method of packing	TAPE AND REEL
physical size	D2.1XH8.0 (mm)/D0.083XH0.315 (inch)
Rated current	5 A
Rated voltage	100 V
Terminal surface	TIN OVER NICKEL
Base Number Matches	1

Preview

Download Datasheet

View All

Pi Insertion Loss

Typical SMT Applications

100

See note

4000

2500

1500

1000

820

470

130

100

Surface Mount Low Pass Filters

Insertion Loss (dB)

SSM & RSM Series

SSM

Input

Output

0.01

0.1

Frequency (MHz)

100

1000 3000

Ground

100

Shielded or Partition Applications

Insertion Loss (dB)

0.01

0.1

Frequency (MHz)

100

1000 3000

Working Voltage

. . . . . . . . . 100 VDC

Test Voltage

. . . . . . . . . . . . 250 VDC

Current

. . . . . . . . . . . . . . . Max. 10 Amps

Insulation

Resistance.

. . . . . . . . . . . . . Min. 10

MΩ

Terminations.

. . . . . . . . . . . Silver Ni-Tin plated

Soldering

Conditions

. . . . . . . . . . . . . Max. 250°C -5 sec.

Marking.

. . . . . . . . . . . . . . None

Packaging.

. . . . . . . . . . . . . Bulk or tape and reel

See note

4000

2500

1500

1000

820

470

135

100

Note:

Insertion loss shown for the following SSM

values* only:

101Z

501P

202P

*Additional IL charts available by request.

* Capacitance values for insertion loss curves are displayed left to right

in the order shown.

SSM

.026

.014

(0.65

0.35)

Electrodes

.026

.014

(0.65

0.35)

.083

.004

(2.1

0.1)

.02

(0.5)

min.

.02

(0.5)

min.

RSM

Input

Output

Ground

Working Voltage

. . . . . . . . . 100 VDC

Test Voltage

. . . . . . . . . . . . 250 VDC

Current

. . . . . . . . . . . . . . . Max. 10 Amps

Insulation

Resistance.

. . . . . . . . . . . . . Min. 10

MΩ

Terminations.

. . . . . . . . . . . Silver Ni-Tin plated

Soldering

Conditions

. . . . . . . . . . . . . Max. 250°C -5 sec.

Marking.

. . . . . . . . . . . . . . None

Packaging.

. . . . . . . . . . . . . Bulk or tape and reel

.113

(2.87)

.315

(8.0)

max.

.02R max.

(0.5)

(4 plcs)

RSM

.315

(8.00)

Max.

.083±.004

(2.1

1.0)

0.232

(5.90)

0.26

NI/SN OVER AG

PLATED TUBE

Note:

Insertion loss shown for the following RSM

values only:

152P

402Z

.020

(.500)

Min.

.012/.040

(0.3/1.0)

.113

(2.58)

±.014

(.35)

0.020

(.500)

Min.

.012/.040

(0.3/1.0)

Dimensions in inches

(mm)

API TECHNOLOGIES

• 8061 Avonia Rd. • Fairview, PA 16415 • Ph: 814-474-1571 • Fax: 814-474-3110 • eis.apitech.com

API TECHNOLOGIES’ SPECTRUM CONTROL GmbH

• Hansastrasse 6 • 91126 Schwabach, Germany • Phone: (49)-9122-795-0 • Fax: (49)-9122-795-58

SM12
