SAW Bandpass Filter 250403B
1. Features
IF bandpass filter
High attenuation
Single-ended operation
DIP Package
Maximum Storage Temperature Range : -40
℃
~ 85
℃
Electrostatics Sensitive Device (ESD)
2. Package Dimension
12.8±0.5
5.5max 6.0max
7.6±0.2
2.5±0.2
ITF 05A001
250403B
35.1±0.5
Package : D3512
0.45±0.05
2.5±0.2
Pin Configuration
1
Input
Output
Ground
Case ground
Dimensions shown are nominal in millimeters
Base : Fe(SPCC), Au plating over Ni plated
Cap : Cu & Cr Alloy, Ni Plated
Termination : Kovar, Au Plated
5
2, 4
Other
I T F Co., Ltd.
102-901, Bucheon Technopark 364,
Samjeong-Dong, Ojeong-Gu, Bucheon-City,
Gyounggi-Do, Korea 421-809
Part No.
Rev. Date
Rev.
250403B
2005-05-07
NW5005-CS01
1/5
25.4±0.2
SAW Bandpass Filter 250403B
3. Specifications
Fo = 160 MHz
Terminating source impedance
Terminating load impedance
: 50Ω and matching network
: 50Ω and matching network
Operating temperature range : -10℃ ~ +60℃
Center Frequency
Insertion Loss
1dB Bandwidth
3dB Bandwidth
40dB Bandwidth
50dB Bandwidth
Amplitude Ripple (Fo +/- 1.92 MHz)
Group Delay Variation (Fo +/- 1.92 MHz)
Absolute Delay
Ultimate Rejection
Temperature Coefficient of Frequency
MHz
dB
MHz
MHz
MHz
MHz
dB
nsec
usec
dB
ppm/°C
2
Minimum
159.9
-
3.84
4.1
-
Typical
160.0
23.6
3.99
4.16
4.93
5.03
Maximum
160.1
26
-
-
5.0
5.2
1.0
300
-
-
-
-
-
-
50
-
0.7
150
3.16
53
-0.03
Notes :
1)
2)
3)
All specifications are based on the matching schematic shown below
All specifications are measured by Agilent Network analyzer and full 2 port calibration
Electrical margin has been built into the design to account for the variations due to temperature drift and
manufacturing tolerances
4)
All attenuation measurements are measured relative to insertion loss
I T F Co., Ltd.
102-901, Bucheon Technopark 364,
Samjeong-Dong, Ojeong-Gu, Bucheon-City,
Gyounggi-Do, Korea 421-809
Part No.
Rev. Date
Rev.
250403B
2005-05-07
NW5005-CS01
2/5
SAW Bandpass Filter 250403B
4. Matching Schematic
( Actual matching values may vary due to PCB layout and parasitics )
Input
50
Ω
L2
L3
Output
50
Ω
L1
L4
L1 = 27 nH, L4 = 18 nH
L2 = 33 nH, L3 = 33 nH
5. Marking Configuration
ITF
1)
05A001
2)
250403B
3)
1) Manufacturer name
2) Lot Number
3) Part Number
I T F Co., Ltd.
102-901, Bucheon Technopark 364,
Samjeong-Dong, Ojeong-Gu, Bucheon-City,
Gyounggi-Do, Korea 421-809
Part No.
Rev. Date
Rev.
250403B
2005-05-07
NW5005-CS01
3/5
SAW Bandpass Filter 250403B

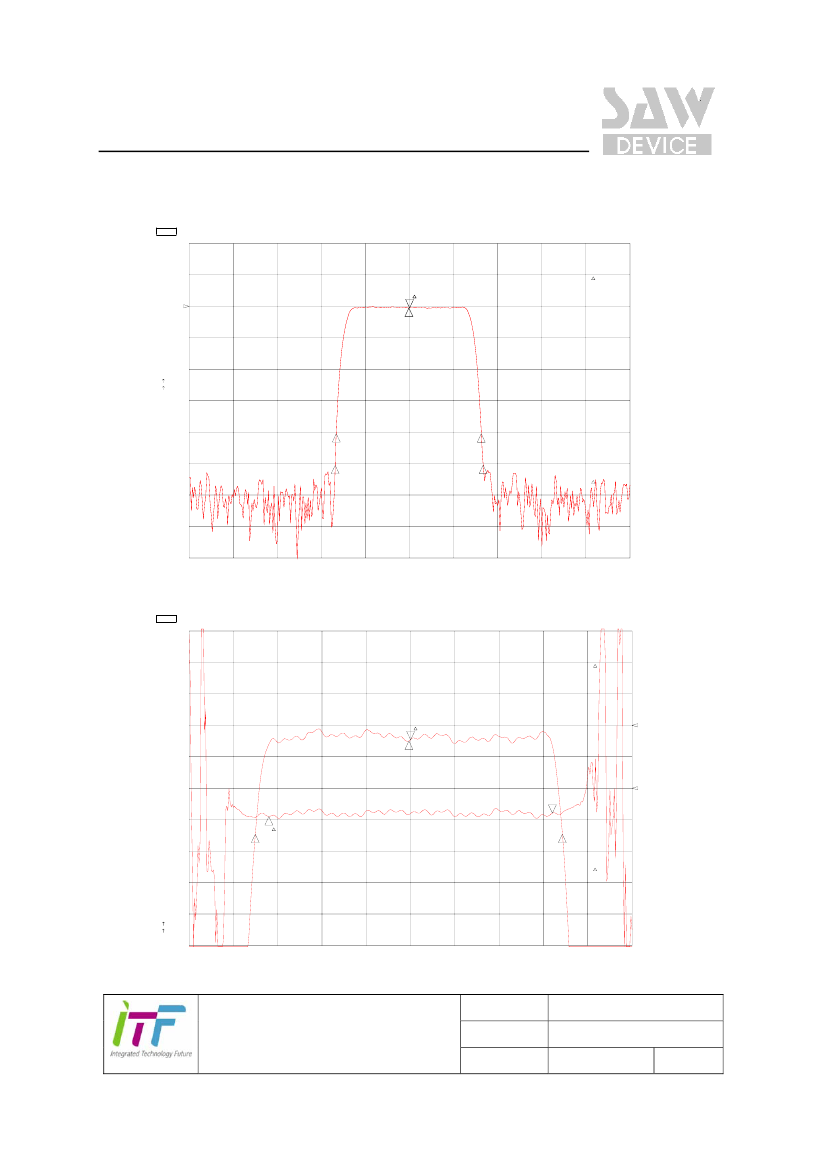

6. Typical Performance ( at +25℃ )
CH1
CH3
S21
S21
LOG
LOG
10 dB/
10 dB/
REF -23 dB
REF -23 dB
6 May 2005 23:03:00
1 : 0. 0000 dB
0. 000
1 : 0. 0000 dB
0. 000
000
000
MHz
MHz
CH1 Markers
BW:
Cor
1
2
1_loss
Cor
cent
4. 935356
MHz
MHz
REF=1
: 159 . 974001
Q: 32 . 414
: -23 . 489
dB
3
4
cent
BW
CH3 Markers
:
5. 039003
MHz
MHz
3
4
REF=1
1_
: 159 . 986029
Q: 31 . 750
loss
: -23 . 489
dB
CENTER
160 . 000
000
MHz
SPAN
15 . 000
000
MHz
CH2
CH4
S21
S21
LOG
DEL
1 dB/
500 ns/
REF -23 dB
REF 3.56 us
6 May 2005 23:04:12
1 : 0. 0000 dB
0. 000
3 : 59 . 255 ns
3. 840
000
000
MHz
MHz
CH2 Markers
BW:
cent
4. 159736
MHz
MHz
REF=1
: 159 . 976775
Q: 38 . 458
1_loss
1
2
: -23 . 465
dB
3
2
Cor
Smo
3
4
CH4 Markers
Cor
mean : 3. 1615
s. dev : 35 . 551
us
ns
REF=2
p-p : 160 . 09 ns
4
CENTER
160 . 000
000
MHz
SPAN
6. 000
000
MHz
2
I T F Co., Ltd.
102-901, Bucheon Technopark 364,
Samjeong-Dong, Ojeong-Gu, Bucheon-City,
Gyounggi-Do, Korea 421-809
Part No.
Rev. Date
Rev.
250403B
2005-05-07
NW5005-CS01
4/5

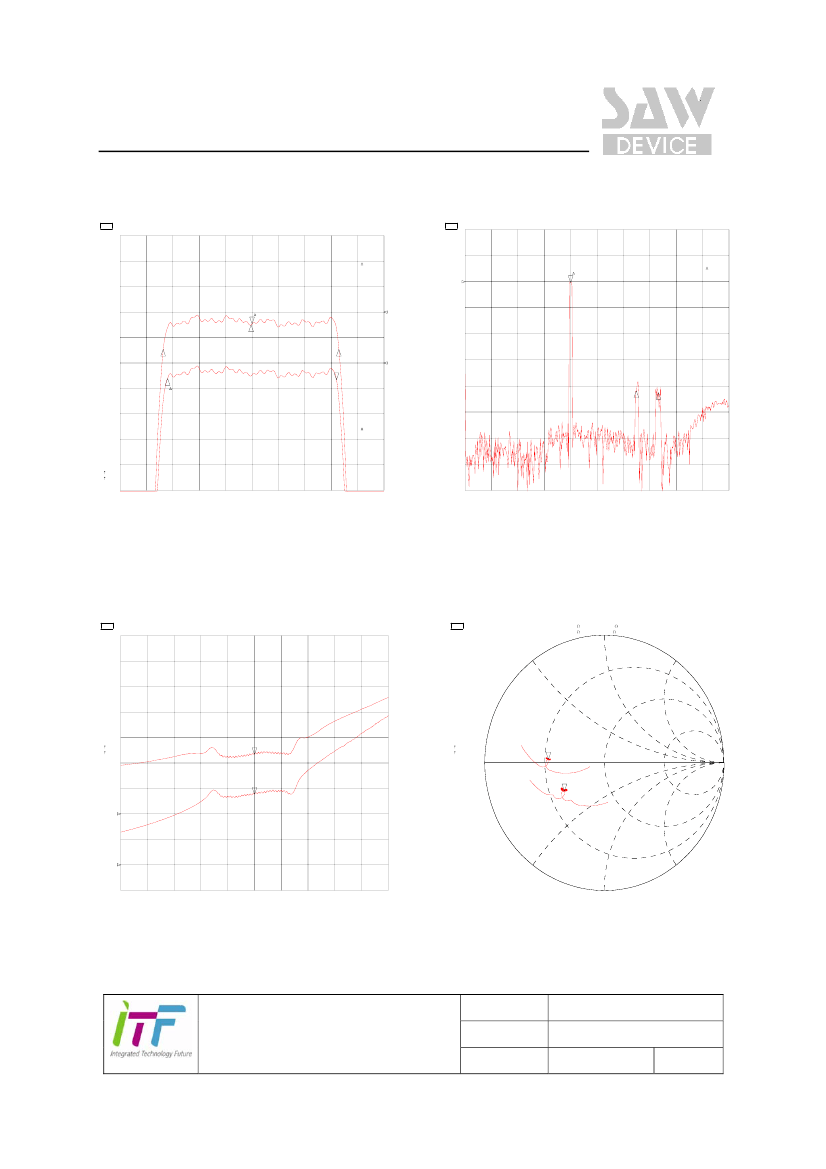

SAW Bandpass Filter 250403B
CH2 S21
CH4 S21
LOG
LOG
1 dB/ REF -23 dB
1 dB/ REF -23 dB
6 May 2005 23:04:24
1: 0. 0000 dB
0. 000 000 MHz
3:- . 05140 dB
3. 840 000 MHz
CH1 S21
LOG
10 dB/ REF -23 dB
6 May 2005 23:06:47
1: 0. 0000 dB
0. 000 000 MHz
CH2Markers
BW
:
3. 992986 MHz
REF=1
1
CH1Markers
2:-41 . 525 dB
99. 5000 MHz
3:-42 . 168 dB
133. 000 MHz
REF=1
cent : 159. 977755 MHz
Q 40. 065
:
1_
loss : -23 . 463 dB
1
2
3
4
3
2
Cor
CH4Markers
Cor
mean
:-23 . 381 dB
s. dev: . 10200 dB
p-p : . 54410 dB
2
3
REF=2
CENTER160. 000 000 MHz
SPAN 6. 000 000 MHz
4
2
START . 010 000 MHz
STOP 400. 000 000 MHz
CH1 S11
CH3 S22
SWR
SWR
1 /
1 /
REF 0
REF 0
6 May 2005 23:05:26
1: 2. 3375
160. 000 000 MHz
2: 2. 7720
160. 000 000 MHz
CH1 S11
CH3 S22
1 U FS
1 U FS
1: 22. 954
2: 18. 040
-12 . 036
1. 2666
6 May 2005 23:05:04
82. 644 pF
160. 000 000 MHz
1. 2599 nH
160. 000 000 MHz
Cor
Cor
Cor
Cor
1
2
2
1
CENTER160. 000 000 MHz
SPAN 15. 000 000 MHz
CENTER160. 000 000 MHz
SPAN 15. 000 000 MHz
I T F Co., Ltd.
102-901, Bucheon Technopark 364,
Samjeong-Dong, Ojeong-Gu, Bucheon-City,
Gyounggi-Do, Korea 421-809
Part No.
Rev. Date
Rev.
250403B
2005-05-07
NW5005-CS01
5/5
