ES1ALMH datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> ES1ALMH

ES1ALMH: DescriptionRectifier Diode, 1 Element, 1A, 150V V(RRM), Silicon, ROHS COMPLIANT, PLASTIC, SUB SMA, 2 PIN; CategoryDiscrete semiconductor diode; File Size375KB，4 Pages; ManufacturerTaiwan Semiconductor; Websitehttp://www.taiwansemi.com/; Environmental Compliance

Download Datasheet Parametric View All

ES1ALMH Overview

Rectifier Diode, 1 Element, 1A, 150V V(RRM), Silicon, ROHS COMPLIANT, PLASTIC, SUB SMA, 2 PIN

ES1ALMH Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT, PLASTIC, SUB SMA, 2 PIN
Reach Compliance Code	not_compliant
ECCN code	EAR99
Other features	LOW POWER LOSS
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
JESD-30 code	R-PDSO-F2
JESD-609 code	e3
Humidity sensitivity level	1
Number of components	1
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Maximum output current	1 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260
Maximum repetitive peak reverse voltage	150 V
Maximum reverse recovery time	0.035 µs
surface mount	YES
Terminal surface	Matte Tin (Sn)
Terminal form	FLAT
Terminal location	DUAL
Maximum time at peak reflow temperature	30
Base Number Matches	1

Preview

Download Datasheet

View All

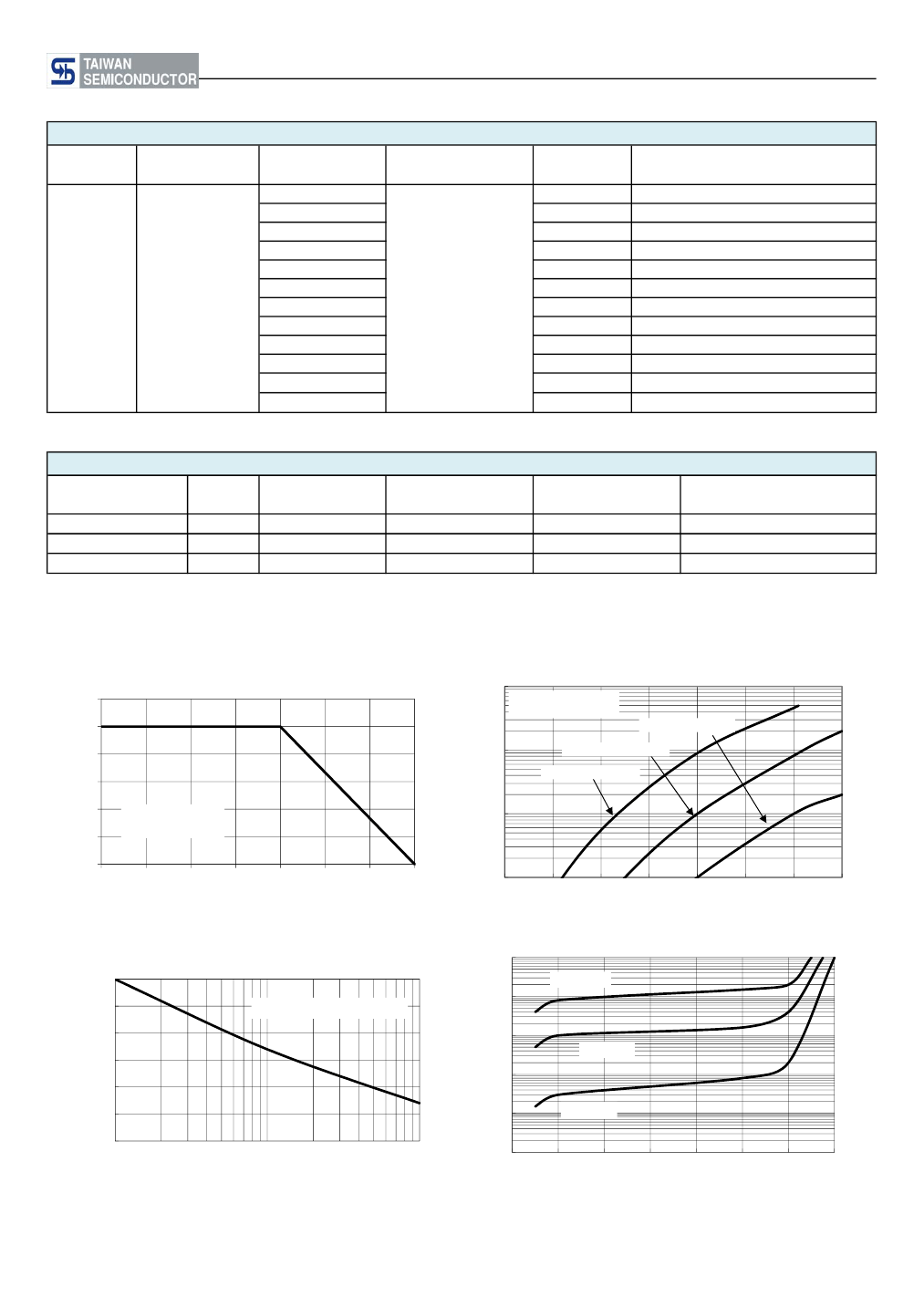

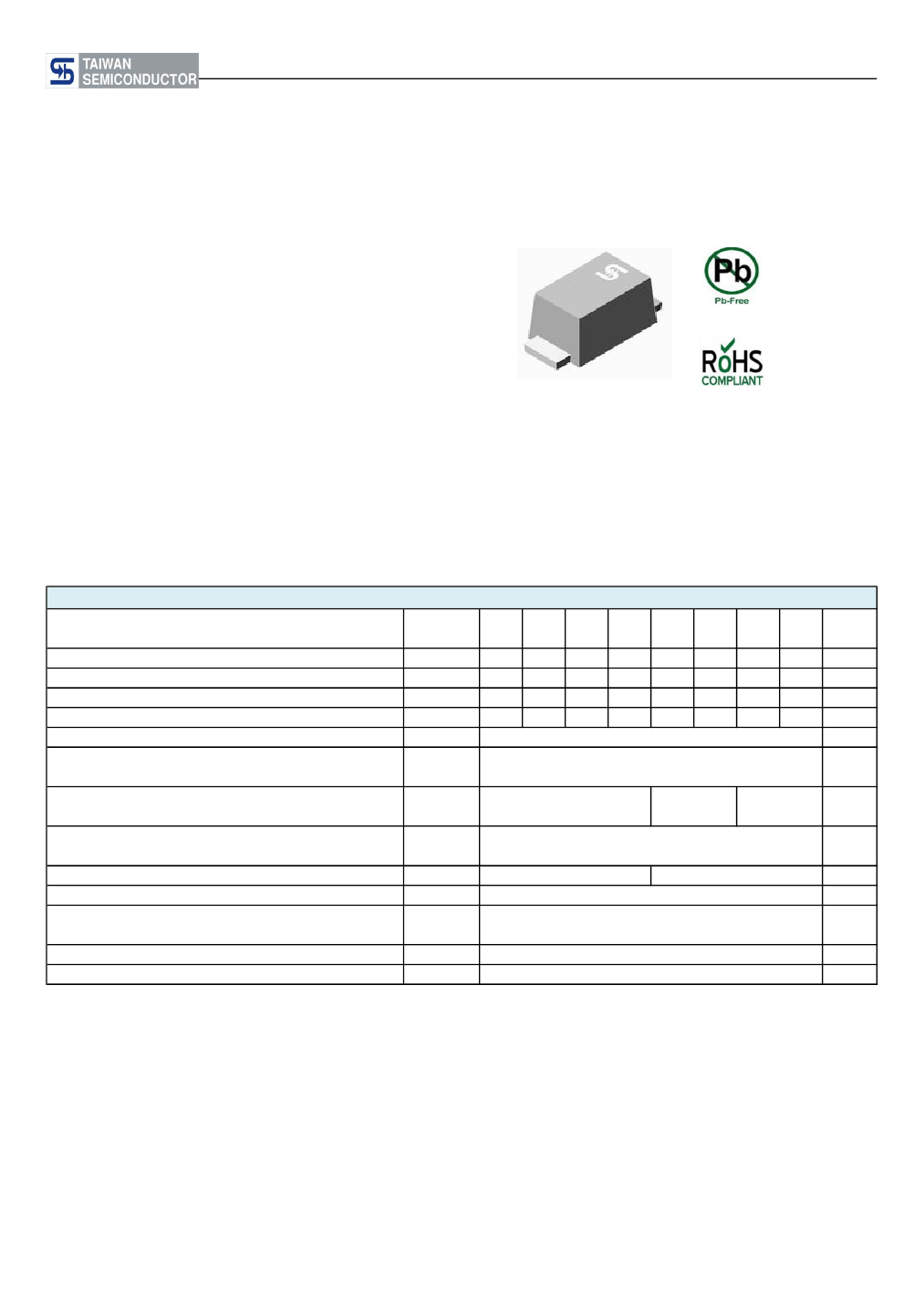

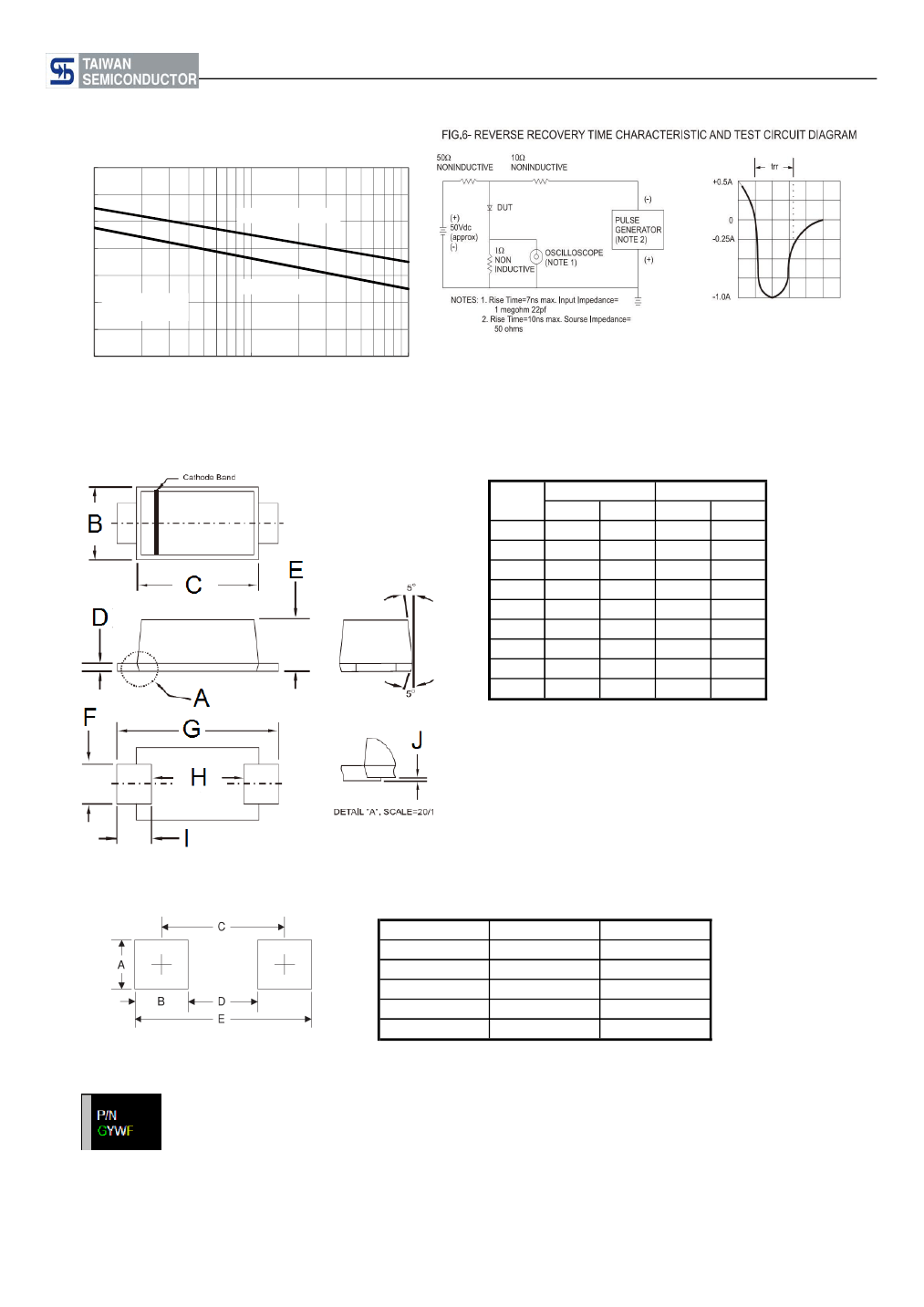

ES1AL thru ES1JL

Taiwan Semiconductor

CREAT BY ART

Surface Mount Super Fast Rectifiers

FEATURES

- Glass passivated junction chip

- Ideal for automated placement

- Low profile package

- Low power loss, high efficiency

- Moisture sensitivity level: level 1, per J-STD-020

- Compliant to RoHS Directive 2011/65/EU and

in accordance to WEEE 2002/96/EC

- Halogen-free according to IEC 61249-2-21 definition

MECHANICAL DATA

Case:

Sub SMA

Molding compound, UL flammability classification rating 94V-0

Base P/N with suffix "G" on packing code - green compound (halogen-free)

Base P/N with prefix "H" on packing code - AEC-Q101 qualified

Terminal:

Matte tin plated leads, solderable per JESD22-B102

Meet JESD 201 class 1A whisker test

with prefix "H" on packing code meet JESD 201 class 2 whisker test

Polarity:

Indicated by cathode band

Weight:

0.019 g (approximately)

Sub SMA

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS

=25℃ unless otherwise noted)

PARAMETER

Marking code

Maximum repetitive peak reverse voltage

Maximum RMS voltage

Maximum DC blocking voltage

Maximum average forward rectified current

Peak forward surge current, 8.3 ms single half sine-wave

superimposed on rated load

Maximum instantaneous forward voltage (Note 1)

@1A

Maximum reverse current @ rated VR T

=25

℃

=125

℃

Typical junction capacitance (Note 2)

Maximum reverse recovery time (Note 3)

Typical thermal resistance

Operating junction temperature range

Storage temperature range

Note 1: Pulse test with PW=300μs, 1% duty cycle

Note 2: Measured at 1 MHz and Applied VR=4.0 Volts.

Note 3: Reverse Recovery Test Conditions: I

=0.5A, I

=1.0A, I

=0.25A

RRM

RMS

F(AV)

FSM

Trr

θJL

θJA

STG

- 55 to +150

SYMBOL

1AL

EAL

1BL

EBL

100

1CL

ECL

150

105

150

1DL

EDL

200

140

200

1FL

EFL

300

210

300

1GL

EGL

400

280

400

1HL

EHL

500

350

500

1JL

EJL

600

420

600

UNIT

0.95

100

1.3

1.7

μA

C/W

Document Number: DS_D1405035

Version: I14
