LC6568DQIP64A: DescriptionMicrocontroller, 4-Bit, MROM, 4.33MHz, CMOS, PQFP64; CategoryThe embedded processor and controller Microcontrollers and processors; File Size760KB，31 Pages; ManufacturerSANYO; Websitehttp://www.semic.sanyo.co.jp/english/index-e.html

Download Datasheet Parametric Compare View All

LC6568DQIP64A Overview

Microcontroller, 4-Bit, MROM, 4.33MHz, CMOS, PQFP64

LC6568DQIP64A Parametric

Parameter Name	Attribute value
package instruction	QFP,
Reach Compliance Code	unknown
Has ADC	NO
Other features	PRESCALER
Address bus width
bit size	4
boundary scan	NO
maximum clock frequency	4.33 MHz
DAC channel	NO
DMA channel	NO
External data bus width
Format	FIXED POINT
Integrated cache	NO
JESD-30 code	S-PQFP-G64
low power mode	YES
Number of DMA channels
Number of external interrupt devices	4
Number of I/O lines	57
Number of serial I/Os	1
Number of terminals	64
Number of timers	1
On-chip data RAM width	4
On-chip program ROM width	8
Maximum operating temperature	70 °C
Minimum operating temperature	-30 °C
PWM channel	NO
Package body material	PLASTIC/EPOXY
encapsulated code	QFP
Package shape	SQUARE
Package form	FLATPACK
Certification status	Not Qualified
RAM (number of words)	256
rom(word)	8000
ROM programmability	MROM
speed	4.33 MHz
Maximum slew rate	15 mA
Maximum supply voltage	6 V
Minimum supply voltage	4 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	OTHER
Terminal form	GULL WING
Terminal location	QUAD
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER
Base Number Matches	1

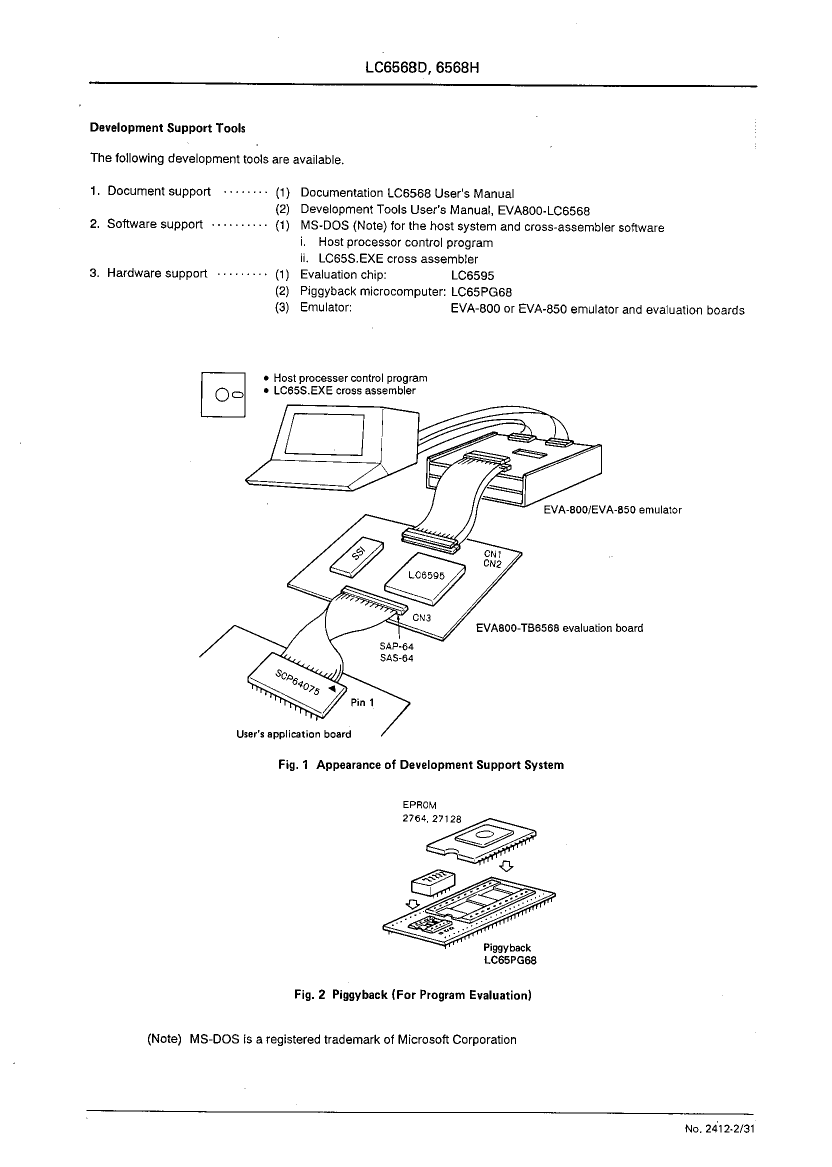

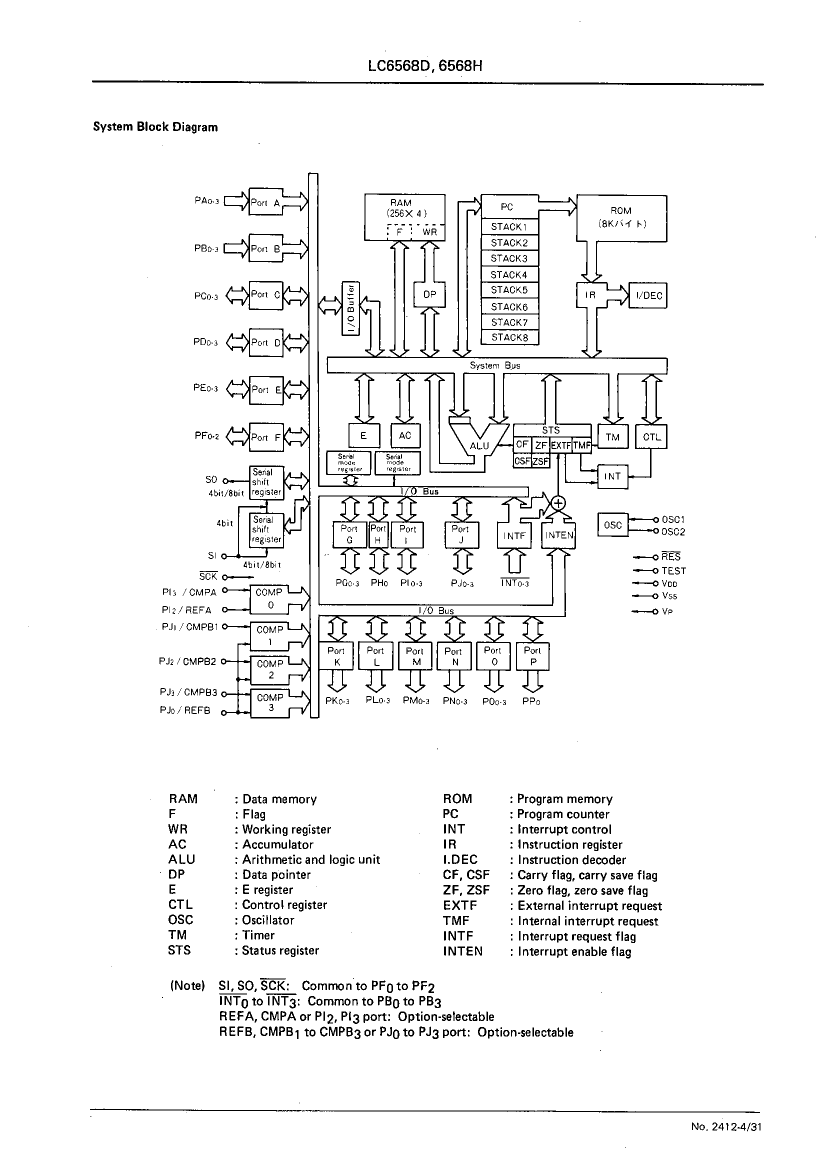

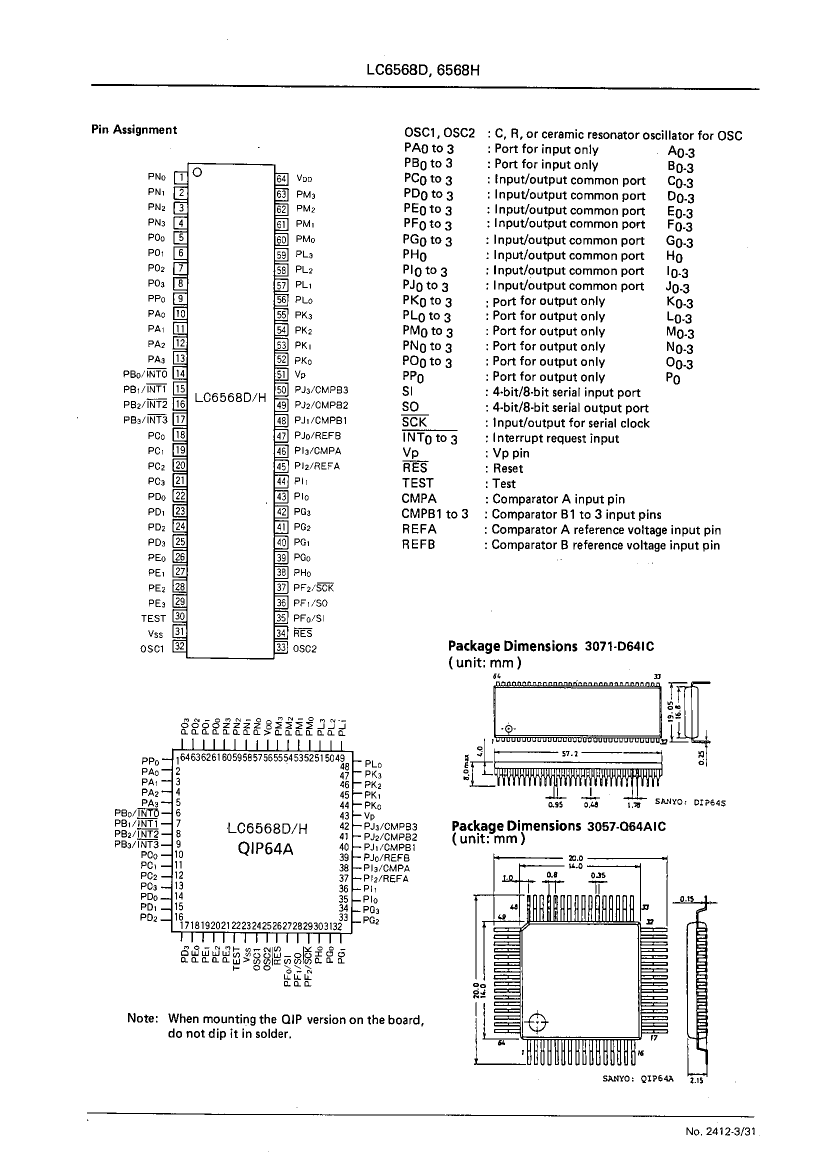

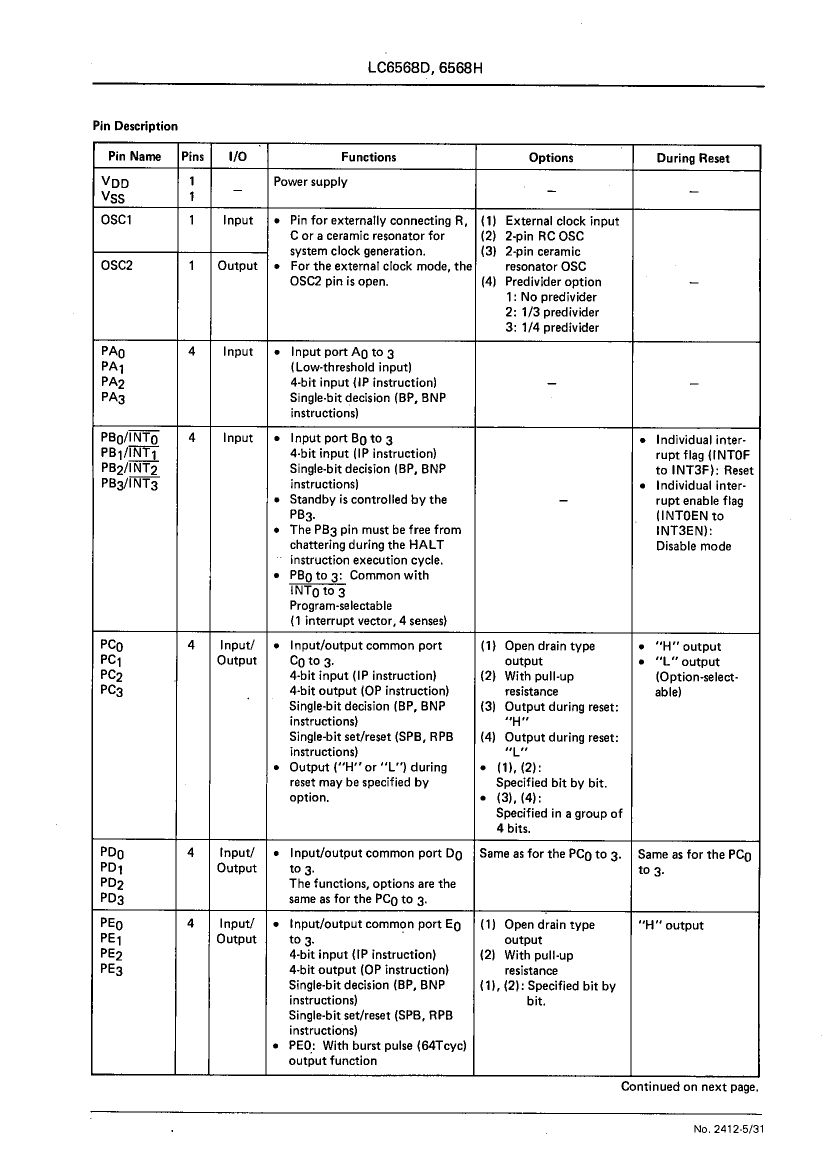

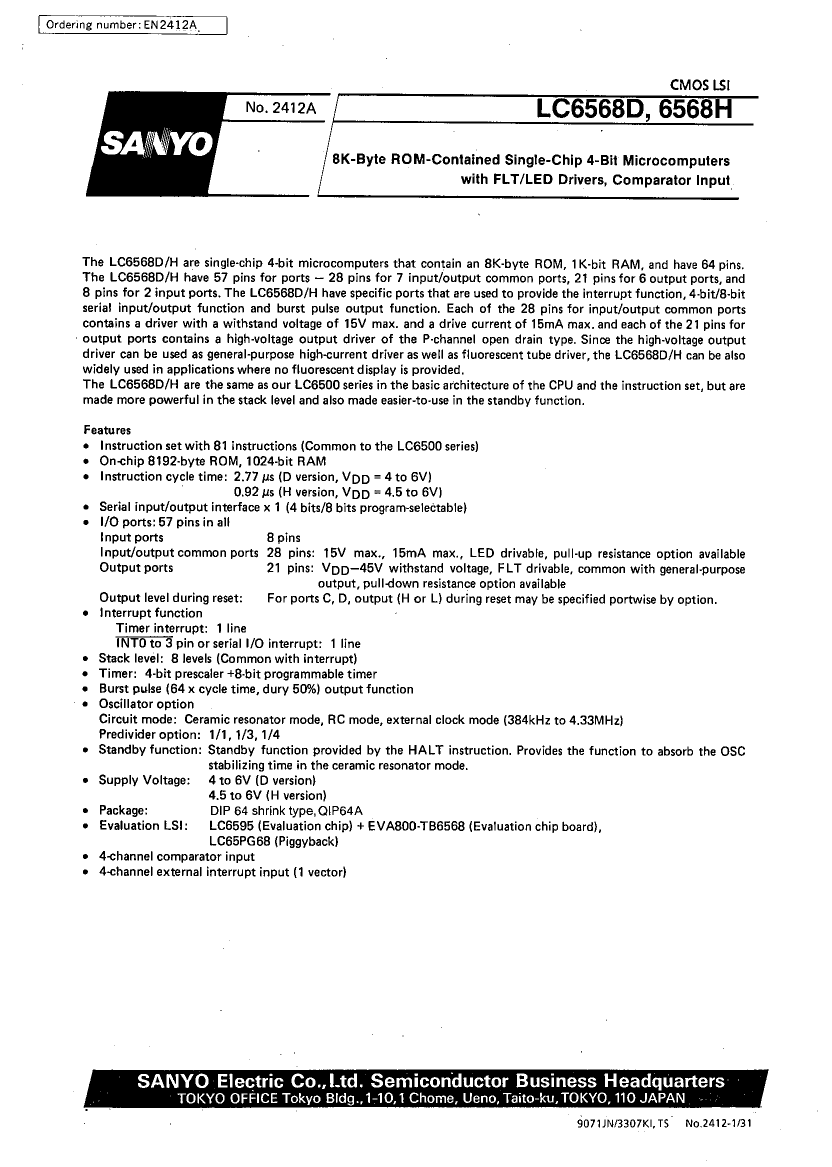

Preview

Download Datasheet

View All

LC6568DQIP64A Related Products

	LC6568DQIP64A	LD6568H	LC6568HDIP64S	LC6568DDIP64S	LC6568HQIP64A
Description	Microcontroller, 4-Bit, MROM, 4.33MHz, CMOS, PQFP64	Microcontroller, 4-Bit, MROM, 4.33MHz, CMOS, PDIP64, DIP-64	Microcontroller, 4-Bit, MROM, 4.33MHz, CMOS, PDIP64	Microcontroller, 4-Bit, MROM, 4.33MHz, CMOS, PDIP64	Microcontroller, 4-Bit, MROM, 4.33MHz, CMOS, PQFP64
package instruction	QFP,	DIP,	DIP,	DIP,	QFP,
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
Has ADC	NO	NO	NO	NO	NO
bit size	4	4	4	4	4
maximum clock frequency	4.33 MHz	4.33 MHz	4.33 MHz	4.33 MHz	4.33 MHz
DAC channel	NO	NO	NO	NO	NO
DMA channel	NO	NO	NO	NO	NO
JESD-30 code	S-PQFP-G64	R-PDIP-T64	R-PDIP-T64	R-PDIP-T64	S-PQFP-G64
Number of I/O lines	57	57	57	57	57
Number of terminals	64	64	64	64	64
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C
Minimum operating temperature	-30 °C	-30 °C	-30 °C	-30 °C	-30 °C
PWM channel	NO	NO	NO	NO	NO
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	QFP	DIP	DIP	DIP	QFP
Package shape	SQUARE	RECTANGULAR	RECTANGULAR	RECTANGULAR	SQUARE
Package form	FLATPACK	IN-LINE	IN-LINE	IN-LINE	FLATPACK
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
ROM programmability	MROM	MROM	MROM	MROM	MROM
speed	4.33 MHz	4.33 MHz	4.33 MHz	4.33 MHz	4.33 MHz
Maximum supply voltage	6 V	6 V	6 V	6 V	6 V
Minimum supply voltage	4 V	4.5 V	4.5 V	4 V	4.5 V
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V
surface mount	YES	NO	NO	NO	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	OTHER	OTHER	OTHER	OTHER	OTHER
Terminal form	GULL WING	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	GULL WING
Terminal location	QUAD	DUAL	DUAL	DUAL	QUAD
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER
Other features	PRESCALER	-	PRESCALER	PRESCALER	PRESCALER
boundary scan	NO	-	NO	NO	NO
Format	FIXED POINT	-	FIXED POINT	FIXED POINT	FIXED POINT
Integrated cache	NO	-	NO	NO	NO
low power mode	YES	-	YES	YES	YES
Number of external interrupt devices	4	-	4	4	4
Number of serial I/Os	1	-	1	1	1
Number of timers	1	-	1	1	1
On-chip data RAM width	4	-	4	4	4
On-chip program ROM width	8	-	8	8	8
RAM (number of words)	256	-	256	256	256
rom(word)	8000	-	8000	8000	8000
Maximum slew rate	15 mA	-	15 mA	15 mA	15 mA
Maker	-	-	SANYO	SANYO	SANYO
