890-90-024-10-805: Description24 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER; Categorysemiconductor Other integrated circuit (IC); File Size58KB，1 Pages; ManufacturerPRECI-DIP; Websitehttp://www.precidip.com/en/index.html

Download Datasheet View All

890-90-024-10-805 Overview

24 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER

Preview

Download Datasheet

View All

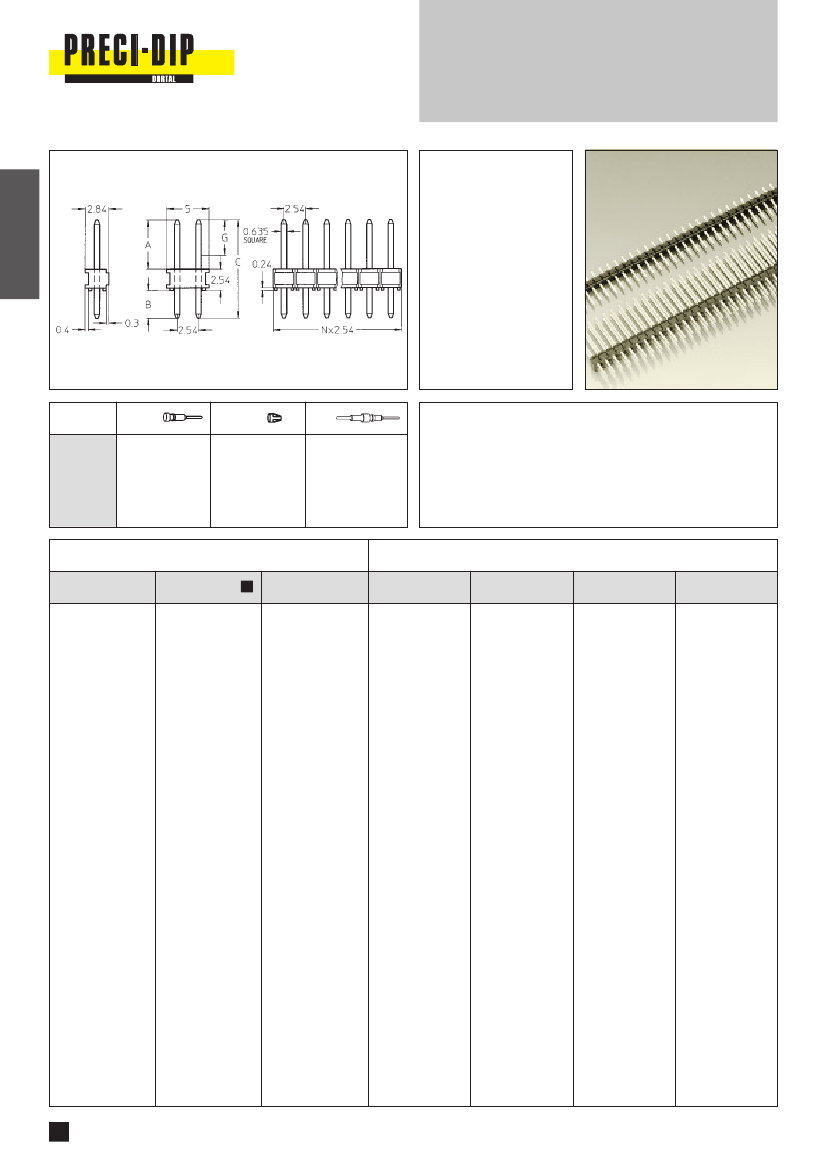

Series 890 / 892

PCB connectors 2.54 mm

Single row / double row

Solder tail

Series 890 / 892 square

pin headers are cost effi-

cient thanks to selective

gold plating on pins made

of copper alloy

They come with various

pin lengths to suit many

different applications

When used with series

999 female jumpers,

these connectors may

serve as a practical, sim-

ple means for coding pur-

poses

For corresponding recept-

acles see pages 22 to 29

Ordering information

Replace

xxx

with required number of poles, e.g.

892-39-xxx-10-802 for a double row version with 12 pins per

row becomes: 892-39-024-10-802

Availability:

single row: 1 to 36 contacts, standard 36 contacts

double row: 4 to 72 contacts, standard 72 contacts

Platings

Sleeve

Clip

0.25

µm

Au/Sn Pb*

0.75

µm

Au/Sn Pb*

Sn Pb

* selective

Order Codes

Plating 19

Single row

890-19-xxx-10-802

890-19-xxx-10-809

890-19-xxx-10-803

890-19-xxx-10-000

890-19-xxx-10-800

890-19-xxx-10-804

890-19-xxx-10-811

890-19-xxx-10-805

890-19-xxx-10-807

890-19-xxx-10-808

Double row

892-19-xxx-10-802

892-19-xxx-10-809

892-19-xxx-10-803

892-19-xxx-10-000

892-19-xxx-10-800

892-19-xxx-10-804

892-19-xxx-10-811

892-19-xxx-10-805

892-19-xxx-10-807

892-19-xxx-10-808

Plating 39

Plating 90

Solder side

B ± 0.2

2.56

2.46

2.96

3.26

3.46

3.06

4.96

10.06

12.76

Dimensions

Connector side

A ± 0.2

5.7

8.5

5.8

7.0

6.7

5.8

15.4

6.0

5.7

Total lenght

C ± 0.1

10.8

13.5

11.3

12.5

11.8

21.0

13.5

18.3

21.0

Min. length of

gold plating G

4.5

7.3

4.6

5.8

5.5

4.6

14.2

4.8

4.5

890-39-xxx-10-802

890-39-xxx-10-809

890-39-xxx-10-803

890-39-xxx-10-000

890-39-xxx-10-800

890-39-xxx-10-804

890-39-xxx-10-811

890-39-xxx-10-805

890-39-xxx-10-807

890-39-xxx-10-808

890-90-xxx-10-802

890-90-xxx-10-809

890-90-xxx-10-803

890-90-xxx-10-000

890-90-xxx-10-800

890-90-xxx-10-804

890-90-xxx-10-811

890-90-xxx-10-805

890-90-xxx-10-807

890-90-xxx-10-808

892-39-xxx-10-802

892-39-xxx-10-809

892-39-xxx-10-803

892-39-xxx-10-000

892-39-xxx-10-800

892-39-xxx-10-804

892-39-xxx-10-811

892-39-xxx-10-805

892-39-xxx-10-807

892-39-xxx-10-808

892-90-xxx-10-802

892-90-xxx-10-809

892-90-xxx-10-803

892-90-xxx-10-000

892-90-xxx-10-800

892-90-xxx-10-804

892-90-xxx-10-811

892-90-xxx-10-805

892-90-xxx-10-807

892-90-xxx-10-808

2.56

2.46

2.96

3.26

3.46

3.06

4.96

10.06

12.76

5.7

8.5

5.8

7.0

6.7

5.8

15.4

6.0

5.7

10.8

13.5

11.3

12.5

11.8

21.0

13.5

18.3

21.0

4.5

7.3

4.6

5.8

5.5

4.6

14.2

4.8

4.5

Products not available from stock. Please consult PRECI-DIP.
