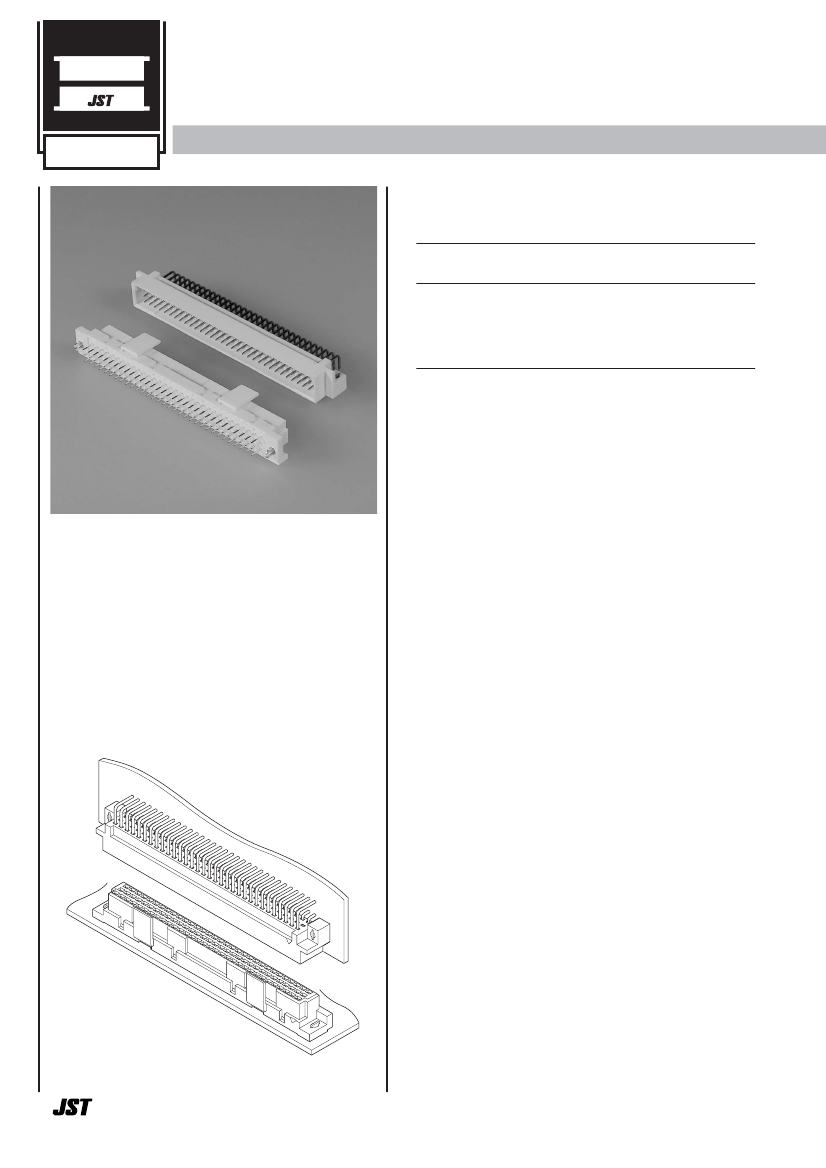

DIN
CONNECTOR
2.54mm
pitch
Board-to-board connectors
Features ––––––––––––––––––––––––
• Conforms to DIN standards
• Secure locking mechanism
This mechanism securely holds housings and improves
resistance to vibration and shock of PC board. The friction lock
connector is also available.
• Secure locking on PC board
The DIN connector has hook pins that allows it to be temporarily
mounted on the PC board. This prevents connector from lifting
or changing position while it is being mounted.
Multicircuit and self-supporting style
board-to-board connector
Specifications –––––––––––––––––––
• Current rating: 1.0A AC, DC
• Voltage rating: 50V AC, DC
• Temperature range:
-
25˚C to
+
85˚C
(including temperature rise in applying
electrical current)
• Contact resistance: Initial value/30m
Ω
max.
After environmental testing/50m
Ω
max.
• Insulation resistance: 1,000M
Ω
min.
• Withstanding voltage: 800V AC/minute
• Applicable PC board thickness: 1.6mm
* Compliant with RoHS.
* Refer to "General Instruction and Notice when using
Terminals and Connectors" at the end of this catalog.
* Contact JST for details.
Standards ––––––––––––––––––––––
0
1
1
Recognized E60389
Certified LR20812
DIN
CONNECTOR

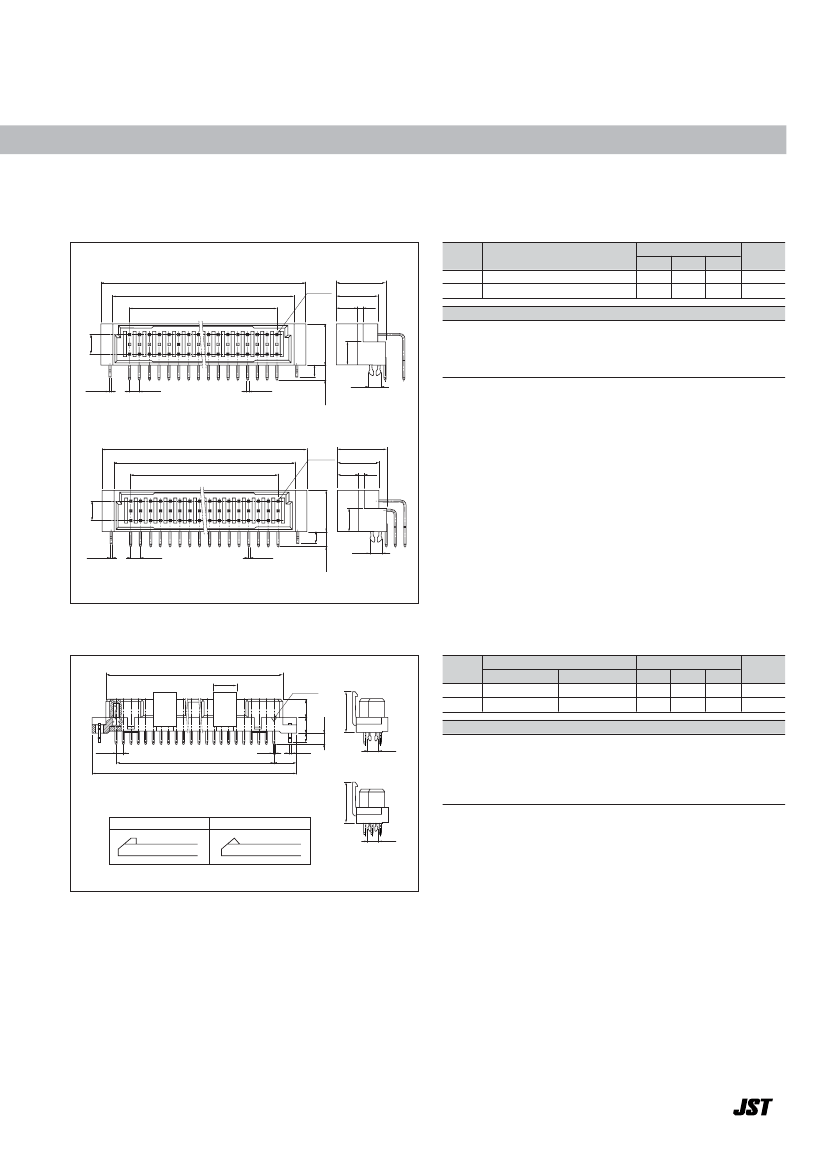

Plug ––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
(64 circuits)
C
B
A
Circuit
No.1
12.7
10.8
5.5
1.6
Circuits
64
96
Model No.
DIN-PS6464B-10
DIN-PS9696B-10
Dimensions (mm)
A
B
C
78.74
78.74
87.5
87.5
93.8
93.8
Q'ty / box
30
30
Material and Finish
Contact: Brass, nickel-undercoated, Mating part; gold-plated
Solder tail; tin-plated (reflow treatment)
Housing: Glass-filled PBT, UL94V-0
Reinforcing pin: Brass, copper-undercoated, tin-plated (reflow treatment)
3.2
3.9
5.08
10.9
3.0
6.0
0.5
2.54
0.5
RoHS compliance
This product displays (LF)(SN) on a label.
(96 circuits)
C
B
A
Circuit
No.1
12.7
10.8
5.5
1.6
5.08
10.9
3.0
6.0
3.2
Receptacle –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
A
8.0
Circuit
No.1
3.9
0.5
2.54
0.5
Circuits
(64 circuits)
14.0
64
96
3.0 (5.2) 6.3
3.8
Model No.
Secure loke type Friction lock type
DIN-R6464LB-10 DIN-R6464FLB-10
DIN-R9696LB-10 DIN-R9696FLB-10
Dimensions (mm)
A
B
C
85.0
85.0
78.74
78.74
94.8
94.8
Q'ty / box
30
30
Material and Finish
3.2
2.54
B
C
0.6
8.03
0.5
(96 circuits)
14.0
Contact: Phosphor bronze, nickel-undercoated,
Mating part; gold-plated
Solder tail; tin-plated (reflow treatment)
Housing: Glass-filled PBT, UL94V-0
Holder: Glass-filled PBT, UL94V-0
Reinforcing pin: Brass, copper-undercoated, tin-plated (reflow treatment)
RoHS compliance
This product displays (LF)(SN) on a label.
Secure lock
Friction lock
3.2
2
DIN
Plug
CONNECTOR
PC board layout
(viewed from component side)
and Assembly layout ––––––––––––––––––
Receptacle
(96 circuits)
φ
2.8±0.05
2.54±0.05 5.08±0.05
2.54±0.05
φ
1.0
+0.1
0
78.74±0.1
2.54±0.05
(64 circuits)
φ
1.0
+0.1
0
78.74±0.1
2.54±0.05
(64 circuits)
φ
1.0
+0.1
0
78.74±0.1
2.54±0.05
(96 circuits)
10.9
2.54±0.05
φ
2.8±0.05
2.24±0.05
φ
1.0
+0.1
0
78.74±0.1
2.54±0.05
φ
2.8±0.05
2.54±0.05 5.08±0.05
φ
2.8±0.05
5.08±0.05
2.24±0.05
5.08±0.05
5.08±0.05
88.9±0.1
5.08±0.05
88.9±0.1
5.63
90.0±0.1
5.63
90.0±0.1
Note:
1. Tolerances are non-cumulative: ±0.05mm for all centers.
2. Hole dimensions differ according to the kind of PC board and piercing method.
The dimensions above should serve as a guideline. Contact JST for details.
3
17.9
