DAC8221BIEW: DescriptionIC PARALLEL, WORD INPUT LOADING, 0.45 us SETTLING TIME, 12-BIT DAC, CDIP24, 0.300 INCH, CERDIP-24, Digital to Analog Converter; CategoryAnalog mixed-signal IC converter; File Size597KB，16 Pages; ManufacturerADI; Websitehttps://www.analog.com

Download Datasheet Parametric Compare View All

DAC8221BIEW Overview

IC PARALLEL, WORD INPUT LOADING, 0.45 us SETTLING TIME, 12-BIT DAC, CDIP24, 0.300 INCH, CERDIP-24, Digital to Analog Converter

DAC8221BIEW Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Parts packaging code	DIP
package instruction	0.300 INCH, CERDIP-24
Contacts	24
Reach Compliance Code	compliant
Converter type	D/A CONVERTER
Enter bit code	OFFSET BINARY
Input format	PARALLEL, WORD
JESD-30 code	R-GDIP-T24
JESD-609 code	e0
Maximum linear error (EL)	0.0122%
Number of digits	12
Number of functions	1
Number of terminals	24
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum seat height	5.715 mm
Nominal settling time (tstl)	0.45 µs
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	TIN LEAD
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	7.62 mm
Base Number Matches	1

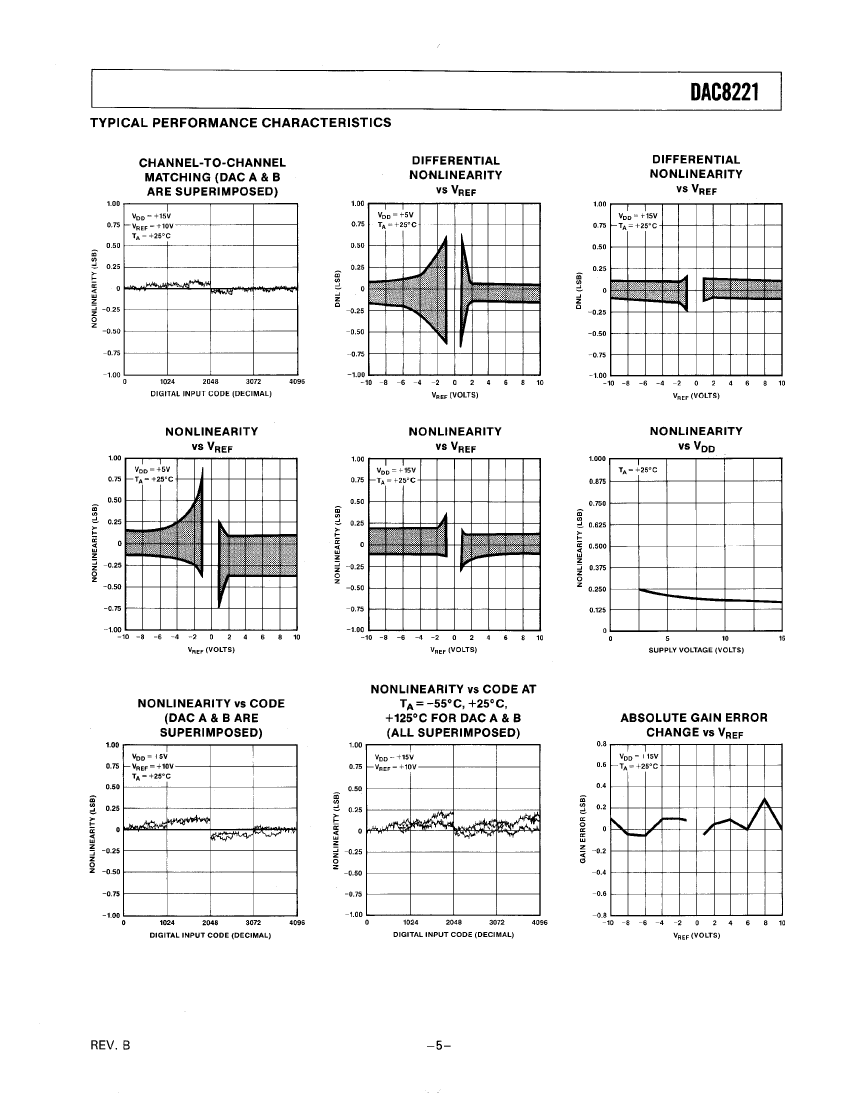

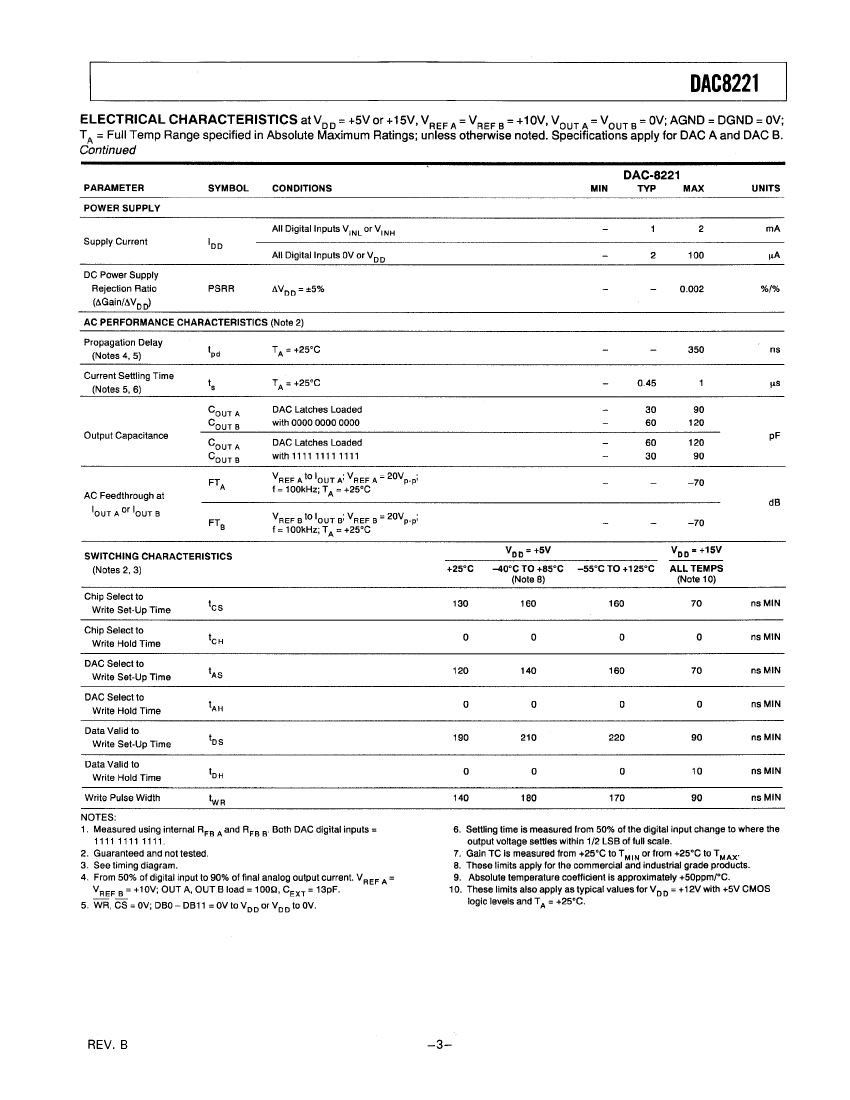

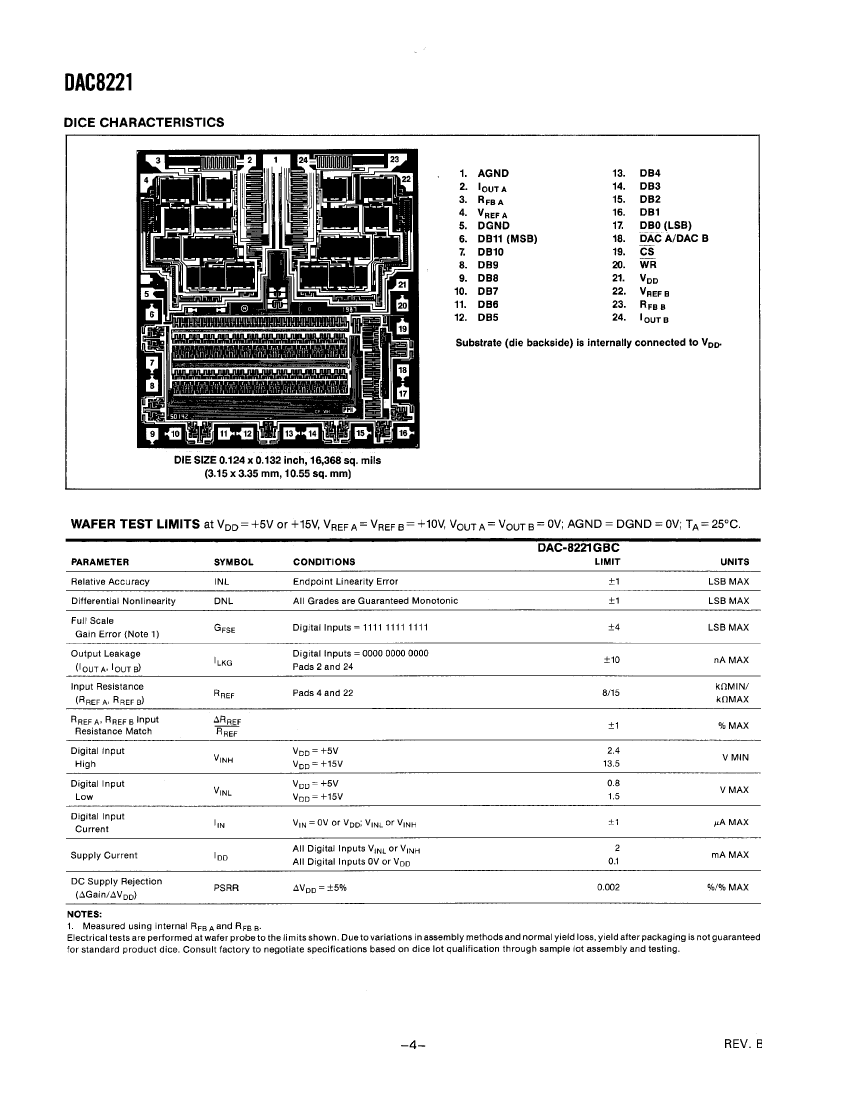

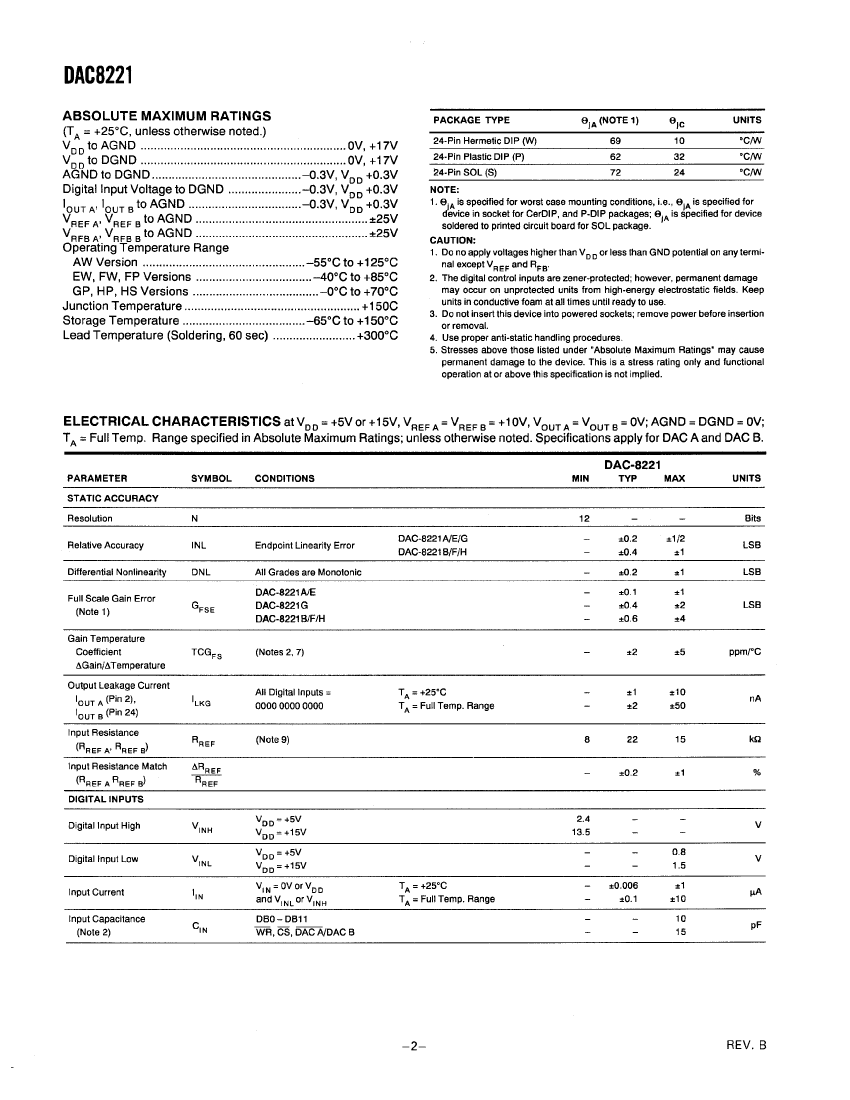

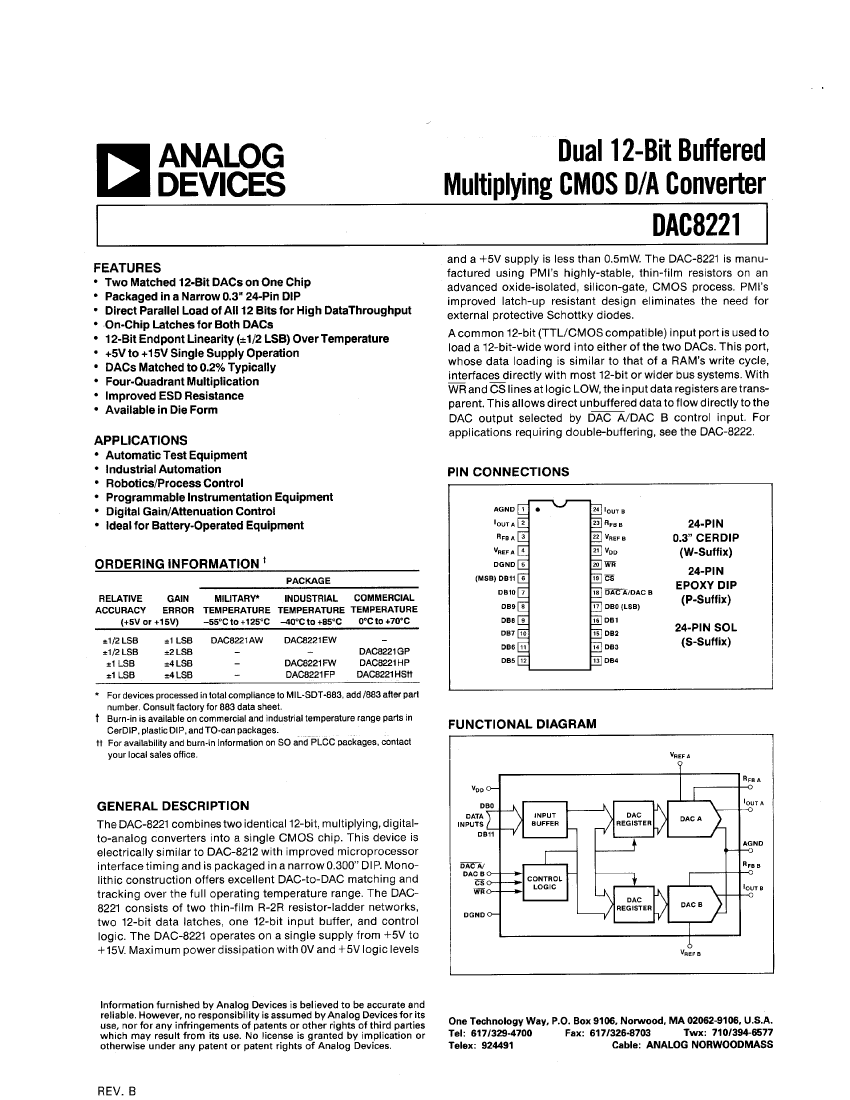

Preview

Download Datasheet

View All

DAC8221BIEW Related Products

	DAC8221BIEW	DAC8221AW/883B	DAC8221GBC	DAC8221BTC/883C	DAC8221BIFW	DAC8221BIHP
Description	IC PARALLEL, WORD INPUT LOADING, 0.45 us SETTLING TIME, 12-BIT DAC, CDIP24, 0.300 INCH, CERDIP-24, Digital to Analog Converter	IC DUAL, PARALLEL, WORD INPUT LOADING, 0.45 us SETTLING TIME, 12-BIT DAC, CDIP24, 0.300 INCH, CERDIP-24, Digital to Analog Converter	IC PARALLEL, WORD INPUT LOADING, 0.45 us SETTLING TIME, 12-BIT DAC, UUC24, 0.124 X 0.132 INCH, DIE-24, Digital to Analog Converter	IC DUAL, PARALLEL, WORD INPUT LOADING, 0.45 us SETTLING TIME, 12-BIT DAC, CQCC24, CERAMIC, LCC-24, Digital to Analog Converter	IC PARALLEL, WORD INPUT LOADING, 0.45 us SETTLING TIME, 12-BIT DAC, CDIP24, 0.300 INCH, CERDIP-24, Digital to Analog Converter	IC PARALLEL, WORD INPUT LOADING, 0.45 us SETTLING TIME, 12-BIT DAC, PDIP24, PLASTIC, DIP-24, Digital to Analog Converter
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Parts packaging code	DIP	DIP	DIE	LCC	DIP	DIP
package instruction	0.300 INCH, CERDIP-24	0.300 INCH, CERDIP-24	0.124 X 0.132 INCH, DIE-24	CERAMIC, LCC-24	0.300 INCH, CERDIP-24	PLASTIC, DIP-24
Contacts	24	24	24	24	24	24
Reach Compliance Code	compliant	compliant	unknown	not_compliant	compliant	compliant
Converter type	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER
Enter bit code	OFFSET BINARY	BINARY	OFFSET BINARY	BINARY, OFFSET BINARY	OFFSET BINARY	OFFSET BINARY
Input format	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD
JESD-30 code	R-GDIP-T24	R-GDIP-T24	R-XUUC-N24	R-CQCC-N24	R-GDIP-T24	R-PDIP-T24
JESD-609 code	e0	e0	e0	e0	e0	e0
Maximum linear error (EL)	0.0122%	0.0122%	0.0244%	0.0244%	0.0244%	0.0244%
Number of digits	12	12	12	12	12	12
Number of functions	1	2	1	2	1	1
Number of terminals	24	24	24	24	24	24
Maximum operating temperature	85 °C	125 °C	85 °C	125 °C	85 °C	70 °C
Minimum operating temperature	-40 °C	-55 °C	-40 °C	-55 °C	-40 °C	-
Package body material	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	UNSPECIFIED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, GLASS-SEALED	PLASTIC/EPOXY
encapsulated code	DIP	DIP	DIE	QCCN	DIP	DIP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	UNCASED CHIP	CHIP CARRIER	IN-LINE	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	220	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Nominal settling time (tstl)	0.45 µs	0.45 µs	0.45 µs	0.45 µs	0.45 µs	0.45 µs
surface mount	NO	NO	YES	YES	NO	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	MILITARY	INDUSTRIAL	MILITARY	INDUSTRIAL	COMMERCIAL
Terminal surface	TIN LEAD	TIN LEAD	TIN LEAD	Tin/Lead (Sn/Pb)	TIN LEAD	TIN LEAD
Terminal form	THROUGH-HOLE	THROUGH-HOLE	NO LEAD	NO LEAD	THROUGH-HOLE	THROUGH-HOLE
Terminal location	DUAL	DUAL	UPPER	QUAD	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	30	NOT SPECIFIED	NOT SPECIFIED
Maximum seat height	5.715 mm	5.08 mm	-	-	5.715 mm	5.33 mm
Nominal supply voltage	5 V	-	5 V	5 V	5 V	5 V
Terminal pitch	2.54 mm	2.54 mm	-	1.27 mm	2.54 mm	2.54 mm
width	7.62 mm	7.62 mm	-	-	7.62 mm	7.62 mm
Base Number Matches	1	1	1	1	-	-
Maker	-	ADI	ADI	ADI	ADI	ADI
