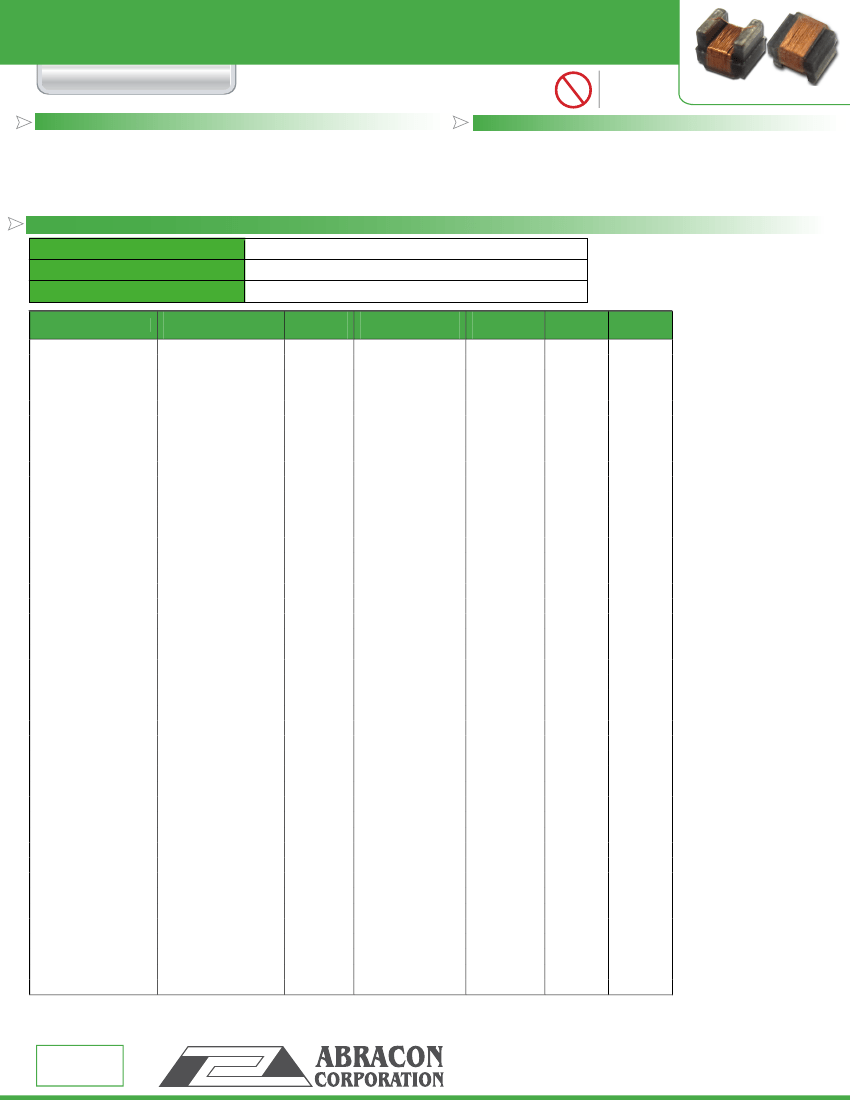

• Exceptional high Q and SRF for high frequency applications
• Excellent DCR and current carrying characteristics
• Small size suitable for surface mounting
• Epoxy coating protects wound wire
Pb
APPLICATIONS:
RoHS
Compliant
2.29 x 1.73 x 1.55mm
| | | | | | | | | | | | | |
|
• Widely applied in mobile phones such as GSM, CDMA, PDC, etc.
• Bluetooth, W-LAN, Broadband Network
• High Frequency Communication Circuits
• Video cameras, liquid crystal television, and other electronic devices
STANDARD SPECIFICATIONS:
Abracon P/N:
Operating Temperature & Humidity
:
Storage Temperature & Humidity:
Part Number
AISC-0805-R0022
AISC-0805-R0033
AISC-0805-R0068
AISC-0805-R0082
AISC-0805-R012
AISC-0805-R015
AISC-0805-R018
AISC-0805-R022
AISC-0805-R027
AISC-0805-R033
AISC-0805-R039
AISC-0805-R047
AISC-0805-R056
AISC-0805-R068
AISC-0805-R082
AISC-0805-R10
AISC-0805-R12
AISC-0805-R15
AISC-0805-R18
AISC-0805-R22
AISC-0805-R27
AISC-0805-R33
AISC-0805-R39
AISC-0805-R47
AISC-0805-R56
AISC-0805-R62
AISC-0805-R68
AISC-0805-R75
AISC-0805-R82
AISC-0805-R91
AISC-0805-1R0
AISC-0805F-R027
AISC-0805F-R047
AISC-0805F-R056
AISC-0805F-1R0
AISC-0805F-1R5
AISC-0805F-1R8
AISC-0805F-2R2
AISC-0805F-3R3
AISC-0805F-3R9
AISC-0805F-4R7
AISC-0805F-6R8
AISC-0805F-8R2
ASPI-0805(F) series
-40˚C ~ +125˚C
-10˚C to +40˚C, 70% RH max
Tolerance
(±%)
10,20
5,10,20
5,10,20
5,10,20
2,5,10,20
5,10,20
2,5,10,20
2,5,10,20
2,5,10,20
2,5,10,20
2,5,10,20
2,5,10,20
2,5,10,20
2,5,10,20
2,5,10,20
2,5,10,20
2,5,10,20
2,5,10,20
2,5,10,20
2,5,10,20
2,5,10,20
2,5,10,20
2,5,10,20
5,10,20
5,10,20
5,10,20
5,10,20
5,10,20
5,10,20
5,10,20
5,10,20
5,10,20
5,10,20
5,10,20
5,10,20
5,10,20
5,10,20
5,10,20
5,10,20
5,10,20
5,10,20
5,10,20
5,10,20
Q, Min
@Test Freq.
40 @ 1500 MHz
30 @ 1500 MHz
40 @ 1000 MHz
40 @ 1000 MHz
40 @ 500 MHz
40 @ 500 MHz
50 @ 500 MHz
55 @ 500 MHz
55 @ 500 MHz
60 @ 500MHz
60 @ 500MHz
50 @ 500MHz
55 @ 500MHz
55 @ 500MHz
50 @ 500MHz
50 @ 500MHz
50 @ 250 MHz
50 @ 250 MHz
50 @ 250 MHz
45 @ 250 MHz
38 @ 250 MHz
40 @ 250 MHz
35 @ 250 MHz
33 @ 100 MHz
23 @ 50 MHz
23 @ 50 MHz
23 @ 50 MHz
23 @ 50 MHz
23 @ 50 MHz
22 @ 50 MHz
20 @ 50 MHz
15@25MHz
8@100MHz
15@25MHz
15@7.9MHz
15@7.9MHz
15@7.9MHz
10@50MHz
15@7.9MHz
10@7.9MHz
15@7.9MHz
15@7.9MHz
10@2.5MHz
SRF Min
(MHz)
>6000
>6000
5000
4600
4000
2900
3300
2000
2500
2000
2000
1600
1550
1450
1300
1200
1100
920
870
850
650
600
560
375
320
280
270
240
250
230
200
550
500
360
63
60
60
200
50
50
43
36
35
R
DC
Max
(
Ω
)
0.10
0.08
0.11
0.19
0.15
0.17
0.20
0.22
0.25
0.27
0.29
0.31
0.32
0.38
0.42
0.46
0.51
0.56
0.64
1.10
1.00
1.4
1.5
1.72
1.9
1.95
2.05
2.1
2.3
2.4
2.5
0.91
0.72
0.6
1.20
1.45
1.45
2.50
2.30
2.50
2.80
3.40
4.50
I
DC
Max
(mA)
600
600
600
600
600
600
600
500
500
500
500
500
500
500
400
400
400
400
400
400
350
310
290
250
230
200
190
180
180
160
150
350
300
145
245
225
200
100
175
80
140
115
100
L(nH)
@Test Freq.
2.2 @ 250 MHz
3.3 @ 250 MHz
6.8 @ 250 MHz
8.2 @ 250 MHz
12 @ 250 MHz
15 @ 250 MHz
18 @ 250 MHz
22 @ 250 MHz
27 @ 250 MHz
33 @ 250 MHz
39 @ 250 MHz
47 @ 200 MHz
56 @ 200 MHz
68 @ 200 MHz
82 @ 150 MHz
100 @ 150 MHz
120 @ 150 MHz
150 @ 100 MHz
180 @ 100 MHz
220 @ 100 MHz
270 @ 100 MHz
330 @ 100 MHz
390 @ 100 MHz
470 @ 50 MHz
560 @ 25 MHz
620 @ 25 MHz
680 @ 25 MHz
750 @ 25 MHz
820 @ 25 MHz
910 @ 25 MHz
1000 @ 25 MHz
270@25MHz
470@100MHz
560@25MHz
1000@7.9MHz
1500@7.9MHz
1800@7.9MHz
2200@7.9MHz
3300@7.9MHz
3900@7.9MHz
4700@7.9MHz
6800@7.9MHz
8200@7.9MHz
ABRACON IS
ISO9001:2008
CERTIFIED
CE RTIFIED
Revised: 02.28.13
30332 Esperanza, Rancho Santa Margarita, California 92688
tel 949-546-8000
|
fax 949-546-8001
| www.abracon.com
Visit
www.abracon.com
for Terms & Conditions of Sale
WIRE WOUND INDUCTOR - CERAMIC or FERRITE
AISC-0805(F)
Part Number
AISC-0805F-100
AISC-0805F-150
AISC-0805F-220
AISC-0805F-330
AISC-0805F-470
AISC-0805F-680
L(nH)
@Test Freq.
10000@2.5MHz
15000@2.5MHz
22000@2.5MHz
33000@2.5MHz
47000@2.5MHz
68000@2.5MHz
Tolerance
(±%)
5,10,20
5,10,20
5,10,20
5,10,20
5,10,20
5,10,20
Q, Min
@Test Freq.
10@2.5MHz
10@2.5MHz
10@2.5MHz
10@2.5MHz
10@2.5MHz
8@2.5MHz
Pb
RoHS
Compliant
2.29 x 1.73 x 1.55mm
| | | | | | | | | | | | | |
|
SRF Min
(MHz)
30
23
20
17
14
11
R
DC
Max
(
Ω
)
4.70
6.50
8.00
10.7
13.8
17.5
I
DC
Max
(mA)
98
80
68
60
55
40

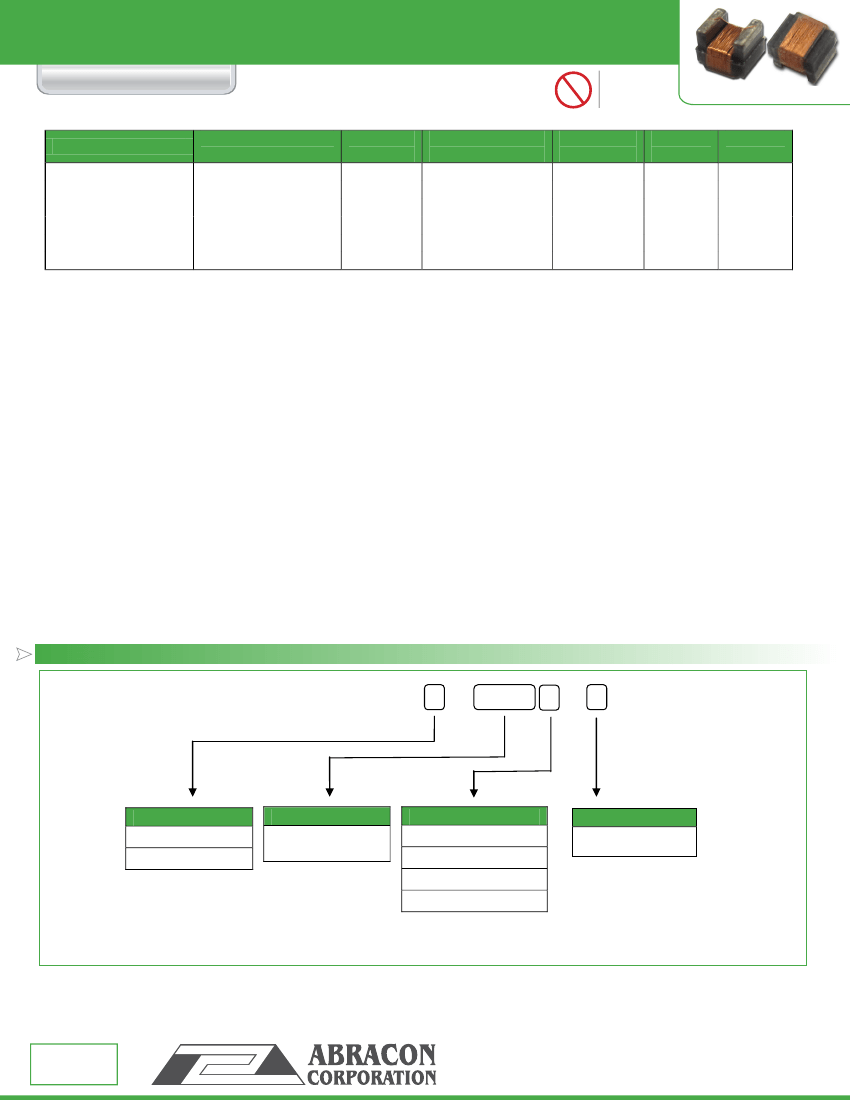

TEST CONDITIONS
Unless otherwise specified, the standard atmospheric conditions for measurement/test as:
a. Ambient Temperature: 20±15°C
b. Relative Humidity: 65%±20%
c. Air Pressure: 86 KPa to 106 KPa
Visual Examination
a. Inspection Equipment: 30X magnifier
Electrical Test
DC Resistance (DCR): Test equipment: HIOKI3540 or equivalent.
Inductance (L)
a. Test equipment: Agilent4287A+Agilent16197A or equivalent.
b. Test signal: -13dBm or 10mA
c. Test frequency refers to Item 1.0.
Q Factor (Q)
a. Test equipment: Agilent4287A+Agilent16197A or equivalent.
b. Test signal: -13dBm or 10mA
c. Test frequency refers to Item 1.0.
Self-Resonant Frequency (SRF)
PART IDENTIFICATION:
(left blank if standard)
AISC-0805
-
-
Core Material
Blank: Ceramic
F: Ferrite
Inductance Code
Please refer to the
table above
Inductance Tolerance
G: ±2%*
J: ±5%
K: ±10%
M: ±20%
T: Tape and Reel
(2kpcs / reel)
Packaging
*Ceramic core only
ABRACON IS
ISO9001:2008
CERTIFIED
CE RTIFIED
Revised: 02.28.13
30332 Esperanza, Rancho Santa Margarita, California 92688
tel 949-546-8000
|
fax 949-546-8001
| www.abracon.com
Visit
www.abracon.com
for Terms & Conditions of Sale
WIRE WOUND INDUCTOR - CERAMIC or FERRITE
AISC-0805(F)

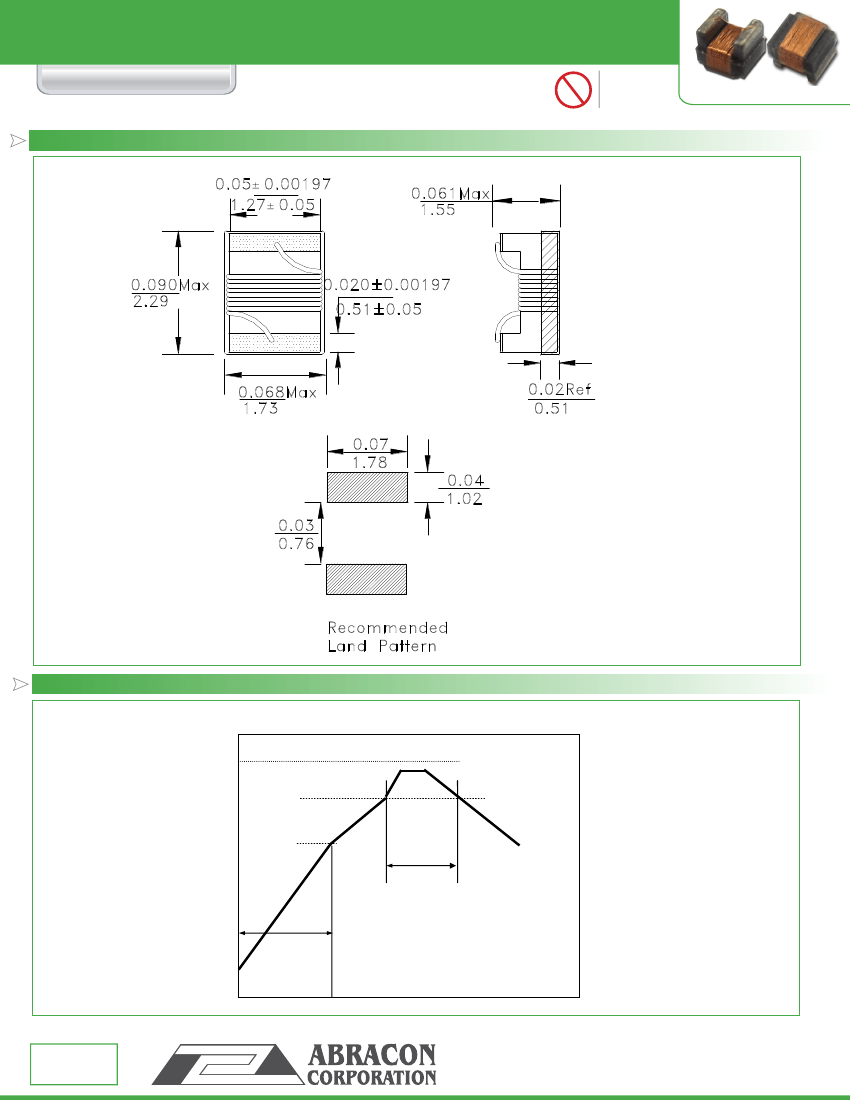

OUTLINE DIMENSION:
Pb
RoHS
Compliant
2.29 x 1.73 x 1.55mm
| | | | | | | | | | | | | |
|
Dimension: inches / mm
REFLOW PROFILE:
Max: 255
255
240
20~4 0sec .
190
℃
Gradual Cooling
200
150
90± 30sec .
ABRACON IS
ISO9001:2008
CERTIFIED
CE RTIFIED
Revised: 02.28.13
30332 Esperanza, Rancho Santa Margarita, California 92688
tel 949-546-8000
|
fax 949-546-8001
| www.abracon.com
Visit
www.abracon.com
for Terms & Conditions of Sale
WIRE WOUND INDUCTOR - CERAMIC or FERRITE
AISC-0805(F)

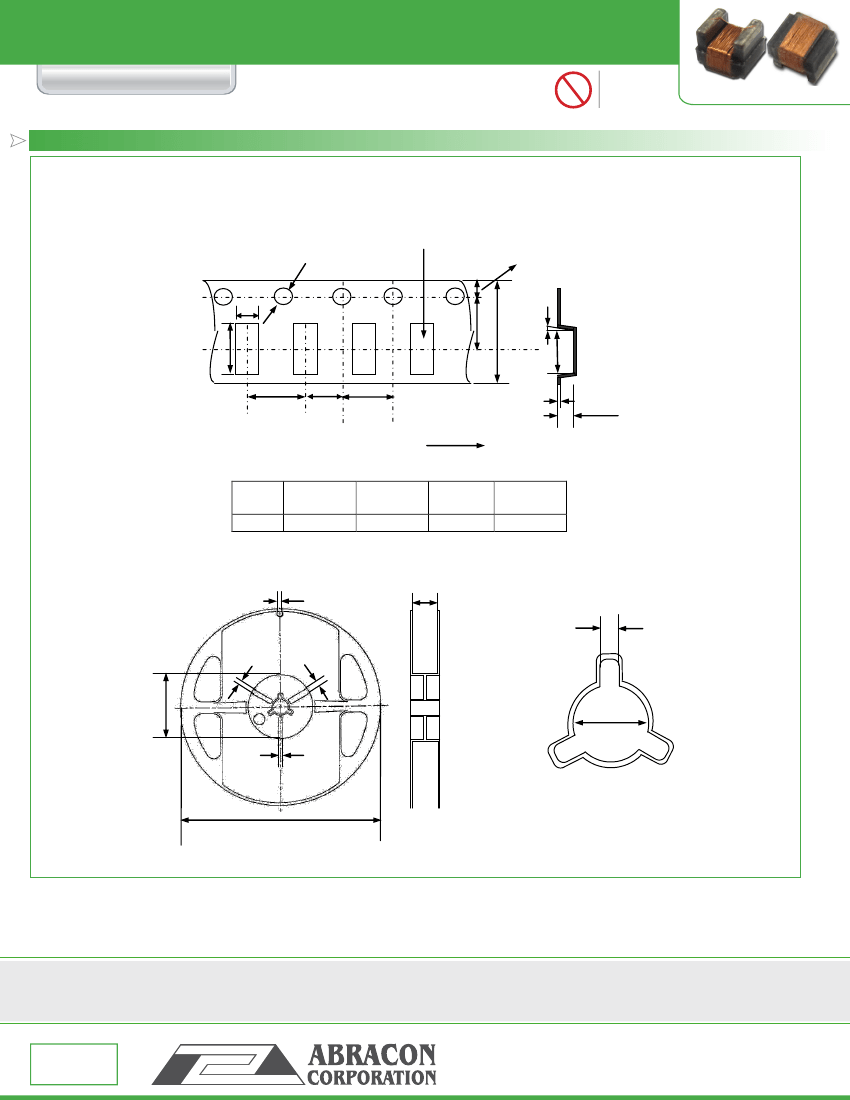

TAPE & REEL:
T= tape and reel (2,000pcs/reel)
Pb
RoHS
Compliant
2.29 x 1.73 x 1.55mm
| | | | | | | | | | | | | |
|
Sprocket Hole
Φ1.5
(+0.1,0)
Chip Cavity
A
3.5 ± 0.05
8.0 ± 0.3
5
0
B
T
4.0± 0.1
4.0 ± 0.1
2.0 ± 0. 05
Direction of Feed
K
Type
2012
A
1.88±0.2
B
2.4±0.2
K
1.35±0.2
T
0.22±0.1
C
4.0 ±0.1 mm
4.3 ±0.2 mm
9±1.5 mm
2.0 ±0.1 mm
5.0 ±0.1 mm
58 ±2.0 mm
9
±
0
.
3
B
12.8 ±0.1mm
3.0.0 ±0.1 mm
178 ±2.0 mm
Dimension: mm
ATTENTION:
Abracon Corporation’s products are COTS – Commercial-Off-The-Shelf products; suitable for Commercial, Industrial and, where designated, Automotive Applications.
Abracon’s products are not specifically designed for Military, Aviation, Aerospace, Life-dependant Medical applications or any application requiring high reliability where component
failure could result in loss of life and/or property. For applications requiring high reliability and/or presenting an extreme operating environment, written consent and authorization from
Abracon Corporation is required. Please contact Abracon Corporation for more information.
ABRACON IS
ISO9001:2008
CERTIFIED
CE RTIFIED
Revised: 02.28.13
30332 Esperanza, Rancho Santa Margarita, California 92688
