5015 Power
Connectors

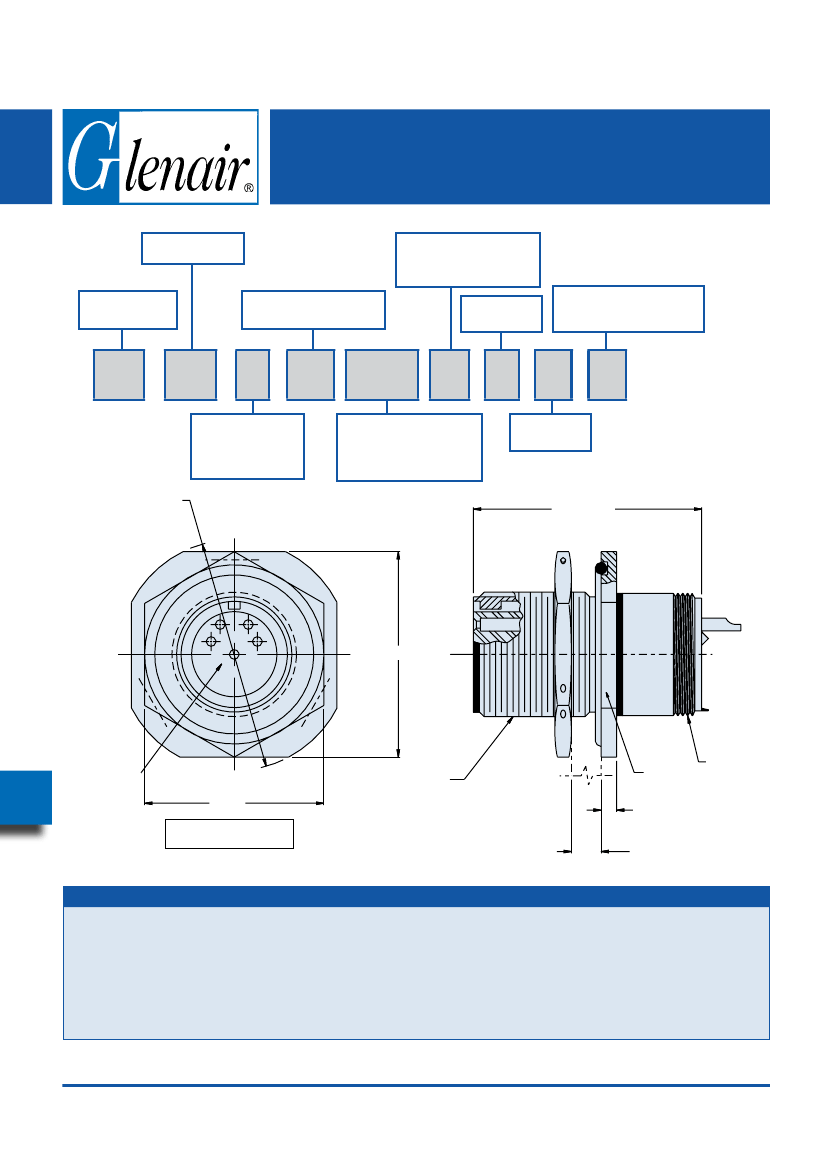

MIL-C-5015 Type
Filter Connector
Product Code
240-515-J
Jam Nut Mount Filtered Receptacle Connector
(5015 Type)
Termination Type
PS
- Pin, Solder Cup
SS
- Socket, Solder Cup
Shell Material/Finish
(See Table II)
Filter Type
(C-Circuit)
Alternative Key Position
Per MIL-C-5015
Omit
-
Normal
240 - 515 - J
Shell Style
J
-
Jam Nut
JT
-
Jam Nut with
Accessory Thread
B Dia
P
36-4
S
C
D
Capacitance
(See Table III)
X
Insert Arrangement
Dash Number
20-3, 20-19, 22-9, 36-4
Contact factory for update
2.200 (55.9)
Max
D
F
See Mil-C-5015
for Insert
Arrangement
A Thread
C
See
Note 3
.180 (4.6)
.165 (4.2)
G Thread
(See Note 5)
J/JT
- Jam Nut
.120 (3.0) Max
Panel Accommodation
APPLICATION NOTES
1. Materials/Finishes:
Shells - See Table II
Insulators - High grade thermoplastic/N.A.
Seals - Fluorosilicone/N.A.
Contacts - Copper Alloy/Gold Plated
2. EMI Circular Filter Connector designed to meet MIL-DTL-5015
3. Assembly to be indentified with date code, cage code, Glenair P/N,
and serial number
4. Electrical Performance:
A - Capacitance - See Table III
B - I.R. 5000 Megohms min at 200 VDC
C - D.W.V. 500 VDC with 100 micro amps max leakage
5. Shell style JT shown
6. Metric dimensions (mm) are indicated in parentheses
© 2008 Glenair, Inc.
CAGE Codes 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
E-Mail: sales@glenair.com
www.glenair.com
F-6
240-515-J
Jam Nut Mount Filtered Receptacle Connector
(5015 Type)

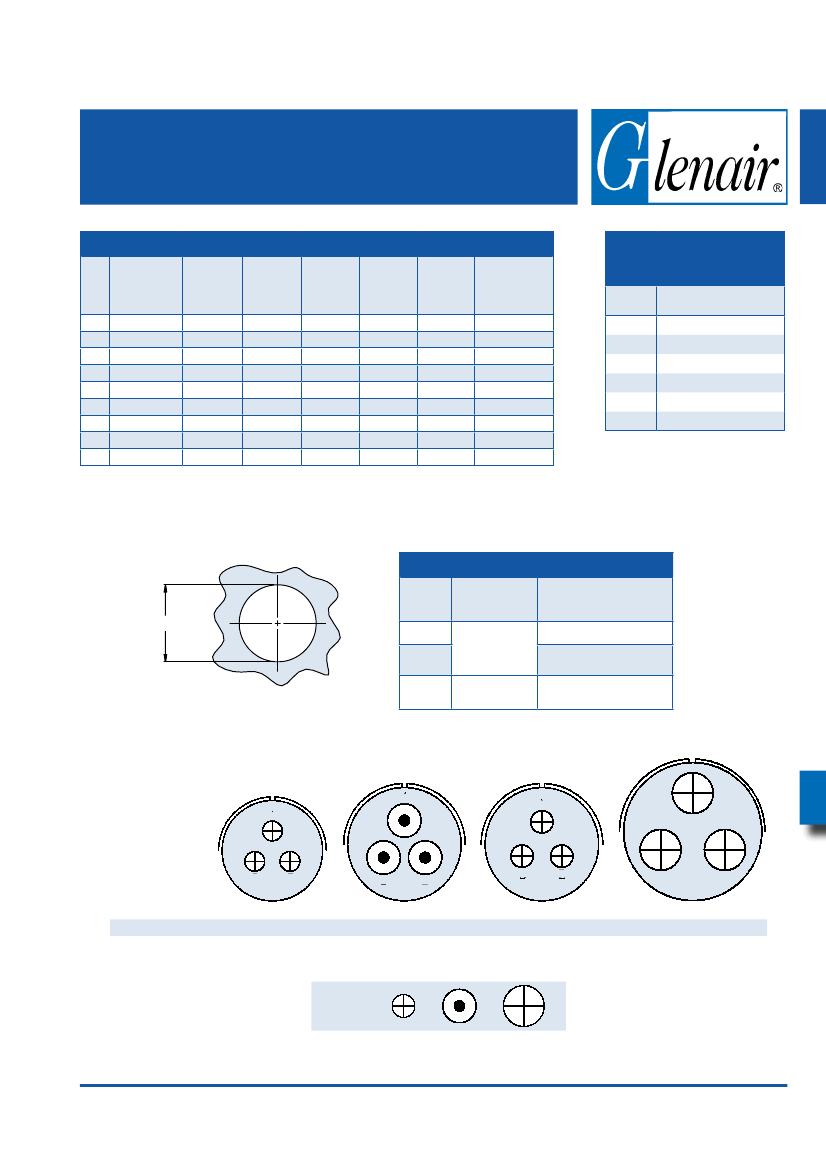

TABLE I: DIMENSIONS
Shell
Size
14S
18
20
22
24
32
36
40
A Thread
Class 2A
.875 - 20 UNEF
B Dia
±.005
(0.13)
1.647 (41.8)
E Dia
C
D
F
+.015
(0.38)
±.010
(0.25)
±.005
(0.13)
±.005
(0.13)
-.000 (0)
1.125 (28.6)
1.250 (31.8)
1.375 (34.9)
1.500 (38.1)
1.625 (41.3)
1.750 (44.5)
2.375 (60.3)
2.875 (73.0)
2.875 (73.0)
1.562 (39.7)
1.687 (42.8)
1.812 (46.0)
1.937 (49.2)
2.156 (54.8)
2.281 (57.9)
2.781 (70.6)
3.031 (77.0)
3.281 (83.3)
.880 (22.4)
1.005 (25.5)
1.130 (28.7)
1.255 (31.9)
1.380 (35.1)
1.505 (38.2)
2.005 (50.9)
2.255 (57.3)
2.503 (63.6)
.720 (18.3)
.720 (18.3)
.970 (24.6)
.970 (24.6)
.970 (24.6)
.970 (24.6)
.970 (24.6)
.970 (24.6)
.970 (24.6)
G Thread
Class 2A
7/8-20 UNEF
1-20 UNEF
1 1/16-18 UNEF
1 3/16-18 UNEF
1 5/16-18 UNEF
1 7/16-18 UNEF
2-18 UNS
2 1/4-16 UN
1 1/2-16 UN
TABLE III: CAPACITOR
ARRAY CODE AND
CAPACITANCE RANGE
CLASS
X
Y
Z
A
B
C
C - SECTION (pF)
80,000 - 120,000
40,000 - 60,000
30,000 - 45,000
19,000 - 28,000
16,000 - 22,500
9,000 - 16,500
16S
1.000 - 20 UNEF 1.772 (45.0)
1.125 - 18 UNEF 1.817 (46.2)
1.250 - 18 UNEF 2.022 (51.4)
1.375 - 18 UNEF 2.241 (56.9)
1.500 - 18 UNEF 2.356 (59.8)
2.000 - 18 UNS
2.250 - 16 UN
2.500 - 16 UN
2.856 (72.5)
2.118 (53.8)
3.368 (85.5)
TABLE II: SHELL MATERIAL/FINISH
Symbol
Material
Finish Description
Electroless Nickel
Aluminum
Cadmium Olive Drab
Over Electroless Nickel
Electro-Deposited
Nickel
E Dia
M
NF
RECOMMENDED
PANEL CUT-OUT
P
Stainless Steel
A
A
A
A
C
B
Example
Contact
Arrangements
Arrangement
Contact Size
Service Rating
C
20-3
12
D
B
C
20-19
8
A
B
C
22-9
12
E
B
36-4
0
A=D; B,C=A
Contact
Legend
© 2008 Glenair, Inc.
12
8
0
CAGE Codes 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
E-Mail: sales@glenair.com
www.glenair.com
F-7
