250MMG565K datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> 250MMG565K

250MMG565K: DescriptionFilm Capacitor, Polyester, 250V, 10% +Tol, 10% -Tol, 5.6uF, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT; CategoryPassive components capacitor; File Size2MB，3 Pages; Manufacturerrubycon; Websitehttp://www.rubycon.co.jp/cn/; Environmental Compliance

Download Datasheet Parametric Compare View All

250MMG565K Overview

Film Capacitor, Polyester, 250V, 10% +Tol, 10% -Tol, 5.6uF, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT

250MMG565K Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	,
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	STANDARD: JISC5101-2, JISC5101-1
capacitance	5.6 µF
Capacitor type	FILM CAPACITOR
dielectric materials	POLYESTER
JESD-609 code	e3
Manufacturer's serial number	MMG
Installation features	THROUGH HOLE MOUNT
negative tolerance	10%
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package shape	RECTANGULAR PACKAGE
method of packing	BULK
positive tolerance	10%
Rated (DC) voltage (URdc)	250 V
surface mount	NO
Terminal surface	Tin (Sn)
Terminal shape	WIRE
Base Number Matches	1

Preview

Download Datasheet

View All

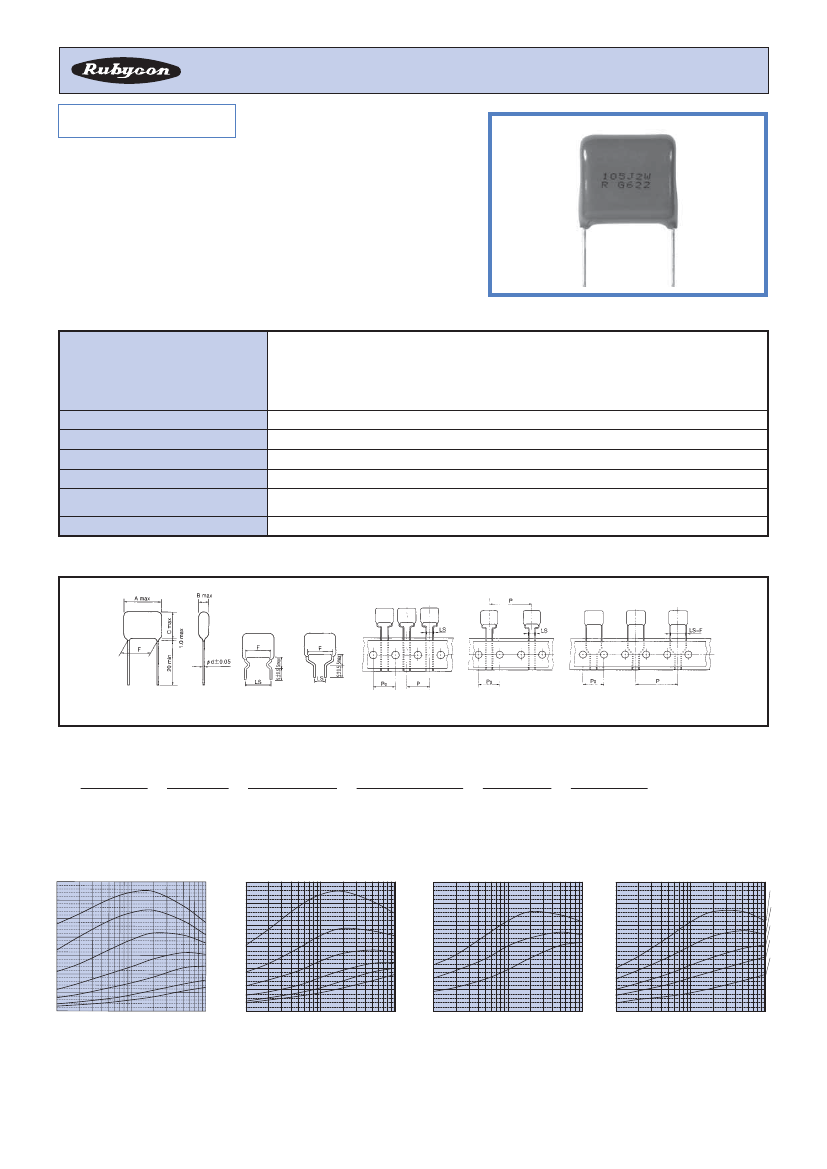

金属熔射型聚酯塑胶薄膜电容器

METALLIZED POLYESTER FILM CAPACITORS

MMG

•

SERIES

FEATURES

(UL94 V-0)

RoHS

Ultra small and light.

Reliability is excellent because these capacitors provide self-healing.

Coated with flame-retardant (UL94 V-0) epoxy resin.

RoHS compliance.

SPECIFICATIONS

Category Temperature

105

(

(Derate the voltage as shown in the "CAUTION FOR PROPER USE OF FILM CAPACITORS"

when using the capacitor beyond 85 .)

Rated Voltage (U

)

Capacitance Tolerance

tan

Voltage Proof

Insulation Resistance

Reference Standard

250VDC, 450VDC, 500VDC, 630VDC

10%(K)

0.01max at 1kHz

150% 60s

C 0.33µF : 15000M min

C 0.33µF : 5000 Fmin

JIS C 5101-2, JIS C 5101-1

(mm)

OUTLINE

Blank

H7,Y7,17 S7,W7,Q7,K7

TX,TH

TL,TJ,TN

TS(F

10)

PART NUMBER

MMG

Rated Voltage

Series

Rated Capacitance

Capacitance Tolerance

Option

Lead Forming

PERMISSIBLE CURRENT FOR FREQUENCY

250MMG

Permissible current (Arms)

450MMG

Permissible current (Arms)

500MMG

225

105

474

Permissible current (Arms)

630MMG

225

105

474

224

104

475

225

105

474

224

104

106

475

225

105

474

224

104

100

Frequency (kHz)

1000

100

Frequency (kHz)

1000

100

Frequency (kHz)

1000

100

Frequency (kHz)

1000

250MMG565K Related Products

	250MMG565K	250MMG125K	450MMG124K	450MMG185K	250MMG225K	630MMG563K	250MMG685K	250MMG154K
Description	Film Capacitor, Polyester, 250V, 10% +Tol, 10% -Tol, 5.6uF, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT	Film Capacitor, Polyester, 250V, 10% +Tol, 10% -Tol, 1.2uF, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT	Film Capacitor, Polyester, 450V, 10% +Tol, 10% -Tol, 0.12uF, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT	Film Capacitor, Polyester, 450V, 10% +Tol, 10% -Tol, 1.8uF, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT	Film Capacitor, Polyester, 250V, 10% +Tol, 10% -Tol, 2.2uF, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT	Film Capacitor, Polyester, 630V, 10% +Tol, 10% -Tol, 0.056uF, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT	Film Capacitor, Polyester, 250V, 10% +Tol, 10% -Tol, 6.8uF, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT	Film Capacitor, Polyester, 250V, 10% +Tol, 10% -Tol, 0.15uF, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	STANDARD: JISC5101-2, JISC5101-1	STANDARD: JISC5101-2, JISC5101-1	STANDARD: JISC5101-2, JISC5101-1	STANDARD: JISC5101-2, JISC5101-1	STANDARD: JISC5101-2, JISC5101-1	STANDARD: JISC5101-2, JISC5101-1	STANDARD: JISC5101-2, JISC5101-1	STANDARD: JISC5101-2, JISC5101-1
capacitance	5.6 µF	1.2 µF	0.12 µF	1.8 µF	2.2 µF	0.056 µF	6.8 µF	0.15 µF
Capacitor type	FILM CAPACITOR	FILM CAPACITOR	FILM CAPACITOR	FILM CAPACITOR	FILM CAPACITOR	FILM CAPACITOR	FILM CAPACITOR	FILM CAPACITOR
dielectric materials	POLYESTER	POLYESTER	POLYESTER	POLYESTER	POLYESTER	POLYESTER	POLYESTER	POLYESTER
JESD-609 code	e3	e3	e3	e3	e3	e3	e3	e3
Manufacturer's serial number	MMG	MMG	MMG	MMG	MMG	MMG	MMG	MMG
Installation features	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT
negative tolerance	10%	10%	10%	10%	10%	10%	10%	10%
Number of terminals	2	2	2	2	2	2	2	2
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Package shape	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE
method of packing	BULK	BULK	BULK	BULK	BULK	BULK	BULK	BULK
positive tolerance	10%	10%	10%	10%	10%	10%	10%	10%
Rated (DC) voltage (URdc)	250 V	250 V	450 V	450 V	250 V	630 V	250 V	250 V
surface mount	NO	NO	NO	NO	NO	NO	NO	NO
Terminal surface	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)
Terminal shape	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE
