WC32P020-25P2M datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> WC32P020-25P2M

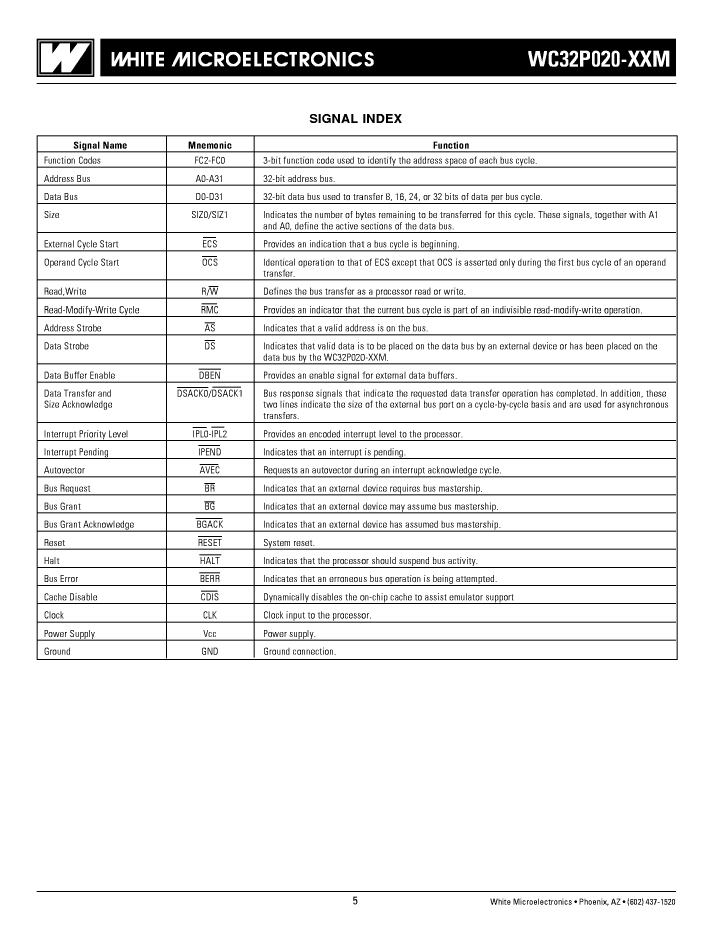

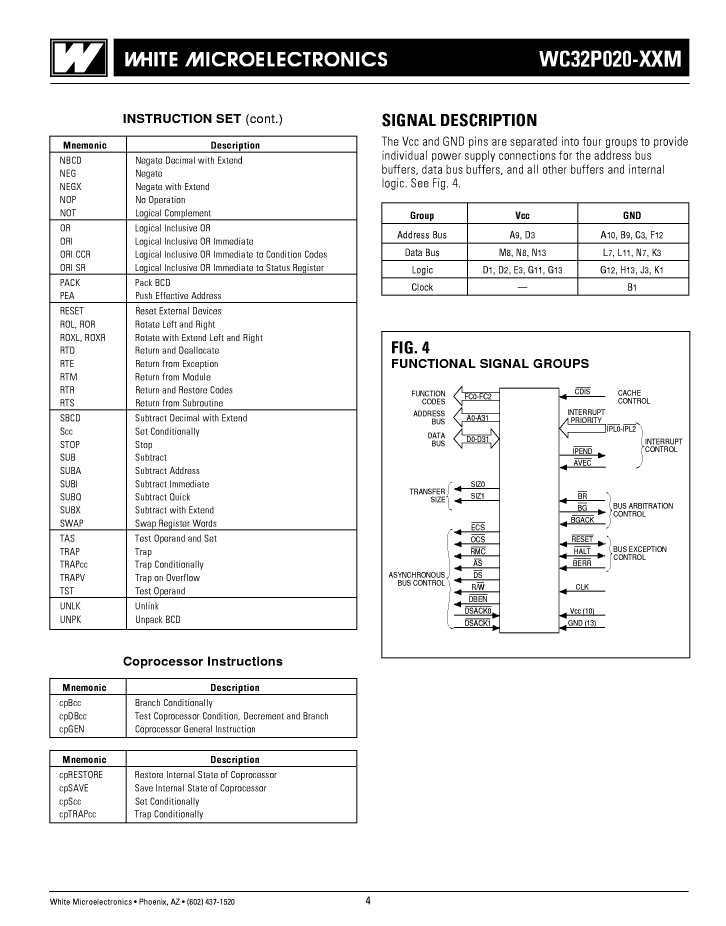

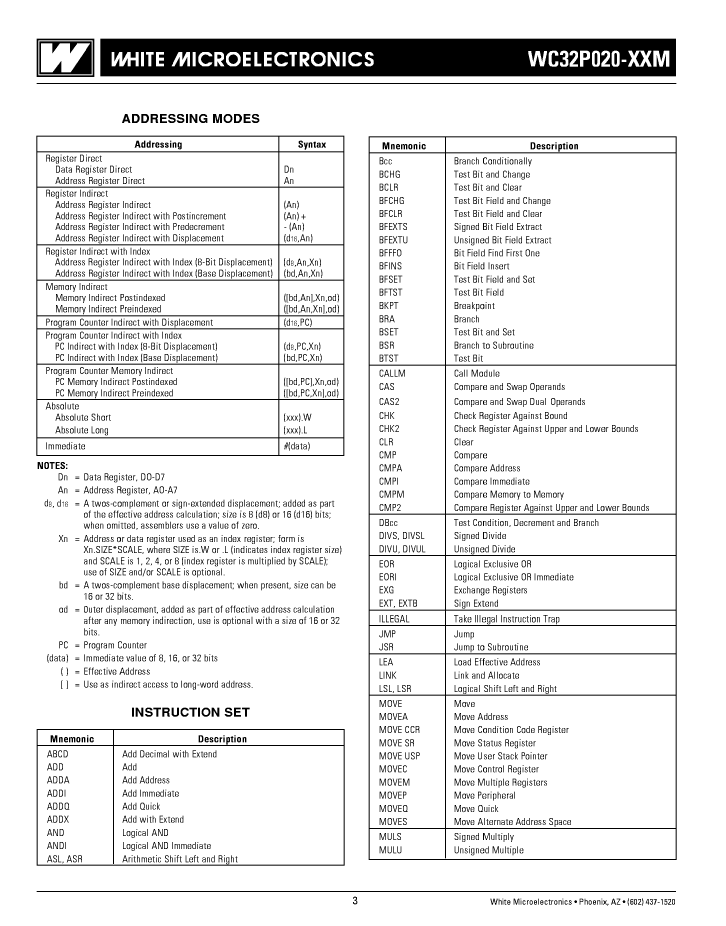

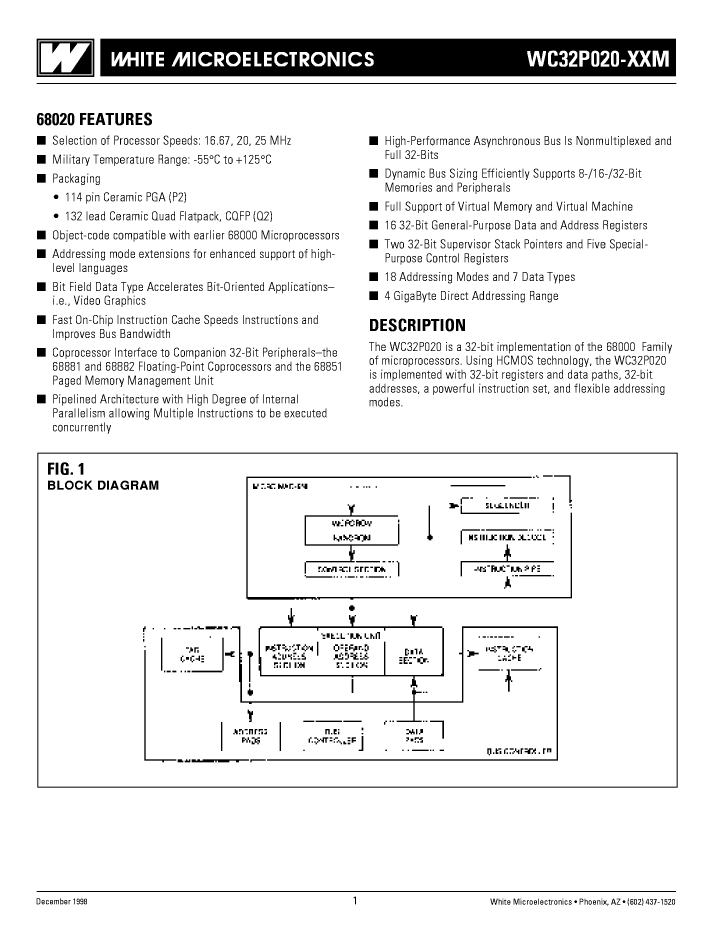

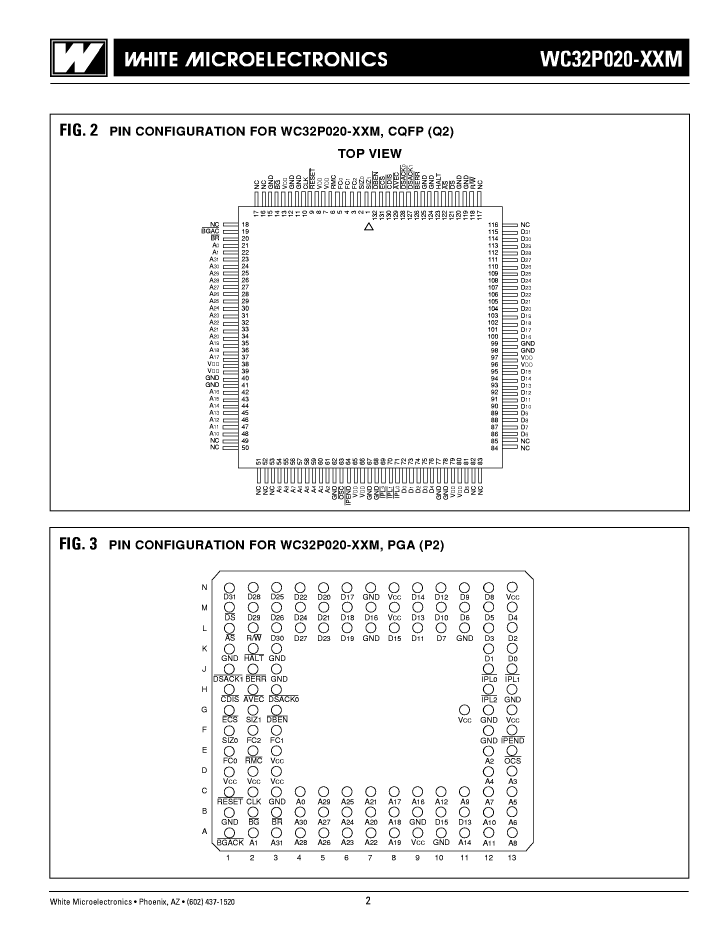

Preview

WC32P020-25P2M: DescriptionMicroprocessor, 32-Bit, 25MHz, CMOS, CPGA114,; CategoryThe embedded processor and controller Microcontrollers and processors; File Size386KB，14 Pages; ManufacturerWhite Microelectronics

Download Datasheet Parametric Compare View All

WC32P020-25P2M Overview

Microprocessor, 32-Bit, 25MHz, CMOS, CPGA114,

WC32P020-25P2M Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Address bus width	32
bit size	32
boundary scan	NO
maximum clock frequency	25 MHz
External data bus width	32
Format	FIXED POINT
Integrated cache	NO
JESD-30 code	S-CPGA-P114
low power mode	NO
Number of DMA channels
Number of external interrupt devices	7
Number of serial I/Os
Number of terminals	114
On-chip data RAM width
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
Package shape	SQUARE
Package form	GRID ARRAY
Certification status	Not Qualified
RAM (number of words)	0
speed	25 MHz
Maximum slew rate	333 mA
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal form	PIN/PEG
Terminal location	PERPENDICULAR
uPs/uCs/peripheral integrated circuit type	MICROPROCESSOR
Base Number Matches	1

Preview

Download Datasheet

View All

WC32P020-25P2M Related Products

	WC32P020-25P2M	WC32P020-25Q2M	WC32P020-20Q2M	WC32P020-16.67P2M	WC32P020-16.67Q2M	WC32P020-20P2M
Description	Microprocessor, 32-Bit, 25MHz, CMOS, CPGA114,	Microprocessor, 32-Bit, 25MHz, CMOS, CQFP132,	Microprocessor, 32-Bit, 20MHz, CMOS, CQFP132,	Microprocessor, 32-Bit, 16.67MHz, CMOS, CPGA114, CERAMIC, PGA, 144 PIN	Microprocessor, 32-Bit, 16.67MHz, CMOS, CQFP132, CERAMIC, QFP-132	Microprocessor, 32-Bit, 20MHz, CMOS, CPGA114,
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
Address bus width	32	32	32	32	32	32
bit size	32	32	32	32	32	32
boundary scan	NO	NO	NO	NO	NO	NO
maximum clock frequency	25 MHz	25 MHz	20 MHz	16.67 MHz	16.67 MHz	20 MHz
External data bus width	32	32	32	32	32	32
Format	FIXED POINT	FIXED POINT	FIXED POINT	FIXED POINT	FIXED POINT	FIXED POINT
Integrated cache	NO	NO	NO	NO	NO	NO
JESD-30 code	S-CPGA-P114	S-CQFP-G132	S-CQFP-G132	S-CPGA-P114	S-CQFP-G132	S-CPGA-P114
low power mode	NO	NO	NO	NO	NO	NO
Number of terminals	114	132	132	114	132	114
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
Package shape	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE
Package form	GRID ARRAY	FLATPACK	FLATPACK	GRID ARRAY	FLATPACK	GRID ARRAY
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
speed	25 MHz	25 MHz	20 MHz	16.67 MHz	16.67 MHz	20 MHz
Maximum supply voltage	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V
Minimum supply voltage	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	YES	YES	NO	YES	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal form	PIN/PEG	GULL WING	GULL WING	PIN/PEG	GULL WING	PIN/PEG
Terminal location	PERPENDICULAR	QUAD	QUAD	PERPENDICULAR	QUAD	PERPENDICULAR
uPs/uCs/peripheral integrated circuit type	MICROPROCESSOR	MICROPROCESSOR	MICROPROCESSOR	MICROPROCESSOR	MICROPROCESSOR	MICROPROCESSOR
Number of external interrupt devices	7	7	7	-	-	7
Maximum slew rate	333 mA	333 mA	333 mA	-	-	333 mA
Maker	-	-	White Microelectronics	White Microelectronics	White Microelectronics	White Microelectronics
