UZ7780LE3 datasheet, PDF - EEWORLD Datasheet

UZ7780LE3: DescriptionZener Diode, 80V V(Z), 5%, 6W, Silicon, Unidirectional,; CategoryDiscrete semiconductor diode; File Size90KB，1 Pages; ManufacturerMicrosemi; Websitehttps://www.microsemi.com

Download Datasheet Parametric Compare View All

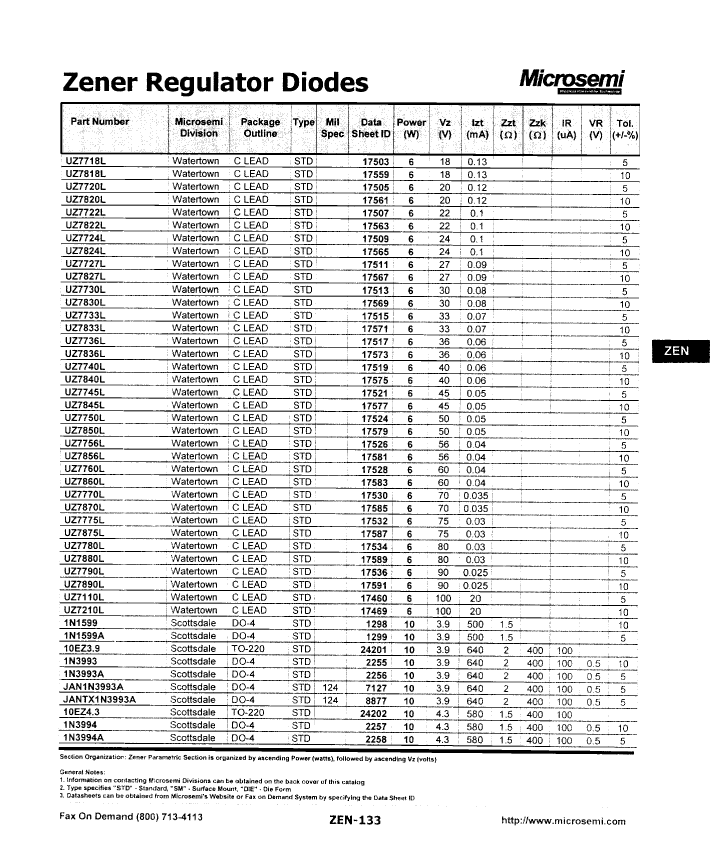

UZ7780LE3 Overview

Zener Diode, 80V V(Z), 5%, 6W, Silicon, Unidirectional,

	UZ7780LE3	UZ7750LE3
Description	Zener Diode, 80V V(Z), 5%, 6W, Silicon, Unidirectional,	Zener Diode, 50V V(Z), 5%, 6W, Silicon, Unidirectional,
package instruction	O-XALF-W2	O-XALF-W2
Reach Compliance Code	compliant	compliant
ECCN code	EAR99	EAR99
Other features	METALLURGICALLY BONDED	METALLURGICALLY BONDED
Shell connection	ISOLATED	ISOLATED
Configuration	SINGLE	SINGLE
Diode component materials	SILICON	SILICON
Diode type	ZENER DIODE	ZENER DIODE
JESD-30 code	O-XALF-W2	O-XALF-W2
Number of components	1	1
Number of terminals	2	2
Package body material	UNSPECIFIED	UNSPECIFIED
Package shape	ROUND	ROUND
Package form	LONG FORM	LONG FORM
polarity	UNIDIRECTIONAL	UNIDIRECTIONAL
Maximum power dissipation	6 W	6 W
Nominal reference voltage	80 V	50 V
surface mount	NO	NO
technology	ZENER	ZENER
Terminal form	WIRE	WIRE
Terminal location	AXIAL	AXIAL
Maximum voltage tolerance	5%	5%
Working test current	30 mA	50 mA
Base Number Matches	1	1
