SQW-102-01-L-T datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> SQW-102-01-L-T

SQW-102-01-L-T: DescriptionBoard Connector, 6 Contact(s), 3 Row(s), Female, Straight, 0.079 inch Pitch, Solder Terminal, Locking, Black Insulator, Socket, ROHS COMPLIANT; CategoryThe connector The connector; File Size966KB，1 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

SQW-102-01-L-T Overview

Board Connector, 6 Contact(s), 3 Row(s), Female, Straight, 0.079 inch Pitch, Solder Terminal, Locking, Black Insulator, Socket, ROHS COMPLIANT

SQW-102-01-L-T Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Other features	FLEXYZ, TIGER BUY CONTACT
subject depth	0.25 inch
body length	0.17 inch
Body/casing type	SOCKET
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (10) OVER NICKEL (50)
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insulator color	BLACK
insulator material	LIQUID CRYSTAL POLYMER (LCP)
JESD-609 code	e3
MIL compliance	NO
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	3
Number of rows loaded	3
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
Plating thickness	10u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	3.8 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.09 inch
Terminal pitch	2 mm
Termination type	SOLDER
Total number of contacts	6
Base Number Matches	1

Preview

Download Datasheet

View All

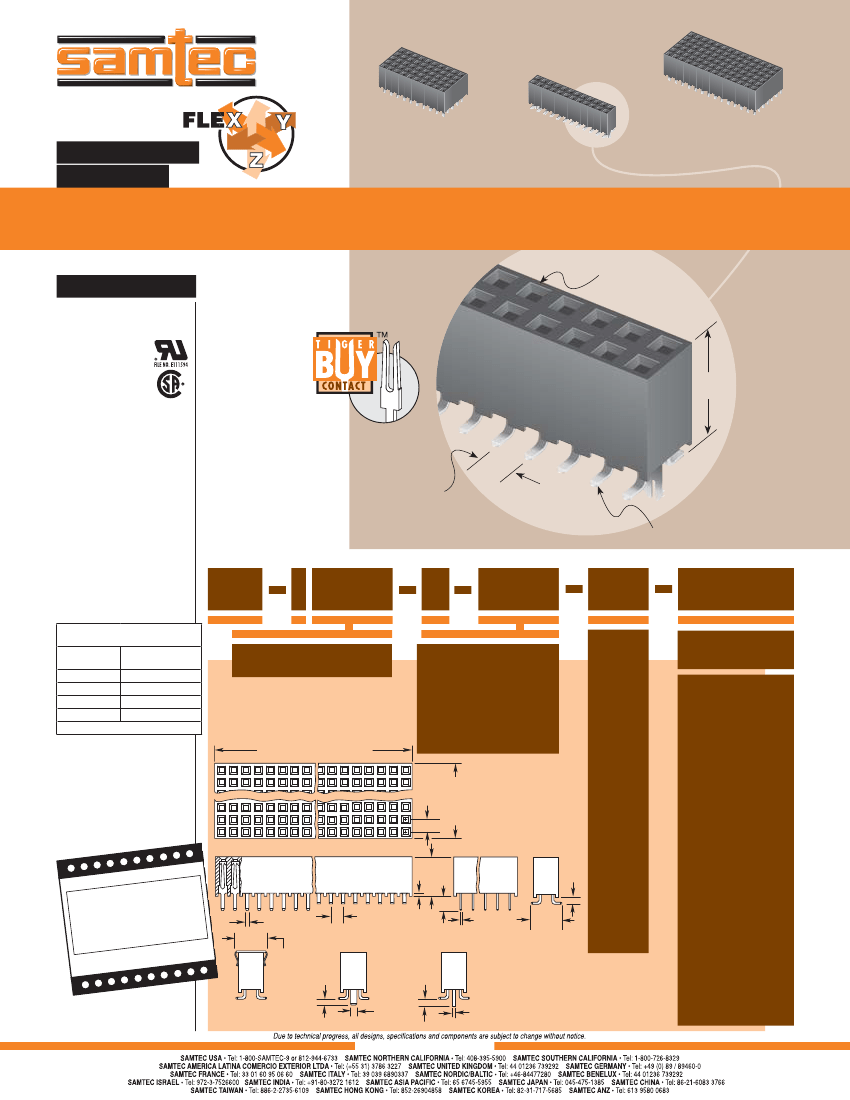

F-213

SQW–112–01–F–D–VS–LC

SQW–110–01–L–5

SQW–114–01–F–6

(2,00 mm) .0787"

SQW SERIES

COST-EFFECTIVE RUGGED SOCKETS

SPECIFICATIONS

For complete speciﬁcations and

recommended PCB layouts

see www.samtec.com?SQW

Insulator Material:

Black Liquid

Crystal Polymer

Contact Material:

Phosphor Bronze

Plating:

Sn or Au over

50µ" (1,27 µm) Ni

Voltage Rating:

500 VAC mated with

TMM or TMMH

Operating Temp Range:

-55°C to +125°C

Contact Resistance:

10 mΩ

Insertion Depth:

(2,62 mm) .103" to

(5,03 mm) .198" with

(0,38 mm) .015" wipe

Insertion Force:

(Single contact only)

1.8 oz (0,50 N) avg.

Withdrawal Force:

(Single contact only)

1.0 oz (0,28 N) avg.

Max Cycles:

100 with 10µ" (0,25 µm) Au

RoHS Compliant:

Yes

CURRENT RATING

(PER CONTACT)

AMBIENT

Mated with

TEMP

TMMH

20°C

40°C

4.6A

60°C

95°C

2.6A

6 POSITIONS (2x3) POWERED

Lead–Free Solderable:

Yes, for -D & -D-VS

(Wave only for -T, -Q, -5 & -6)

SMT Lead Coplanarity:

(0,15 mm) .006" max

Mates with:

TMMH, TMM,

MTMM, MMT,

TW, TSH, TCMD,

LTMM, PTT

Choice of two

through six rows

(7,62 mm)

.300"

(2,00 mm)

.0787"

pitch

Choice of Surface Mount

or Through-hole

SQW

NO. PINS

PER ROW

PLATING

OPTION

ROW

OPTION

02 thru 50

–F

= Gold ﬂash on contact,

Matte Tin on tail

–D

= Double

Row

–“XXX”

= Polarized Position

–D–VS only options:

–L

300

–D–VS

= Double

Row

Surface

Mount

–A

= Alignment Pin

(5 positions minimum)

Metal or plastic at

Samtec discretion.

(N/A with -LC)

Processing:

No. of positions x

(2,00) .0787 + (0,30) .012

= 10µ" (0,25 µm)

Gold on contact,

Matte Tin on tail

(2,00) No. of

.0787 rows

TYP

(2,00)

.0787

295

–T

= Triple

Row

–LC

= Locking Clip

(5 positions minimum)

(N/A with -A)

(Manual placement

required)

–Q

= Four

Row

ILITY

L AVAILAB

APE & REE

arges.

(6,35)

.250

(2,00)

.0787

(0,38)

(0,25)

.015

(2,29) .010 TYP

.090

–D, –T, –Q,

–5, –6

(1,27)

.050

(0,25)

.010

(1,42)

.056

–LC OPTION

(1,27)

.050

–5

= Five

Row

–K

= (4,25 mm) .167" DIA

Polyimide Film

Pick & Place Pad

(4 positions minimum)

No tooling ch e lesser of

er is th

Minimum ordntity or 125 pieces.

qua

a full reel antity above minimum.

Order any q design, manufacture.

In-house turn-around.

Quick

tions

for specifica

Call Samtecring information.

and orde

(0,51) .020

(4,74)

.187

–D–VS

–6

= Six

Row

–P

= Pick & Place Pad

(4 positions minimum)

(5,72)

.225

(5,13)

.202

–P OPTION

(0,89)

.035

(1,09)

.043

DIA

–A OPTION

–TR

= Tape & Reel

Packaging

(4 thru 28 positions only)

Note:

Some lengths, styles

and options are non-standard,

non-returnable.

WWW.SAMTEC.COM
