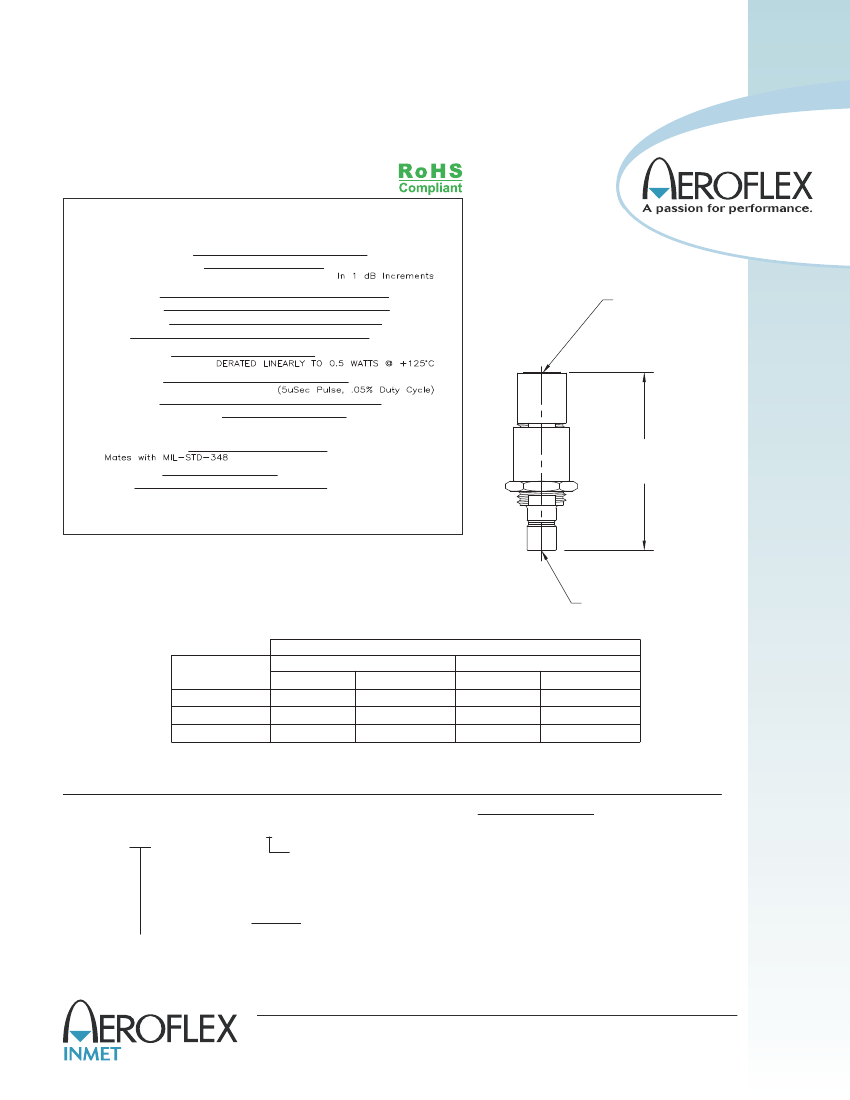

ATTENUATORS
SMB, DC - 4 GHz, 2 Watts
SPECIFICATIONS:
Models: 9056-XX, 9056-XXM, 9056-XXF
Electrical:
Frequency Range
Standard dB Values
Atten. Accuracy
0 - 6 dB
7 - 20 dB
21 - 30 dB
VSWR
Input Power
Peak Power
Impedance
Operating Temp Range
DC - 4 GHz
0-12, 15, 20 & 30 dB
±0.3 dB
±0.5 dB
±0.75 dB
1.25:1 Max.
2 Watts Avg. @ 25°C
250 Watts Max.
50 Ohms
-65°C to +125°C
Nickel Plated Brass
or Beryllium Copper
Gold Plated Beryllium Copper
Nickel Plated Brass
SMB Socket
Mechanical:
SMB Connectors
Conductors
Barrel
LENGTH
SEE TABLE
SMB Pin
LENGTH
13 - 30 dB
0 - 12 dB
Inches
Millimeters
Millimeters
Inches
[22.86 ±1.27]
[26.16 ±1.27]
1.03 ±.05
.90 ±.05
[20.57 ±1.27]
[23.88 ±1.27]
.94 ±.05
.81 ±.05
[22.10 ±1.27]
[25.40 ±1.27]
1.00 ±.05
.87 ±.05
Connector
Configuration
Pin/Socket
Pin/Pin
Socket/Socket
HOW TO ORDER:
Model Number:
9056-XXY
Connector Configuration
= Pin/Socket
F = Socket/Socket
M = Pin/Pin
dB Value
Ordering Examples:
Model Number:
9056-20
20 dB; SMB - Pin/Socket
Model Number:
9056-6F
6 dB; SMB - Socket/Socket
Note: Dimensions in Brackets are Expressed in Millimeters and are for Reference Only.
Design specifications are subject to change without notice.
Contact factory for technical specifications before purchasing or use.
9056-ATT: REV C
Aeroflex / Inmet, Inc.
• 300 Dino Drive, Ann Arbor, MI 48103 • U.S.A.
888-244-6638 or 734-426-5553 • FAX: 734-426-5557
www.aeroflex.com/inmet • inmetsales@aeroflex.com
