XZAG46W-8: DescriptionSingle Color LED, Green, Water Clear, T-3/4, 1.9mm, SMD, 2 PIN; CategoryLED optoelectronic/LED photoelectric; File Size97KB，3 Pages; ManufacturerSUNLED; Websitehttp://www.sunled.com/

Download Datasheet Parametric View All

XZAG46W-8 Overview

Single Color LED, Green, Water Clear, T-3/4, 1.9mm, SMD, 2 PIN

XZAG46W-8 Parametric

Parameter Name	Attribute value
package instruction	SMD, 2 PIN
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	HIGH RELIABILITY
color	GREEN
Configuration	SINGLE
Maximum forward current	0.03 A
Lens type	WATER CLEAR
Nominal luminous intensity	595.0 mcd
Installation features	SURFACE MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SINGLE COLOR LED
total height	2.8 mm
method of packing	BULK
peak wavelength	500 nm
shape	ROUND
size	1.9 mm
surface mount	YES
T code	T-3/4
Terminal pitch	7.3 mm
perspective	20 deg
Base Number Matches	1

Preview

Download Datasheet

View All

SUBMINIATURE SOLID STATE LAMP

XZAG46W-8

SUN LED

Email

: sales@us.sunled.com

Web Site : www.sunled.com

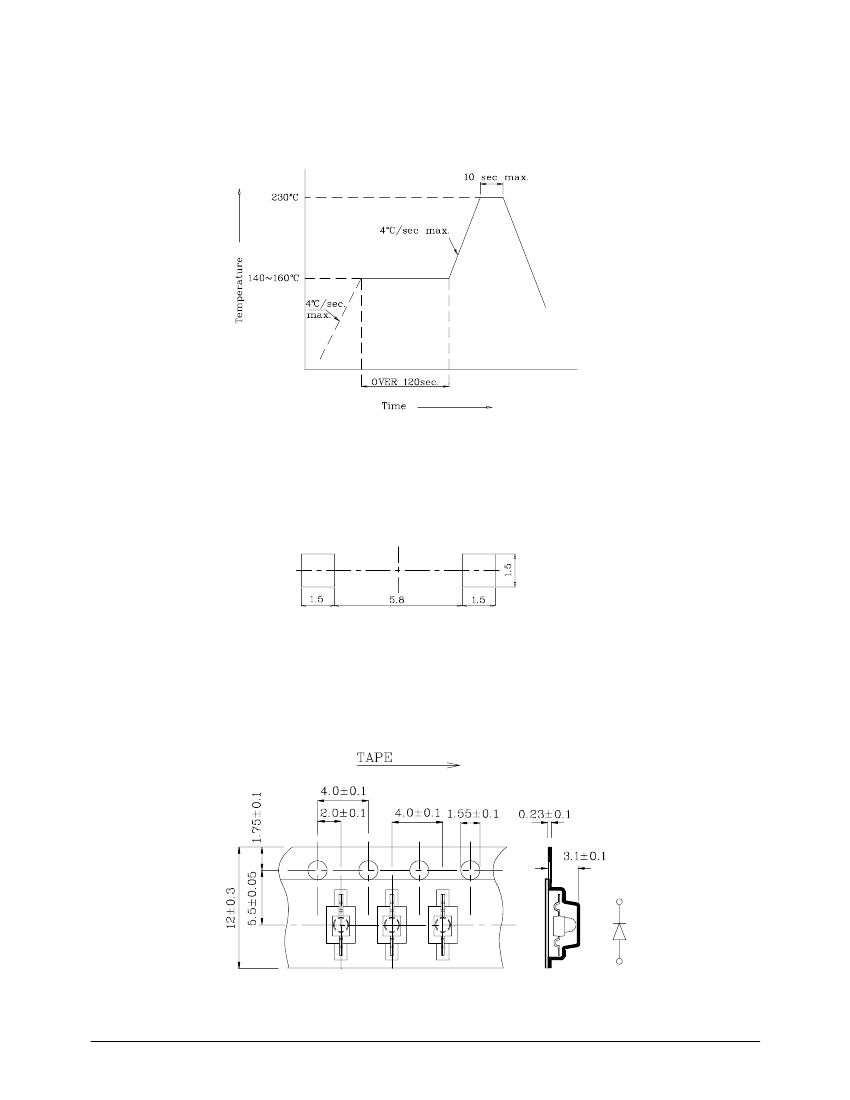

Notes:

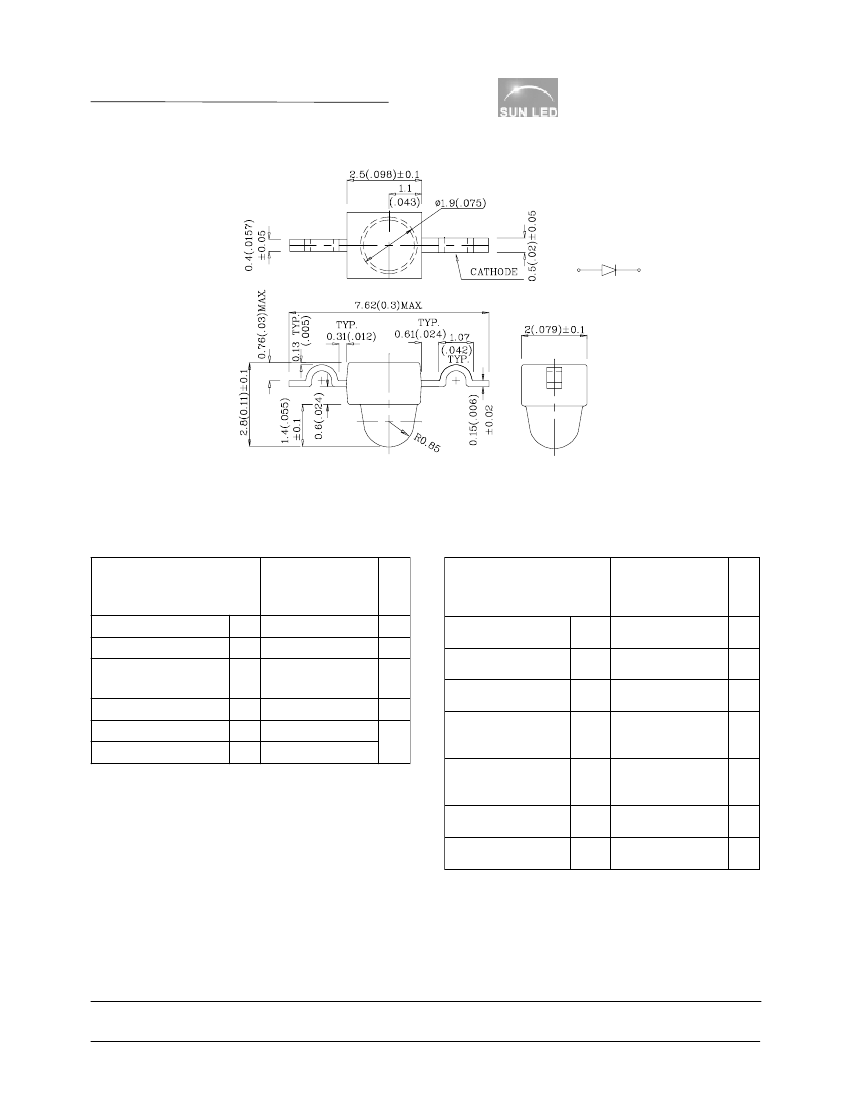

1. All dimensions are in millimeters (inches).

2. Tolerance is

±0.25(0.01")

unless otherwise noted.

Ab s o l u t e m a x i m u m r a t i n g s

( T

A

=25

°

C)

Reverse voltage

Forward current

Forward current (peak)

1/10Duty cycle

0.1ms pulse width

Power dissipation

Operating temperature

Storage temperature

V

R

I

F

i

FS

P

T

A

Tstg

AG

( I n G a N)

5

30

150

110

-40 ~ +85

Un i t

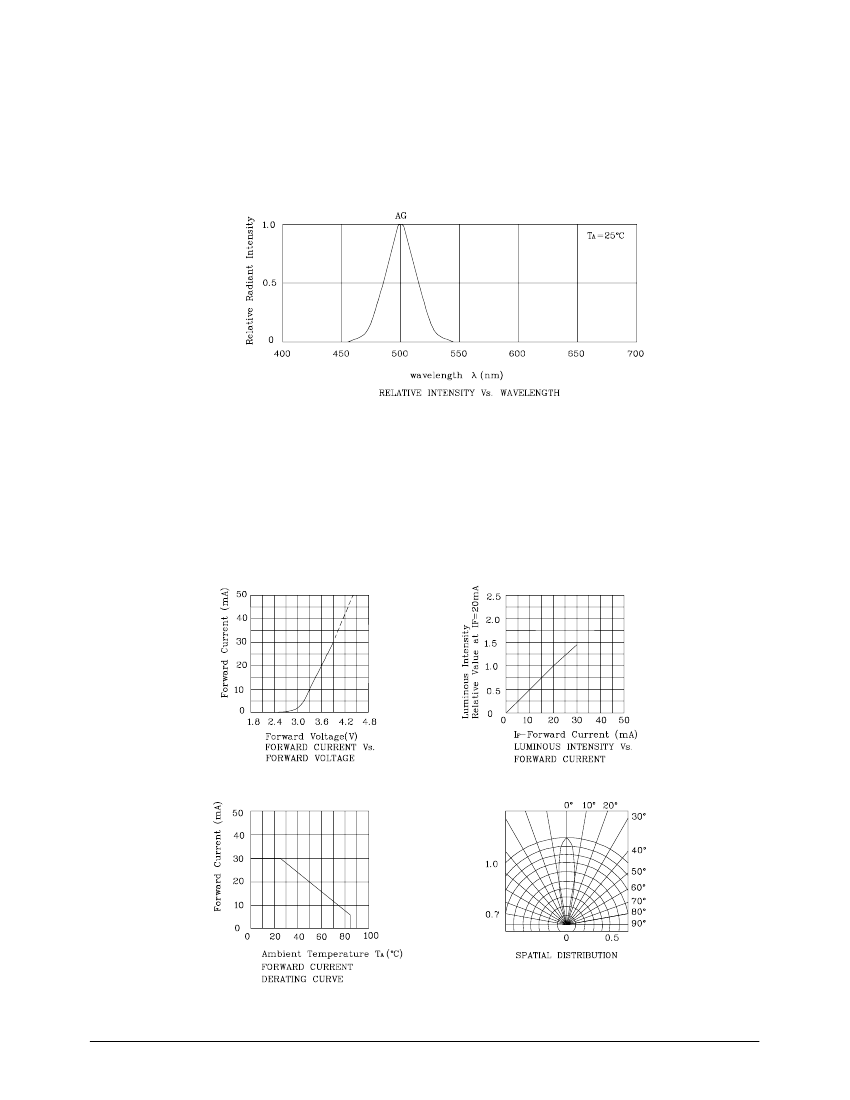

Op e r a t i n g Ch a r a c t e r i s t i c s

( T

A

=25

°

C)

Forward voltage (typ.)

(I F=20mA)

Forward voltage (max.)

(I F=20mA)

Reverse current

(VR=5V)

Wavelength at peak

emission

(I F=20mA)

Wavelength at Dominate

emission

(I F=20mA)

Spectral Line half-width

(I F=20mA)

Capacitance

(VF=0V, f=1MHz)

AG

( I n G a N)

Un i t

V

mA

mW

°C

V

F

V

F

I

R

3.6

4.4

10

V

uA

λ

peak

500

nm

λD

505

nm

∆λ

C

30

56

nm

pF

P art

Nu m b e r

Em i t t i n g

Co l o r

Em i t t i n g

Ma te ria l

L e n s -c o l o r

L u min o u s

In t e n si t y

( I F = 20m A )

mc d

min .

ty p .

380

595

Wa v e l e n g t h

nm

λ

P

Vi e w i n g

An g l e

2θ1/2

θ

XZAG46W-8

Green

I nGaN

Water Clear

500

20°

Published Date : OCT 21,2002

Drawing No: XDSA1742

V2

Checked : B.L.LIU

3-1
