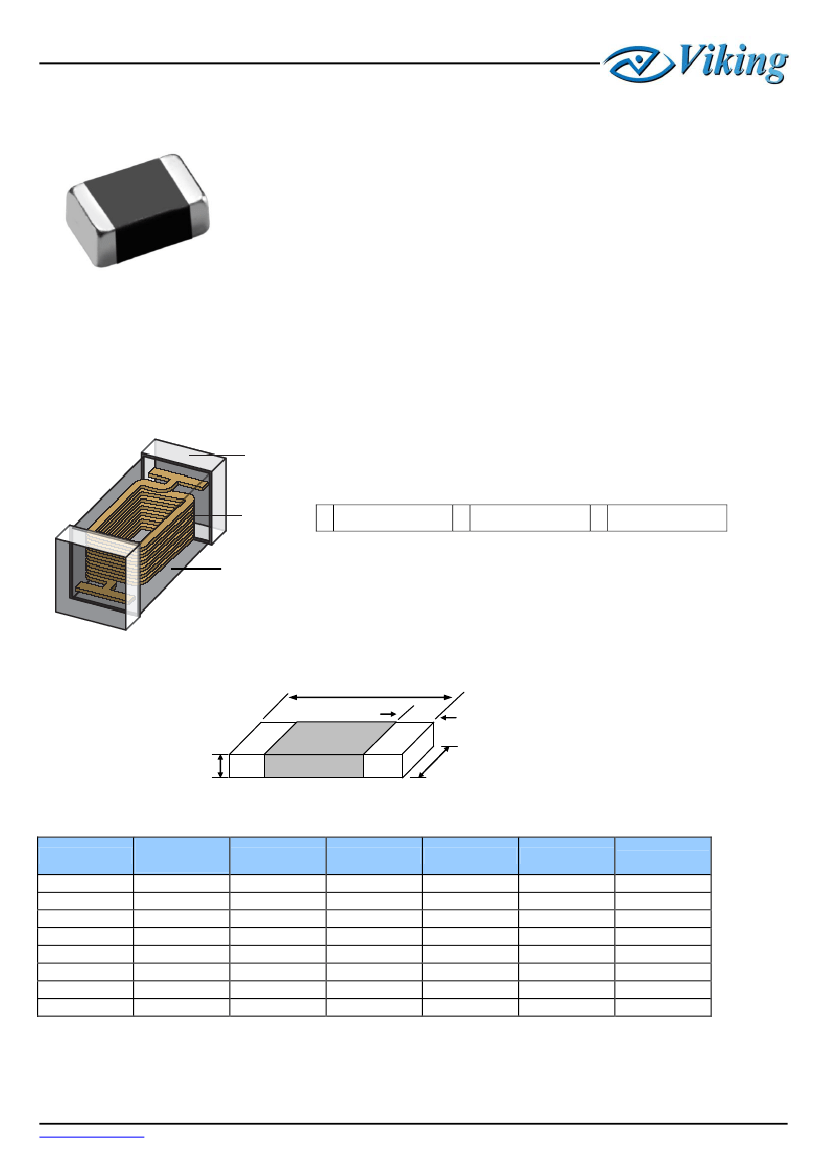

【CB
Series】
Multilayer Chip Beads
■Features
－Effective
EMI protection
－Low
DC resistance
－High
soldering heat resistance
－Multiple
size availability
■Applications
－Computers
and Peripheral Equipment
－VCRS,
Television, Pagers
－Cellular
Phones
－Digital
Communication Equipment
－Various
Electronics Equipments
－Circuit
Where a Stable Ground is Unavailable
■Construction
Ferrite
Internal Electrode
Electrode Plating
(Ag/Ni/Sn)
■Dimensions
A
D
C
B
Unit : mm
Type
CB02
CB03
CB05
CB04
CB06
CB10
CB08
CB12
Size
(Inch)
0402
0603
0805
1204
1206
1210
1808
1812
A
1.00.10
1.60.20
2.00.20
3.20.20
3.20.20
3.20.20
4.50.25
4.50.25
B
0.500.10
0.800.15
1.250.20
1.600.20
1.600.20
2.500.20
1.600.20
3.200.20
C
0.50.10
0.80.15
0.90.20
1.10.20
1.60.20
1.30.20
1.60.20
1.50.20
D
0.1~0.35
0.1~0.6
0.2~0.8
0.2~1.0
0.2~1.0
0.2~1.0
0.2~1.0
0.2~1.0
Weight
(g)
(1000pcs)
2.6
6.2
10
30
42
54
60
62
www.viking.com.tw
For detail questions, contact : sales@viking.com.tw
1
Edition : REV.B2
Revision: 4-Jul-2013
【CB
Series】
Multilayer Chip Beads
■Part
Numbering
CB
Product
Type
03
Dimensions
02: 0402
03: 0603
05: 0805
04: 1204
06: 1206
10: 1210
08: 1808
12: 1812
Y
Impedance
Tolerance
Y: ±25%
T
Packaging
Code
T: Taping Reel
Y
Design
Code
Y: ui:200
Q:ui:75
(High Speed Signals)
N
Current
H: High current
N: General current
601
Impedance
090: 9Ω
110: 11Ω
451: 450Ω
152: 1500Ω
■Standard
Electrical Specifications
CB02(100505) / Standard Type
Impedance
(Ω)
6
10
30
33
40
47
60
70
75
80
90
100
120
150
220
240
300
330
480
600
1000
1500
Tolerance
±25%
±25%
±25%
±25%
±25%
±25%
±25%
±25%
±25%
±25%
±25%
±25%
±25%
±25%
±25%
±25%
±25%
±25%
±25%
±25%
±25%
±25%
Test Freq.
(MHz)
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
DCR
(Ω) max.
0.05
0.05
0.30
0.30
0.30
0.40
0.40
0.40
0.40
0.40
0.50
0.50
0.50
0.50
0.50
0.50
0.80
0.80
0.80
1.00
1.50
2.00
Rated Current
(mA) max.
500
500
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
100
60
www.viking.com.tw
For detail questions, contact : sales@viking.com.tw
2
Edition : REV.B2
Revision: 4-Jul-2013
【CB
Series】
Multilayer Chip Beads
■Standard
Electrical Specifications
CB03(160808) / Standard Type
Impedance
(Ω)
6
7
10
11
15
17
19
20
22
25
26
30
31
32
33
40
47
50
52
55
56
60
68
70
75
80
90
100
120
140
150
180
200
220
240
300
330
400
420
450
470
500
600
750
800
1000
1200
1500
1700
2000
2200
2500
2700
Tolerance
±25%
±25%
±25%
±25%
±25%
±25%
±25%
±25%
±25%
±25%
±25%
±25%
±25%
±25%
±25%
±25%
±25%
±25%
±25%
±25%
±25%
±25%
±25%
±25%
±25%
±25%
±25%
±25%
±25%
±25%
±25%
±25%
±25%
±25%
±25%
±25%
±25%
±25%
±25%
±25%
±25%
±25%
±25%
±25%
±25%
±25%
±25%
±25%
±25%
±25%
±25%
±25%
±25%
Test Frequency
(MHz)
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
DCR
(Ω) max.
0.05
0.05
0.05
0.05
0.08
0.08
0.08
0.10
0.10
0.10
0.10
0.10
0.10
0.10
0.10
0.10
0.10
0.10
0.10
0.10
0.10
0.10
0.15
0.15
0.15
0.15
0.20
0.20
0.25
0.25
0.30
0.30
0.30
0.30
0.40
0.40
0.50
0.50
0.50
0.50
0.50
0.50
0.50
0.70
0.70
0.70
1.00
1.00
1.20
1.20
1.20
1.30
1.30
Rated Current
(mA) max.
500
500
500
500
500
500
500
400
400
400
400
400
400
400
400
400
400
400
400
400
400
400
400
400
400
400
400
400
400
300
200
200
200
200
200
200
200
200
200
200
200
200
200
200
200
200
50
50
50
50
50
50
50
www.viking.com.tw
For detail questions, contact : sales@viking.com.tw
3
Edition : REV.B2
Revision: 4-Jul-2013
【CB
Series】
Multilayer Chip Beads
■Standard
Electrical Specifications
CB05(201209) / Standard Type
Impedance
(Ω)
5
7
9
10
11
12
15
17
19
22
26
28
30
31
32
33
39
40
42
47
50
52
56
60
70
75
80
90
95
100
120
150
180
200
220
240
300
330
400
420
430
450
470
500
600
680
750
1000
1200
1500
2000
2200
2500
2700
Tolerance
±25%
±25%
±25%
±25%
±25%
±25%
±25%
±25%
±25%
±25%
±25%
±25%
±25%
±25%
±25%
±25%
±25%
±25%
±25%
±25%
±25%
±25%
±25%
±25%
±25%
±25%
±25%
±25%
±25%
±25%
±25%
±25%
±25%
±25%
±25%
±25%
±25%
±25%
±25%
±25%
±25%
±25%
±25%
±25%
±25%
±25%
±25%
±25%
±25%
±25%
±25%
±25%
±25%
±25%
Test Frequency
(MHz)
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
DCR
(Ω) max.
0.10
0.10
0.10
0.10
0.10
0.10
0.10
0.10
0.10
0.10
0.10
0.10
0.10
0.10
0.10
0.10
0.10
0.10
0.10
0.10
0.10
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.25
0.25
0.25
0.30
0.30
0.3
0.3
0.3
0.3
0.3
0.3
0.4
0.4
0.4
0.4
0.4
0.4
0.5
0.5
0.6
0.6
0.7
0.7
0.7
0.7
Rated Current
(mA) max.
600
600
600
600
600
600
600
600
600
600
600
600
600
600
600
500
500
500
500
500
500
500
500
500
500
500
500
500
500
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
200
200
200
200
200
200
200
200
www.viking.com.tw
For detail questions, contact : sales@viking.com.tw
4
Edition : REV.B2
Revision: 4-Jul-2013
【CB
Series】
Multilayer Chip Beads
■Standard
Electrical Specifications
CB04(321611) / Standard Type
Impedance
(Ω)
8
9
11
17
19
22
24
26
30
31
32
33
35
47
50
52
60
70
75
80
90
100
120
150
180
200
220
240
300
400
470
500
600
700
1000
1200
1500
2000
2700
Tolerance
±25%
±25%
±25%
±25%
±25%
±25%
±25%
±25%
±25%
±25%
±25%
±25%
±25%
±25%
±25%
±25%
±25%
±25%
±25%
±25%
±25%
±25%
±25%
±25%
±25%
±25%
±25%
±25%
±25%
±25%
±25%
±25%
±25%
±25%
±25%
±25%
±25%
±25%
±25%
Test Frequency
(MHz)
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
50
50
50
30
30
DCR
(Ω) max.
0.05
0.05
0.05
0.05
0.05
0.05
0.05
0.05
0.05
0.05
0.05
0.05
0.10
0.10
0.10
0.10
0.10
0.10
0.15
0.15
0.15
0.15
0.15
0.15
0.20
0.20
0.20
0.20
0.20
0.20
0.20
0.20
0.30
0.40
0.40
0.40
0.45
0.60
0.60
Rated current
(mA) max.
600
600
600
600
600
600
600
600
600
600
600
600
500
500
500
500
500
500
500
500
500
500
500
500
400
400
400
400
400
400
400
400
400
200
200
200
200
200
200
www.viking.com.tw
For detail questions, contact : sales@viking.com.tw
5
Edition : REV.B2
Revision: 4-Jul-2013
