MAP Series
Full-Size (14 pin DIP)
• Industry Standard Package
• 5.0 or 3.3 Volt
• ECL, PECL or LVPECL Output
• Stability to ±20ppm
• Wide Frequency Range
Electrical Specifications
Frequency Range
Frequency Stability (Inclusive of Temperature, Load, Voltage and Aging)
Operating Temperature Range
Storage Temperature Range
Supply Voltage (Vdd)
Supply Current
Output Voltage
Logic “0”
Logic “1”
Duty Cycle
50% of waveform
Load Drive Capability
Rise / Fall Time
20% to 80% of waveform
Start Up Time
10.000MHz to 200.000MHz
±100ppm to ±20ppm
0°C - 70°C to -40°C - 85°C
-55°C - 125°C
5.0Vdc ±5% or 3.3Vdc ±5%
140mA max.
Vdd - 1.5Vdc max.
Vdd - 1.2Vdc min.
40%/60% max. or 45%/55% max.
50 Ohms into Vdd - 2.0Vdc
2nSec max.
10mSec max.
www.mmdcomp.com
phone: 949-709-5075 / fax: 949-709-3536
Specifications subject to change without notice
OS06
Revision: 3/29/04 E

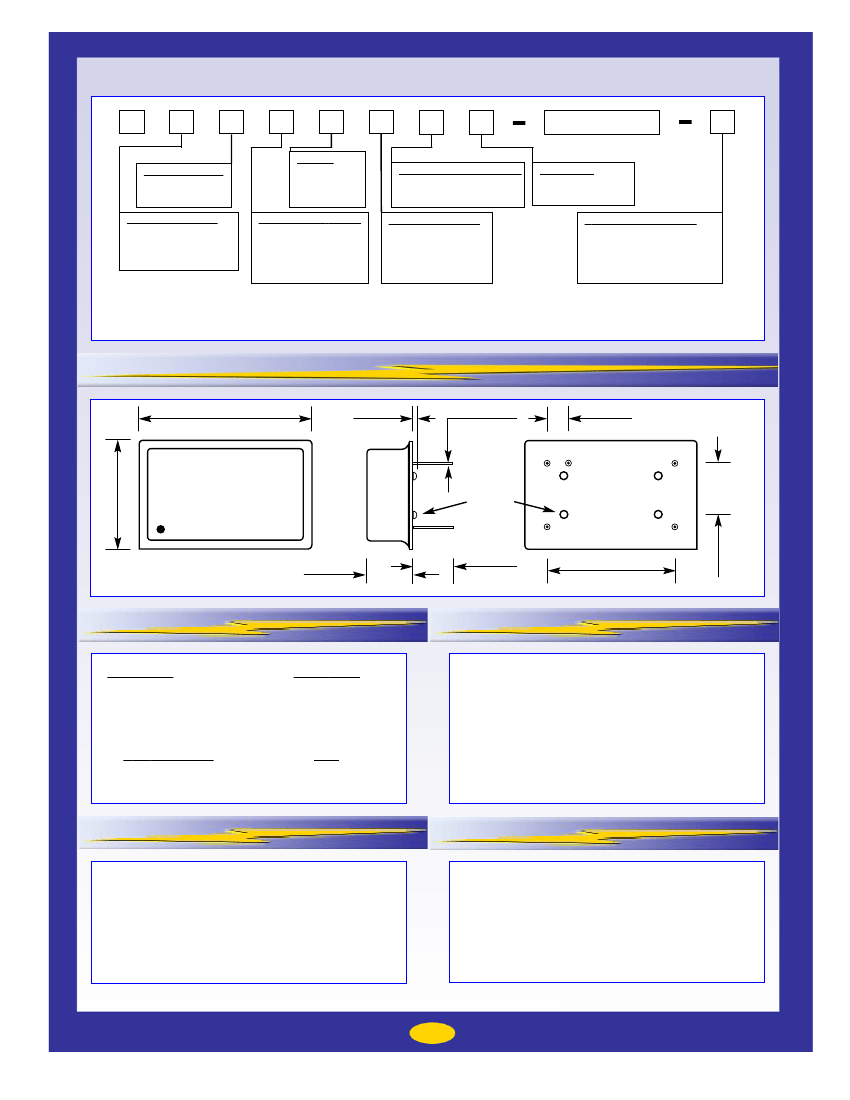

Part Numbering Guide
M
Supply Voltage
Blank = 5 Volt
3 = 3.3 Volt
Package Options
A = 14 pin DIP
5A = 14 pin DIP w/
Optional 5th pin
Output
E = ECL
P = PECL
L = LVPECL
Frequency Stability
100 = ±100ppm
050 = ±50ppm
025 = ±25ppm
020 = ±20ppm
Operating Temperature
Blank = 0°C to 70°C
48 = -40°C to 85°C
Pin 1 Connection
Blank = No Connect
C = Complimentary
Output
H = Tri-state*
Frequency
Symmetry
Blank = 40%/60%
A = 45%/55%
Value Added Options
Blank = No Added Options
G = Gull-Wing (option 2)
CLXXX = Cut Leads
XXX = lead length code
*Pin 1 Connection must be Tri-state when using 5 pin option
Mechanical Dimensions
20.8 max
.819 max
0.90 max
.035 max
.46 dia ±0.08
.018 dia ±.003
8
13.2 max
.520 max
2.54 ±0.2
.100 ±.008
9 (Optional Pin)
14
Markings
Glass
Standoffs
(X4)
1
15.24 ±0.13
.600 ±.005
7.62 ±0.13
.300 ±.005
7
5.33 min
.210 min
5.08 max
.200 max
Pin Connections
Value Added and Reference
Information
5 Pin Version
Pin
Pin
Pin
Pin
Pin
1: Tri-state*
7: Vee
8: Output
9: Compl. Output
14: Vcc
Note:
PECL Output, Vee = Case Ground
ECL Output, Vcc = Case Ground
4 Pin Version
Pin
Pin
Pin
Pin
1: N/C, Compl. Output, or Tri-state*
7: Vee
8: Output
14: Vcc
Gull-Wing (G option) -
F o r s p e c i f i c a t i o n d e ta i l s r e f e r t o pa g e VA 3
Cut Leads (CLXXX option) -
F o r s p e c i f i c a t i o n d e ta i l s r e f e r t o pa g e VA 1
*Tri-state Operation
Logic 1 or NC = Oscillation
Logic 0 or GND = High Impedance
Recommended Solder Reflow -
R e f e r t o pa g e R F 1 , P r o f i l e # R P 1
Environmental / Mechanical
Markings
Shock: MIL-STD-883, Method 2002, Condition B
Solderability: MIL-STD-883, Method 2003
Solvent Resistance: MIL-STD-202, Method 215
Vibration: MIL-STD-883, Method 2007, Condition A
Gross Leak Test: MIL-STD-883, Method 1014, Condition C
Fine Leak Test: MIL-STD-883, Method 1014, Condition A2
Line 1: MMD
Line 2: Part Number
Line 3: Frequency
Line 4: Date Code
www.mmdcomp.com
phone: 949-709-5075 / fax: 949-709-3536
OS06
Specifications subject to change without notice
Revision: 3/29/04 E
