59S20Y-400A5-ZZ

Description
RF F Connector, Male, Board Mount, Solder Terminal, Plug, ROHS COMPLIANT
CategoryThe connector    The connector
File Size95KB,2 Pages
ManufacturerRosenberger
Websitehttps://www.rosenberger.com/
Download Datasheet Parametric Compare View All

59S20Y-400A5-ZZ Overview

RF F Connector, Male, Board Mount, Solder Terminal, Plug, ROHS COMPLIANT

59S20Y-400A5-ZZ Parametric

Parameter NameAttribute value
package instructionROHS COMPLIANT
Reach Compliance Codecompliant
Body/casing typePLUG
Characteristic impedance50 Ω
Connector typeRF F CONNECTOR
Contact to complete cooperationGOLD (6) OVER NICKEL
Contact completed and terminatedGOLD (6) OVER NICKEL
Contact point genderMALE
Contact materialNOT SPECIFIED
Coupling typeSNAP
DIN complianceNO
Filter functionNO
IEC complianceNO
insulator materialPOLYPHENYLENE ETHER
JESD-609 codee4
MIL complianceNO
Manufacturer's serial number59S20Y-400A5
Installation methodRIGHT ANGLE
Installation typeBOARD
Maximum operating frequency1 GHz
OptionsGENERAL PURPOSE
Panel mountingNO
Termination typeSOLDER
Base Number Matches1

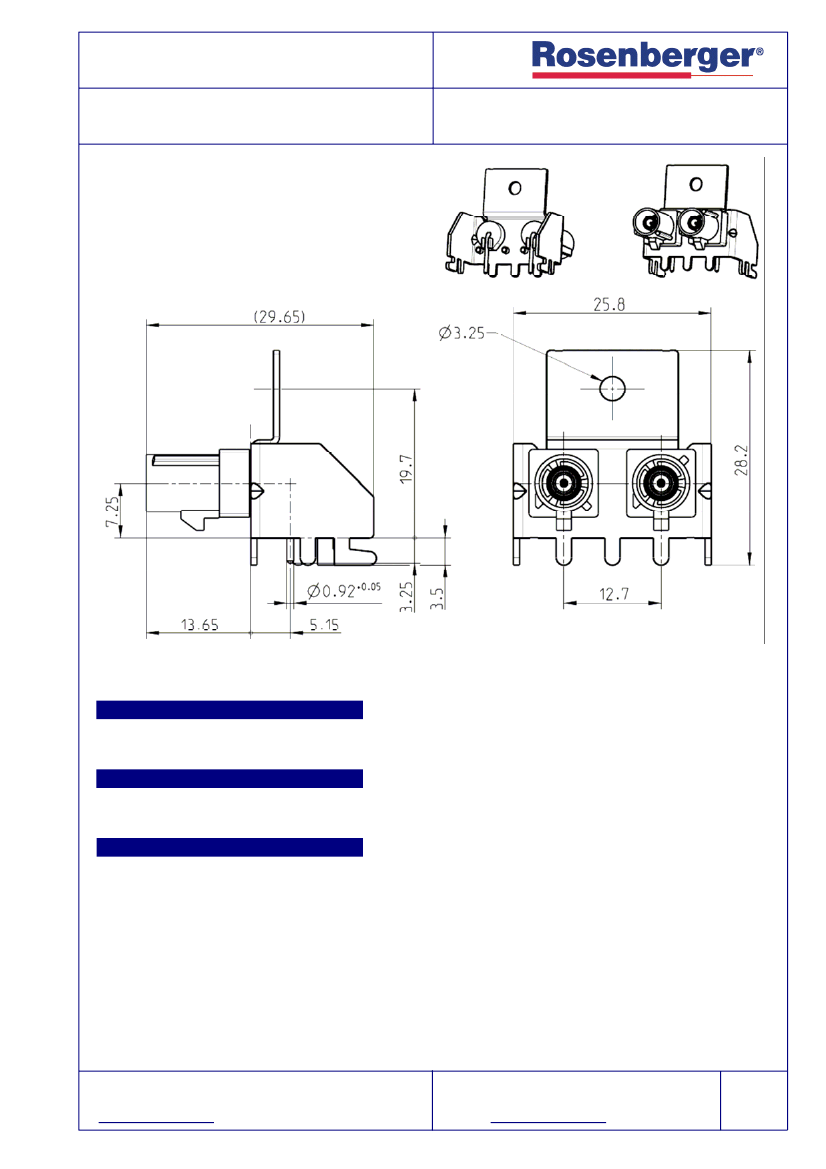

TECHNICAL DATA SHEET
FAKRA - HF
RIGHT ANGLE PLUG
PCB
59S20Y-400A5-YY
All dimensions are in mm; tolerances according to ISO 2768 m-H
Y = Part number has to be accomplished by codification
Interface
According to
DIN 72594-1
Documents
PCB layout
MB_174
Material and plating
Connector parts
Center contact
Outer contact
Dielectric
Housing
Sheet steel angle
Material
Brass
Brass
PPE
PA 6.6T
Steel
Plating
Gold, min. 0.15 µm, over chemical nickel
Nickel, 3-6 µm
Tin, 1-5µm
RF_35/12.04/3.0
Rosenberger Hochfrequenztechnik GmbH & Co. KG
P.O.Box 1260
D-84526 Tittmoning
Germany
www.rosenberger.de
Tel.: +49 8684 18-0
Fax: +49 8684 18-499
email: info@rosenberger.de
Page
1/2

59S20Y-400A5-ZZ Related Products

59S20Y-400A5-ZZ 59S20Y-400A5-BI
Description RF F Connector, Male, Board Mount, Solder Terminal, Plug, ROHS COMPLIANT RF F Connector, Male, Board Mount, Solder Terminal, Plug, ROHS COMPLIANT
package instruction ROHS COMPLIANT ROHS COMPLIANT
Reach Compliance Code compliant compliant
Body/casing type PLUG PLUG
Characteristic impedance 50 Ω 50 Ω
Connector type RF F CONNECTOR RF F CONNECTOR
Contact to complete cooperation GOLD (6) OVER NICKEL GOLD (6) OVER NICKEL
Contact completed and terminated GOLD (6) OVER NICKEL GOLD (6) OVER NICKEL
Contact point gender MALE MALE
Contact material NOT SPECIFIED NOT SPECIFIED
Coupling type SNAP SNAP
DIN compliance NO NO
Filter function NO NO
IEC compliance NO NO
insulator material POLYPHENYLENE ETHER POLYPHENYLENE ETHER
JESD-609 code e4 e4
MIL compliance NO NO
Manufacturer's serial number 59S20Y-400A5 59S20Y-400A5
Installation method RIGHT ANGLE RIGHT ANGLE
Installation type BOARD BOARD
Maximum operating frequency 1 GHz 1 GHz
Options GENERAL PURPOSE GENERAL PURPOSE
Panel mounting NO NO
Termination type SOLDER SOLDER
Base Number Matches 1 1
