TW-35-03-L-T-400-100 datasheet, PDF

Datasheet> All Categories > The connector> The connector> TW-35-03-L-T-400-100

TW-35-03-L-T-400-100: DescriptionBoard Stacking Connector, 105 Contact(s), 3 Row(s), Male, Straight, Solder Terminal, ROHS COMPLIANT; CategoryThe connector The connector; File Size1MB，1 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

TW-35-03-L-T-400-100 Overview

Board Stacking Connector, 105 Contact(s), 3 Row(s), Male, Straight, Solder Terminal, ROHS COMPLIANT

TW-35-03-L-T-400-100 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Connector type	BOARD STACKING CONNECTOR
Contact to complete cooperation	GOLD (10) OVER NICKEL
Contact completed and terminated	MATTE TIN OVER NICKEL
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	TW
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	3
Options	GENERAL PURPOSE
Terminal pitch	2 mm
Termination type	SOLDER
Total number of contacts	105
Base Number Matches	1

Preview

Download Datasheet

View All

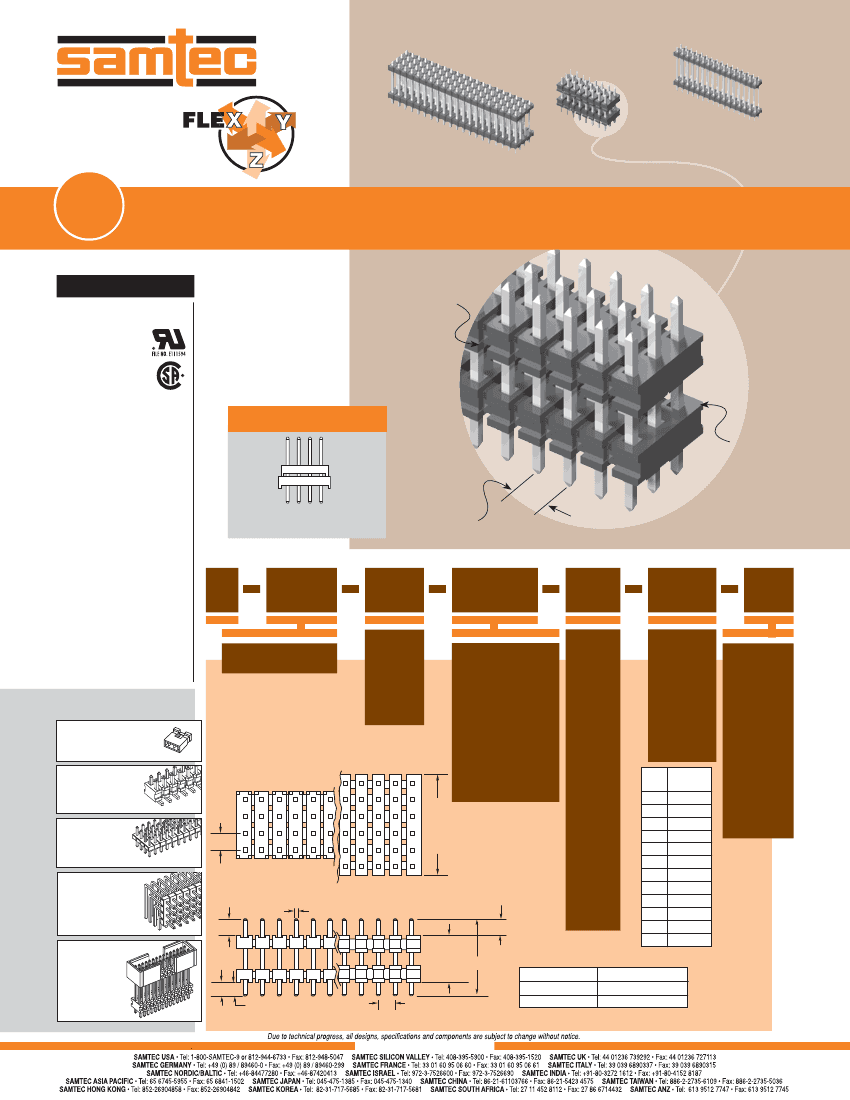

F-209-1

TW–08–09–G–T–250–100

TW–16–06–L–D–500–100

TW–20–03–G–Q–400–085

Through

T/H

Hole

2mm BOARD STACKER

Mates with:

CLT, SQT, SQW, ESQT,

TLE, SMM, MMS, TCSD

Specify stacker

height in (0,13mm)

.005" increments

SERIES

SPECIFICATIONS

For complete speciﬁcations

see www.samtec.com?TW

Insulator Material:

Black Liquid

Crystal Polymer

Terminal Material:

Phosphor Bronze

Plating:

Sn or Au over 50µ"

(1,27µm) Ni

Current Rating:

3A @ 80°C ambient

Operating Temp Range:

-55°C to +105°C with Tin;

-55°C to +125°C with Gold

RoHS Compliant:

Yes

ALSO AVAILABLE

Choice of

one through

six rows

Processing:

Max Processing Temp:

230°C for 60 seconds, or

260°C for 20 seconds 3x

Lead–Free Solderable:

Yes

Paste In Hole (PIH) processing.

Contact Samtec ASP Group.

(2,00mm)

.0787 pitch

Note:

Other Gold plating

options available.

Contact Samtec.

Note:

This Series is

non-standard, non-returnable.

NO. PINS

PER ROW

LEAD

STYLE

Specify

LEAD

STYLE

from

chart

below.

PLATING

OPTION

ROW

OPTION

STACKER

HEIGHT

TAIL

SPEC

02 thru 50

–L

= 10µ" (0,25µm) Gold

contact area,

Matte Tin on tail

–S

= Single

Row

–“XXX”

= Tail Length

In inches

(0,13mm) .005"

increments

Example: -150

Example: –250

= (3,81mm)

= (6,35mm)

.150"

.250"

LEAD

STYLE

Also Available

2mm Shunt

See 2SN Series.

–D

= Double

Row

–G

= 20µ" (0,51µm)

Gold contact area

Gold ﬂash on tail

= Stacker

Height

In inches

(0,13mm)

.005"

increments

–“XXX”

–T

= Triple

Row

Surface

Mount

See previous page.

300

–T

= Matte Tin

No. of

rows

(2,00)

.0787

OAL

(8,20) .323

(9,60) .377

(13,60) .535

(14,10) .555

(15,10) .594

(17,10) .673

(19,10) .751

(21,10) .830

(11,60) .456

(15,60) .614

(10,08) .397

(28,19) 1.110

–“XXX”

= Polarized

Position

(Specify

position to

be removed)

(2,00)

.0787

TYP

–Q

= Four

Row

Low

Proﬁle

See TMM Series.

–5

= Five

Row

–S, –D*, –Q

Right

Angle

See TMM Series.

POST

–T, –5, –6

(0,51) .020 SQ

295

–6

= Six

Row

STACKER

(1,27)

HEIGHT

See

OAL

.050

MIN

Chart

Shrouded

Double

Row

See ZLTMM

Series.

–01

–02

–03

–04

–05

–06

–07

–08

–09

–10

–11

–12

Style –08 & –12 = S & D only

ROW OPTION

STACKER HEIGHT

(3,05) .120 MIN

(4,06) .160 MIN

TAIL

(0,00) .000 MIN

(2,00) .0787

–S, –D*, & –Q

–T, –5, –6

will not have standoffs.

–S, –D*, –Q

–T, –5, –6

–D with stacker height greater than (4,06mm) .160"

WWW.SAMTEC.COM
