CCT-38S24C-TD datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> relay> CCT-38S24C-TD

CCT-38S24C-TD: DescriptionRF Coaxial Relay; CategoryMechanical and electronic products relay; File Size378KB，2 Pages; ManufacturerTeledyne Technologies Incorporated; Websitehttp://www.teledyne.com/

Download Datasheet Parametric View All

CCT-38S24C-TD Overview

RF Coaxial Relay

CCT-38S24C-TD Parametric

Parameter Name	Attribute value
Reach Compliance Code	compliant
ECCN code	EAR99
Relay type	RF COAXIAL RELAY
Base Number Matches	1

Preview

Download Datasheet

View All

Commercial

CCT-38

Normally Open

Multi-Throw Internal Terminations DC-18GHz

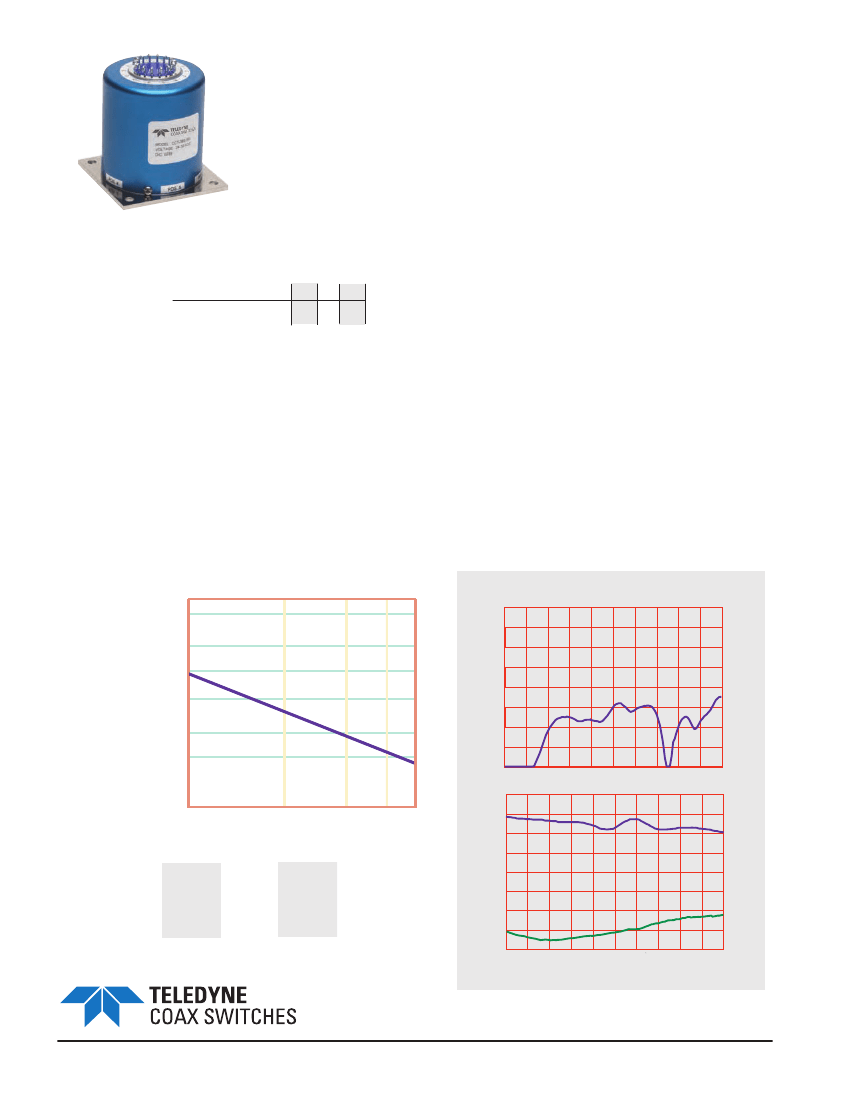

The CCT-38 Switch is an internally terminated, broadband, multi-throw, electromechanical

coaxial switch designed to switch a microwave signal from a common input to any of 3, 4, 5,

or 6 outputs. The characteristic impedance is 50 Ohms. Internal terminations provide an

impedance match for the unselected ports. The switches are small using the popular

connector spacing on a 1.062" dia. circle. Each position has an individual actuator mechanism

allowing random position selection. This also minimizes switching time.

Specifications

RF Contacts:

Actuator

Break before make

Voltage (VDC) 20

Current (mA)

Switching Time:

Terminations:

Connectors:

Weight:

15 msec max

50 Ohm 2 Watts CW max

SMA (f)

6 oz. max

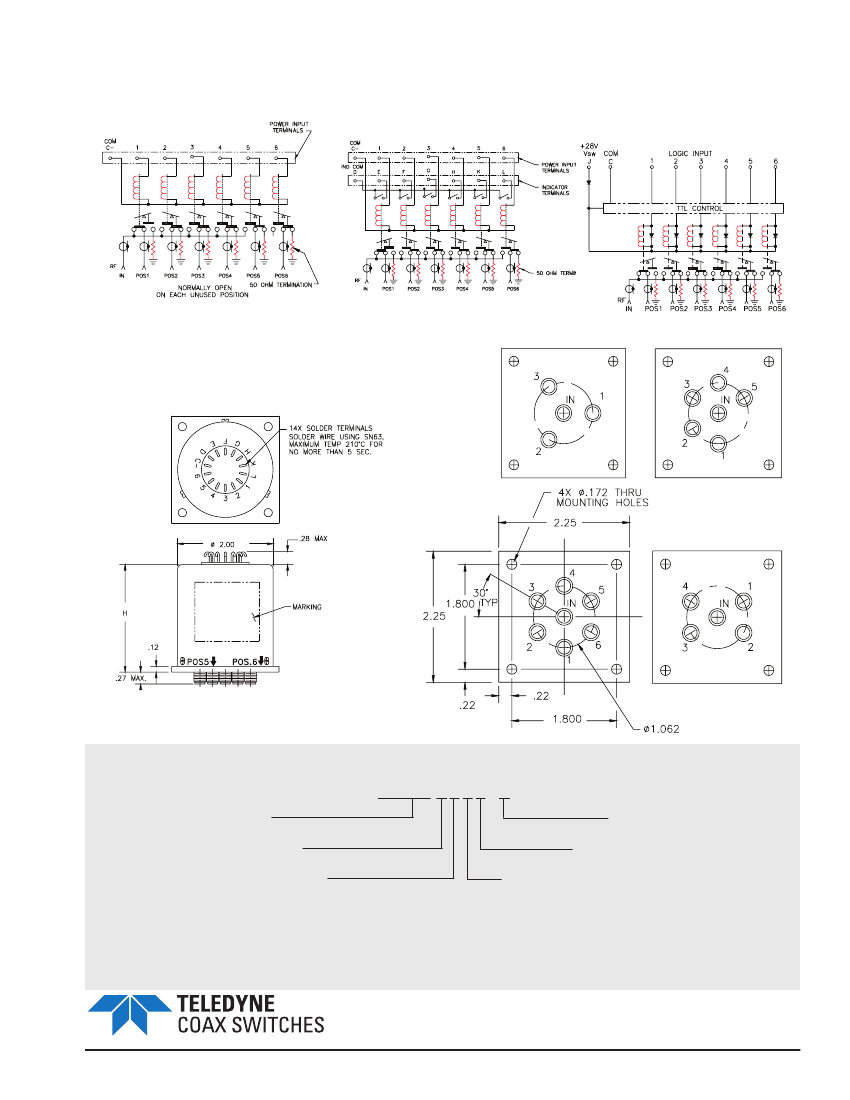

The CCT-38 comes with a normally open actuator. For the normally

open actuator, all ports are terminated in 50 Ohms, except the common

input port which is open when the switch is

de-energized.

170 136 180

Temperature Range:

-40

C to +65

C (Operating)

Shock:

Vibration:

Humidity:

Typical

Contact Life:

MIL-STD-202 Method 213, Condition D (500G Non Operating)

MIL-STD-202 Method 214, Condition D (10G RMS Non Operating)

Moisture Seal Available

5 Million

Cycles

Insertion Loss Repeatability (1 Million Cycles):

DC to 6 GHz: 0.05 dB

DC to 20 GHz: 0.1 dB

RF Power Handling (Non-Terminated)

Typical Performance

3000

800

400

Sta

Power CW (Watts)

nda

rd S

200

nne

ors

Return Loss

0.01

0.1

Frequency GHz

18.0

1.0

4.0

Frequency GHz

0.0

0.4

IL dB

Specifications

VSWR (max)

Insertion Loss (min)

Isolation (max)

DC-6 GHz 6-12 GHz 12-18 GHz

1.25:1

0.20 dB

70.0 dB

1.40:1

0.40 dB

60.0 dB

1.50:1

0.50 dB

60.0 dB

0.01

Frequency GHz

18.0

Specifications subject to change without notice.

www.teledynecoax.com

email: coax@teledyne.com

Tel: (800) 351-7368

10/2007

Isolation dB
