SMM-127-02-L-D: DescriptionBoard Connector, 54 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Socket, ROHS COMPLIANT; CategoryThe connector The connector; File Size984KB，1 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

SMM-127-02-L-D Overview

Board Connector, 54 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Socket, ROHS COMPLIANT

SMM-127-02-L-D Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Factory Lead Time	2 weeks
Other features	ELP, TIGER EYE
body width	0.158 inch
subject depth	0.145 inch
body length	2.125 inch
Body/casing type	SOCKET
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (10) OVER NICKEL (50)
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Durability	100 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	.556 N
Insulator color	BLACK
insulator material	LIQUID CRYSTAL POLYMER (LCP)
JESD-609 code	e3
MIL compliance	NO
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	4.5466 mm
Plating thickness	10u inch
Rated current (signal)	3.2 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	2 mm
Termination type	SURFACE MOUNT
Total number of contacts	54
Evacuation force-minimum value	.417 N
Base Number Matches	1

Preview

Download Datasheet

View All

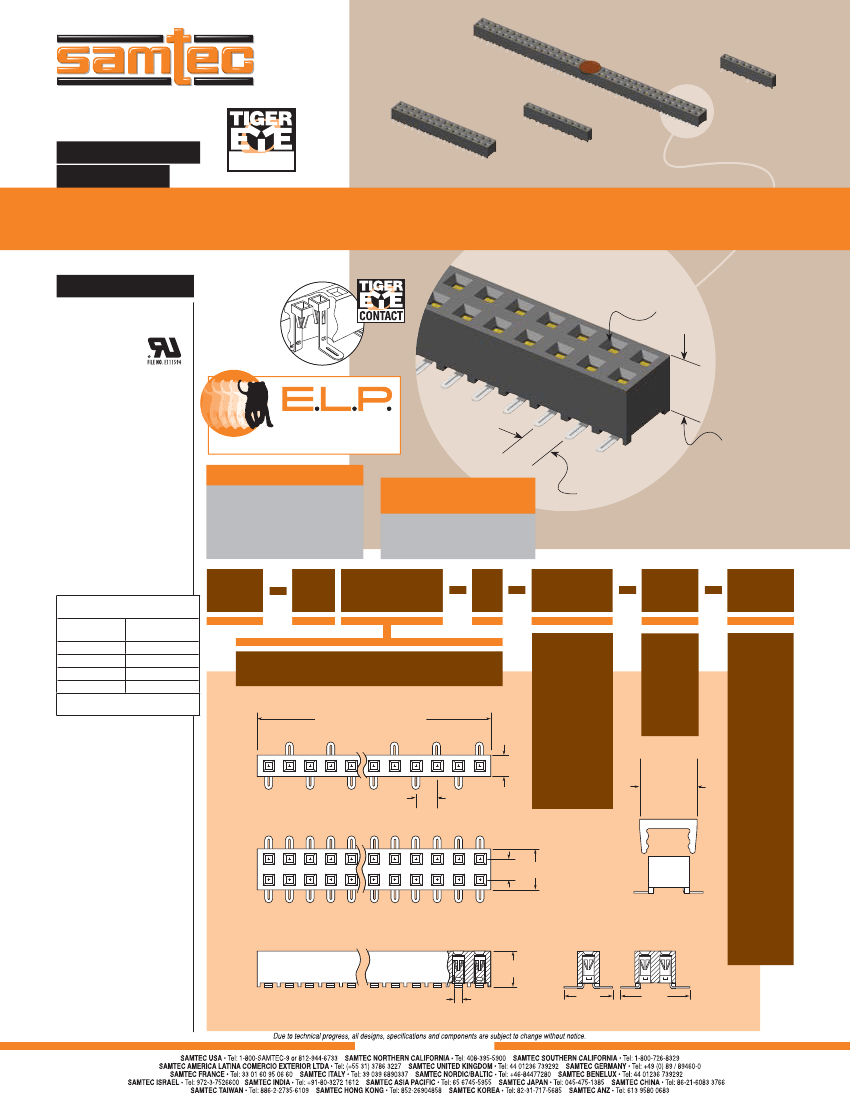

F-213

SMM–135–02–L–D–K

SMM–108–02–L–S

SMM–115–02–S–D

™

(2,00 mm) .0787"

SMM SERIES

SYSTEM

™

SMM–110–02–L–S

TIGER EYE SOCKET STRIP

SPECIFICATIONS

For complete speciﬁcations and

recommended PCB layouts

see www.samtec.com?SMM

Insulator Material:

Black Liquid Crystal

Polymer

Contact Material:

BeCu

Plating:

Sn or Au over

50µ" (1,27 µm) Ni

Voltage Rating:

350 VAC

Operating Temp Range:

-55°C to +125°C

Contact Resistance:

10 mΩ

Insertion Depth:

(3,05 mm) .120" to

(3,25 mm) .128"

Insertion Force:

(Single contact only)

2.0 oz (0,56 N) average

Withdrawal Force:

(Single contact only)

1.5 oz (0,42 N) average

Max Cycles:

100 with 10µ" (0,25 µm) Au

RoHS Compliant:

Yes

CURRENT RATING

(PER CONTACT)

AMBIENT

Mated with

TEMP

TMM

20°C

3.9A

40°C

3.5A

60°C

95°C

6 POSITIONS (2x3)

POWERED

Mates with:

TMM, TMMH,

MTMM, MMT,

LTMM, TW,

TCMD, PTT,

ZLTMM

™

Available with optional

Pick & Place Pads

High reliability

Tiger Eye™ contacts

(Four point redundancy)

EXTENDED LIFE PRODUCT

10 year Mixed Flowing Gas with 30µ" Gold

1,000 cycles when mated with TMM

POLARIZING KEY

Specify PK–01–07 for

polarizing key (Available

in wheels of six each).

Also polarizes TCSD Series

IDC Cable.

(3,56 mm)

.140"

(2,00 mm)

.0787" pitch

APPLICATION

SPECIFIC OPTION

Locking clip

(Manual placement required).

Call Samtec.

SMM

NO. PINS

PER ROW

PLATING

OPTION

ROW

OPTION

OTHER

OPTION

–F

02 thru 40

No. of positions x (2,00) .0787

= Gold ﬂash

on contact,

Matte Tin on tail

–S

= Single

Row

–“XX”

= Polarized

Position

–L

(2,00)

.0787

(2,00)

.0787

–D

= Double

Row

–K

= (5,50 mm)

.217" DIA

Polyimide

Film

Pick &

Place Pad

(2 positions

minimum,

–02 thru –05

requires –TR)

Processing:

Lead–Free Solderable:

Yes

SMT Lead Coplanarity:

(0,10 mm) .004" max

= 10µ" (0,25 µm)

Gold on contact,

Matte Tin on tail

–S

= 30µ" (0,76 µm)

Gold on contact,

Matte Tin on tail

–S Row

(3,81) .150

x (7,62) .300

–D Row

(5,71) .225

x (10,01) .394

–P

(2,00) (4,00)

.0787 .158

= Plastic Pick

& Place Pad

(–02 thru –05

requires –TR)

–P

= Tape & Reel

Packaging

(27 positions

maximum)

Note:

Other Gold plating

options available.

Contact Samtec.

Note:

Some lengths, styles

and options are non-standard,

non-returnable.

(3,56)

.140

(0,51)

.020

(4,32)

.170

(6,30)

.248

–TR

WWW.SAMTEC.COM
