SR-6C-A-L-40 Overview

RF Coaxial Relay, SP6T, Latched, 25875mW (Coil), 40000MHz, AC Input, AC Output, Panel Mount

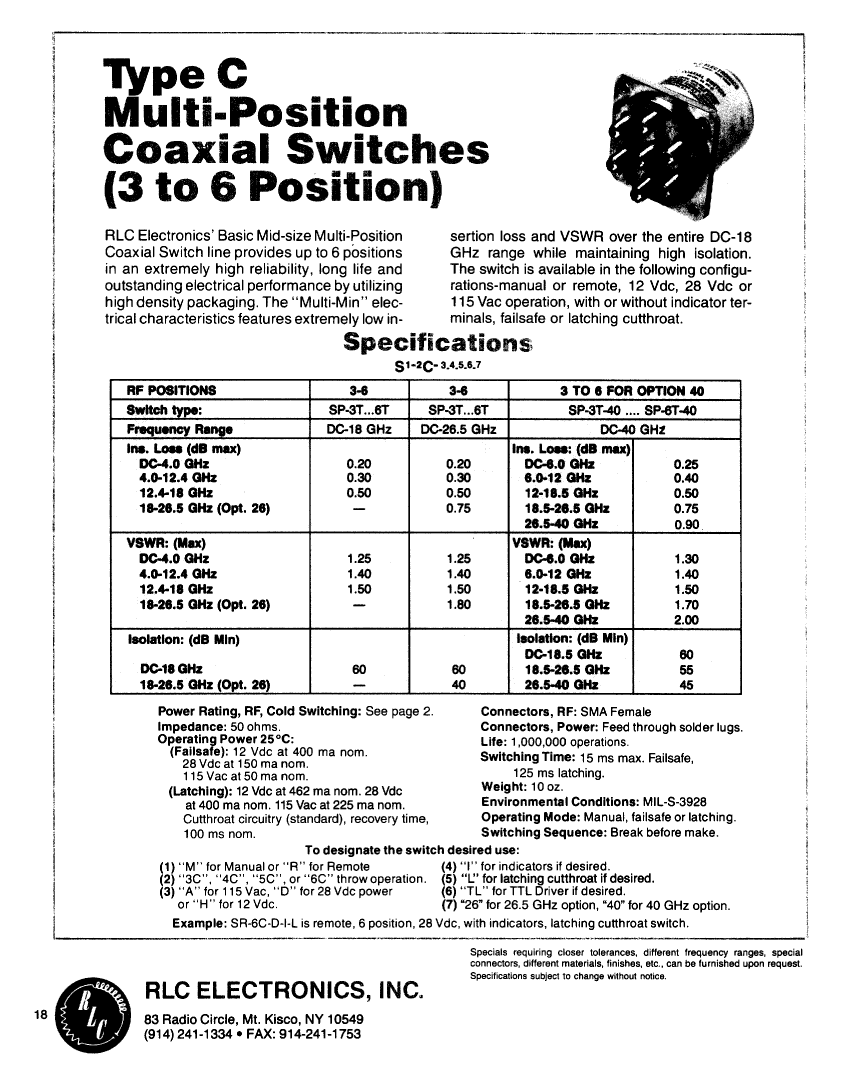

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	SMA
Body length or diameter	39.62 mm
Characteristic impedance	50 Ω
Coil current (AC) maximum value	0.225 A
Coil power	25875 mW
Maximum coil voltage (AC)	115 V
Coil/Input Power Type	AC
Contact/Output Power Type	AC
Electrical life	1000000 Cycle(s)

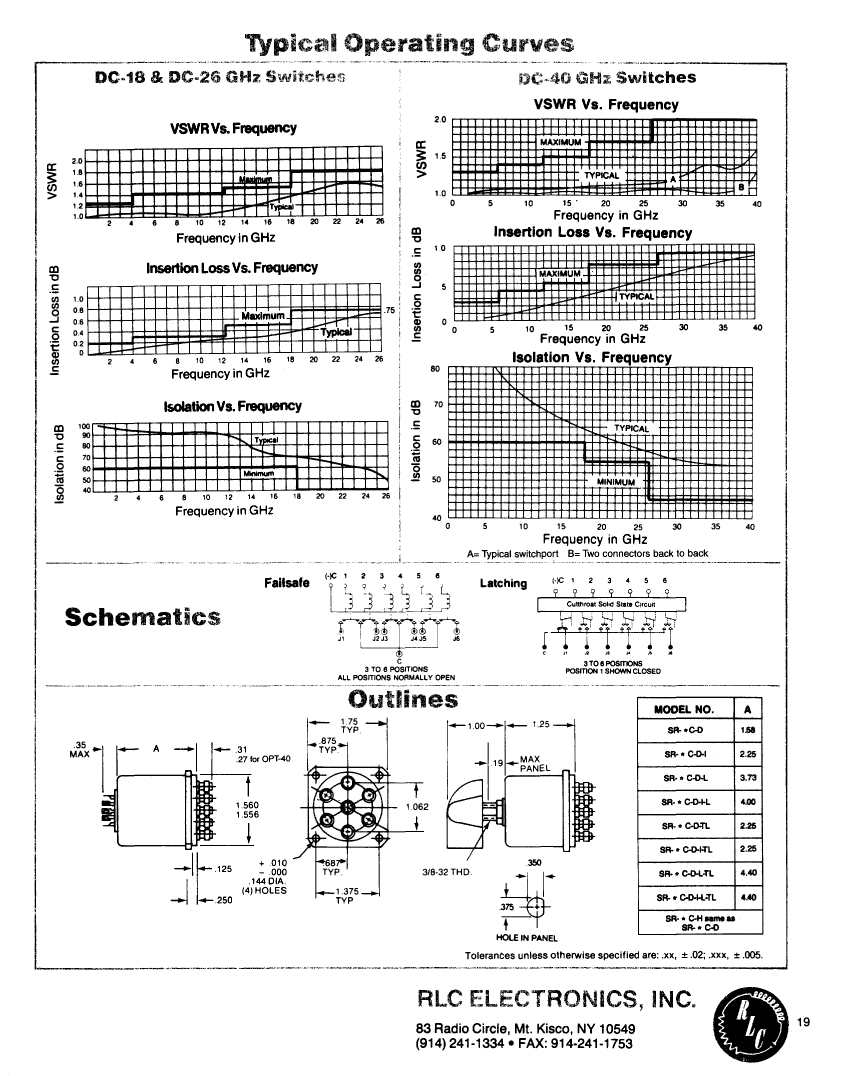

Maximum insertion loss	0.9 dB
Maximum isolation	45 dB
Manufacturer's serial number	SR
Installation features	PANEL MOUNT
Maximum operating frequency	40000 MHz
Minimum operating frequency
Relay action	LATCHED
Relay function	SP6T
Relay type	RF COAXIAL RELAY
surface mount	NO
switching time	125 ms
Termination type	SOLDER/CONNECTOR
voltage standing wave ratio	2
Base Number Matches	1
