DV74LS299D datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> DV74LS299D

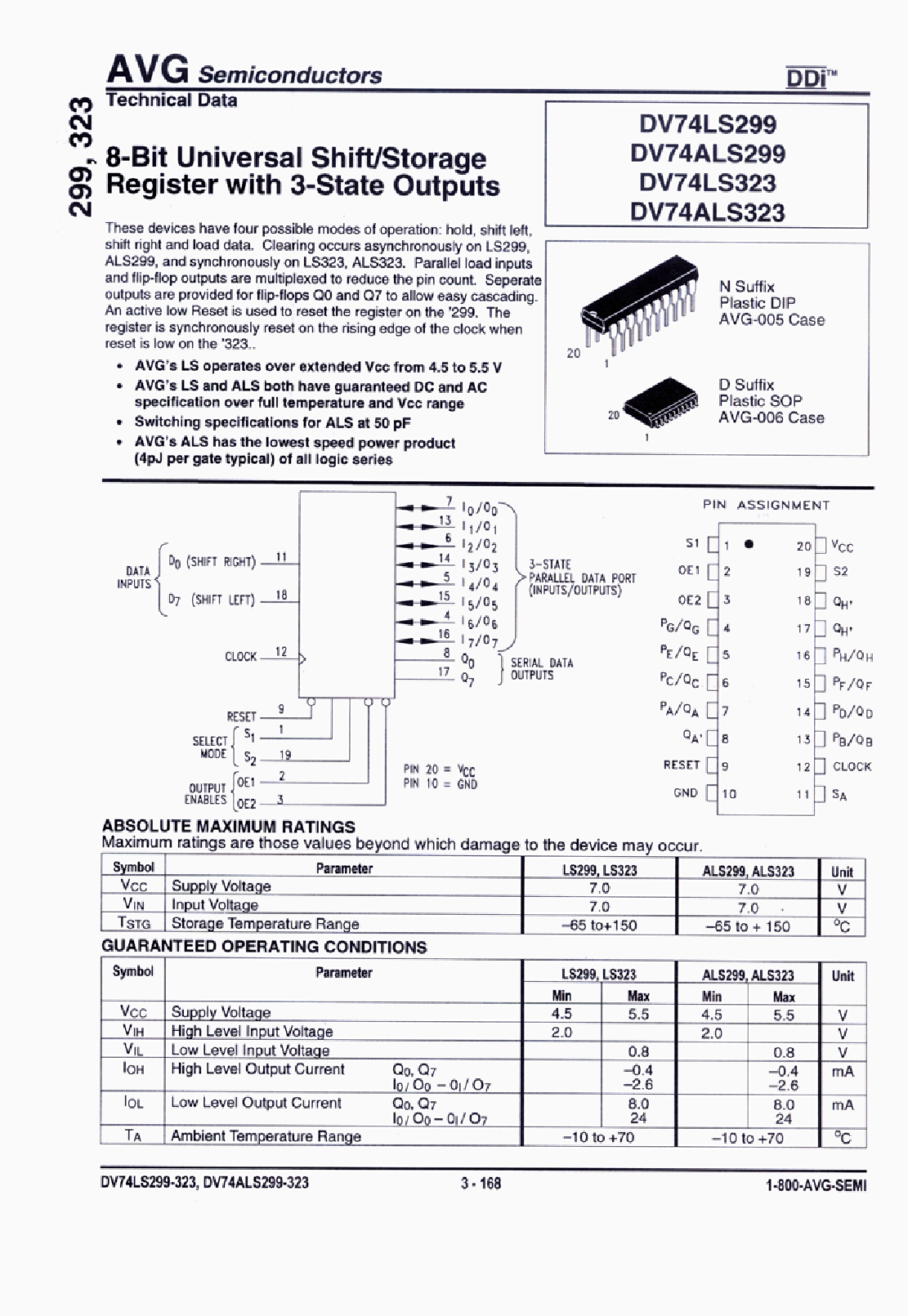

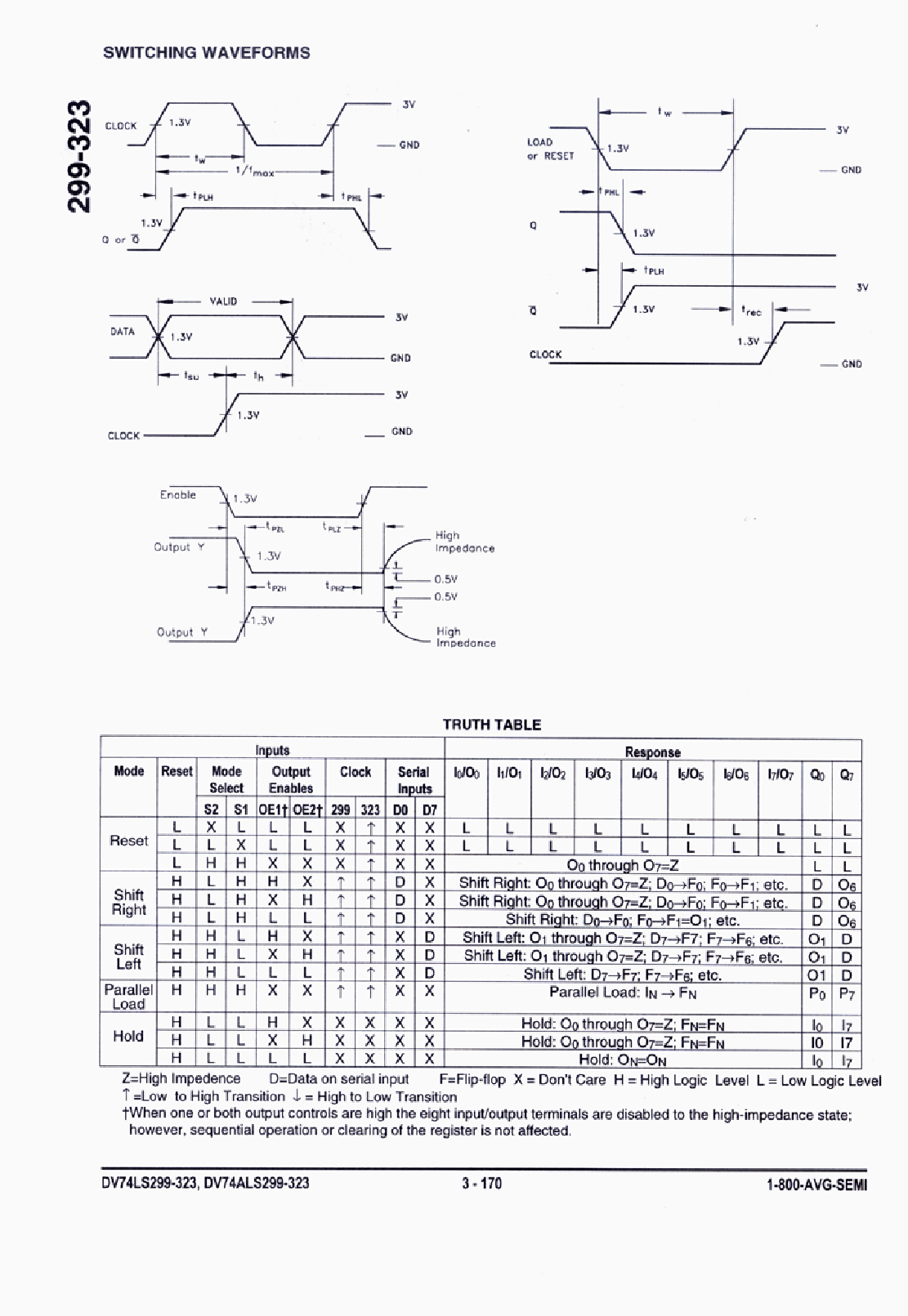

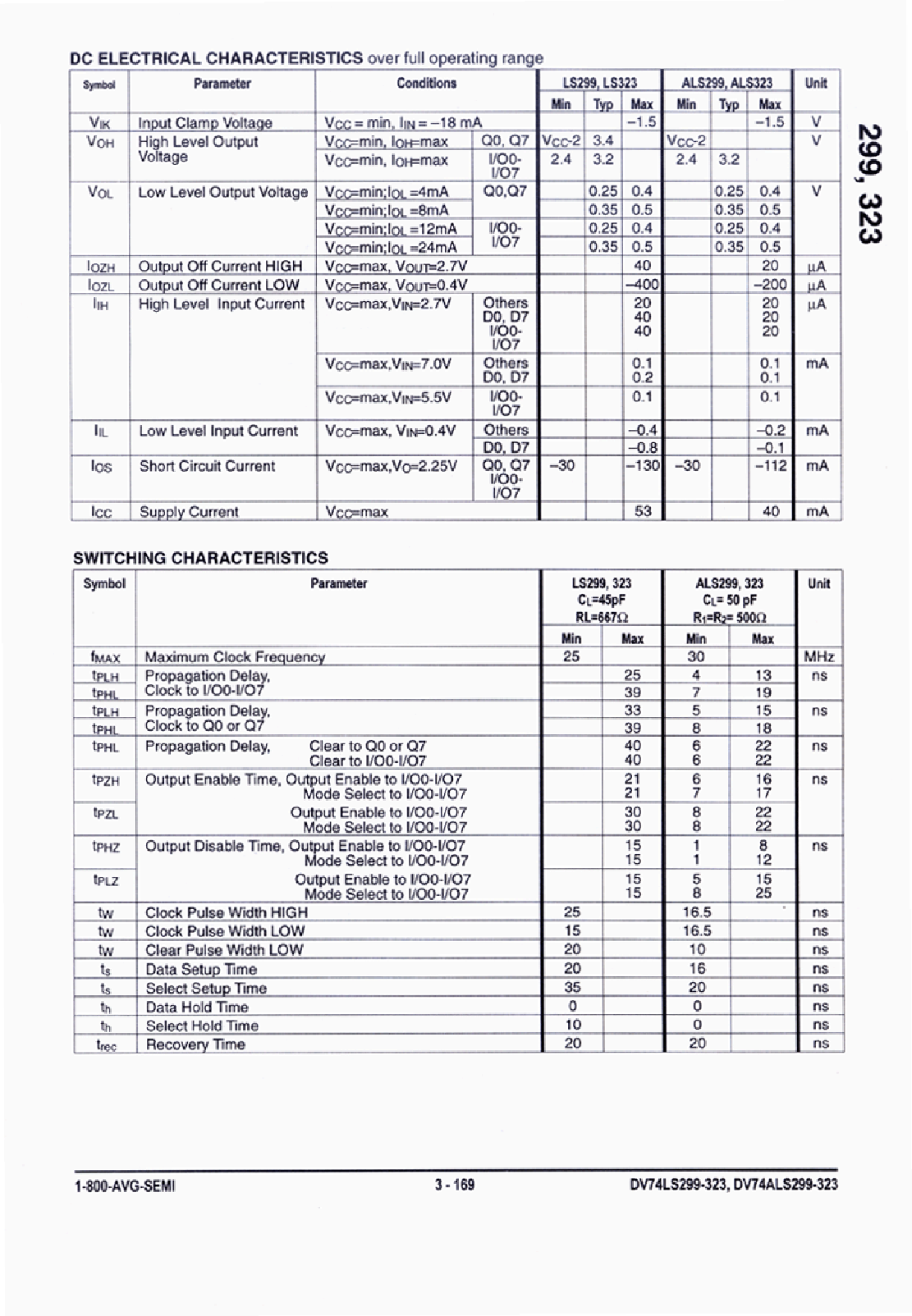

DV74LS299D: DescriptionParallel In Parallel Out, LS Series, 8-Bit, Bidirectional, True Output, TTL, PDSO20, PLASTIC, SOP-20; Categorylogic logic; File Size569KB，3 Pages; ManufacturerAVG [AVG Semiconductors(HITEK)]

Download Datasheet Parametric Compare View All

DV74LS299D Overview

Parallel In Parallel Out, LS Series, 8-Bit, Bidirectional, True Output, TTL, PDSO20, PLASTIC, SOP-20

DV74LS299D Parametric

Parameter Name	Attribute value
Parts packaging code	SOIC
package instruction	SOP, SOP20(UNSPEC)
Contacts	20
Reach Compliance Code	unknown
Other features	HOLD MODE; COMMON I/O PINS; TOTEMPOLE SERIAL SHIFT RIGHT & SHIFT LEFT OUTPUTS; GATED OUTPUT CONTROL
Counting direction	BIDIRECTIONAL
series	LS
JESD-30 code	R-PDSO-G20
length	12.8 mm
Load capacitance (CL)	45 pF
Logic integrated circuit type	PARALLEL IN PARALLEL OUT
Number of digits	8
Number of functions	1
Number of terminals	20
Maximum operating temperature	70 °C
Minimum operating temperature	-10 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP20(UNSPEC)
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
power supply	5 V
Maximum supply current (ICC)	53 mA
propagation delay (tpd)	39 ns
Certification status	Not Qualified
Maximum seat height	2.65 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	COMMERCIAL
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Trigger type	POSITIVE EDGE
width	7.5 mm
minfmax	25 MHz
Base Number Matches	1

Preview

Download Datasheet

View All

DV74LS299D Related Products

	DV74LS299D	DV74ALS299N	DV74LS323D	DV74LS323N	DV74ALS323D	DV74ALS323N	DV74ALS299D
Description	Parallel In Parallel Out, LS Series, 8-Bit, Bidirectional, True Output, TTL, PDSO20, PLASTIC, SOP-20	Parallel In Parallel Out, ALS Series, 8-Bit, Bidirectional, True Output, TTL, PDIP20, PLASTIC, DIP-20	Parallel In Parallel Out, LS Series, 8-Bit, Bidirectional, True Output, TTL, PDSO20, PLASTIC, SOP-20	Parallel In Parallel Out, LS Series, 8-Bit, Bidirectional, True Output, TTL, PDIP20, PLASTIC, DIP-20	Parallel In Parallel Out, ALS Series, 8-Bit, Bidirectional, True Output, TTL, PDSO20, PLASTIC, SOP-20	Parallel In Parallel Out, ALS Series, 8-Bit, Bidirectional, True Output, TTL, PDIP20, PLASTIC, DIP-20	Parallel In Parallel Out, ALS Series, 8-Bit, Bidirectional, True Output, TTL, PDSO20, PLASTIC, SOP-20
Parts packaging code	SOIC	DIP	SOIC	DIP	SOIC	DIP	SOIC
package instruction	SOP, SOP20(UNSPEC)	PLASTIC, DIP-20	SOP, SOP20(UNSPEC)	DIP, DIP20(UNSPEC)	SOP, SOP20(UNSPEC)	DIP, DIP20(UNSPEC)	SOP, SOP20(UNSPEC)
Contacts	20	20	20	20	20	20	20
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Other features	HOLD MODE; COMMON I/O PINS; TOTEMPOLE SERIAL SHIFT RIGHT & SHIFT LEFT OUTPUTS; GATED OUTPUT CONTROL	HOLD MODE; COMMON I/O PINS; TOTEMPOLE SERIAL SHIFT RIGHT & SHIFT LEFT OUTPUTS; GATED OUTPUT CONTROL	HOLD MODE; COMMON I/O PINS; TOTEMPOLE SERIAL SHIFT RIGHT & SHIFT LEFT OUTPUTS; GATED OUTPUT CONTROL	HOLD MODE; COMMON I/O PINS; TOTEMPOLE SERIAL SHIFT RIGHT & SHIFT LEFT OUTPUTS; GATED OUTPUT CONTROL	HOLD MODE; COMMON I/O PINS; TOTEMPOLE SERIAL SHIFT RIGHT & SHIFT LEFT OUTPUTS; GATED OUTPUT CONTROL	HOLD MODE; COMMON I/O PINS; TOTEMPOLE SERIAL SHIFT RIGHT & SHIFT LEFT OUTPUTS; GATED OUTPUT CONTROL	HOLD MODE; COMMON I/O PINS; TOTEMPOLE SERIAL SHIFT RIGHT & SHIFT LEFT OUTPUTS; GATED OUTPUT CONTROL
Counting direction	BIDIRECTIONAL	BIDIRECTIONAL	BIDIRECTIONAL	BIDIRECTIONAL	BIDIRECTIONAL	BIDIRECTIONAL	BIDIRECTIONAL
series	LS	ALS	LS	LS	ALS	ALS	ALS
JESD-30 code	R-PDSO-G20	R-PDIP-T20	R-PDSO-G20	R-PDIP-T20	R-PDSO-G20	R-PDIP-T20	R-PDSO-G20
length	12.8 mm	26.415 mm	12.8 mm	26.415 mm	12.8 mm	26.415 mm	12.8 mm
Load capacitance (CL)	45 pF	50 pF	45 pF	45 pF	50 pF	50 pF	50 pF
Logic integrated circuit type	PARALLEL IN PARALLEL OUT	PARALLEL IN PARALLEL OUT	PARALLEL IN PARALLEL OUT	PARALLEL IN PARALLEL OUT	PARALLEL IN PARALLEL OUT	PARALLEL IN PARALLEL OUT	PARALLEL IN PARALLEL OUT
Number of digits	8	8	8	8	8	8	8
Number of functions	1	1	1	1	1	1	1
Number of terminals	20	20	20	20	20	20	20
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
Minimum operating temperature	-10 °C	-10 °C	-10 °C	-10 °C	-10 °C	-10 °C	-10 °C
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Output polarity	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	DIP	SOP	DIP	SOP	DIP	SOP
Encapsulate equivalent code	SOP20(UNSPEC)	DIP20(UNSPEC)	SOP20(UNSPEC)	DIP20(UNSPEC)	SOP20(UNSPEC)	DIP20(UNSPEC)	SOP20(UNSPEC)
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	IN-LINE	SMALL OUTLINE	IN-LINE	SMALL OUTLINE	IN-LINE	SMALL OUTLINE
power supply	5 V	5 V	5 V	5 V	5 V	5 V	5 V
Maximum supply current (ICC)	53 mA	40 mA	53 mA	53 mA	40 mA	40 mA	40 mA
propagation delay (tpd)	39 ns	18 ns	39 ns	39 ns	18 ns	18 ns	18 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	2.65 mm	4.57 mm	2.65 mm	4.57 mm	2.65 mm	4.57 mm	2.65 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	NO	YES	NO	YES	NO	YES
technology	TTL	TTL	TTL	TTL	TTL	TTL	TTL
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	GULL WING	THROUGH-HOLE	GULL WING	THROUGH-HOLE	GULL WING	THROUGH-HOLE	GULL WING
Terminal pitch	1.27 mm	2.54 mm	1.27 mm	2.54 mm	1.27 mm	2.54 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Trigger type	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE
width	7.5 mm	7.62 mm	7.5 mm	7.62 mm	7.5 mm	7.62 mm	7.5 mm
minfmax	25 MHz	30 MHz	25 MHz	25 MHz	30 MHz	30 MHz	30 MHz
Base Number Matches	1	1	1	1	1	1	-
