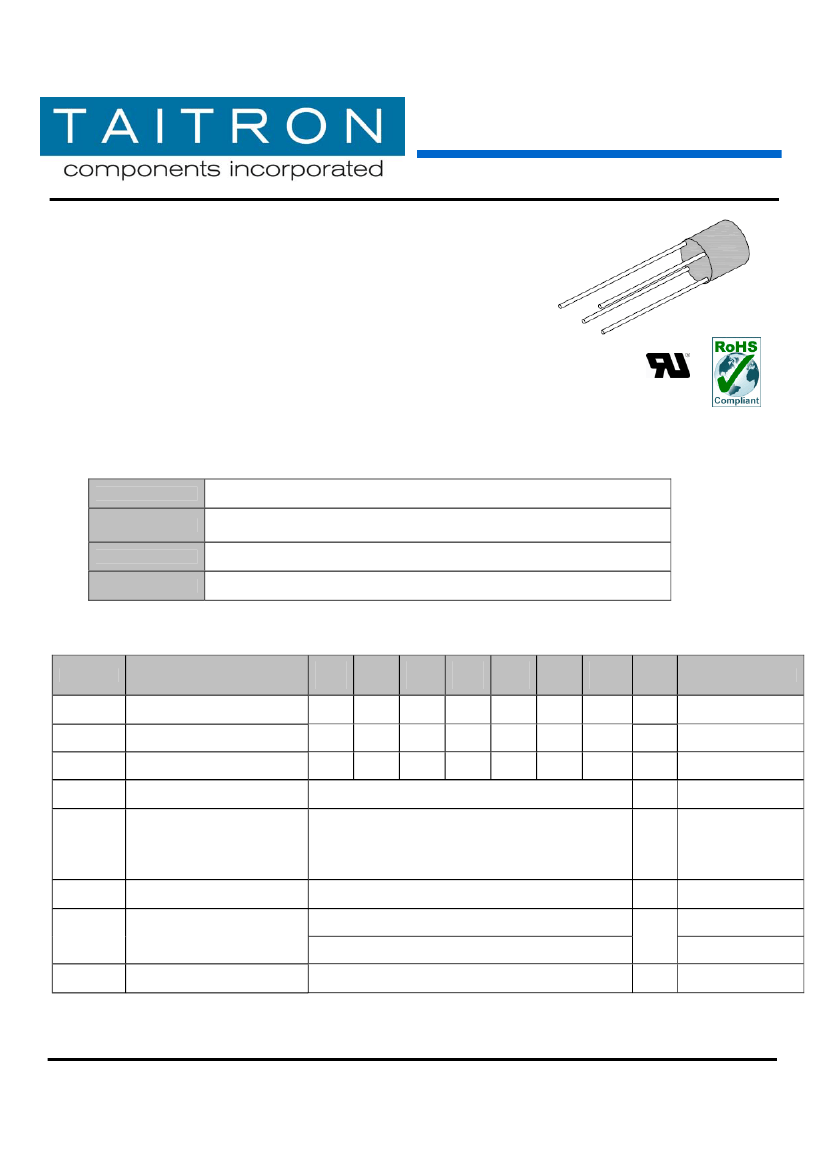

2.0A Bridge Rectifiers
2W005M – 2W10M
2.0A Bridge Rectifiers
Features
•
•
•
•
Low reverse leakage current
High forward surge current capability
Ideal for printed circuit board
High temperature soldering guaranteed:
2WOM
260°C/10 seconds, 0.375" (9.5mm) lead length, 5 lbs (2.3kg) tension
•
This series is UL recognized under component index, File number E194718
•
RoHS compliant
Mechanical Data
Case:
Terminals:
Polarity:
Weight:
Molded plastic body
Lead solderable per MIL-STD-202E, Method 208C
As marked on case
0.05 ounce, 1.42 gram
Maximum Ratings And Electrical Characteristics
(T
amb
=25˚C)
Symbols
Parameter
Maximum Repetitive Peak
Reverse Voltage
Maximum RMS Voltage
Maximum DC Blocking Voltage
Maximum Average Forward
Rectified Current
2W
005M
50
35
50
2W
01M
100
70
100
2W
02M
200
140
200
2W
04M
400
280
400
2.0
2W
06M
600
420
600
2W
08M
800
560
800
2W
10M
1000
700
1000
Unit
V
V
V
A
T
A
=50˚C
8.3ms single half
sine-wave
superimposed on
rated load (JEDEC
Method)
I
F
=2.0A
T
A
=25°C
µA
500
10
A²S
T
A
=100°C
Conditions
V
RRM
V
RMS
V
DC
I
F(AV)
I
FSM
V
F
I
R
I²
t
Peak Forward Surge Current
50
A
Maximum Instantaneous
Forward Voltage Drop per leg
Maximum DC Reverse Current
at Rated DC Blocking Voltage
per leg
Rating for Fusing
(1ms<t<8.3ms)
1.1
5.0
V
TAITRON COMPONENTS INCORPORATED
www.taitroncomponents.com
Tel: (800)-TAITRON (800)-824-8766 (661)-257-6060
Fax: (800)-TAITFAX (800)-824-8329 (661)-257-6415
Rev. A/AH 2008-05-22
Page 1 of 4
2.0A Bridge Rectifiers
2W005M – 2W10M
Symbols
Parameter
Typical Junction Capacitance
Typical Thermal Resistance
per leg
Operating Temperature Range
Storage Temperature Range
2W
005M
2W
01M
2W
02M
2W
04M
15
40
-55 to +125
-55 to +150
2W
06M
2W
08M
2W
10M
Unit
pF
˚C/W
V
˚C
Conditions
V
R
=4V, f=1MHz
Note 1
C
J
R
θJA
T
J
T
STG
Note:
1. Unit mounted on P.C. board with 0.22 x 0.22" (5.5 x 5.5mm) copper pads, .375" (9.5mm)
lead length.
2. Single Phase, half wave, 60Hz, resistive or inductive load.
For capacitive load, derate current by 20%.
Rating and characteristic curves

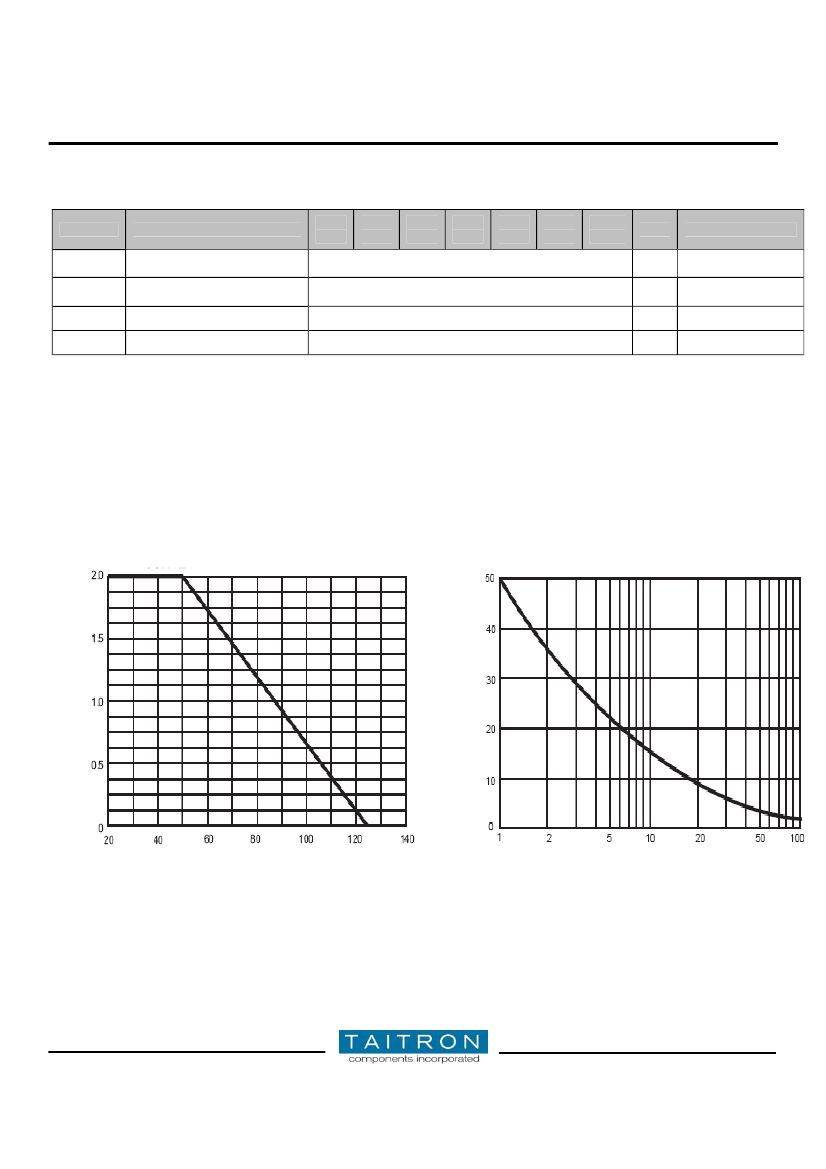

Fig.1- Derating Curve Output Rectified Current
Peak Forward Surge Current (A)
Average Forward Current (A)
Fig.2-Max Non-Repetitive Peak Forward Surge Current
Ambient Temperature (°C)
Number of Cycles at 60Hz
Rev. A/AH 2008-05-22
www.taitroncomponents.com
Page 2 of 4
2.0A Bridge Rectifiers
2W005M – 2W10M

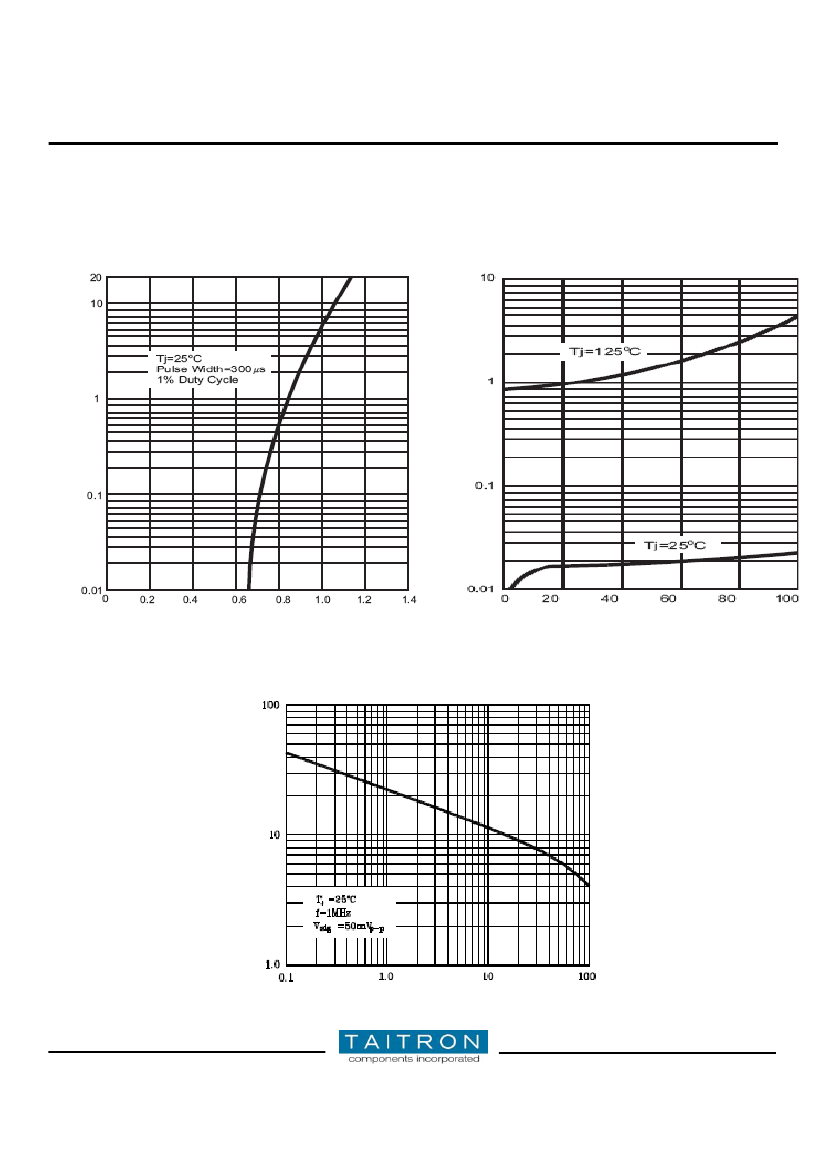

Fig.3- Typical Instantaneous Forward Characteristics,
per leg
Instantaneous Reverse Current (µA)
Fig.4-Typical Reverse Leakage Characteristics
per leg
Instantaneous Forward Current (A)
Instantaneous Forward Voltage (V)
Percent of Rated Peak Reverse Voltage (%)
Fig.5-Typical Junction Capacitance per leg
Junction Capacitance (pF)
Reverse Voltage (V)
Rev. A/AH 2008-05-22
www.taitroncomponents.com
Page 3 of 4
2.0A Bridge Rectifiers
2W005M – 2W10M

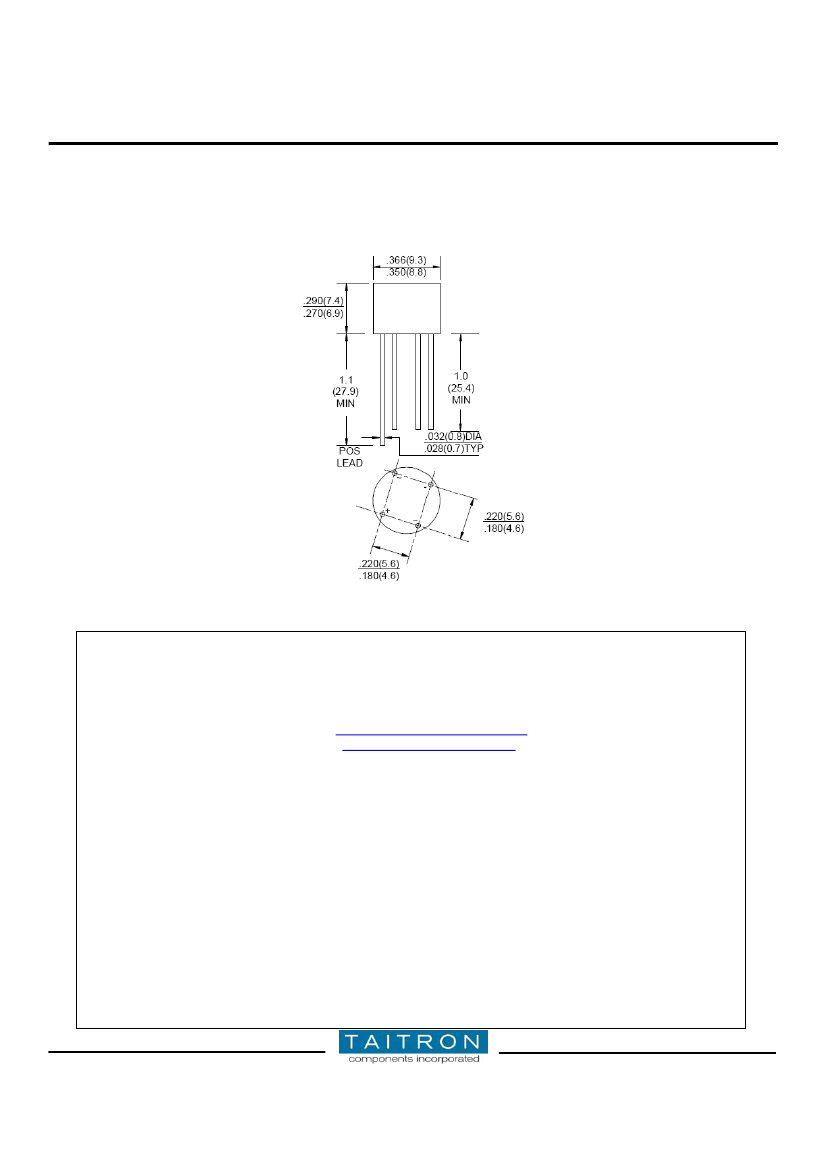

Dimensions in inch (mm)
How to contact us
2WOM
