2W005M thru 2W10M / 2W005G thru 2W10G
Glass Passivated Single-Phase Bridge Rectifiers
Reverse Voltage 50 to 1000 Volts Forward Current 2.0 Amperes
Features
Ideal for printed circuit boards
Typical I
R
less than 0.5 µA
High case dielectric strength
High surge current capability
Solder Dip 260 °C, 40 seconds
Mechanical Data
Case: WOB / WOG
Epoxy meets UL-94V-0 Flammability rating
Terminals: Silver plated (E4 Suffix) leads, solderable per
J-STD-002B and JESD22-B102D
Polarity: As marked on body
Typical Applications
General purpose use in ac-to-dc bridge full wave rectification for
Power Supply, Adapter, Charger, lighting Ballaster on Consumers and
Home Appliances applications
Maximum Ratings and Electrical Characteristics
Rating at 25
o
C ambient temperature unless otherwise specified.
Parameter
Maximum recurrent peak reverse voltage
Maximum RMS voltage
Maximum DC blocking voltage

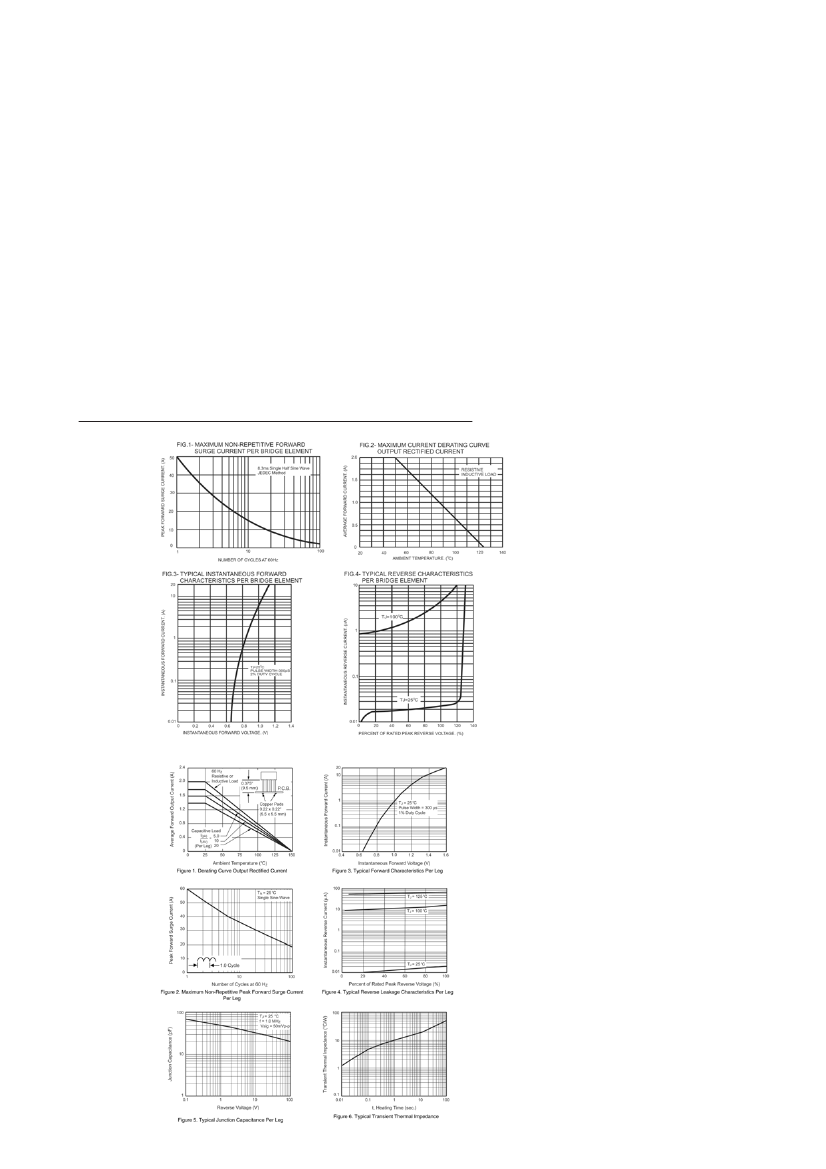

Maximum average forward rectified current 0.375" (9.5mm)
lead length (See Fig.2 and Fig.1)
Peak forward surge current, 8.3ms single half sine-wave
superimposed on rated load (JEDEC Method)
Rating for fusing (t < 8.3ms)
Max. instantaneous forward voltage drop per element at 1.0A
Maximum DC reverse current
at rated DC blocking voltage per element
T
A
=25
o
C
Symbols
V
RRM
V
RMS
V
DC
I
F(AV)
I
FSM
I
2
t
V
F
I
R
C
J
R
θ
JA
R
θ
JL
T
J
T
STG
2W005M
2W005G
2W01M
2W01G
2W02M
2W02G
2W04M
2W04G
Package outline dimensions in inches (millimeters)
2W06M
2W06G
2W08M
2W08G
2W10M
2W10G
Units
Volts
Volts
Volts
Amps
Amps
A
2
se c
Volts
uA
pF
o
50
35
50
100
70
100
200
140
200
400
280
400
2.0
600
420
600
800
560
800
1000
700
1000
2W005M: 50.0, 2W005G: 60.0
2W005G: 15.0
1.1
10.0
500 (2W005M @ T
A
=100
o
C, 2W005G @ T
A
=125
o
C)
40
40
15
2W005M: -55 to +125 2W005G: -55 to +150
-55 to +150
20
Typical junction capacitance per element (Note 1)
Typical thermal resistance per leg (Note 2)
Operating temperature range
Storage temperature range
C/W
o
C
C
o
Notes:
1. Measured at 1.0MHz and applied reverse voltage of 4.0 volts
2. Thermal resistance from junction to ambient and from junction to lead at 0.375" (9.5 mm) lead length P.C.B. mounting
