CMLT3820GTR: DescriptionSmall Signal Bipolar Transistor, 1A I(C), 60V V(BR)CEO, 1-Element, NPN, Silicon, PICOMINI-6; CategoryDiscrete semiconductor The transistor; File Size509KB，2 Pages; ManufacturerCentral Semiconductor

Download Datasheet Parametric Compare View All

CMLT3820GTR Overview

Small Signal Bipolar Transistor, 1A I(C), 60V V(BR)CEO, 1-Element, NPN, Silicon, PICOMINI-6

CMLT3820GTR Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	SMALL OUTLINE, R-PDSO-F6
Contacts	6
Reach Compliance Code	not_compliant
ECCN code	EAR99
Maximum collector current (IC)	1 A
Collector-emitter maximum voltage	60 V
Configuration	SINGLE
Minimum DC current gain (hFE)	100
JESD-30 code	R-PDSO-F6
JESD-609 code	e0
Number of components	1
Number of terminals	6
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Polarity/channel type	NPN
Maximum power dissipation(Abs)	0.25 W
Certification status	Not Qualified
surface mount	YES
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	FLAT
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
transistor applications	SWITCHING
Transistor component materials	SILICON
Nominal transition frequency (fT)	150 MHz
Base Number Matches	1

Preview

Download Datasheet

View All

CMLT3820G

SURFACE MOUNT

VERY LOW VCE(SAT)

NPN SILICON TRANSISTOR

w w w. c e n t r a l s e m i . c o m

DESCRIPTION:

The CENTRAL SEMICONDUCTOR CMLT3820G is

a very low VCE(SAT) NPN Transistor, designed for

applications where small size and efficiency are the

prime requirements. Packaged in a space saving

PICOmini™ SOT-563 surface mount package, this

component provides performance characteristics

suitable for the most demanding size constrained

applications.

MARKING CODE: 38G

FEATURES:

•

Device is

Halogen Free

by design

•

High Current (IC=1.0A)

•

VCE(SAT)=0.28V MAX @ IC=1.0A

SOT-563 CASE

APPLICATIONS:

•

DC/DC Converters

•

Voltage Clamping

•

Protection Circuits

•

Battery powered Cell Phones, Pagers,

Digital Cameras, PDAs, Laptops, etc.

MAXIMUM RATINGS:

(TA=25°C)

Collector-Base Voltage

Collector-Emitter Voltage

Emitter-Base Voltage

Continuous Collector Current

Peak Collector Current

Continuous Base Current

Power Dissipation

Operating and Storage Junction Temperature

Thermal Resistance

•

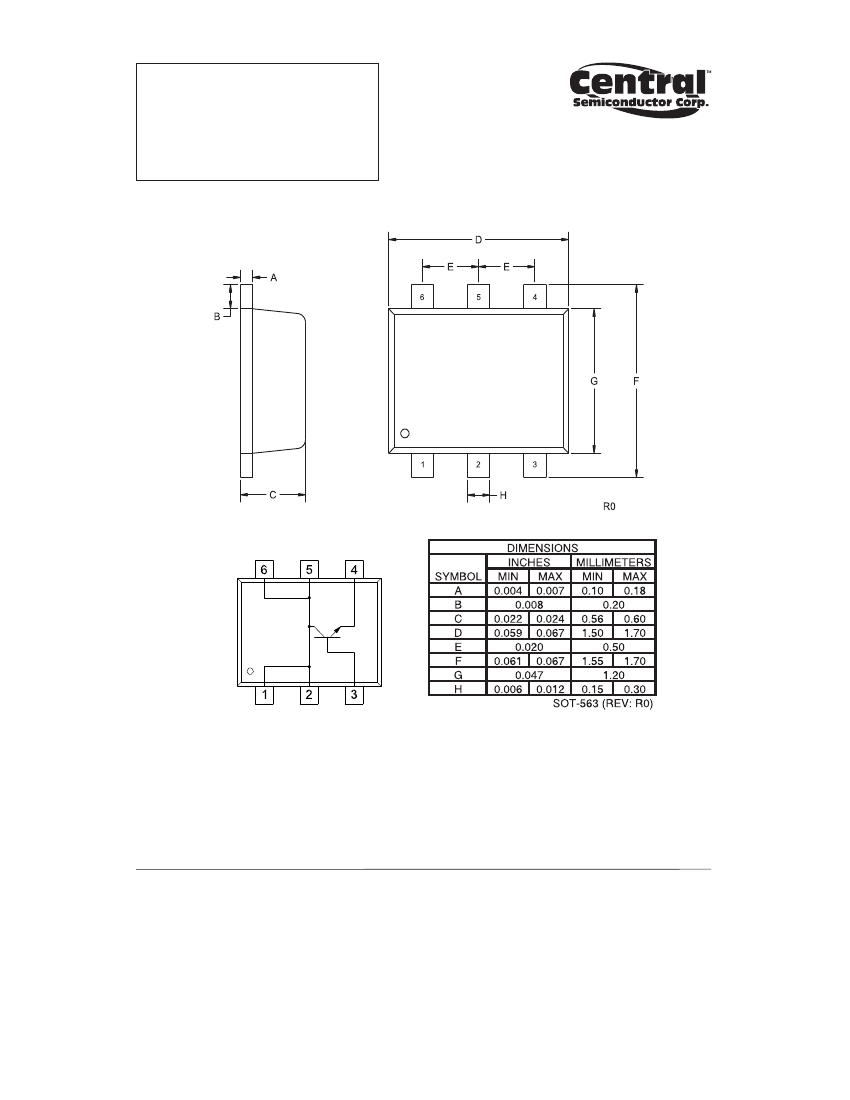

PICOmini™ SOT563 surface mount package

•

Complementary PNP device

CMLT7820G

SYMBOL

VCBO

VCEO

VEBO

IC

ICM

IB

PD

TJ, Tstg

Θ

JA

80

60

5.0

1.0

2.0

300

250

-65 to +150

500

MAX

100

UNITS

V

A

mA

mW

°C

°C/W

UNITS

nA

V

ELECTRICAL CHARACTERISTICS:

(TA=25°C unless otherwise noted)

SYMBOL

TEST CONDITIONS

MIN

ICBO

VCB=60V

IEBO

VEB=5.0V

BVCBO

IC=100µA

80

BVCEO

IC=10mA

60

BVEBO

5.0

IE=100µA

VCE(SAT)

IC=100mA, IB=1.0mA

VCE(SAT)

IC=500mA, IB=50mA

VCE(SAT)

IC=1.0A, IB=100mA

VBE(SAT)

IC=1.0A, IB=50mA

VBE(ON)

VCE=5.0V, IC=1.0A

hFE

VCE=5.0V, IC=1.0mA

200

hFE

VCE=5.0V, IC=500mA

200

hFE

VCE=5.0V, IC=1.0A

100

fT

VCE=10V, IC=50mA

150

Cob

VCB=10V, IE=0, f=1.0MHz

0.115

0.15

0.28

1.1

0.9

10

MHz

pF

R2 (20-January 2010)
