Document 378-1

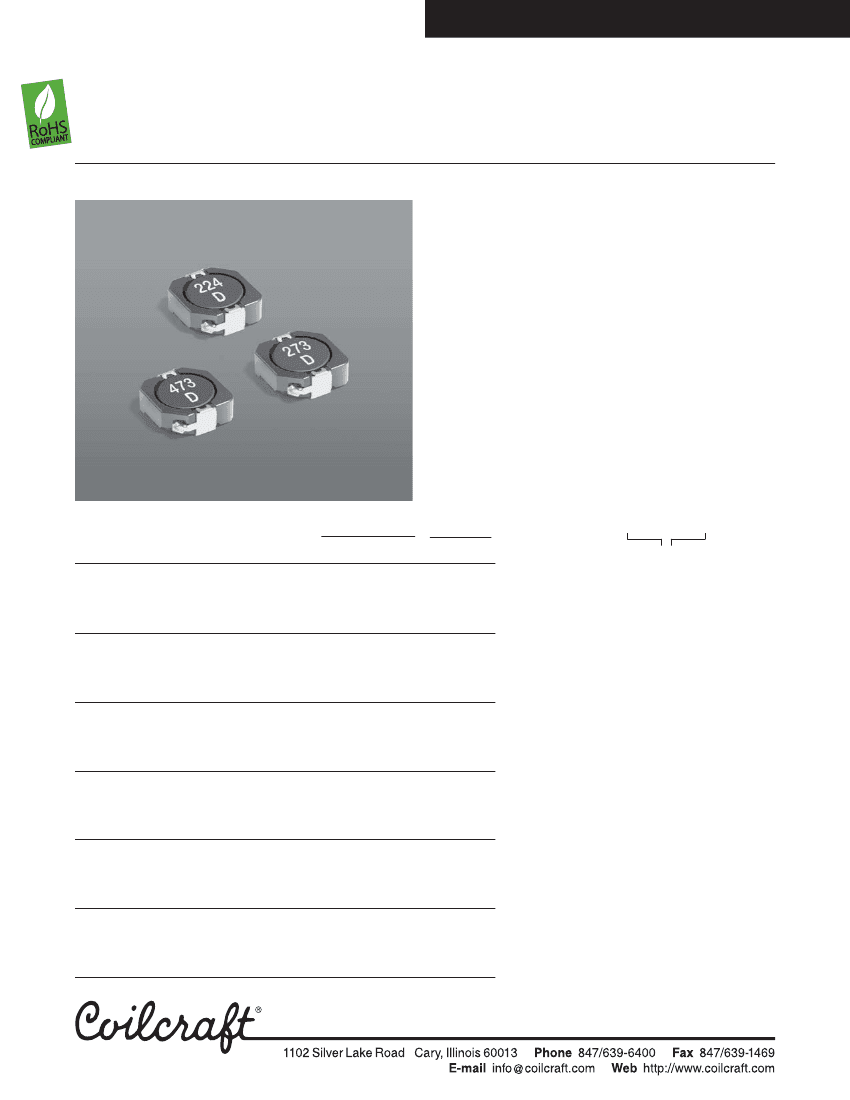

SMT Power Inductors – MSS1038

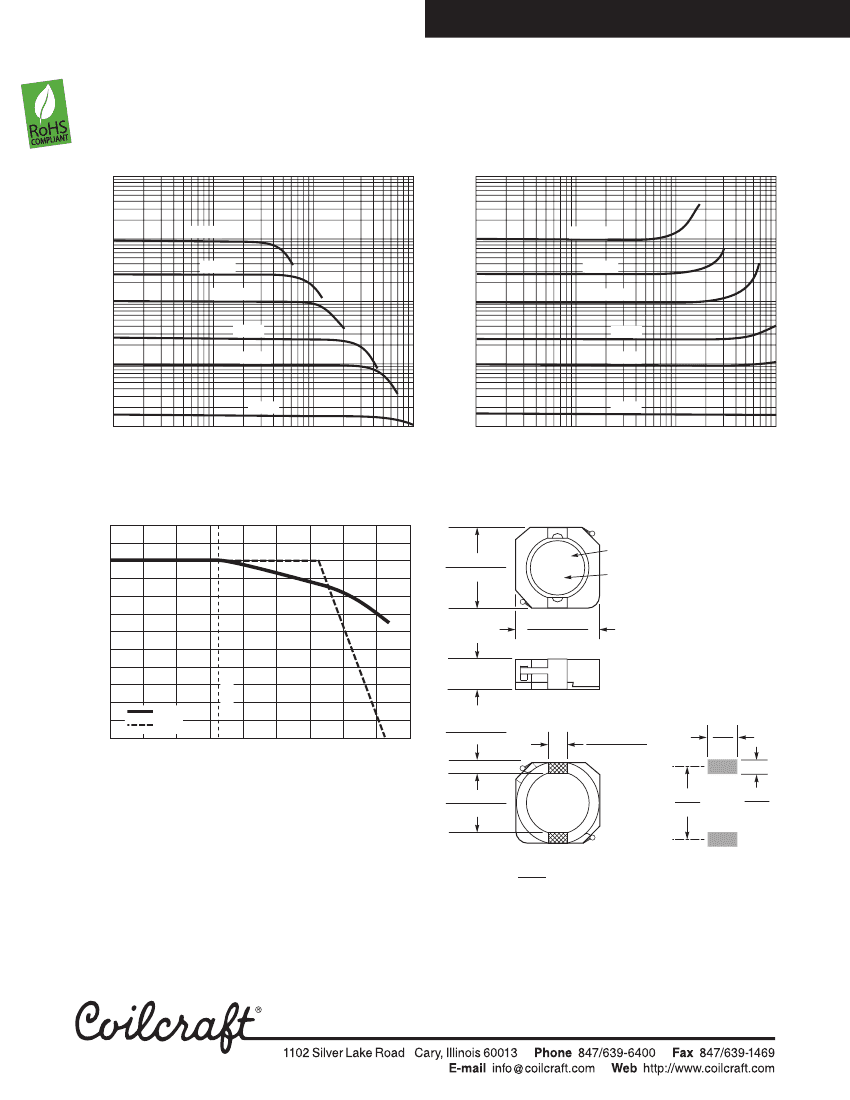

• 10.0 × 10.2 mm footprint; 3.8 mm high shielded inductors
• Very low DCR and excellent current handling
Designer’s Kit C391
contains 3 each of all values.
Core material
Ferrite
Core and winding loss
See www.coilcraft.com/coreloss
Terminations
RoHS compliant matte tin over nickel over copper.
Other terminations available at additional cost.
Weight:
1.5 g
Ambient temperature
–40°C to +85°C with
Irms
current, +85°C to
+125°C with derated current
Storage temperature
Component: –40°C to +125°C.
Packaging: –40°C to +80°C
Resistance to soldering heat
Max three 40 second reflows at
+260°C, parts cooled to room temperature between cycles
Moisture Sensitivity Level (MSL)
1 (unlimited floor life at <30°C /
85% relative humidity)
Failures in Time (FIT) / Mean Time Between Failures (MTBF)
38 per billion hours / 26,315,789 hours, calculated per Telcordia SR-332
Packaging
250/7″ reel; 1000/13″ reel; Plastic tape: 24 mm wide,
0.35 mm thick, 16 mm pocket spacing, 4.3 mm pocket depth
PCB washing
Only pure water or alcohol recommended
Inductance
2
Part number
1
(µH)
MSS1038-102NL_
1.0 ±30%
MSS1038-152NL_
1.5 ±30%
MSS1038-252NL_
2.5 ±30%
MSS1038-382NL_
3.8 ±30%
MSS1038-522NL_
5.2 ±30%
MSS1038-702NL_
7.0 ±30%
MSS1038-103NL_ 10 ±30%
MSS1038-123ML_ 12 ±20%
MSS1038-153ML_ 15 ±20%
MSS1038-183ML_ 18 ±20%
MSS1038-223ML_ 22 ±20%
MSS1038-273ML_ 27 ±20%
MSS1038-333ML_ 33 ±20%
MSS1038-393ML_ 39 ±20%
MSS1038-473ML_ 47 ±20%
MSS1038-563ML_ 56 ±20%
MSS1038-683ML_ 68 ±20%
MSS1038-823ML_ 82 ±20%
MSS1038-104ML_ 100 ±20%
MSS1038-124KL_ 120 ±10%
MSS1038-154KL_ 150 ±10%
MSS1038-184KL_ 180 ±10%
MSS1038-224KL_ 220 ±10%
MSS1038-274KL_ 270 ±10%
MSS1038-334KL_ 330 ±10%
MSS1038-394KL_ 390 ±10%
MSS1038-474KL_ 470 ±10%
MSS1038-564KL_ 560 ±10%
MSS1038-684KL_ 680 ±10%
MSS1038-824KL_ 820 ±10%
MSS1038-105KL_ 1000 ±10%
DCR
max
(m )
6.0
8.1
10
13
22
27
35
41
50
65
73
89
93
112
128
180
213
261
304
380
506
582
756
926
1090
1141
1243
1696
1926
2596
2853
Isat
(A)
4
SRF
typ
3
10% 20% 30%
(MHz) drop drop drop
138
9.00 11.16 12.10
81
7.40 9.48 11.06
61
5.70 7.62 9.26
45
4.94 6.50 7.64
37
3.96 5.28 6.14
33
3.62 4.74 5.60
29
3.04 3.90 4.52
25
2.72 3.48 4.04
21
2.84 3.44 3.86
18
2.44 3.10 3.52
15
2.34 2.94 3.30
15
1.98 2.48 2.84
13
1.84 2.34 2.62
12
1.60 2.04 2.34
11
1.60 1.98 2.22
11
1.48 1.84 2.04
10
1.32 1.62 1.82
8
1.12 1.42 1.60
6
1.02 1.30 1.46
6
0.95 1.18 1.34
6
0.89 1.10 1.22
5
0.89 1.02 1.16
5
0.72 0.88 0.99
4
0.66 0.81 0.91
4
0.59 0.73 0.82
4
0.51 0.65 0.74
3
0.50 0.62 0.70
3
0.43 0.53 0.56
3
0.38 0.48 0.52
3
0.37 0.46 0.49
3
0.35 0.43 0.46
Irms
(A)
5
20°C 40°C
rise rise
7.30 10.00
5.60 7.85
4.65 6.65
4.25 6.05
3.60 5.10
3.10 4.35
2.90 4.05
2.85 4.00
2.70 3.80
2.25 3.35
1.90 2.85
1.65 2.35
1.60 2.30
1.55 2.25
1.45 2.20
1.40 1.85
1.15 1.75
1.09 1.50
1.05 1.45
0.85 1.25
0.80 1.20
0.71 0.98
0.70 0.97
0.65 0.86
0.50 0.69
0.49 0.65
0.45 0.63
0.43 0.59
0.36 0.50
0.34 0.47
0.33 0.45
1. Please specify
termination
and
packaging
codes:
MSS1038-105KLC
Termination: L
= RoHS compliant matte tin over nickel
over copper.
Special order:
T
= RoHS tin-silver-copper (95.5/4/0.5)
or
S
= non-RoHS tin-lead (63/37).
Packaging: C=
7″ machine-ready reel. EIA-481
embossed plastic tape (250 parts
per full reel).
B=
Less than full reel. In tape, but not
machine ready. To have a leader
and trailer added ($25 charge), use
code letter C instead.
D=
13″ machine-ready reel. EIA-481
embossed plastic tape. Factory
order only, not stocked (1000 parts
per full reel).
2. Inductance measured at 100 kHz, 1.0 Vrms, 0 Adc
using an Agilent/HP 4263B LCR meter or equivalent.
3. SRF measured using an Agilent/HP 8753D or
equivalent.
4. DC current at which the inductance drops the
specified amount from its value without current.
5. Current that causes the specified temperature rise
from 25°C ambient.
6. Electrical specifications at 25°C.
Refer to Doc 362 “Soldering Surface Mount Components”
before soldering.
Specifications subject to change without notice.
Please check our website for latest information.
Document 378-1 Revised 10/06/08
© Coilcraft, Inc. 2009
