Fiber Optic Connection System

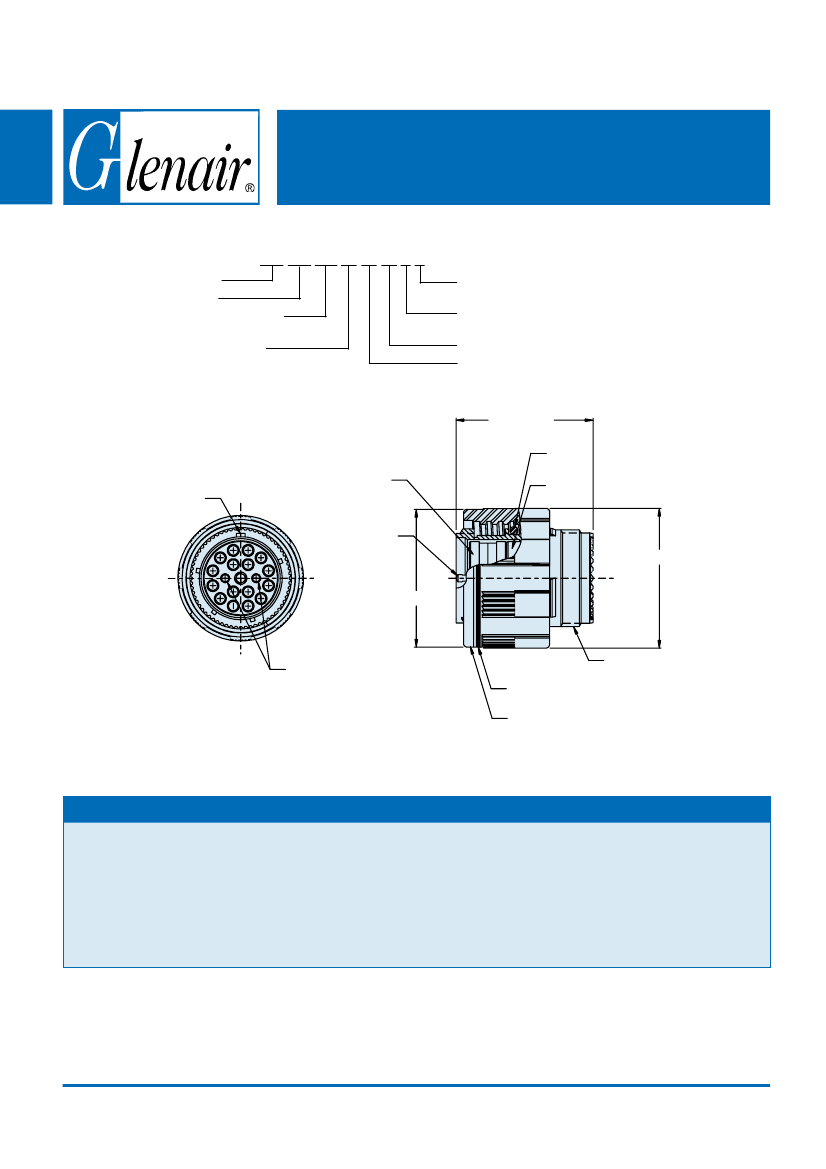

D38999 Style Plug Connector with Alignment Sleeve Retainer

180-122 (06)

GHD • Glenair High Density

High Density

Connectors

Product Series

Basic Number

Material and Finish Symbol

(Table I, Page C-6)

06 - Plug with Alignment

Sleeve Retainer

Master Key

180-122 XW 06-15-16 N C

C = Conductive O-Ring Included

(Omit for Standard O-Ring)

Alternate Key Position per MIL-DTL-38999

A, B, C, D or E. N = Normal

Insert Arrangement (See Page C-6)

Shell Size (Table II)

1.220 (31.0)

Max

O-Ring

Seal

Alignment Sleeve

Retainer

Insert

Alignment Pin

DD Max Dia

CC Max Dia

Alignment Pin

Yellow Color Band

See Note 2

EE Thread

06 - PLUG

APPLICATION NOTES

1. Material/ Finishes:

Shells, Barrel - High grade engineering thermoplastic/

See Table I, Page C-6.

Coupling nut/jam nut - High grade engineering

thermoplastic/N.A.

Insulators - High grade rigid dielectric/N.A.

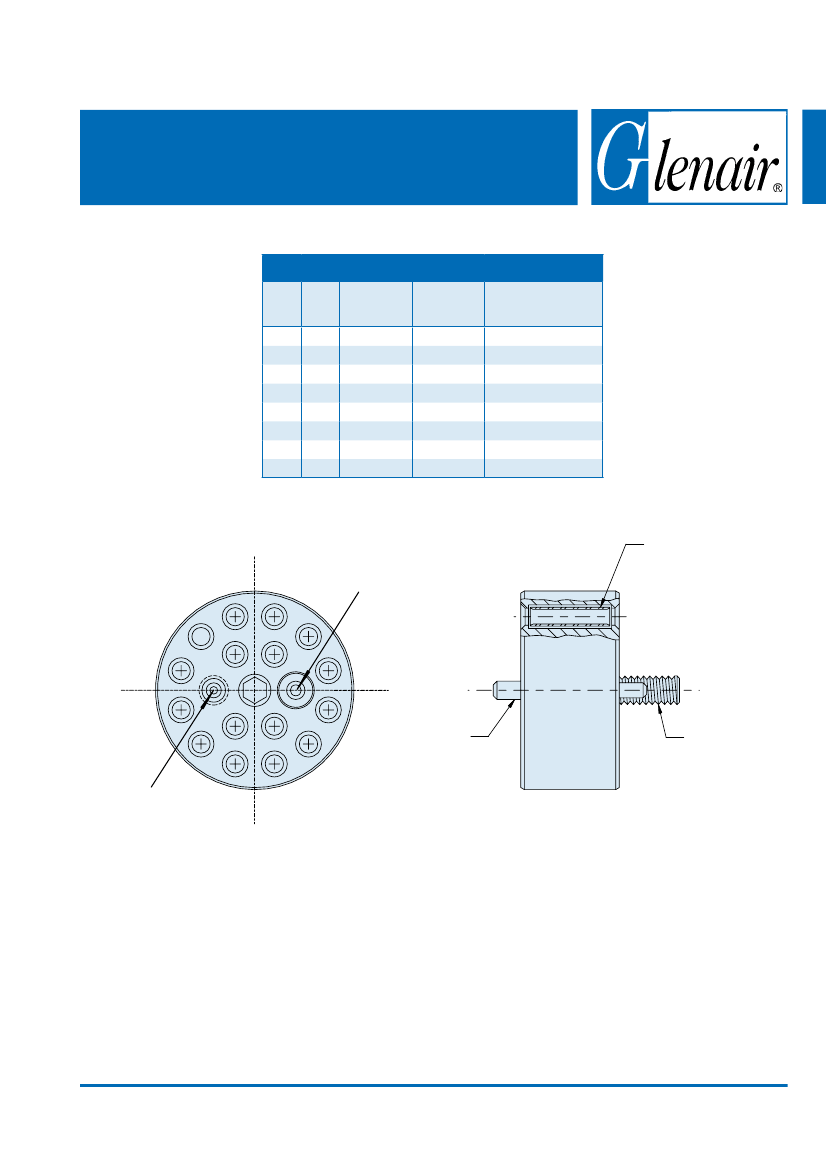

Alignment Sleeve Retainer - Aluminum alloy/black anodized

or composite (see detailed view, opposite page).

Seals - Fluorosilicone/N.A.

2. Assembly to be identified with Glenair’s name, part number

and date code, space permitting.

3. For appropriate Glenair terminus part numbers see

Glenair drawing 181-047 (keyed terminus for APC polish,

page C-4) or 181-041 (tunable terminus, page C-2).

4. Consult factory for addition of RFI spring.

5. Metric dimensions (mm) are indicated in parentheses.

CAGE Code 06324

Printed in U.S.A.

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

E-Mail: sales@glenair.com

www.glenair.com
