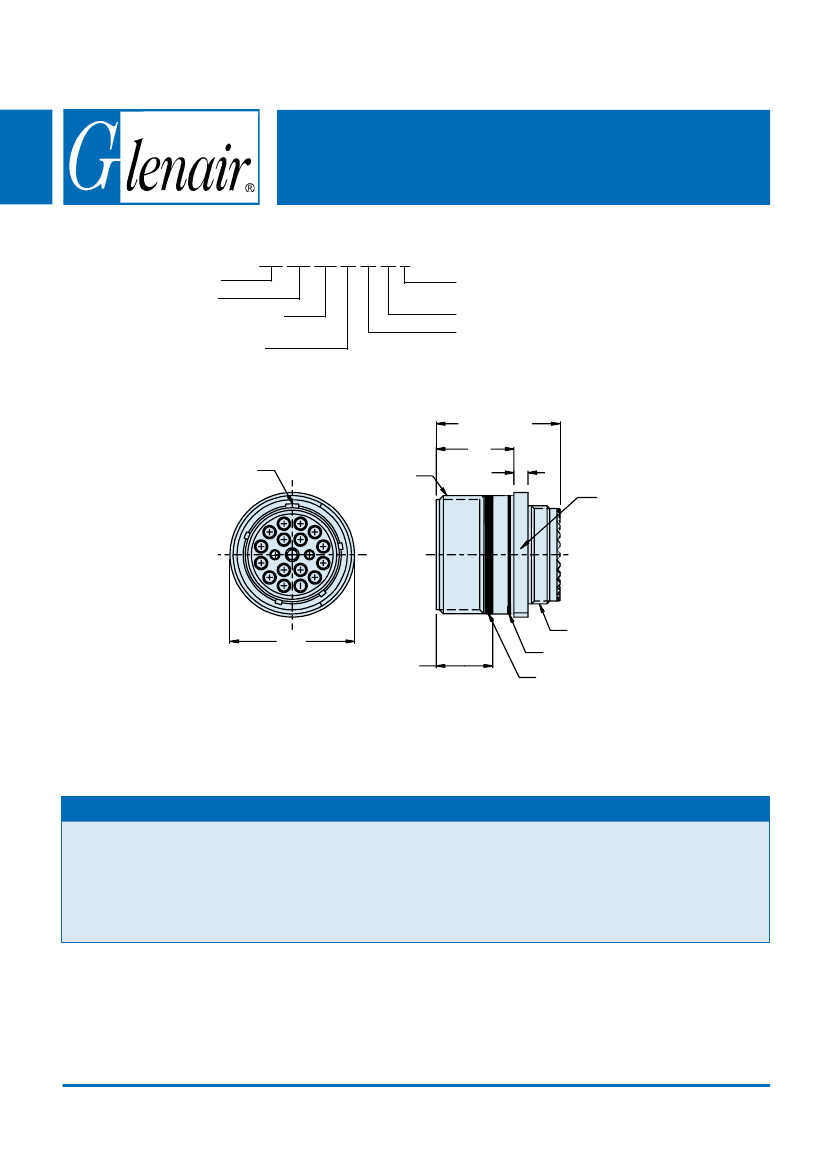

Fiber Optic Connection System
In-Line Receptacle Connector • MIL-DTL-38999 Style
180-122 (05)
GHD • Glenair High Density
High Density
Connectors
Product Series
Basic Number
Material and Finish Symbol
(Table I, Page C-6)
05 - In-Line Receptacle
Master Keyway
1
2
11
1
6
1
0
9
15
8
7
6
1
4
1
3
1
180-122 XW 05-15-16 N
Alternate Key Position per MIL-DTL-38999
A, B, C, D or E. N = Normal
Insert Arrangement (See Page C-6)
Shell Size (Table II)
1.240 (31.5)
Max
H
A Thread
G
See Note 2
2
3
4
5
FF
J Thread
.520 (13.2) Max
Full Mated Red
Indicator Band
Yellow Color Band
Red Color Band
05 - IN-LINE RECEPTACLE
APPLICATION NOTES
1. Material/ Finishes:
Shell - High grade engineering thermoplastic/
See Table I, Page C-6.
Insulators - High grade rigid dielectric/N.A.
Seals - Fluorosilicone/N.A.
2. Assembly to be identified with Glenair’s name, part number and
date code, space permitting.
3. For appropriate Glenair terminus part numbers see
Glenair drawing 181-047 (keyed terminus for APC polish,
page C-4) or 181-041 (tunable terminus, page C-2).
4. Metric dimensions (mm) are indicated in parentheses.
© 2006 Glenair, Inc.
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
E-Mail: sales@glenair.com
www.glenair.com
C-8
Fiber Optic Connection System
In-Line Receptacle Connector • MIL-DTL-38999 Style
TABLE II: SHELL SIZE
Shell
Size
Code
B
C
D
E
F
G
H
J
Shell
Size
11
13
15
17
19
21
23
25
A Thread
.7500 -.1P -.3L-TS-2A
.8750 -.1P - .3L-TS-2A
1.0000 -.1P -.3L-TS-2A
1.1875 -.1P - .3L-TS-2A
1.2500 -.1P -.3L-TS-2A
1.3750 -.1P - .3L-TS-2A
1.5000 -.1P -.3L-TS-2A
1.6250 -.1P - .3L-TS-2A
G
.144 (3.7)
.083 (2.1)
.144 (3.7)
.083 (2.1)
.144 (3.7)
.083 (2.1)
.144 (3.7)
.083 (2.1)
.144 (3.7)
.083 (2.1)
.171 (4.3)
.083 (2.1)
.171 (4.3)
.083 (2.1)
.171 (4.3)
.083 (2.1)
H
.823 (20.9)
.768 (19.5)
.823 (20.9)
.768 (19.5)
.823 (20.9)
.768 (19.5)
.823 (20.9)
.768 (19.5)
.823 (20.9)
.768 (19.5)
.791 (20.1)
.736 (18.7)
.791 (20.1)
.736 (18.7)
.791 (20.1)
.736 (18.7)
J Thread
M15 X 1.0-6g 0.100R
M18 X 1.0-6g 0.100R
M22 X 1.0-6g 0.100R
M25 X 1.0-6g 0.100R
M28 X 1.0-6g 0.100R
M31 X 1.0-6g 0.100R
M34 X 1.0-6g 0.100R
M37 X 1.0-6g 0.100R
FF
Dia
.840 (21.3)
.963 (24.5)
1.090 (27.7)
1.275 (32.4)
1.337 (34.0)
1.463 (37.2)
1.587 (40.3)
1.713 (43.5)
© 2006 Glenair, Inc.
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
E-Mail: sales@glenair.com
www.glenair.com
C-9
High Density
180-122 (05)
GHD • Glenair High Density
