CDEP1810NP-330MC-333 datasheet, PDF

Datasheet> All Categories > Passive components> inductor> CDEP1810NP-330MC-333

CDEP1810NP-330MC-333: DescriptionGeneral Purpose Inductor, 33uH, 20%, 1 Element, Ferrite-Core, SMD, 8876, CHIP, 8876, ROHS COMPLIANT; CategoryPassive components inductor; File Size174KB，5 Pages; ManufacturerSUMIDA; Websitehttp://www.sumida.com/; Environmental Compliance

Download Datasheet Parametric View All

CDEP1810NP-330MC-333 Overview

General Purpose Inductor, 33uH, 20%, 1 Element, Ferrite-Core, SMD, 8876, CHIP, 8876, ROHS COMPLIANT

CDEP1810NP-330MC-333 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	8876
Reach Compliance Code	unknown
ECCN code	EAR99
uppercase and lowercase codes	8876
core material	FERRITE
DC Resistance	0.00894 Ω
Nominal inductance(L)	33 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	CDEP1810
Number of functions	1
Number of terminals	3
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Maximum rated current	12 A
Shape/Size Description	RECTANGULAR PACKAGE
shield	YES
surface mount	YES
Terminal location	DUAL IN-LINE
Terminal shape	ONE SURFACE
Test frequency	0.1 MHz
Tolerance	20%
Base Number Matches	1

Preview

Download Datasheet

View All

SMD Power Inductor

CDEP1810

Description

• Ferrite core construction.

• Magnetically shielded.

• L W H: 22.4 19.2 11.0 mm Max.

• Product weight:14.5 g(Ref.)

• Moisture Sensitivity Level: 1

• RoHS compliance.

Environmental Data

• Operating temperature range: -40

+105

(including coil’s self temperature rise)

• Storage temperature range: -40

+85

• Solder reflow temperature: 260

peak.

Packaging

• Carrier tape and reel packaging

RoHS

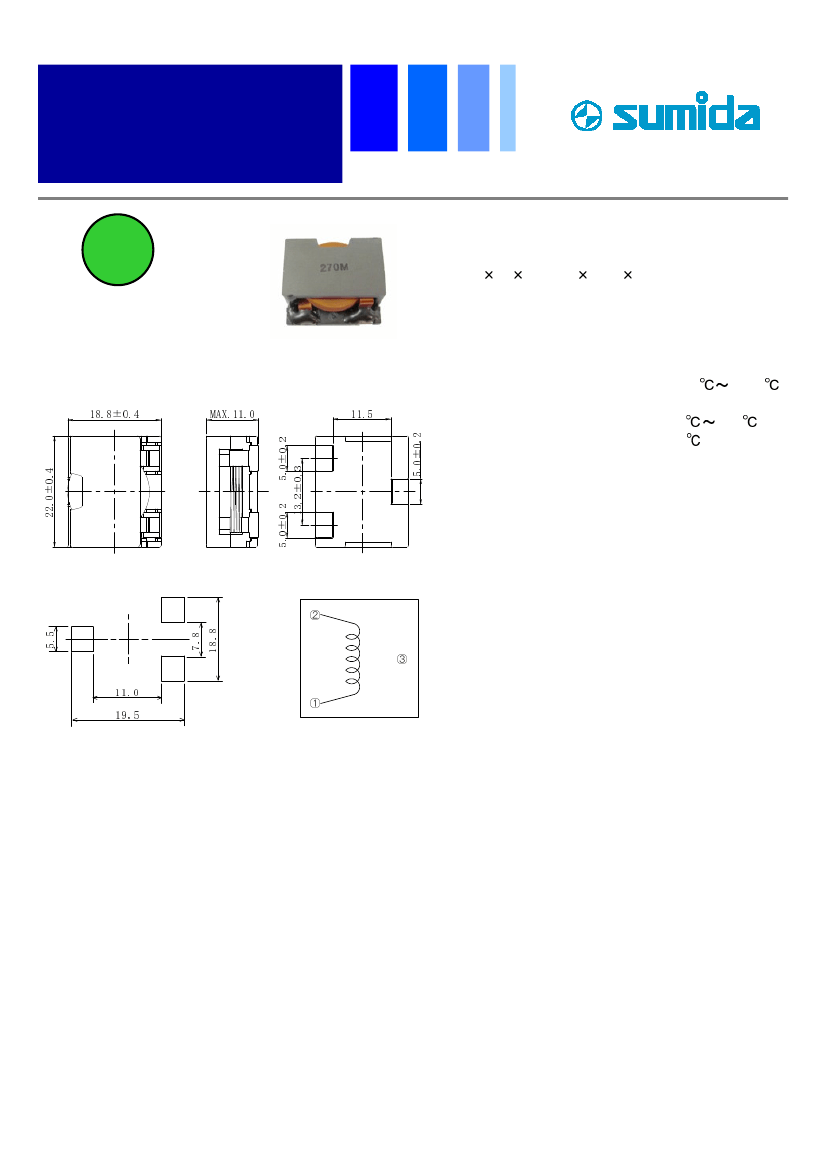

Dimension - [mm]

5.11

Land pattern and Schematics - [mm]

Applications

• Ideally used in PC , game machine and other

large current power supply.

Page 1 of 5

Revised: 10-Dec-13

℃

℃ ½℃

½℃

× ×

③

②

①

1 0

3 .

. 2

0 5

. .

3 0

8 7

. .

8 8

5.91

0 .1 1

0.11.XAM

4.0±8.81
