DL316-31TG datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> socket> DL316-31TG

DL316-31TG: DescriptionIC Socket, DIP16, 16 Contact(s), 2.54mm Term Pitch, 0.3inch Row Spacing, Solder,; CategoryThe connector socket; File Size88KB，1 Pages; ManufacturerAdvanced Interconnections Corp.

Download Datasheet Parametric View All

DL316-31TG Overview

IC Socket, DIP16, 16 Contact(s), 2.54mm Term Pitch, 0.3inch Row Spacing, Solder,

DL316-31TG Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Reach Compliance Code	not_compliant
ECCN code	EAR99
Other features	LIGHT EMITTING DIODE SOCKET
body width	0.4 inch
subject depth	0.527 inch
body length	0.795 inch
Contact to complete cooperation	AU ON NI
Contact completed and terminated	Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier
Contact material	BE-CU
Contact style	RND PIN-SKT
Device slot type	IC SOCKET
Type of equipment used	DIP16
Shell material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
JESD-609 code	e0
Manufacturer's serial number	DL
Plug contact pitch	0.1 inch
Installation method	RIGHT ANGLE
Number of contacts	16
Maximum operating temperature	140 °C
Minimum operating temperature	-60 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	0.3 mm
Terminal pitch	2.54 mm
Termination type	SOLDER
Base Number Matches	1

Preview

Download Datasheet

View All

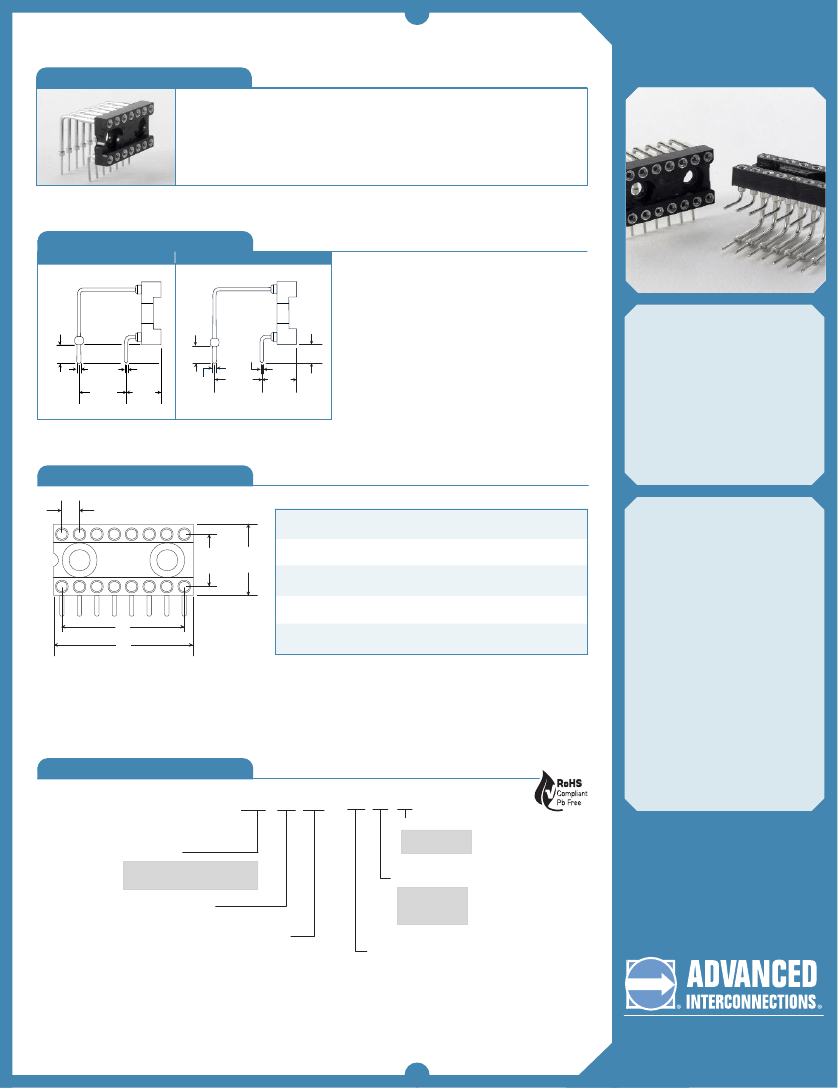

Closed Frame LED Sockets

(Light Emitting Diode)

Table of Models

Description:

Closed Frame LED Sockets (RDL)

Material: High Temp. Liquid Crystal Polymer (LCP)

Index: -40°C to 260°C (-40°F to 500°F)

DIP Sockets

Standard Terminals

Type -370

Type -31

Features:

.126

(3.20)

.018 Dia.

(.46)

.300

(7.62)

.218

(5.54)

.170

(4.32)

.020 Dia.

(.51)

.300

(7.62)

.218

(5.54)

.185

(4.70)

• Right angle design allows

readable position of LED on PCB.

• Multiple finger contact for

reliability.

• Tapered entry for ease of

insertion.

• Closed bottom sleeve for 100%

anti-wicking of solder.

.018 Dia.

(.46)

Dimensional Information

.100 Typ.

(2.54)

Part Number

RDL308-XXXMG

RDL314-XXXMG

.300

(7.62)

.400

(10.16)

# of Pins

ADVANCED

RDL316-XXXMG

RDL318-XXXMG

RDL320-XXXMG

XXX denotes terminal type

.395

(10.03)

.695

(17.65)

.795

(20.19)

.895

(22.73)

.995

(25.27)

.300

(7.62)

.600

(15.24)

.700

(17.78)

.800

(20.32)

.900

(22.86)

Specifications:

Terminals:

Brass - Copper Alloy

(C36000) ASTM-B-16

Contacts:

Beryllium Copper

(C17200) ASTM-B-194

Plating:

G - Gold over Nickel

M - Matte Tin over Nickel

T - Tin/Lead over Nickel

Gold per ASTM-B-488

Matte Tin per ASTM545-97

Tin/Lead per MIL-P-81728

Nickel per QQ-N-290

How To Order

RDL

08 - 370 M G

Contact Plating

RoHS Compliant:

Body Type

RoHS Compliant:

G - Gold

T - Tin/Lead

Terminal Plating

RoHS Compliant:

RDL - Closed Frame LED

DIP Spacing

3 - .300/(7.62mm)

Number of Pins

8, 14, 16, 18, 20

G - Gold

M - Matte Tin

T - Tin/Lead

Terminal Type

See options above

Note: Terminals plated with Matte Tin are available only with Gold plated contacts.

inch/(mm)

Products shown covered by patents issued and/or pending. Specifications subject to change without notice.

5 Energy Way, West Warwick, RI 02893 USA

Tel: 800.424.9850 | 401.823.5200

Fax: 401.823.8723

info@advanced.com | www.advanced.com

Catalog 16

rev. Sept. 07
