EC29
Series
• RoHS Compliant (Pb-Free)
• LVHCMOS output
• 1.8V Supply Voltage
• Ceramic SMD package
• Stability to 20ppm
• Standby Function
• Available on Tape and Reel
ELECTRICAL SPECIFICATIONS
Frequency Range (F
O
)
Operating Temperature Range (OTR)
Storage Temperature Range (STR)
Supply Voltage (V
DD
)
Input Current (I
DD
)
EC29
H 1.6
L 7.0
W 5.0
OSCILLATOR
Frequency Tolerance/Stability
Output Voltage Logic High (V
OH
)
Output Voltage Logic Low (V
OL
)
Rise Time / Fall Time (T
R
/T
F
)
Duty Cycle (SYM)
Load Drive Capability (C
LOAD
)
Tri-State Input Voltage
Standby Current
Start Up Time (T
S
)
Period Jitter: Absolute
Period Jitter: One Sigma
MANUFACTURER
CATEGORY
1.544MHz to 80.000MHz and 98.304MHz, 100.000MHz, 106.250MHz, 110.000MHz, 125.000MHz
0°C to 70°C
-40°C to 85°C
-55°C to 125°C
1.8V
DC
±5%
2mA Maximum
1.544MHz to 10.000MHz
3mA Maximum
10.001MHz to 25.000MHz
4mA Maximum
25.001MHz to 40.000MHz
8mA Maximum
40.001MHz to 50.000MHz
10mA Maximum
50.001MHz to 70.000MHz
18mA Maximum
70.001MHz to 100.000MHz
20mA Maximum
100.001MHz to 110.000MHz
25mA Maximum
110.001MHz to 125.000MHz
±100ppm, ±50ppm, ±25ppm, or
Inclusive of all conditions: Calibration Tolerance at 25°C,
±20ppm
Frequency Stability over the Operating Temperature
Range, Supply Voltage Change, Output Load Change,
First Year Aging at 25°C, Shock, and Vibration
I
OH
=-2.8mA, 1.544MHz to 40.000MHz
90% of V
DD
Minimum
I
OH
=-8mA, 40.001MHz to 125.000MHz
90% of V
DD
Minimum
I
OL
=2.8mA, 1.544MHz to 40.000MHz
10% of V
DD
Maximum
I
OL
=8mA, 40.001MHz to 125.000MHz
10% of V
DD
Maximum
< 40.000MHz
10%
to
90%
of Waveform
6 nSeconds Maximum
> 40.000MHz
10%
to
90%
of Waveform
3 nSeconds Maximum
at 50% of Waveform
50 ±10(%) (Standard)
at 50% of Waveform
50 ±5(%) (Optional)
15pF HCMOS Load Maximum
Enables Output
No Connection
Enables Output
V
IH
: >90% of V
DD
Disables Output: High Impedance
V
IL
: <10% of V
DD
10µA Maximum
Disabled Output: High Impedance, 1.544MHz to 40MHz
100µA Maximum
Disabled Output: High Impedance, 40.001MHz to 70MHz
10µA Maximum
Disabled Output: High Impedance, 70.001MHz to 125MHz
10 mSeconds Maximum
±100pSeconds Maximum
±25pSeconds Maximum
SERIES
PACKAGE
VOLTAGE
CLASS
REV
.
DATE
ECLIPTEK CORP.
OSCILLATOR
EC29
CERAMIC
1.8V
OS1B
01/05
800-ECLIPTEK www.ecliptek.com for latest revision
Specifications subject to change without notice.
PART NUMBERING GUIDE
EC29 00 ET T TS - 30.000M TR
FREQUENCY TOLERANCE / STABILITY
00=±100ppm Maximum (Standard)
45=±50ppm Maximum, 25=±25ppm Maximum
20=±20ppm Maximum
OPERATING TEMPERATURE RANGE
Blank=0°C to 70°C (Standard)
ET=-40°C to 85°C
PACKAGING OPTIONS
Blank=Bulk (Standard)
TR=Tape and Reel
FREQUENCY
DUTY CYCLE
Blank=50 ±10(%) (Standard)
T=50 ±5(%)

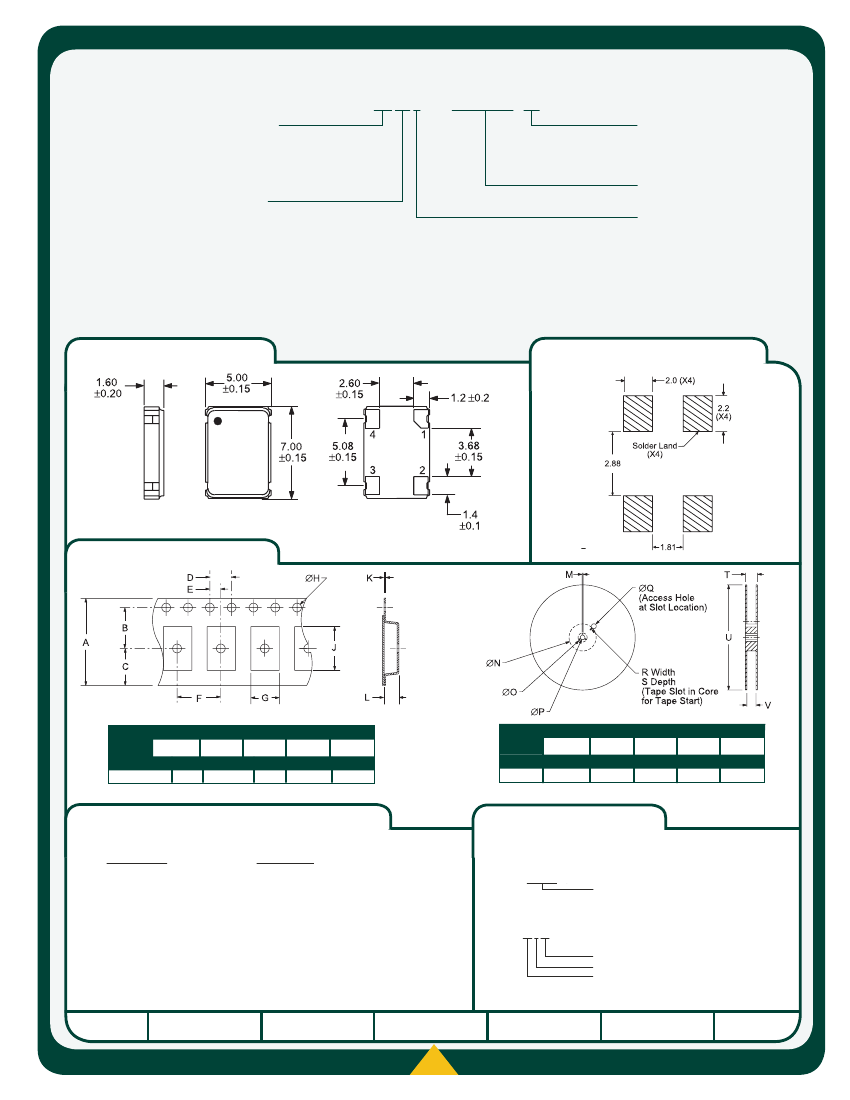

MECHANICAL DIMENSIONS
ALL DIMENSIONS IN MILLIMETERS
SUGGESTED SOLDER PAD LAYOUT
ALL DIMENSIONS IN MILLIMETERS
TAPE AND REEL DIMENSIONS
ALL DIMENSIONS IN MILLIMETERS
Pin 1: Tri-State
Pin 2: Case Ground
Pin 3: Output
Pin 4: Supply Voltage
Tolerances= +0.1
TAPE
A
16±.3-.1
B
7.5±.1
C
6.75±.1
D
4 ±.1
E
2±.1
F
REEL
M
1.5 MIN
N
50 MIN
O
20.2 MIN
P
13±.2
Q
40 MIN
QTY/REEL
1,000
F
8±.1
G
B0*
H
1.5 +.1-0
J
A0*
K
.3 ±.05
L
K0*
R
2.5 MIN
S
10 MIN
T
22.4 MAX
U
360 MAX
V
16.4+2-0
*Compliant to EIA 481A
ENVIRONMENTAL/MECHANICAL SPECIFICATIONS
MARKING SPECIFICATIONS
Line 1: ECLIPTEK
Line 2: XX.XXX M
Frequency in MHz (5 Digits Maximum + Decimal)
Characteristic
Fine Leak Test
Gross Leak Test
Mechanical Shock
Vibration
Solderability
Temperature Cycling
Resistance to Soldering Heat
Resistance to Solvents
Specification
MIL-STD-883, Method 1014, Condition A
MIL-STD-883, Method 1014, Condition C
MIL-STD-202, Method 213, Condition C
MIL-STD-883, Method 2007, Condition A
MIL-STD-883, Method 2002
MIL-STD-883, Method 1010
MIL-STD-202, Method 210
MIL-STD-202, Method 215
Line 3: XX Y ZZ
Week of Year
Last Digit of Year
Ecliptek Manufacturing Identifier
MANUFACTURER
CATEGORY
SERIES
PACKAGE
VOLTAGE
CLASS
REV
.
DATE
ECLIPTEK CORP.
OSCILLATOR
EC29
CERAMIC
1.8V
OS1B
01/05
800-ECLIPTEK www.ecliptek.com for latest revision
Specifications subject to change without notice.
