TFM-108-01-P-D-RA datasheet, PDF

TFM-108-01-P-D-RA: DescriptionBoard Connector, 16 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal,; CategoryThe connector The connector; File Size644KB，5 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/

Download Datasheet Parametric View All

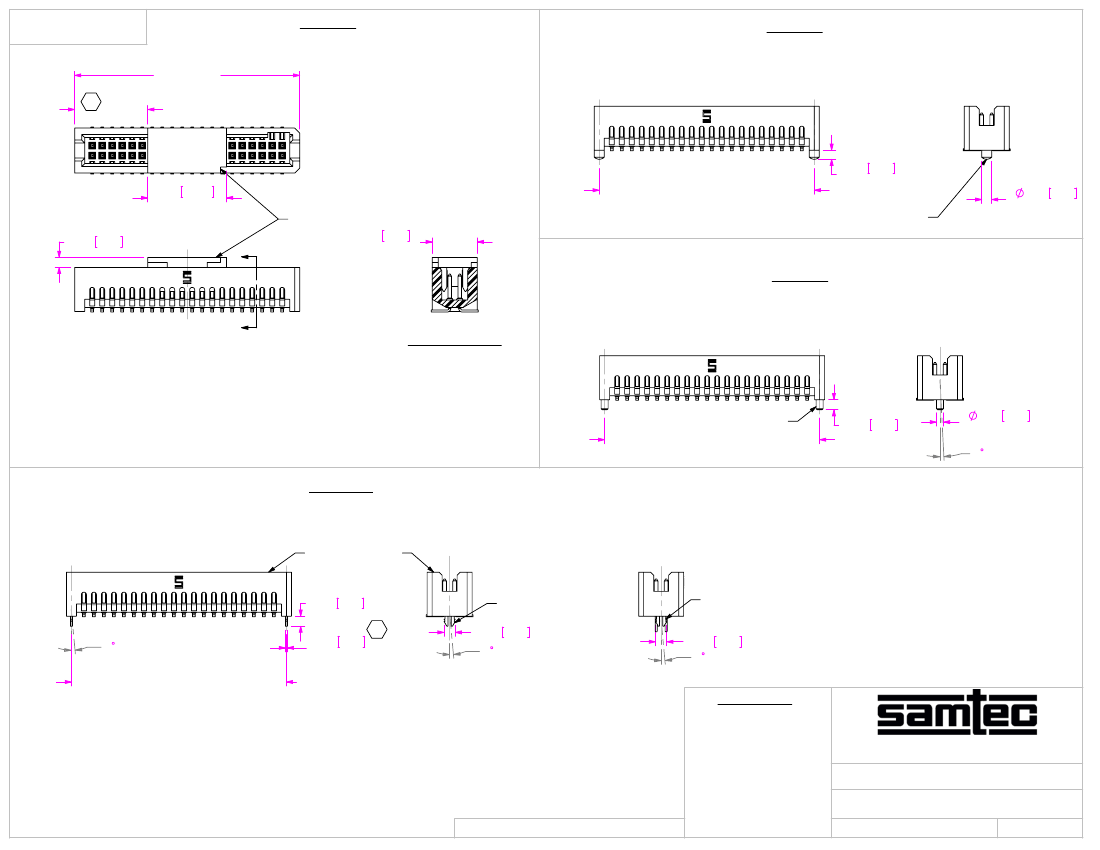

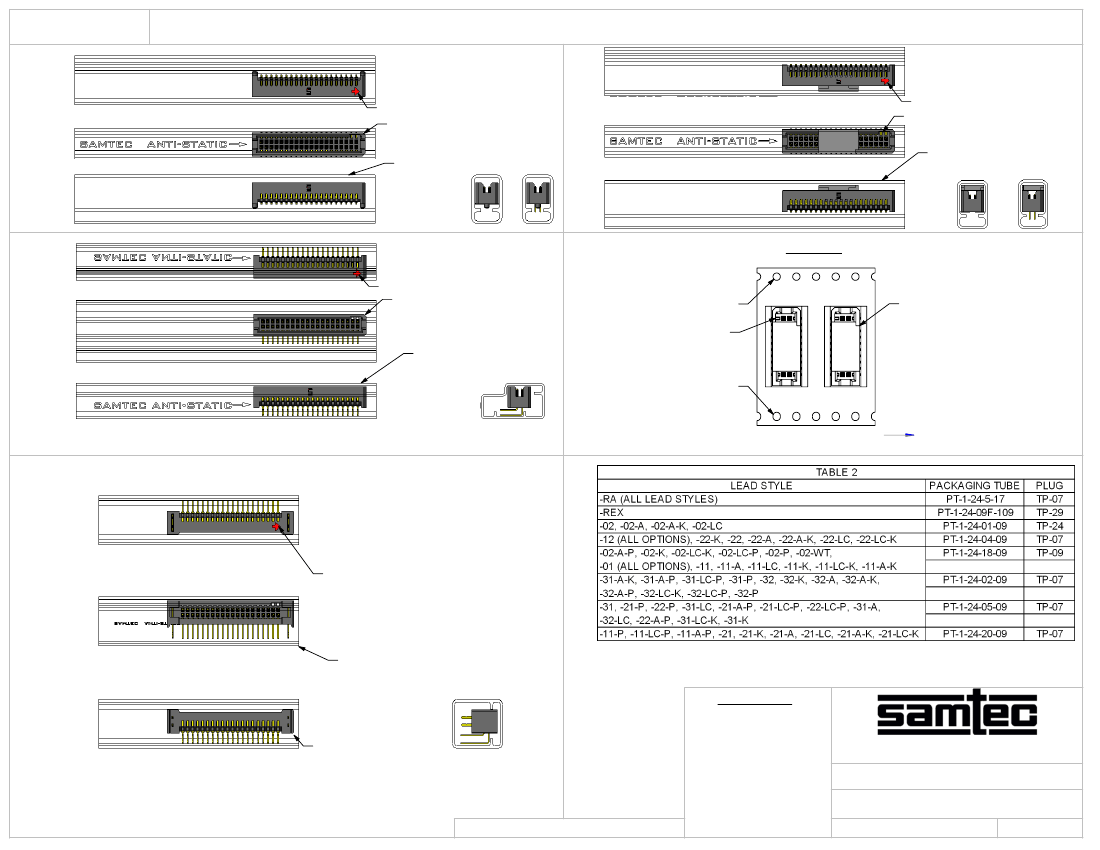

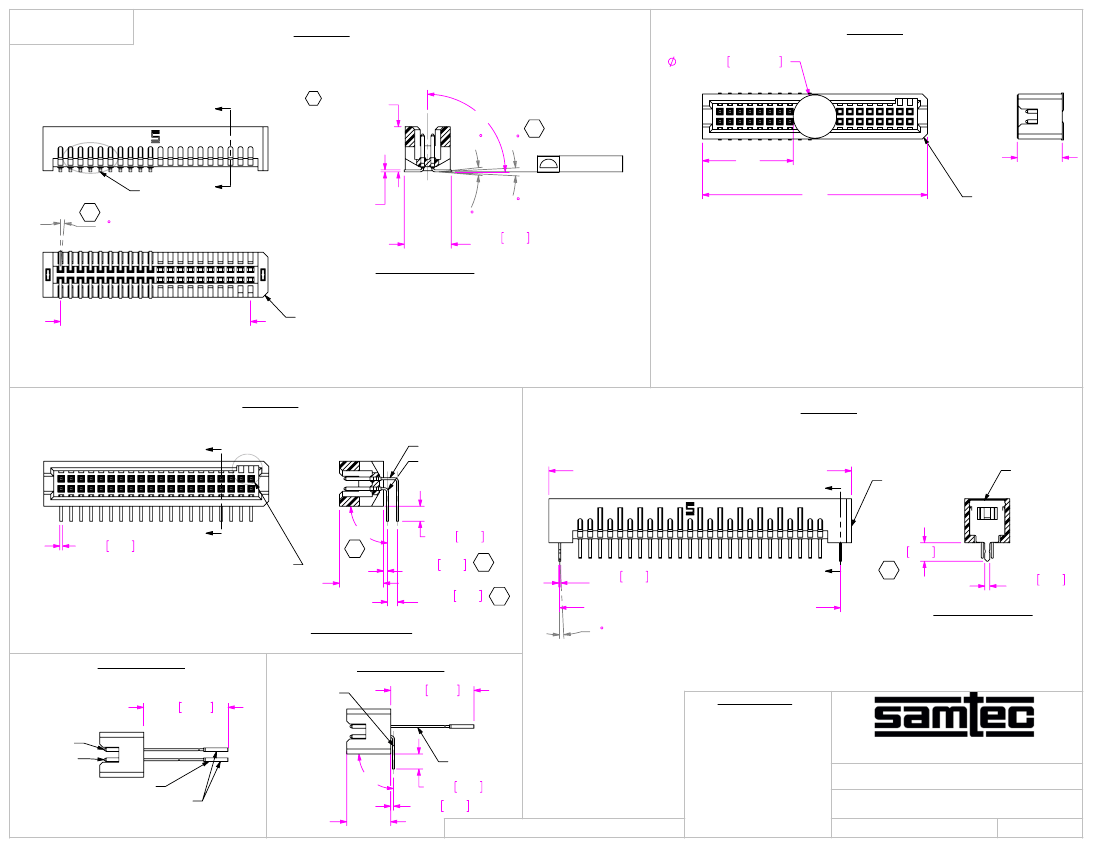

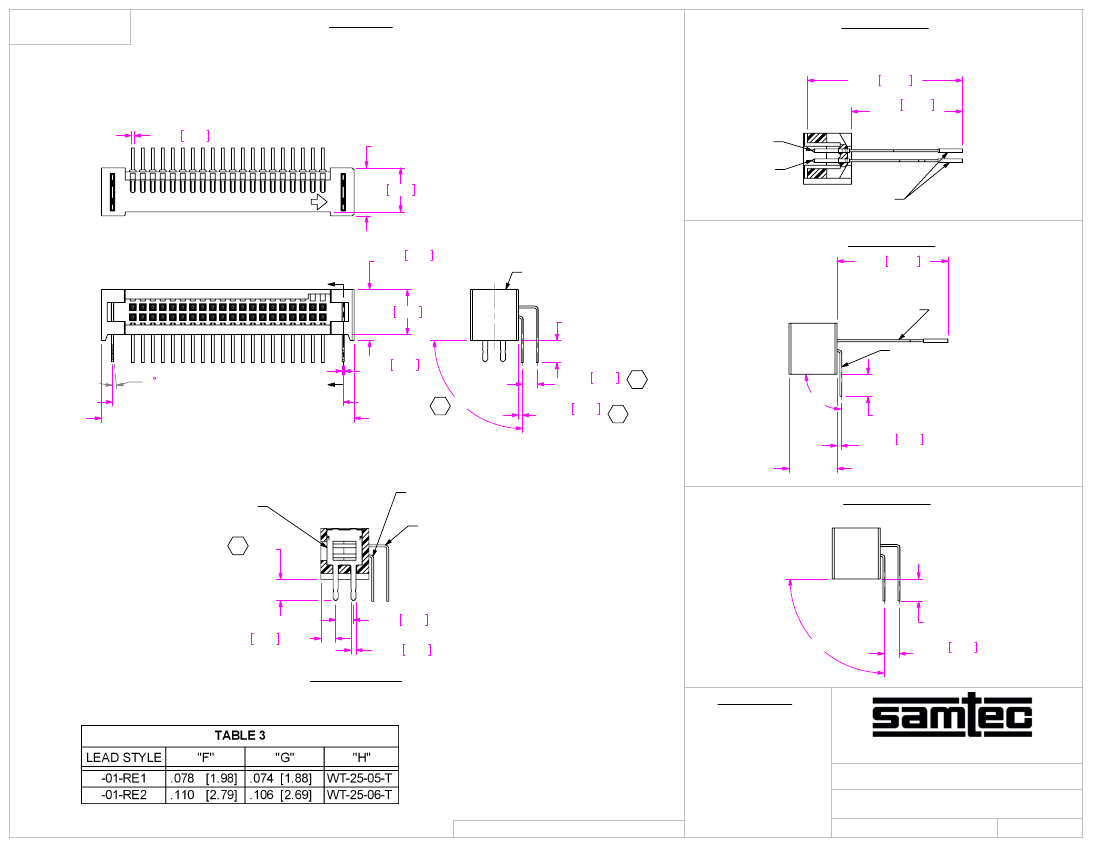

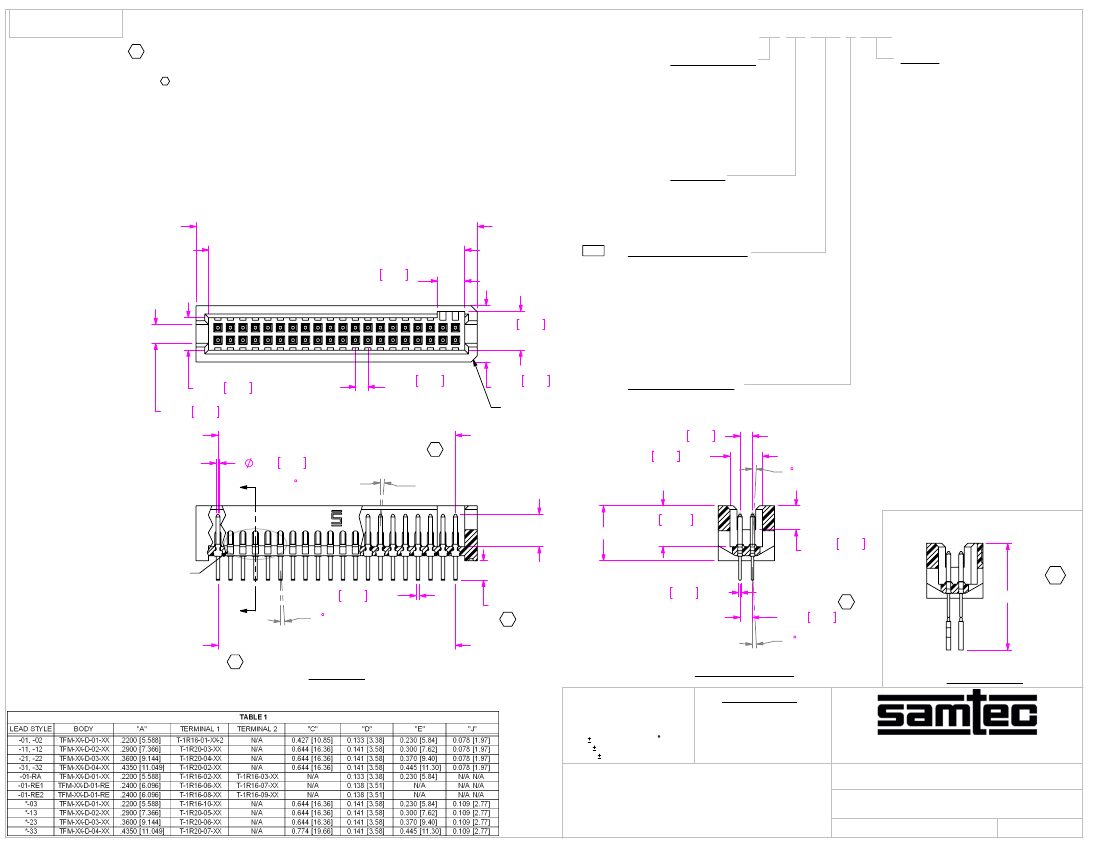

TFM-108-01-P-D-RA Overview

Board Connector, 16 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal,

Parameter Name	Attribute value
Reach Compliance Code	compliant
body width	0.225 inch
subject depth	0.29 inch
body length	0.525 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD FLASH OVER PALLADIUM NICKEL
Contact completed and terminated	Gold Flash (Au) - with Palladium/Nickel (Pd/Ni) barrier
Contact point gender	MALE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Plug contact pitch	0.05 inch
Match contact row spacing	0.05 inch
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	1.27 mm
Plating thickness	FLASH inch
Rated current (signal)	3.2 A
reliability	COMMERCIAL
Terminal pitch	1.27 mm
Termination type	SOLDER
Total number of contacts	16
Base Number Matches	1
