Radial Box Metallized Polyester Capacitors for Automatic Insertion
Type 167/184
Metallized Polyester Radial Lead Capacitors

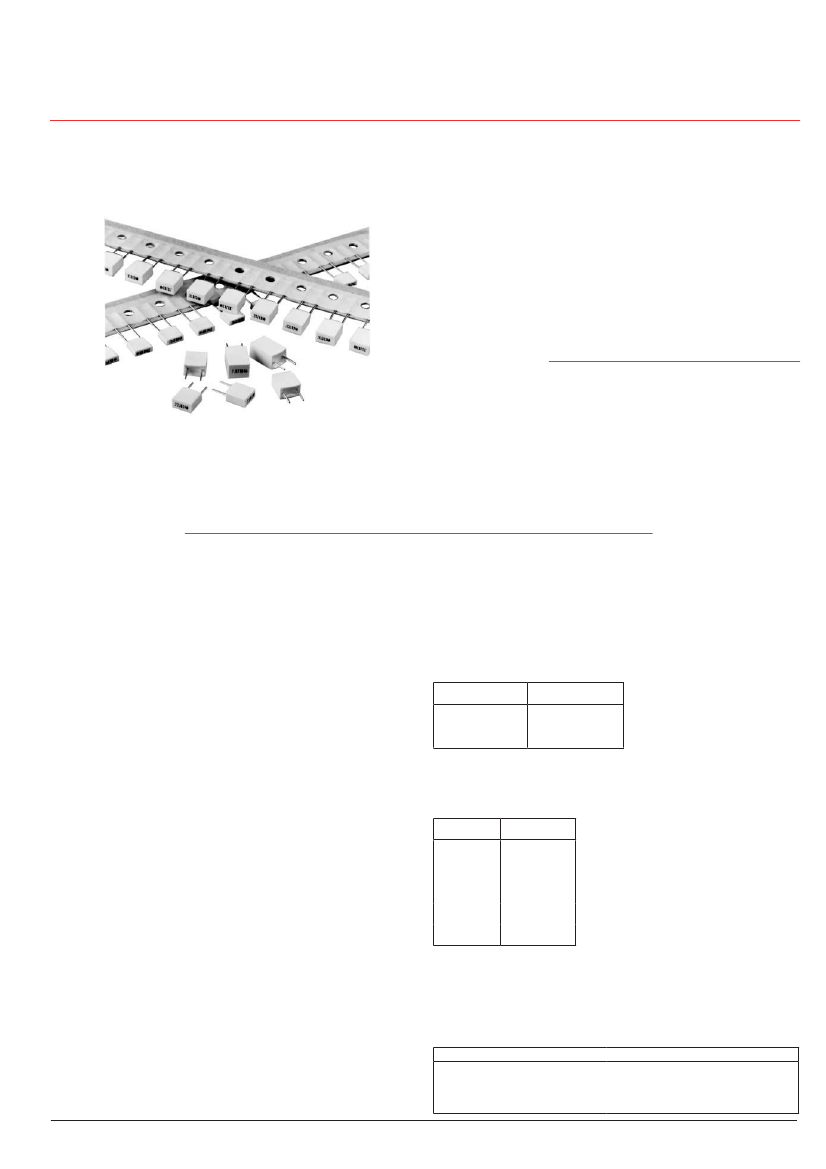

The Type 167/184 series radial lead metallized polyester
box capacitors are available in bulk (Type 167) or on
ammo pack or radial tape and reel (Type 184). These
capacitors are constructed in rugged rectangular plas-
tic cases and all come with 7.5 mm (0.3
”
) lead spacing.
They are good for general purpose applications such as
bypass, decoupling, energy storage/discharge and arc
suppression.
Highlights
•
•
•
•
•
•
Rugged plastic case
Case and epoxy fill meets UL94V0
7.5 mm (0.3
”
) lead spacing
Bulk, tape and reel or ammo pack
Non-inductively wound
Non-polar
Specifications
Capacitance Range:
Voltage Range:
Capacitance Tolerance:
Operating Temperature Range:
Dielectric Withstand Voltage:
Dissipation Factor (DF):
RoHS Compliant
0.001 µF to 1.0 µF
63 Vdc to 630 Vdc (40 Vac to 250 Vac, 60 Hz)
±5%, ±10%, ±20%
–55 ºC to +125 ºC (with 50% Vdc derating >85 ºC)
1.6 x rated voltage for 2 sec @ +25 ºC ±5 ºC
tanδ
x 10
–4
at 25 ºC ±5 ºC
kHz
1
10
tanδ x 10
–4
≤100
≤150
Total Self Inductance (L):
Approximately 8 nH
Maximum Pulse Rise Time (dv/dt):
Vn
63
100
250
400
630
V/µs
12
20
32
41
70
If the working voltage (V) is less than the nominal voltage
(Vn), the capacitor can work at higher dv/dt. In this case, the
maximum value allowed is obtained by multiplying the above
value with the ratio Vn/V.
Long Term Stability (after two years)
Storage
Performance
Capacitance Change
∆C/C
Standard Environmental Conditions
≤
±3%
CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8561 • Fax: (508)996-3830 • www.cde.com
Type 167/184
Metallized Polyester Radial Lead Capacitors
Capacitor Outline Drawing
L
Max
H
Max
.
217 ±.039
(5.5 ±1.0 mm)
S
±.015
(±0.4 mm)
Ød
±.002
(±0.05)
Max
T
Lead length shown is as supplied on 167 Series
Soldering
Test Conditions
Soldering Temperature
260 ºC ±5 ºC
Soldering Duration
10 sec ±1 sec
Performance
Capacitance Change
∆C/C ≤
±2%
DF Change
∆tgδ
≤30
x 10
–4
at 10 kHz
Insulation Resistance
≥
limit value
Ratings
Cap
(µF)
Catalog
Part Number
Tape & Reel
Ammo Pack
L
T
Insulation Resistance
Test Conditions
Temperature
25 ºC ±5 ºC
1 minute
Voltage Charge Time
Voltage Charge
50 Vdc for Vn < 100 Vdc
100 Vdc for Vn
≥
100 Vdc
Performance
For Vn > 100 Vdc
≥30,000
MΩ (50,000 MΩ typical)
For Vn
≤100
Vdc
≥10,000
MΩ for C
≤
0.1µF
≥1,000
MΩ x µF for
>
0.1µF
Damp Heat Test
Test Conditions
Temperature
+40 ºC
Relative Humidity
95%
21 days
Test Duration
Performance
Capacitance Change
∆C/C ≤
±5%
DF Change
∆tgδ
≤50
x 10
4
at 1 kHz
Insulation Resistance
≥
50% of limit value
Life Test
Test Conditions
Temperature
+85 ºC
Test Duration
1000 hrs
Voltage Applied
1.25 x Vn
Performance
Capacitance Change
∆C/C ≤
±5%
DF Change
∆tgδ
≤30
x 10
–4
at 10 kHz
Insulation Resistance
≥
50% of limit value
Test Method and Performance
RoHS Compliant
Inches
H
S
Ød
L
T
63 Vdc / 40 Vac
Millimeters
H
S
Ød
.068
.10
.15
.22
.27
.33
.47
.68
1.00
167683*63A–F
167104*63A–F
167154*63A–F
167224*63A–F
167274*63A–F
167334*63A–F
167474*63B–F
167684*63C–F
167105*63C–F
184683*63#A>–F
184104*63#A>–F
184154*63#A>–F
184224*63#A>–F
184274*63#A>–F
184334*63#A>–F
184474*63#B>–F
184684*63#C>–F
184105*63#C>–F
0.413
0.413
0.413
0.413
0.413
0.413
0.413
0.413
0.413
0.138
0.138
0.138
0.138
0.138
0.138
0.157
0.197
0.197
0.276
0.276
0.276
0.276
0.276
0.276
0.354
0.433
0.433
0.295
0.295
0.295
0.295
0.295
0.295
0.295
0.295
0.295
0.024
0.024
0.024
0.024
0.024
0.024
0.024
0.024
0.024
10.5
10.5
10.5
10.5
10.5
10.5
10.5
10.5
10.5
3.5
3.5
3.5
3.5
3.5
3.5
4.0
5.0
5.0
7.0
7.0
7.0
7.0
7.0
7.0
9.0
11.0
11.0
7.5
7.5
7.5
7.5
7.5
7.5
7.5
7.5
7.5
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
100 Vdc / 63 Vac
.033
.047
.068
.10
.12
.15
.22
.33
167333*100A–F
167473*100A–F
167683*100A–F
167104*100A–F
167124*100B–F
167154*100B–F
167224*100C–F
167334*100C–F
184333*100#A>–F
184473*100#A>–F
184683*100#A>–F
184104*100#A>–F
184124*100#B>–F
184154*100#B>–F
184224*100#C>–F
184334*100#C>–F
0.413
0.413
0.413
0.413
0.413
0.413
0.413
0.413
0.138
0.138
0.138
0.138
0.157
0.157
0.197
0.197
0.276
0.276
0.276
0.276
0.354
0.354
0.433
0.433
0.295
0.295
0.295
0.295
0.295
0.295
0.295
0.295
0.024
0.024
0.024
0.024
0.024
0.024
0.024
0.024
10.5
10.5
10.5
10.5
10.5
10.5
10.5
10.5
3.5
3.5
3.5
3.5
4.0
4.0
5.0
5.0
7.0
7.0
7.0
7.0
9.0
9.0
11.0
11.0
7.5
7.5
7.5
7.5
7.5
7.5
7.5
7.5
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
* Indicates capacitance tolerance: J = ±5%, K = ±10%, M = ±20%
# Indicates packaging type: R = Tape and Reel, A = Ammo Pack
> Indicates tooling code: A = 16.5 mm, B = 18.5 mm, C = 16.0 mm (See H dimension in taping specifications)
CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8561 • Fax: (508)996-3830 • www.cde.com
Type 167/184
Metallized Polyester Radial Lead Capacitors
Cap
(µF)
.010
.015
.018
.022
.027
.033
.039
.047
.068
.100
.0047
.0056
.0068
.010
.015
.022
.033
.0010
.0015
.0022
.0033
.0047
.0068
.010
.015
Catalog
Part Number
Tape & Reel
Ammo Pack
Inches
L
0.413
0.413
0.413
0.413
0.413
0.413
0.413
0.413
0.413
0.413
0.413
0.413
0.413
0.413
0.413
0.413
0.413
0.413
0.413
0.413
0.413
0.413
0.413
0.413
0.413
T
0.138
0.138
0.138
0.138
0.157
0.157
0.157
0.157
0.197
0.197
0.138
0.138
0.138
0.138
0.157
0.197
0.197
0.138
0.138
0.138
0.138
0.157
0.157
0.197
0.236
H
0.276
0.276
0.276
0.276
0.354
0.354
0.354
0.354
0.433
0.433
0.276
0.276
0.276
0.276
0.354
0.433
0.433
0.276
0.276
0.276
0.276
0.354
0.354
0.433
0.472
S
0.295
0.295
0.295
0.295
0.295
0.295
0.295
0.295
0.295
0.295
0.295
0.295
0.295
0.295
0.295
0.295
0.295
0.295
0.295
0.295
0.295
0.295
0.295
0.295
0.295
Ød
0.024
0.024
0.024
0.024
0.024
0.024
0.024
0.024
0.024
0.024
0.024
0.024
0.024
0.024
0.024
0.024
0.024
0.024
0.024
0.024
0.024
0.024
0.024
0.024
0.024
L
10.5
10.5
10.5
10.5
10.5
10.5
10.5
10.5
10.5
10.5
10.5
10.5
10.5
10.5
10.5
10.5
10.5
10.5
10.5
10.5
10.5
10.5
10.5
10.5
10.5
T
3.5
3.5
3.5
3.5
4.0
4.0
4.0
4.0
5.0
5.0
3.5
3.5
3.5
3.5
4.0
5.0
5.0
3.5
3.5
3.5
3.5
4.0
4.0
5.0
6.0
250 Vdc / 160 Vac
167103*250A–F 184103*250#A>–F
167153*250A–F 184153*250#A>–F
167183*250A–F 184183*250#A>–F
167223*250A–F 184223*250#A>–F
167273*250B–F 184273*250#B>–F
167333*250B–F 184333*250#B>–F
167393*250B–F 184393*250#B>–F
167473*250B–F 184473*250#B>–F
167683*250C–F 184683*250#C>–F
167104*250C–F 184104*250#C>–F
167472*400A–F 184472*400#A>–F
167562*400A–F 184562*400#A>–F
167682*400A–F 184682*400#A>–F
167103*400A–F 184103*400#A>–F
167153*400B–F 184153*400#B>–F
167223*400C–F 184223*400#C>–F
167333*400C–F 184333*400#C>–F
167102*630A–F 184102*630#A>–F
167152*630A–F 184152*630#A>–F
167222*630A–F 184222*630#A>–F
167332*630A–F 184332*630#A>–F
167472*630B–F 184472*630#B>–F
167682*630B–F 184682*630#B>–F
167103*630C–F 184103*630#C>–F
167153*630D–F 184153*630#D>–F
7.0
7.0
7.0
7.0
9.0
9.0
9.0
9.0
11.0
11.0
7.0
7.0
7.0
7.0
9.0
11.0
11.0
7.0
7.0
7.0
7.0
9.0
9.0
11.0
12.0
7.5
7.5
7.5
7.5
7.5
7.5
7.5
7.5
7.5
7.5
7.5
7.5
7.5
7.5
7.5
7.5
7.5
7.5
7.5
7.5
7.5
7.5
7.5
7.5
7.5
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
Millimeters
H
S
Ød
400 Vdc / 200 Vac
630 Vdc / 220 Vac
* Indicates capacitance tolerance: J = ±5%, K = ±10%, M = ±20%
# Indicates packaging type: R = Tape and Reel, A = Ammo Pack
> Indicates tooling code: A = 16.5 mm, B = 18.5 mm, C = 16.0 mm (See H dimension in taping specification)
Part Numbering System for Bulk Items
167
Series
167
104
K
100
Voltage
63 = 63 Vdc
100 = 100 Vdc
250 = 250 Vdc
630 = 630 Vdc
A
Case
Capacitance Tolerance
392 = .0039 µF J = ±5%
103 = .01 µF
104 = .1 µF
105 = 1.0 µF
K = ±10%
M = ±20%
Code
A
B
C
D
-F
RoHS
Compliant
Designator
CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8561 • Fax: (508)996-3830 • www.cde.com
Type 167/184
Metallized Polyester Radial Lead Capacitors

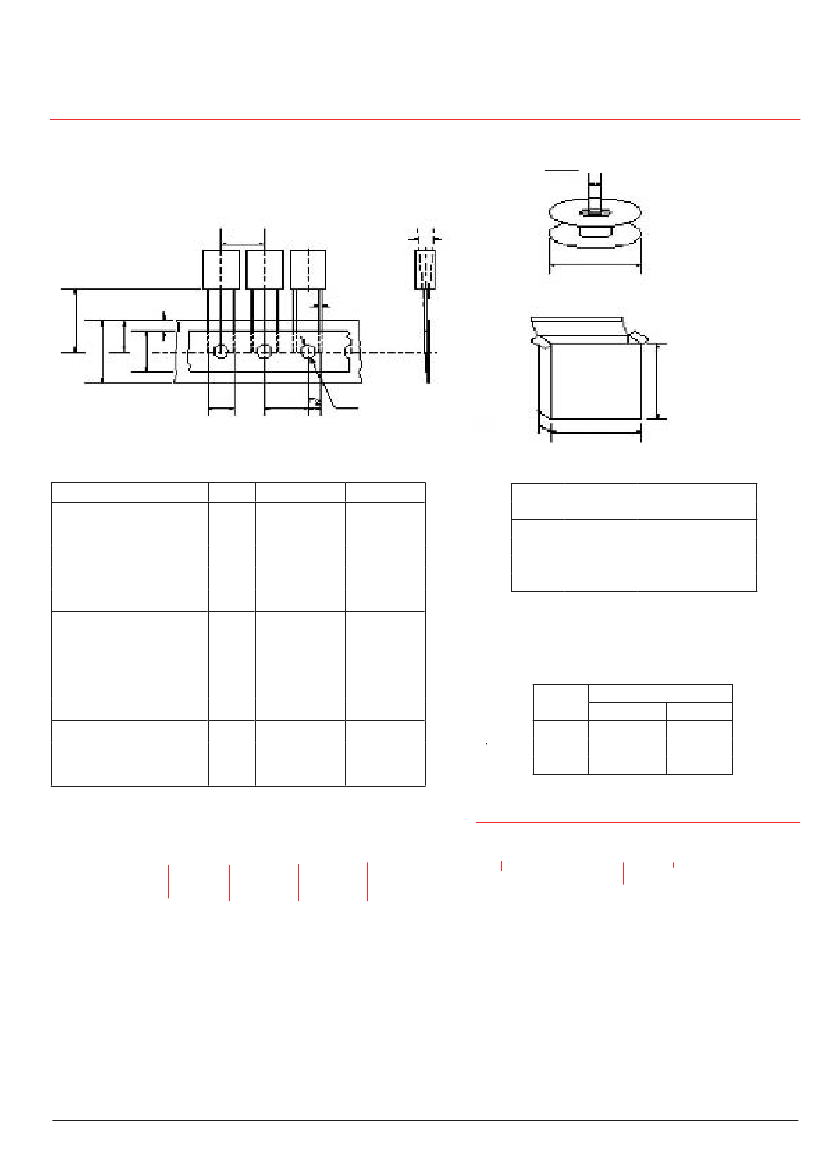

Tape Specification - 7.5 mm Lead Spacing
30 mm
1.18”
P1
ΔH
331 mm
13.04”
Reel
Packing
W2
Ød
W
Wo
P
Po
Do
47 mm Max
1.85”
335 mm Max
13.19”
Item
Lead-Wire Diameter
Lead-to-Lead Distance
Feed Hole Pitch
Pitch of Component
Hole Center to Lead
Component Alignment, F-R
Tape Width
Hold-down Tape Width
Hole Position
Hold-down Tape Position
Height of Component
from Tape Center
Feed Hole Diameter
Code
Ød
P
P
0
P
1
P
2
∆h
W
W
0
W
1
W
2
H
D
0
Millimeters
0.6
+0.04 –0.01
7.5
+0.6 –0.2
2.7
±0.3
12.7
0
±2.0
18
+1.0 –0.1
6.0 min
9.0
+0.75 –0.05
3.0 Max
>
4.0
±0.3
±1.0
Inches
.024
±.001
.295
+.024 –.040
.5
±.012
.5
±.039
Case
Code
A
B
C
D
Quantity
Reeled
1800
1500
1200
1000
280 mm Max
11.02”
Ammo Box
Packing
H
W1
Quantity
Ammo Pack
1500
1500
1000
1000
8.95
±0.7
.352
±.028
0
±.079
.709
+.039 –.004
.236 min
.355
+.030 –.001
.118 Max
>
.157
±.012
> The H dimension depends on the
insertion equipment used. Specify
the proper tooling code as indicated
below.
Tooling
Code
A
B
C
H Dimensions
Millimeters
16.5
±0.75
18.5
±0.75
16.0
±0.75
Inches
.679
±.030
.728
±.030
.630
±030
Part Numbering System for Auto Insertion
184
104
K
100
R
Packaging
Type
Series Capacitance Tolerance
184 392 = .0039 µF J = ±5%
103 = .01 µF
104 = .1 µF
105 = 1.0 µF
K = ±10%
M = ±20%
Voltage
63 = 63 Vdc
100 = 100 Vdc
250 = 250 Vdc
630 = 630 Vdc
* Tooling code is at the discretion
of the user depending on the
insertion equipment being used.
See table for specific "H" dimensions
(#)
A = Ammo
R = Tape & Reel
Case
Code
A
B
C
D
A
B
*Tooling
Code
(>)
A
B
C
-F
RoHS
Compliant
Designator
* Tooling code (>) depends on the users insertion equipment requirements. See table for available options.
CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8561 • Fax: (508)996-3830 • www.cde.com
京公网安备 11010802033920号
EEWORLD
