UPD75P316AGF datasheet, PDF - EEWORLD Datasheet

UPD75P316AGF: DescriptionMicrocontroller, 4-Bit, OTPROM, 4.19MHz, CMOS, PQFP80, PLASTIC, QFP-80; CategoryThe embedded processor and controller Microcontrollers and processors; File Size177KB，6 Pages; ManufacturerNEC Electronics

Download Datasheet Parametric View All

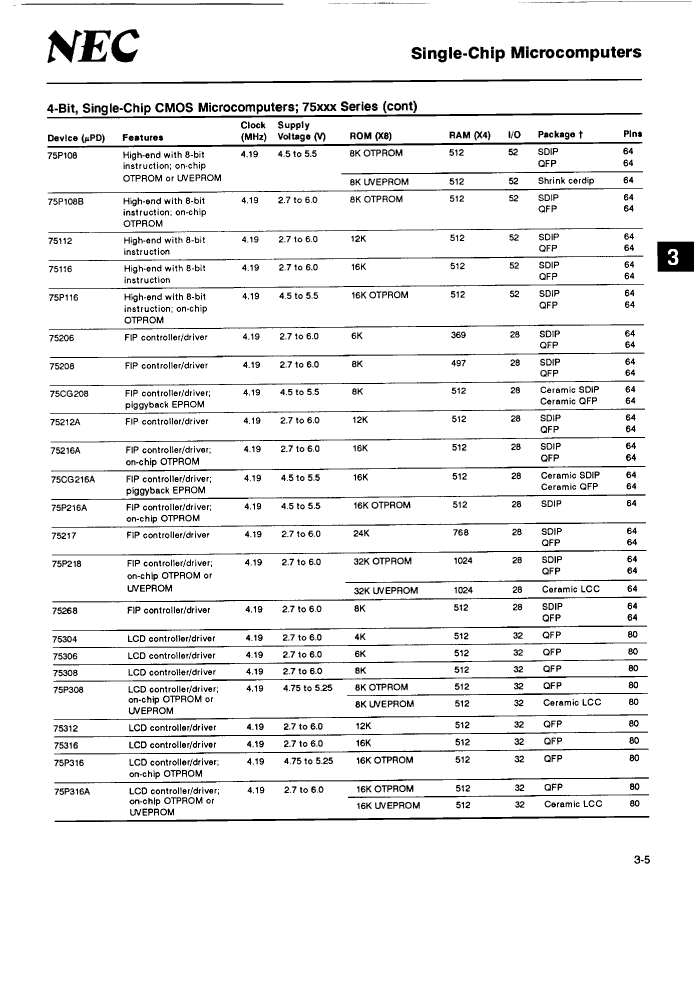

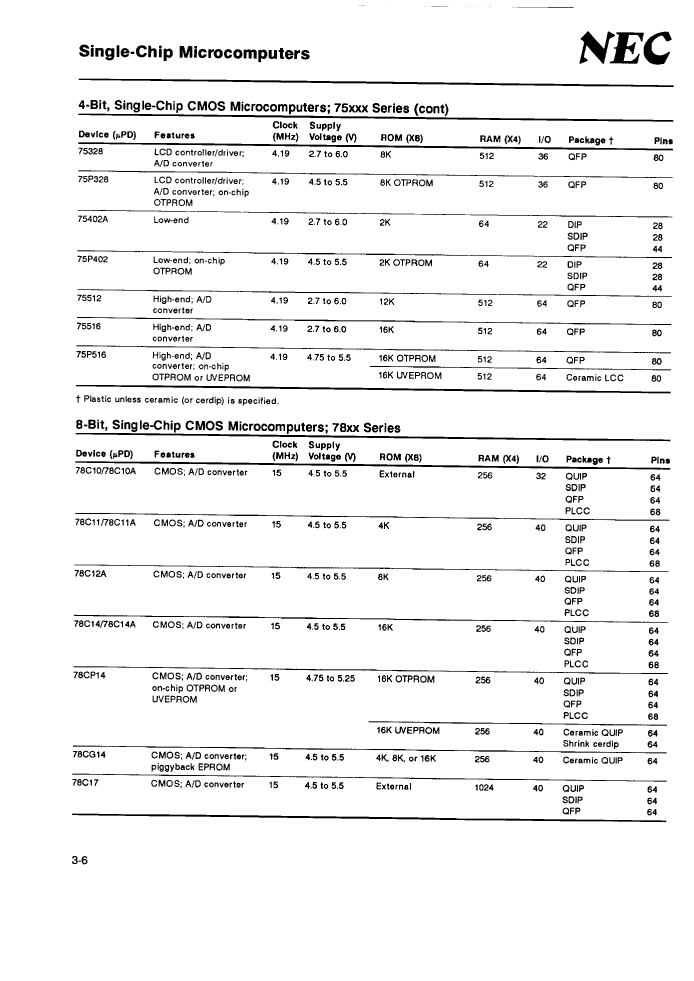

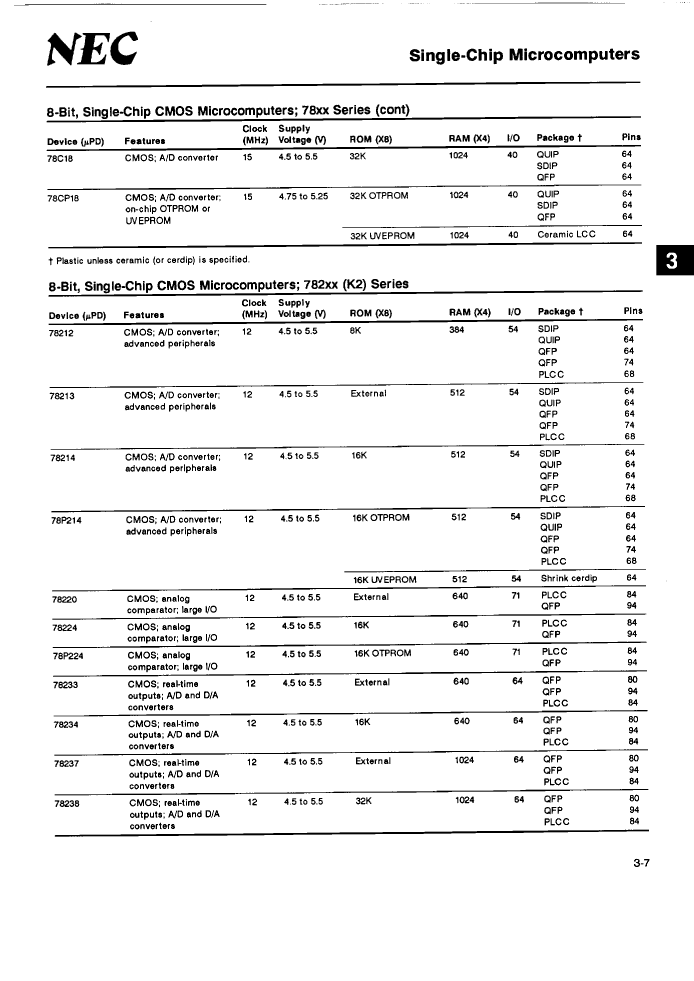

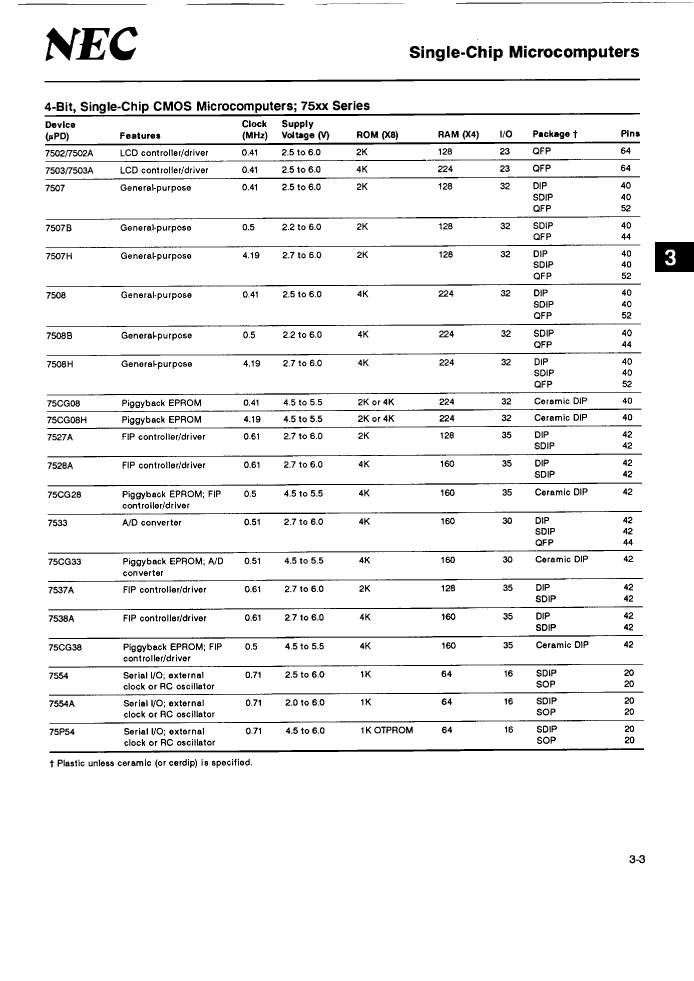

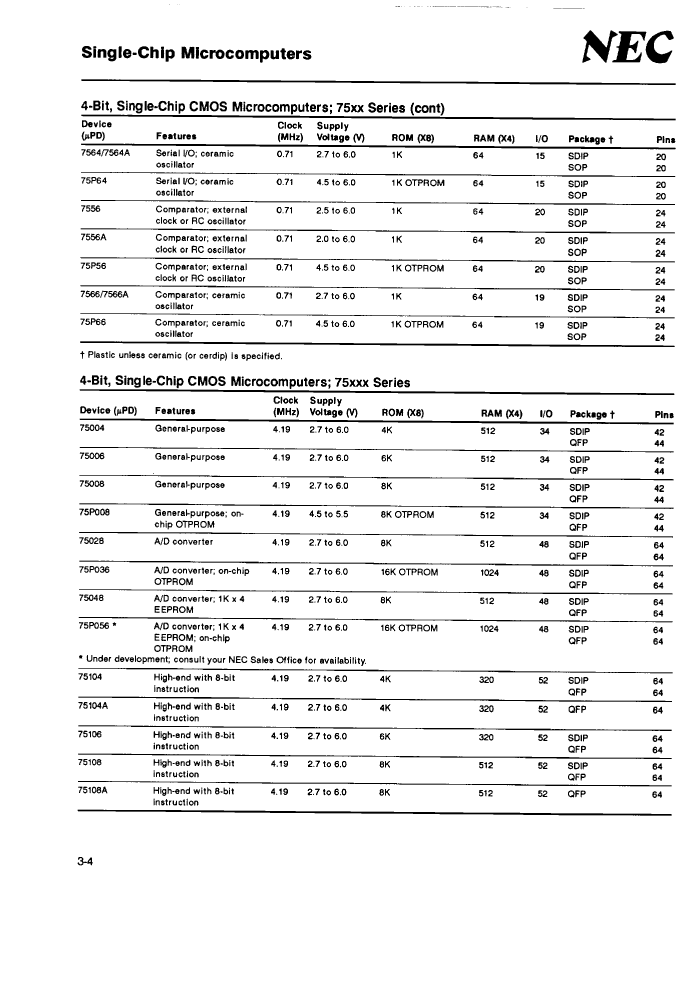

UPD75P316AGF Overview

Microcontroller, 4-Bit, OTPROM, 4.19MHz, CMOS, PQFP80, PLASTIC, QFP-80

Parameter Name	Attribute value
package instruction	PLASTIC, QFP-80
Reach Compliance Code	unknown
Has ADC	NO
bit size	4
maximum clock frequency	4.19 MHz
DAC channel	NO
DMA channel	NO
JESD-30 code	R-PQFP-G80
length	20 mm
Number of I/O lines	32
Number of terminals	80
PWM channel	NO
Package body material	PLASTIC/EPOXY
encapsulated code	QFP
Package shape	RECTANGULAR
Package form	FLATPACK
Certification status	Not Qualified
ROM programmability	OTPROM
Maximum seat height	3 mm
speed	4.19 MHz
Maximum supply voltage	6 V
Minimum supply voltage	2.7 V
surface mount	YES
technology	CMOS
Terminal form	GULL WING
Terminal pitch	0.8 mm
Terminal location	QUAD
width	14 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER
Base Number Matches	1
