DAC7545GCH datasheet, PDF - EEWORLD Datasheet

DAC7545GCH: DescriptionD/A Converter, 1 Func, Parallel, Word Input Loading, 2us Settling Time, CDIP20,; CategoryAnalog mixed-signal IC converter; File Size302KB，7 Pages; ManufacturerBurr-Brown; Websitehttp://www.burr-brown.com/

Download Datasheet Parametric View All

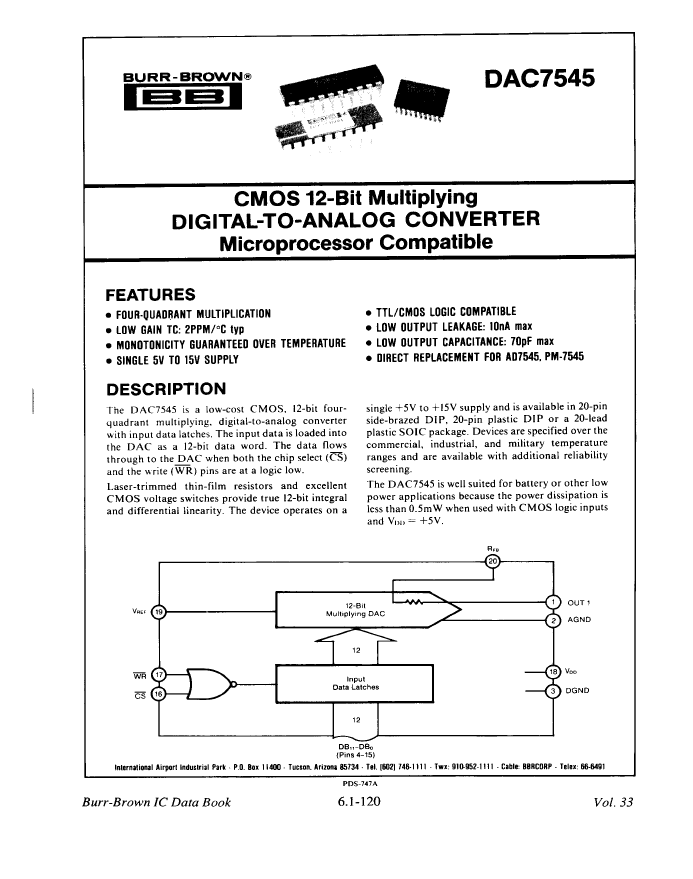

DAC7545GCH Overview

D/A Converter, 1 Func, Parallel, Word Input Loading, 2us Settling Time, CDIP20,

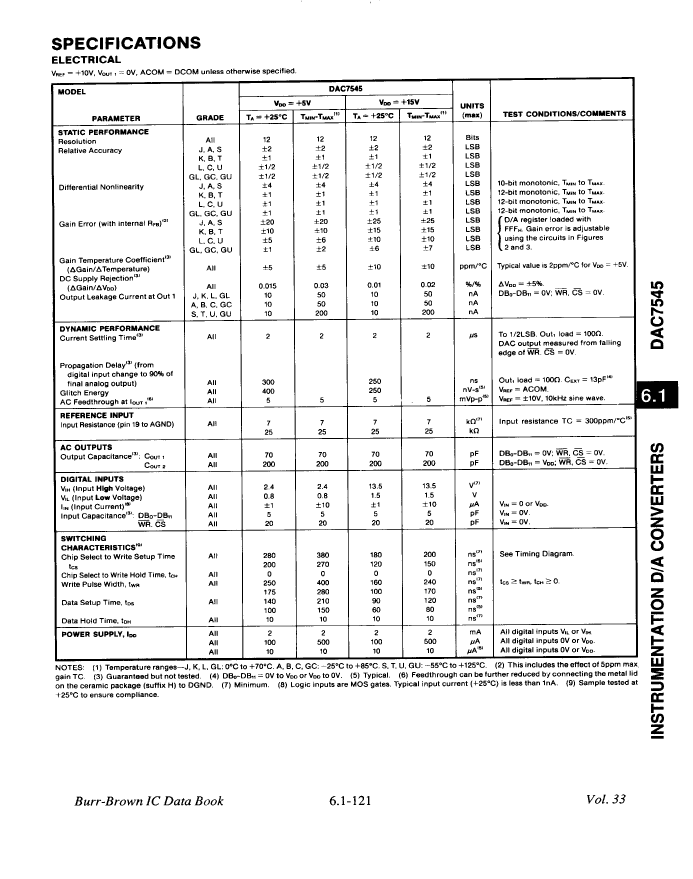

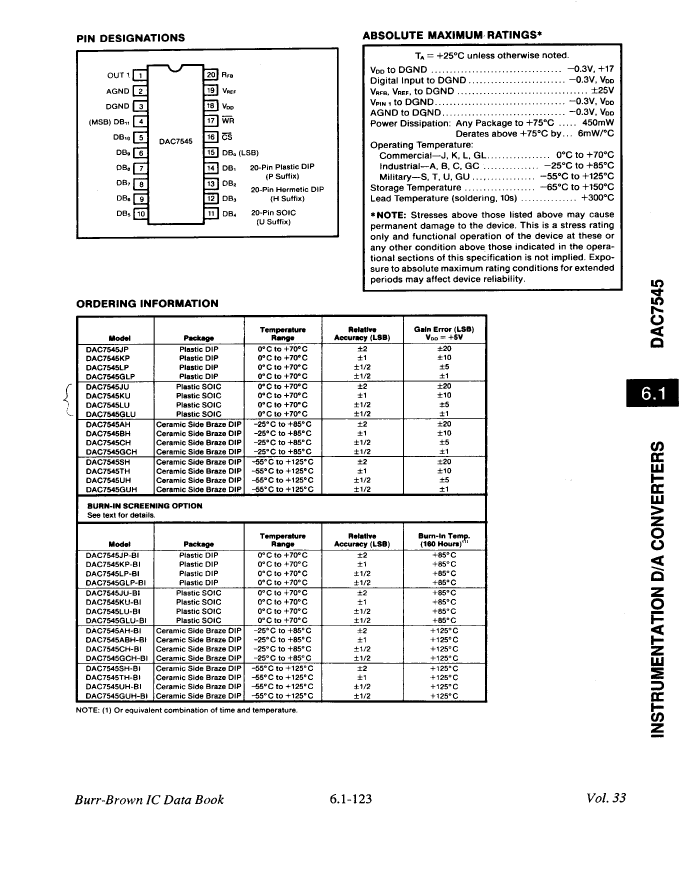

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Reach Compliance Code	unknown
Converter type	D/A CONVERTER
Enter bit code	BINARY, 2'S COMPLEMENT BINARY
Input format	PARALLEL, WORD
JESD-30 code	R-CDIP-T20
JESD-609 code	e0
Maximum linear error (EL)	0.0122%
Number of digits	12
Number of functions	1
Number of terminals	20
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C

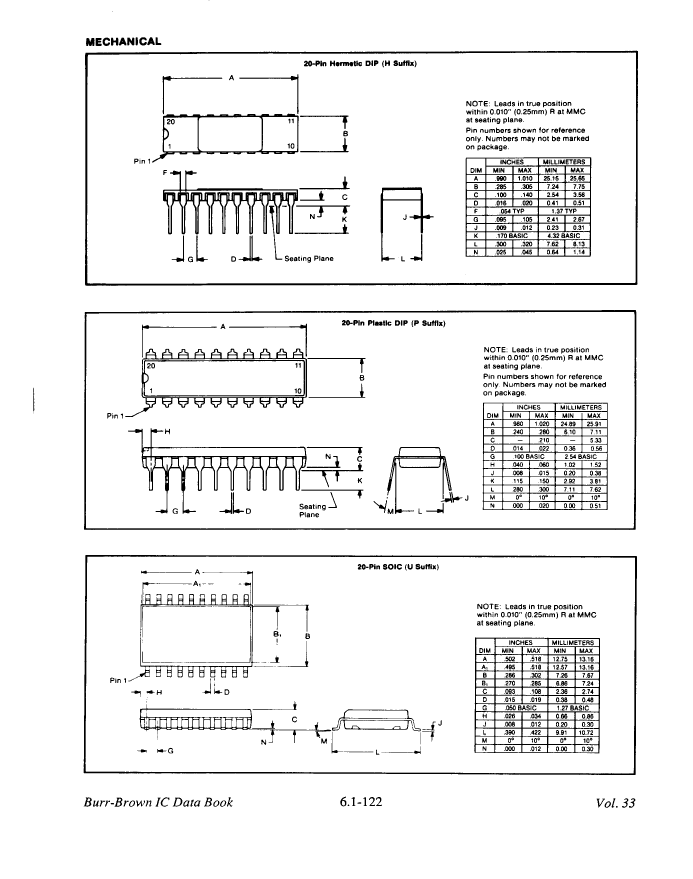

Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP
Encapsulate equivalent code	DIP20,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5/15 V
Certification status	Not Qualified

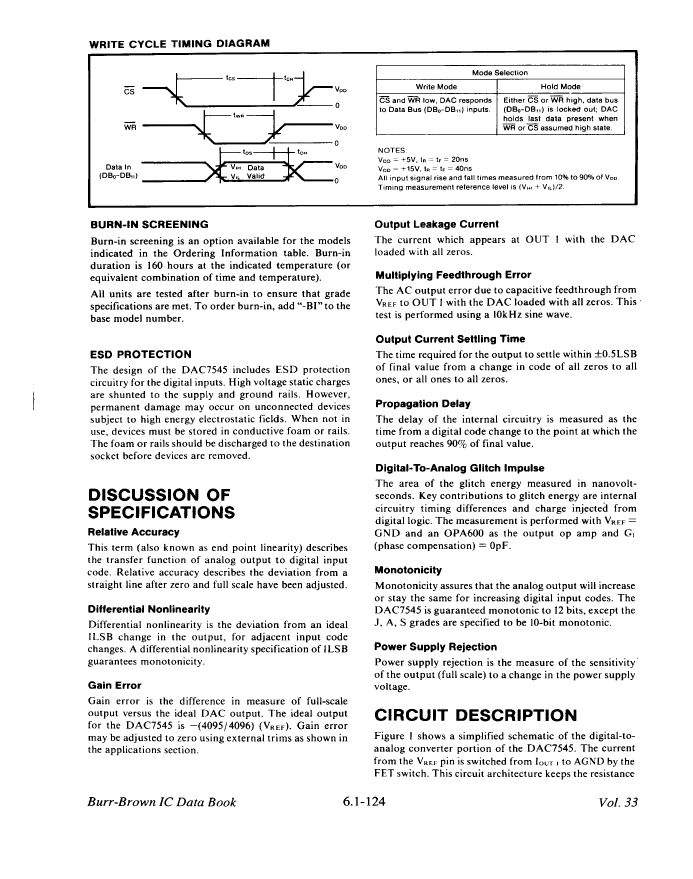

Maximum stabilization time	2 µs
Nominal settling time (tstl)	2 µs
Maximum slew rate	2 mA
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	OTHER
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Base Number Matches	1

This Material Copyrighted By Its Respective Manufacturer
