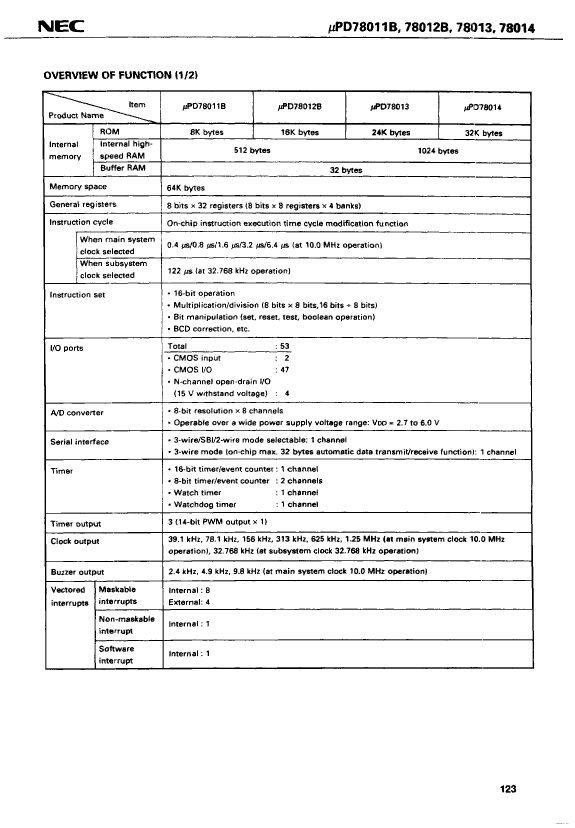

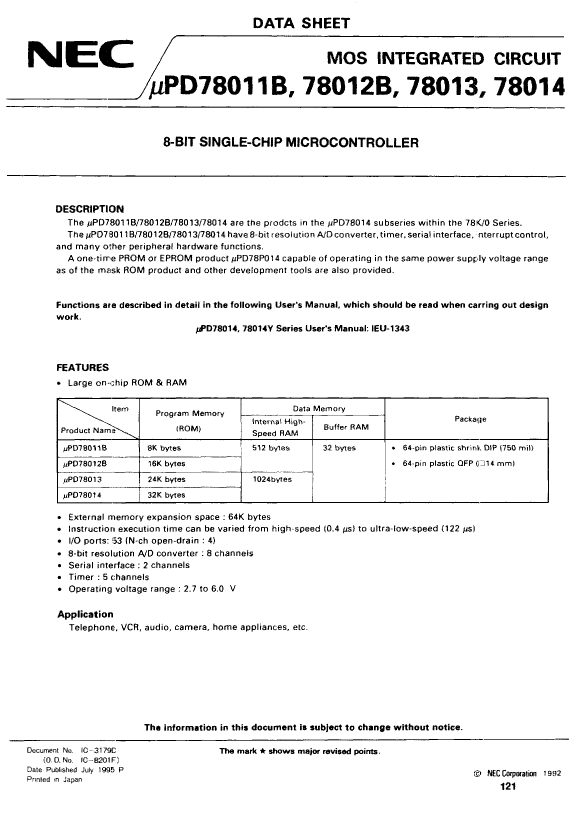

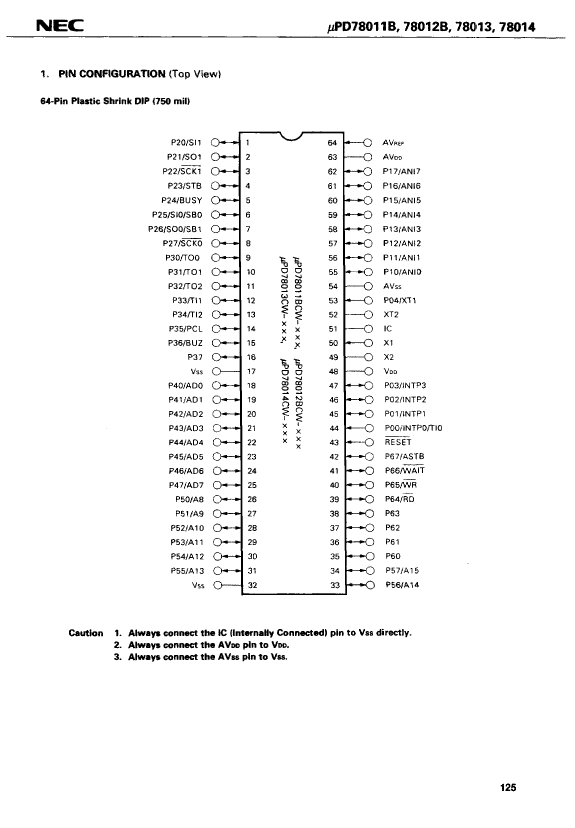

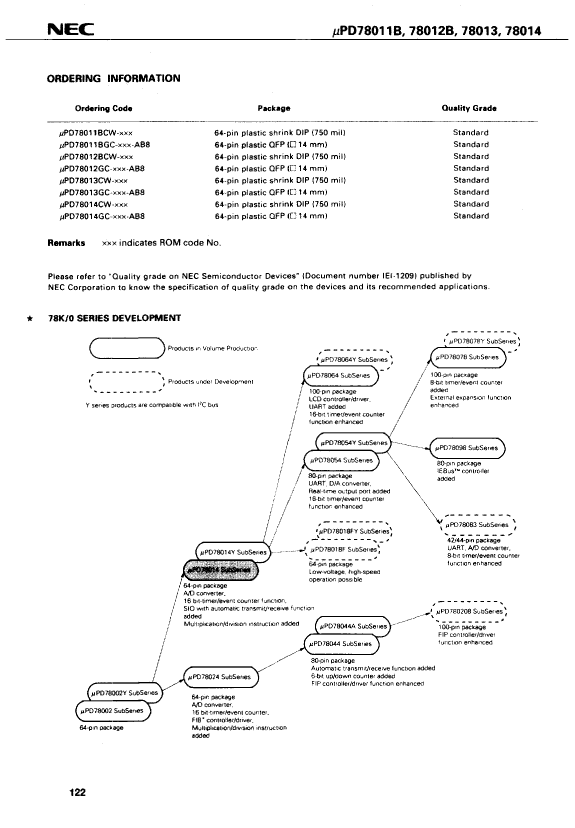

UPD78011BGC-XXX-AB8

Description
Microcontroller, 8-Bit, MROM, 10MHz, CMOS, PQFP64, 14 X 14 MM, PLASTIC, QFP-64
CategoryThe embedded processor and controller    Microcontrollers and processors
File Size1MB，67 Pages
ManufacturerNEC Electronics
Download Datasheet Parametric Compare View All

UPD78011BGC-XXX-AB8 Overview

Microcontroller, 8-Bit, MROM, 10MHz, CMOS, PQFP64, 14 X 14 MM, PLASTIC, QFP-64

UPD78011BGC-XXX-AB8 Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
package instruction14 X 14 MM, PLASTIC, QFP-64
Reach Compliance Codecompliant
Has ADCYES
Address bus width16
bit size8
maximum clock frequency10 MHz
DAC channelNO
DMA channelNO
External data bus width8
JESD-30 codeS-PQFP-G64
JESD-609 codee0
length14 mm
Number of I/O lines53
Number of terminals64
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
PWM channelYES
Package body materialPLASTIC/EPOXY
encapsulated codeQFP
Package shapeSQUARE
Package formFLATPACK
Peak Reflow Temperature (Celsius)NOT SPECIFIED
Certification statusNot Qualified
ROM programmabilityMROM
Maximum seat height2.85 mm
speed10 MHz
Maximum slew rate22.5 mA
Maximum supply voltage6 V
Minimum supply voltage2.7 V
surface mountYES
technologyCMOS
Temperature levelINDUSTRIAL
Terminal surfaceTIN LEAD
Terminal formGULL WING
Terminal pitch0.8 mm
Terminal locationQUAD
Maximum time at peak reflow temperatureNOT SPECIFIED
width14 mm
uPs/uCs/peripheral integrated circuit typeMICROCONTROLLER
Base Number Matches1

Preview

Download Datasheet
