UPD78011BYGC-XXX-AB8: DescriptionMicrocontroller, 8-Bit, MROM, 10MHz, CMOS, PQFP64, 14 X 14 MM, PLASTIC, QFP-64; CategoryThe embedded processor and controller Microcontrollers and processors; File Size1MB，66 Pages; ManufacturerNEC Electronics

Download Datasheet Parametric Compare View All

UPD78011BYGC-XXX-AB8 Overview

Microcontroller, 8-Bit, MROM, 10MHz, CMOS, PQFP64, 14 X 14 MM, PLASTIC, QFP-64

UPD78011BYGC-XXX-AB8 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	14 X 14 MM, PLASTIC, QFP-64
Reach Compliance Code	compliant
Has ADC	YES
Address bus width	16
bit size	8
maximum clock frequency	10 MHz
DAC channel	NO
DMA channel	NO
External data bus width	8
JESD-30 code	S-PQFP-G64
JESD-609 code	e0
length	14 mm
Number of I/O lines	53
Number of terminals	64
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
PWM channel	YES
Package body material	PLASTIC/EPOXY
encapsulated code	QFP
Package shape	SQUARE
Package form	FLATPACK
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
ROM programmability	MROM
Maximum seat height	2.85 mm
speed	10 MHz
Maximum slew rate	22.5 mA
Maximum supply voltage	6 V
Minimum supply voltage	2.7 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	TIN LEAD
Terminal form	GULL WING
Terminal pitch	0.8 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED
width	14 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER
Base Number Matches	1

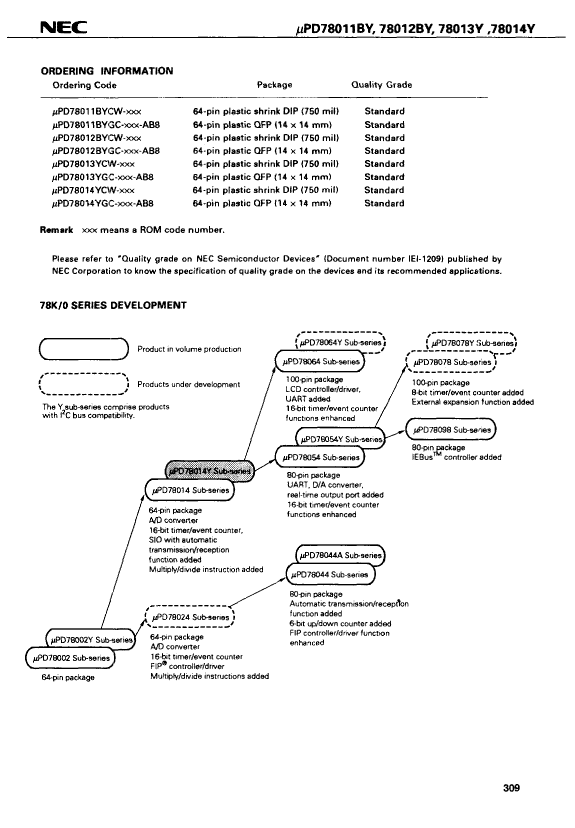

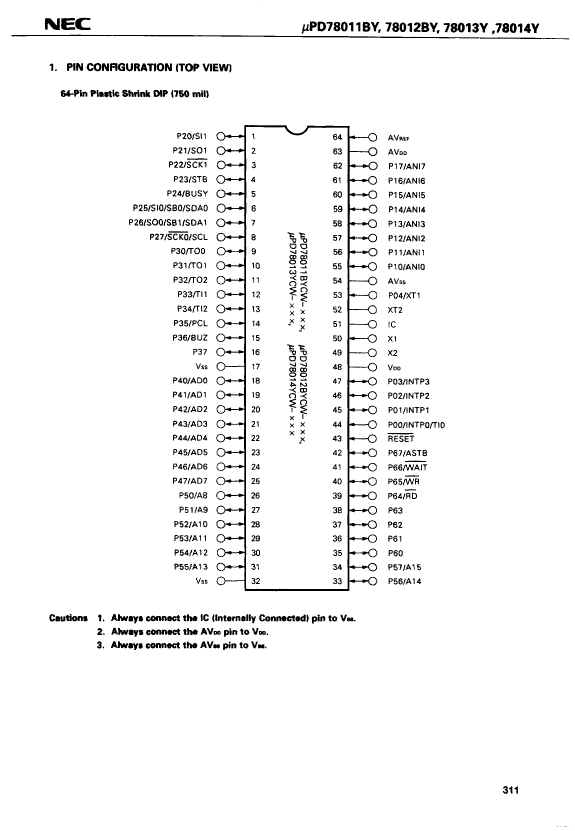

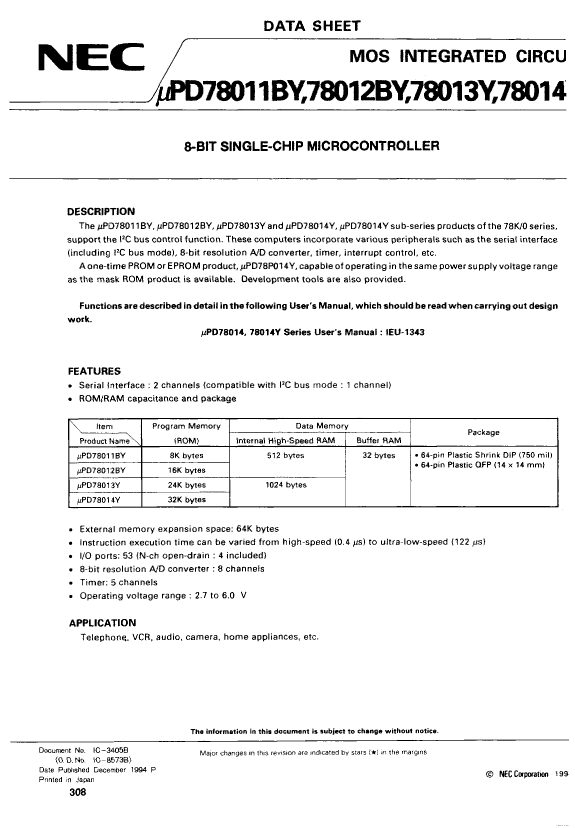

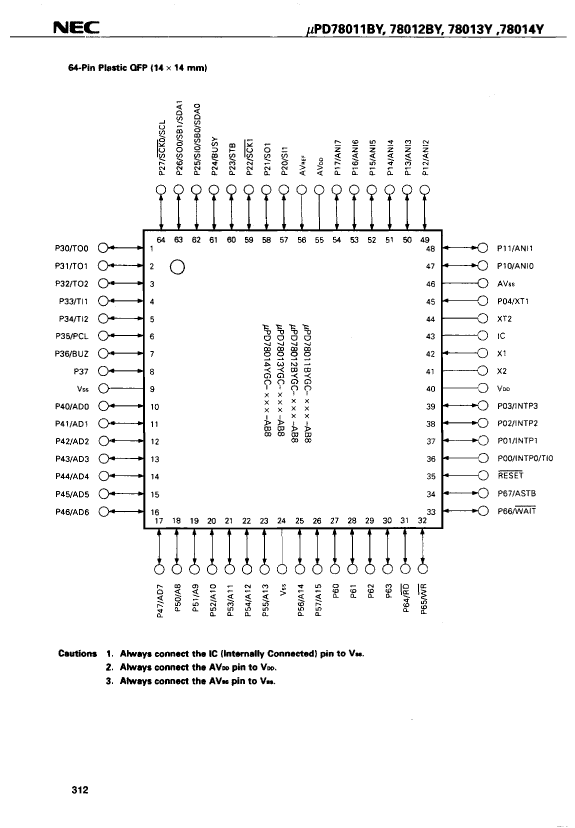

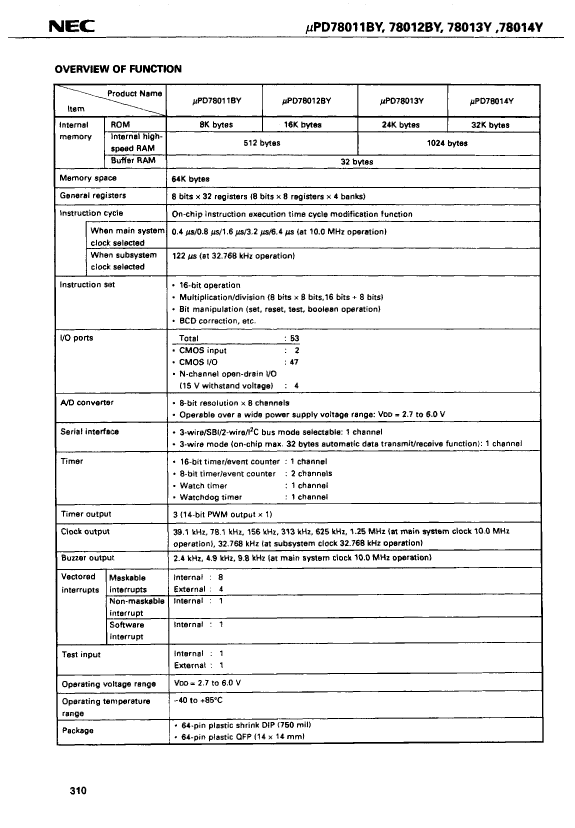

Preview

Download Datasheet

UPD78011BYGC-XXX-AB8 Related Products

	UPD78011BYGC-XXX-AB8	UPD78011BYCW-XXX	UPD78012BYCW-XXX	UPD78014YGC-XXX-AB8	UPD78013YGC-XXX-AB8	UPD78013YCW-XXX	UPD78012BYGC-XXX-AB8
Description	Microcontroller, 8-Bit, MROM, 10MHz, CMOS, PQFP64, 14 X 14 MM, PLASTIC, QFP-64	Microcontroller, 8-Bit, MROM, 10MHz, CMOS, PDIP64, 0.750 INCH, PLASTIC, SHRINK, DIP-64	Microcontroller, 8-Bit, MROM, 10MHz, CMOS, PDIP64, 0.750 INCH, PLASTIC, SHRINK, DIP-64	Microcontroller, 8-Bit, MROM, 10MHz, CMOS, PQFP64, 14 X 14 MM, PLASTIC, QFP-64	Microcontroller, 8-Bit, MROM, 10MHz, CMOS, PQFP64, 14 X 14 MM, PLASTIC, QFP-64	Microcontroller, 8-Bit, MROM, 10MHz, CMOS, PDIP64, 0.750 INCH, PLASTIC, SHRINK, DIP-64	Microcontroller, 8-Bit, MROM, 10MHz, CMOS, PQFP64, 14 X 14 MM, PLASTIC, QFP-64
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
package instruction	14 X 14 MM, PLASTIC, QFP-64	0.750 INCH, PLASTIC, SHRINK, DIP-64	0.750 INCH, PLASTIC, SHRINK, DIP-64	14 X 14 MM, PLASTIC, QFP-64	14 X 14 MM, PLASTIC, QFP-64	0.750 INCH, PLASTIC, SHRINK, DIP-64	14 X 14 MM, PLASTIC, QFP-64
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Has ADC	YES	YES	YES	YES	YES	YES	YES
Address bus width	16	16	16	16	16	16	16
bit size	8	8	8	8	8	8	8
maximum clock frequency	10 MHz	10 MHz	10 MHz	10 MHz	10 MHz	10 MHz	10 MHz
DAC channel	NO	NO	NO	NO	NO	NO	NO
DMA channel	NO	NO	NO	NO	NO	NO	NO
External data bus width	8	8	8	8	8	8	8
JESD-30 code	S-PQFP-G64	R-PDIP-T64	R-PDIP-T64	S-PQFP-G64	S-PQFP-G64	R-PDIP-T64	S-PQFP-G64
JESD-609 code	e0	e0	e0	e0	e0	e0	e0
length	14 mm	57.655 mm	57.655 mm	14 mm	14 mm	57.655 mm	14 mm
Number of I/O lines	53	53	53	53	53	53	53
Number of terminals	64	64	64	64	64	64	64
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
PWM channel	YES	YES	YES	YES	YES	YES	YES
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	QFP	SDIP	SDIP	QFP	QFP	SDIP	QFP
Package shape	SQUARE	RECTANGULAR	RECTANGULAR	SQUARE	SQUARE	RECTANGULAR	SQUARE
Package form	FLATPACK	IN-LINE, SHRINK PITCH	IN-LINE, SHRINK PITCH	FLATPACK	FLATPACK	IN-LINE, SHRINK PITCH	FLATPACK
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
ROM programmability	MROM	MROM	MROM	MROM	MROM	MROM	MROM
Maximum seat height	2.85 mm	5.08 mm	5.08 mm	2.85 mm	2.85 mm	5.08 mm	2.85 mm
speed	10 MHz	10 MHz	10 MHz	10 MHz	10 MHz	10 MHz	10 MHz
Maximum slew rate	22.5 mA	22.5 mA	22.5 mA	22.5 mA	22.5 mA	22.5 mA	22.5 mA
Maximum supply voltage	6 V	6 V	6 V	6 V	6 V	6 V	6 V
Minimum supply voltage	2.7 V	2.7 V	2.7 V	2.7 V	2.7 V	2.7 V	2.7 V
surface mount	YES	NO	NO	YES	YES	NO	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal surface	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD
Terminal form	GULL WING	THROUGH-HOLE	THROUGH-HOLE	GULL WING	GULL WING	THROUGH-HOLE	GULL WING
Terminal pitch	0.8 mm	1.778 mm	1.778 mm	0.8 mm	0.8 mm	1.778 mm	0.8 mm
Terminal location	QUAD	DUAL	DUAL	QUAD	QUAD	DUAL	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	14 mm	19.05 mm	19.05 mm	14 mm	14 mm	19.05 mm	14 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER
Maker	-	-	-	NEC Electronics	NEC Electronics	NEC Electronics	NEC Electronics
