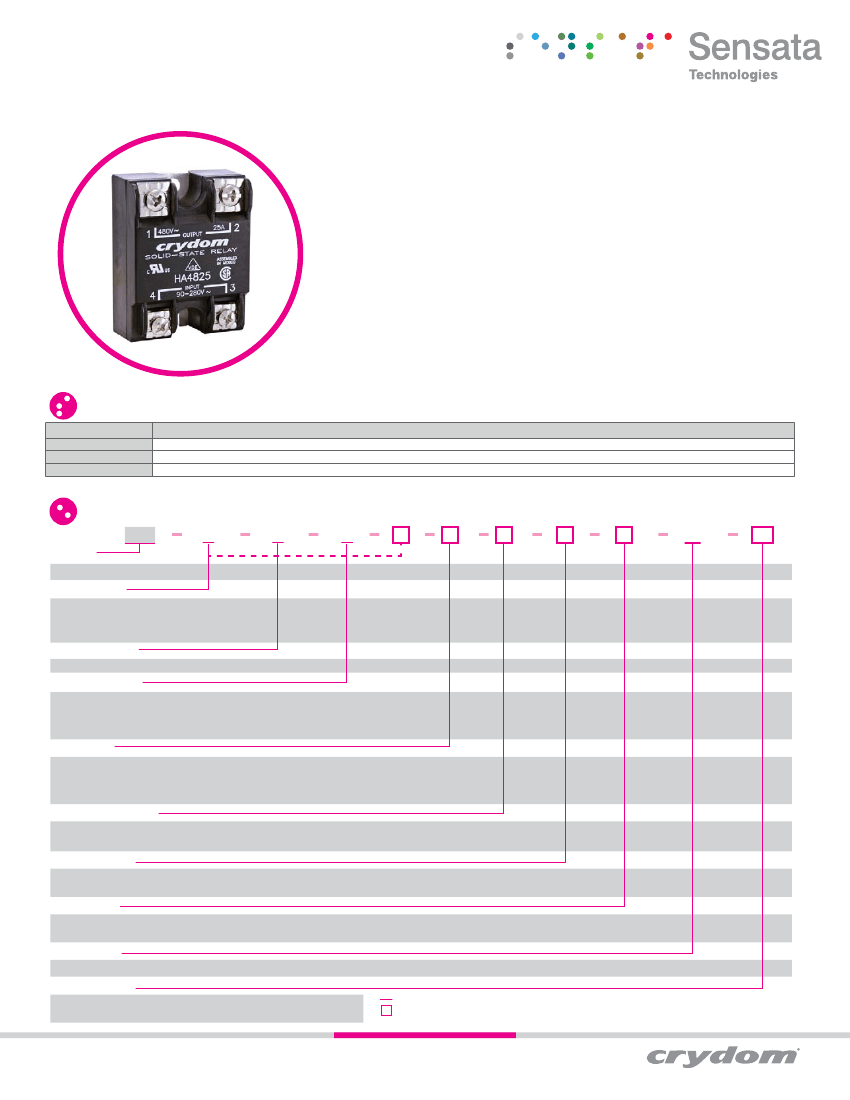

HA AND HD SERIES | 48T
PANEL MOUNT
Features
• Ratings from 12A to 125A @ 48-530 VAC
• SCR output for heavy industrial loads
• Zero Voltage or instantaneous turn-on outputs
• UL/CSA/VDE Approved, CE Compliant to EN60950-1
• Improved SEMS screw and washer
• Redesigned housing with anti-rotation barriers
• AC or DC control
• Direct bond copper substrate
• Direct power lead frame
• Epoxy free design
PRODUCT SELECTION
Control Voltage
3-32 VDC
90-280 Vrms
18-36 Vrms
12A
HD4812T
HA4812T
HA4812ET
25A
HD4825T
HA4825T
HA4825ET
50A
HD4850T
HA4850T
HA4850ET
75A
HD4875T
HA4875T
HA4875ET
90A
HD4890T
HA4890T
HA4890ET
110A
HD48110T
HA48110T
HA48110ET
125A
HD48125T
HA48125T
HA48125ET
ORDERING OPTIONS
H
Serires
H
Control Voltage
A:
90-280 VAC
D:
3-32 VDC
AxxxxE:
18-36 VAC
Operating Voltage
48:
48-530 VAC
A
48
25
E
K
P
G
H
T
-10
Rated Load Current
12:
12 Amps
25:
25 Amps
50:
50 Amps
Termination
Blank:
Screw
(1)
F:
Quick Connect (Up to 50 Amps only)
K:
Hex standoffs
(2)
Overvoltage Protection
Blank:
Not Included
P:
Included
(3)
Input Status LED
Blank:
Not Included
G:
Included
Thermal Pad
Blank:
Not Included
H:
Included
Trigger Circuit
T:
Phototransistor
Switching Type
Blank:
Zero Voltage Turn-On
-10:
Instantaneous Turn-On
(4)
Required for valid part number
For options only and not
required for valid part number
Note:
Not all part number combinations are available.
Contact Crydom Technical support for information on
the availability of a specific part number.
75:
75 Amps
90:
90 Amps
110:
110 Amps
125:
125 Amps
Page 1
Copyright © 2018 Sensata Technologies, Inc.
www.sensata.com
OUTPUT SPECIFICATIONS
(5)
Description
Operating Voltage (47-63Hz) [Vrms]
Transient Overvoltage [Vpk]
Maximum Off-State Leakage Current @ Rated Voltage [mArms]
Minimum Off-State dv/dt @ Maximum Rated Voltage [V/µsec]
Maximum Load Current [Arms]
(2)(6)
Minimum Load Current [mArms]
Maximum 1 Cycle Surge Current (50/60Hz) [Apk]
Maximum On-State Voltage Drop @ Rated Current [Vrms]
(7)
Thermal Resistance Junction to Case (Rjc) [°C/W]
Maximum 1/2 Cycle I² t for Fusing (50/60Hz) [A² sec]
Minimum Power Factor (at Maximum Load)
12A
48-530
1200
10
500
12
40
134/140
1.15
1.03
66/60
0.5
25A
48-530
1200
10
500
25
40
239/250
1.15
0.8
285/259
0.5
50A
48-530
1200
10
500
50
40
597/625
1.15
0.45
1770/1629
0.5
75A
48-530
1200
10
500
75
40
954/1000
1.15
0.3
4555/4150
0.5
90A
48-530
1200
10
500
90
40
1145/1200
1.15
0.27
6560/5976
0.5
110A
48-530
1200
10
500
110
150
1432/1500
1.15
0.25
10249/9338
0.5
125A
48-530
1200
10
500
125
150
1670/1750
1.15
0.22
13950/12709
0.5
INPUT SPECIFICATIONS
(5)
Description
Control Voltage Range
Minimum Turn-On Voltage
Must Turn-Off Voltage
Minimum Input Current
Maximum Input Current
Nominal Input Impedance
Maximum Turn-On Time [msec]
Maximum Turn-Off Time [msec]
HD48xxT
3-32 VDC
(8)
3.0 VDC
1.0 VDC
2 mA
2.5 mA
Current Regulated
1/2 Cycle
(9)
1/2 Cycle
HA48xxT
90-280 Vrms
90 Vrms
10 Vrms
2 mA
4.9 mA
60K Ohm
10
40
HA48xxET
18-36 Vrms
18 Vrms
4.0 Vrms
2 mA
4 mA
9K Ohm
20
30
GENERAL SPECIFICATIONS
(5)
Description
Dielectric Strength, Input/Output/Base (50/60Hz)
Minimum Insulation Resistance (@ 500 VDC)
Maximum Capacitance, Input/Output
Ambient Operating Temperature Range
Ambient Storage Temperature Range
Weight (typical)
Housing Material
Baseplate Material
Input Terminal Screw Torque Range [in-lb/Nm]
Load Terminal Screw Torque Range [in-lb/Nm]
SSR Mounting Screw Torque Range [in-lb/Nm]
Input/Load Terminal Screw Torque Range [in-lb/Nm]
(2)
Input/Output Terminal Screw Thread Size
Humidity
per IEC60068-2-78
LED Input Status Indicator
MTBF (Mean Time Between Failures) at 40°C ambient temperature
(10)
MTBF (Mean Time Between Failures) at 60°C ambient temperature
(10)
Parameters
4000 Vrms
10
9
Ohm
8 pF
-40 to 80 °C
-40 to 125 °C
2.6 oz (74.9 g)
UL94 V-0
Aluminum
13-15 / 1.5-1.7
18-20 / 2.0-2.2
18-20 / 2.0-2.2
w/”K” option 8-10 / 0.9-1.13
#6-32 UNC / #8-32 UNC
93% non-condensing
w/”G” Option (green)
11,641,553 hours (1,328 years)
7,210,376 hours (823 years)
WIRING DIAGRAM
AC
V
Recommended Wire Sizes
Load
(11)
Terminals
Wire Size
(Solid / Stranded)
24 AWG (0.2 mm
2
) / 0.2 [minimum]
2 x 12 AWG (3.3
mm
2
)
/ 3.3 [maximum]
Wire Pull-Out
Strength (lb)[N]
2.5
Input Current vs Input Voltage
“T” Option - High Voltage Output
1 ( )
2 ( )
Input
90 [400]
30 [133]
110 [490]
90 [400]
Input Current (mA)
10 [44.5]
2
1.5
1
0.5
0
0
5
10
15
20
25
30
20 AWG (0.5 mm
2
) / 0.518 [minimum]
1
OUTPUT
2
Output
2 x 10 AWG (5.3 mm
2
)
/ 5.3
2 x 8 AWG (8.4 mm
2
) / 8.4 [maximum]
S O L I D S TAT E R E L AY
4
INPUT
3
DC Input Voltage
4 (– / )
3 (+ / )
Page 2
Copyright © 2018 Sensata Technologies, Inc.
www.sensata.com

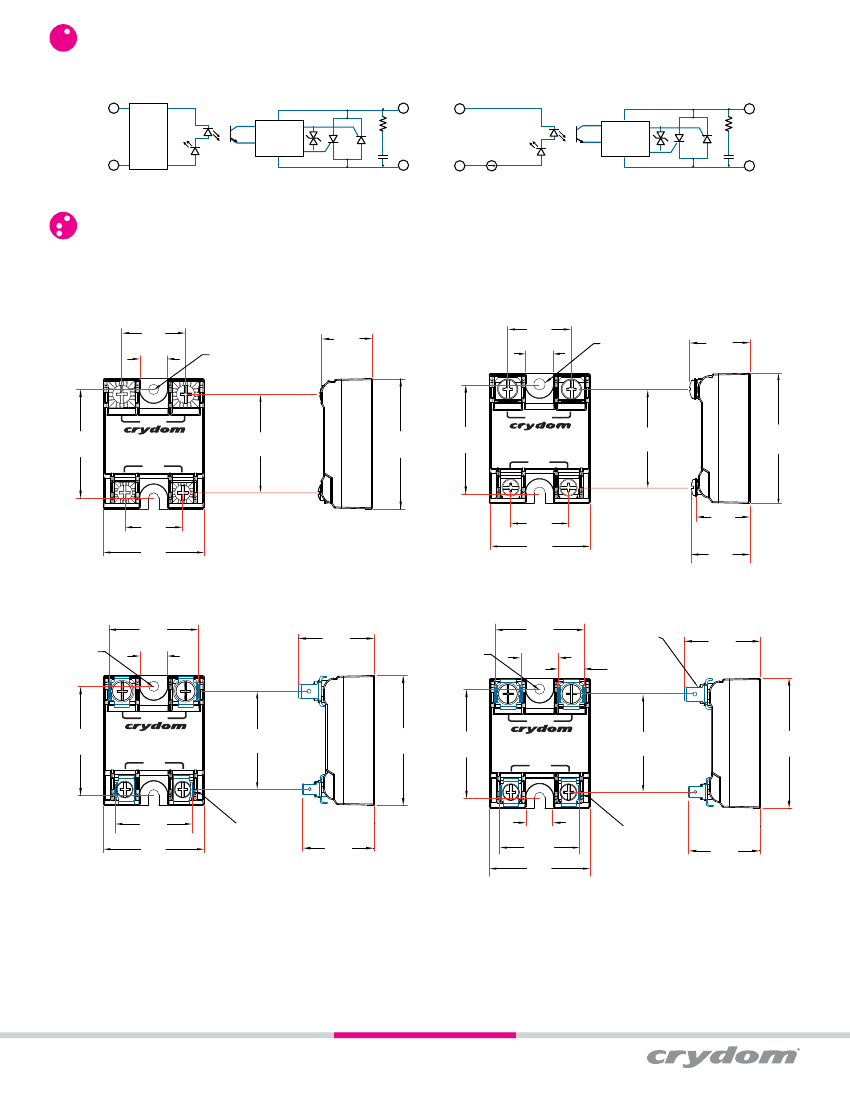

EQUIVALENT CIRCUIT BLOCK DIAGRAMS
Diagram:
HA48xxxxT
AC
4
AC/DC
Converter
Trigger
Circuit
1
AC
-DC
4
Trigger
Circuit
Diagram:
HD48xxxxT
1
AC
(13)
(12)
2
AC
+DC
3
Current
Limiter
(13)
(12)
AC
3
2
AC
MECHANICAL SPECIFICATIONS
Tolerances: ±0.02 in / 0.5 mm
All dimensions are in: inches [millimeters]
(5)
Screw Termination
1.1
[27.9]
0.49
[12.4]
Mounting
Hole/Slot
0.19 [4.9]
DIA.
0.89
[22.6]
Hex Standoff Termination (“K”
Option)
(2)
1.1
[27.9]
0.49
[12.4]
Mounting
Hole/Slot
0.19 [4.9]
DIA.
1.04
[26.4]
1
OUTPUT
2
1
OUTPUT
2
1.88
[47.6]
S O L I D S TAT E R E L AY
1.7
[43.2]
2.25
[57.3]
1.88
[47.6]
S O L I D S TAT E R E L AY
1.70
[43.2]
2.25
[57.3]
4
INPUT
3
4
INPUT
3
1.0
[25.4]
1.75
[44.5]
1.0
[25.4]
1.75
[44.5]
(4 places)
(2 places)
1.0
[25.4]
0.93
[23.6]
Quick Connect Termination (“F”
Option)
- Up to 25 Amp
(1)
Mounting
Hole/Slot
0.19 [4.9]
DIA.
1.58
[40.2]
0.49
[12.4]
Faston Terminal
(14)
0.25 x 0.032
Quick Connect Termination (“F”
Option)
- Up to 50 Amp
(1)
Mounting
Hole/Slot
0.19 [4.9]
DIA.
1.58
[40.2]
0.63
[16.0]
Faston Terminal
(14)
0.25 x 0.032
1.31
[33.4]
(2 places)
(4 places)
1.31
[33.4]
(2 places)
1
2
0.45
[11.4]
1
OUTPUT
2
OUTPUT
1.88
[47.6]
S O L I D S TAT E R E L AY
1.7
[43.2]
2.25
[57.3]
4
1.88
[47.6]
S O L I D S TAT E R E L AY
1.7
[43.2]
2.25
[57.3]
INPUT
3
4
INPUT
3
1.40
[35.6]
1.75
[44.5]
Faston Terminal
(14)
0.187 x 0.020
(2 places)
1.25
[31.8]
0.49
[12.4]
1.40
[35.6]
1.75
[44.5]
Faston Terminal
(14)
0.187 x 0.020
(2 places)
1.25
[31.8]
Page 3
Copyright © 2018 Sensata Technologies, Inc.
www.sensata.com
SURGE CURRENT INFORMATION
12 A
120
Surge Current (Amp)
Surge Current (Amp)
100
80
60
40
20
0
0.01
0.1
1
Surge Duration (Secs)
10
250
200
150
100
50
0
0.01
0.1
1
Surge Duration (Secs)
10
25 A
50 A
600
Surge Current (Amp)
Surge Current (Amp)
500
400
300
200
100
0
0.01
0.1
1
Surge Duration (Secs)
10
900
800
700
600
500
400
300
200
100
0
0.01
75 A
0.1
1
Surge Duration (Secs)
10
90 A
1200
1050
900
750
600
450
300
150
0
0.01
1500
Surge Current (Amp)
1200
900
600
300
0
0.01
0.1
Surge Current (Amp)
110 A
0.1
1
Surge Duration (Secs)
10
1
Surge Duration (Secs)
10
125 A
1800
1600
1400
1200
1000
800
600
400
200
0
0.01
Surge Current (Amp)
0.1
1
Surge Duration (Secs)
10
Non repetitive peak surge current at Tj initial 40ºC.
Page 4
Copyright © 2018 Sensata Technologies, Inc.
www.sensata.com

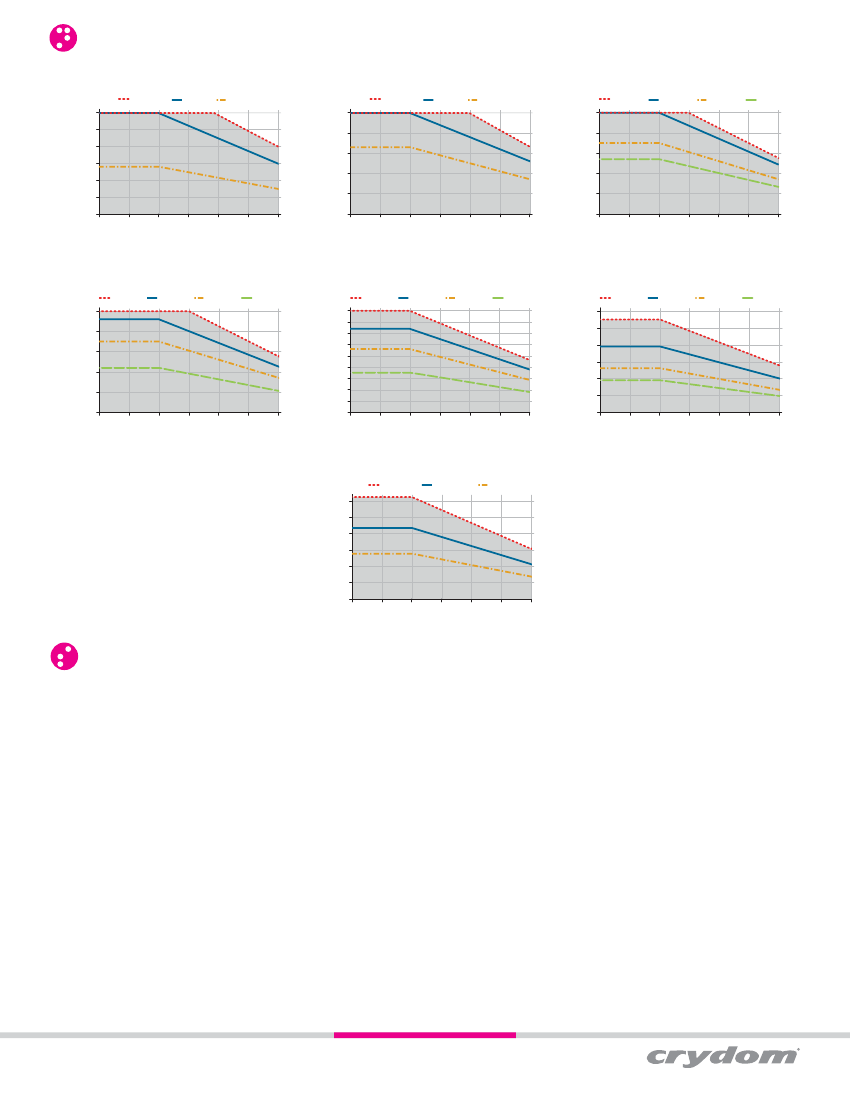

THERMAL DERATE INFORMATION
12 A
3ºC/W
12
Load Current (Amps)
Load Current (Amps)
10
8
6
4
2
0
20
30
40
50
60
70
Ambient Temperature (ºC)
80
5ºC/W
No heatsink
25
Load Current (Amps)
20
15
10
5
0
20
30
40
50
60
70
Ambient Temperature (ºC)
80
1.5ºC/W
25 A
2ºC/W
3ºC/W
50
40
30
20
10
0
20
30
0.7ºC/W
50 A
1ºC/W
1.5ºC/W
2ºC/W
40
50
60
70
Ambient Temperature (ºC)
80
75 A
0.5ºC/W
75
Load Current (Amps)
Load Current (Amps)
60
45
30
15
0
20
30
40
50
60
70
Ambient Temperature (ºC)
80
0.7ºC/W
1ºC/W
1.5ºC/W
90
80
70
60
50
40
30
20
10
0
0.5ºC/W
90 A
0.7ºC/W
1ºC/W
1.5ºC/W
120
Load Current (Amps)
100
80
60
40
20
0
20
30
0.5ºC/W
110 A
0.7ºC/W
1ºC/W
1.5ºC/W
20
30
40
50
60
70
Ambient Temperature (ºC)
80
40
50
60
70
Ambient Temperature (ºC)
80
125 A
0.5ºC/W
120
Load Current (Amps)
100
80
60
40
20
0
20
30
40
50
60
70
Ambient Temperature (ºC)
80
0.7ºC/W
1ºC/W
GENERAL NOTES
(1)
Single pair (up to 25A) Double pair* (up to 50A).
*Caution:
User must connect both pairs.
(2)
Option “K” is designed and tested for use with printed circuit boards or ring/fork terminals having a thickness between 0.031 and 0.093 inches (0.79 to 2.36 mm), and loads rated up to 50
Amps. For higher load currents, the “K” standoff temperature must not exceed 105°C. For additional application assistance please contact Crydom Technical Support.
(3)
Output will self trigger between 900-1200Vpk, Min., not suituable for capacitive loads.
(4)
Instantaneous turn-on version is not recomended for capacitive loads. Use zero turn-on only.
(5)
All parameters at 25°C unless otherwise specified.
(6)
Heat sinking required, see derating curves.
(7)
For 40mA minimum current, the voltage drop increases over maximum rated.
(8)
Increase minimum voltage by 1V for operations from -20 to -40°C.
(9)
Turn-on time for Instantaneous turn-on versions is 0.02 msec (DC Control Models).
(10)
All parameters at 50% power rating and 100% duty cycle (contact Crydom tech support for detailed report).
(11)
Load can be wired to either SSR output terminal 1 or 2.
(12)
Elective Input Status LED, “G” option.
(13)
Elective Overvoltage Protection, “P” option.
(14)
Mechanical dimensions vary from G3 models.
For additional information or specific questions, contact Crydom Technical Support.
Page 5
Copyright © 2018 Sensata Technologies, Inc.
www.sensata.com
京公网安备 11010802033920号
EEWORLD
