ADAM-6217
8-ch Isolated Analog Input Modbus TCP Module
Main Features
8-ch differential AI, 2-port Ethernet
Daisy chain connection with auto-bypass protection
Remote monitoring and control with mobile devices
Group configuration capability for multiple module setup
Flexible user-defined Modbus address
Intelligent control ability by Peer-to-Peer and GCL function
Multiple protocol support: Modbus TCP, TCP/IP, UDP, HTTP, DHCP
Web language support: XML, HTML 5, Java Script
NEW
Introduction
In order to fulfill ideal remote DAQ devices in IoT world, Advantech releases ADAM-6200
series, a new selection of Ethernet I/O family comprised of analog I/O, digital I/O and relay
modules. ADAM-6200 series module possesses plenty of advanced features whatever the
evolution of hardware design and what’s worth expecting for user is a variety of useful
software functions to make it effective in the application field. With new design and strong
capabilities, ADAM-6200 can be a well-integrated I/O solution in Ethernet control system.
Peer-to-Peer
Modules will actively update the input channel status to specific output channels. Without
dealing with the trouble of long distance wiring, users can define the mapping between
a pair of modules.
Features
Daisy Chain Networking and Auto-Bypass Protection
Daisy chain connectivity offers flexible cabling and space saving capabilities. With Ethernet
auto-bypss function supported, it prevents accidental power failure if one of the module’s
unexpectedly shuts down.
Graphic Condition Logic
Users can define the control logic rules through graphical configuration Utility, and
download defined logic rules to specific ADAM module. Then, it will execute the logic
rules automatically just like a standalone controller.
Group Configuration Capability for Multiple Module Setup
To aid configuration and save time, engineers can configure and upgrade the firmware of
multiple ADAM-6200s simultaneously.
Architecture
Remote Monitoring and Control with Smart Phone
With support for HTML5, the ADAM-6200 can be monitored and controlled from any
browser on mobile devices whilst in the field and when the engineer is connected to
their network.
Ethernet I/O Modules
All product specifications are subject to change without notice
More Information
Click Here
Last updated : 10-Jun-2014
Remote I/O
Specifications
Analog Input
Channels
Input Impedance
lnput Type
lnput Range
Span Drift
Zero Drift
Resolution
Accuracy
Sampling Rate
CMR @ 50/60 Hz
NMR @ 50/60 Hz
Common Mode
8 (differential)
> 10 MW (voltage)
120
W
(current)
mV, V, mA
±150 mV, ±500 mV, ±1 V, ±5 V, ±10 V,
0~20 mA, 4~20 mA, ±20 mA
± 30 ppm/°C
± 6 μV/°C
16-bit
± 0.1% of FSR (Voltage) at 25°C
± 0.2% of FSR (Current) at 25°C
10 sample/second (total)
92 dB
60 dB
200 V
DC
ADAM-6217
Environment
Operating Temperature
Storage Temperature
Operating Humidity
Storage Humidity
-10 ~ 70°C (14 ~ 158°F)
-20 ~ 80°C (-4 ~ 176°F)
20 ~ 95% RH (non-condensing)
0 ~ 95% RH (non-condensing)
Pin Assignment
General
Ethernet
Protocol
Connector
Power Input
Watchdog Timer
Protection
2-port 10/100 Base-TX (for Daisy Chain)
Modbus/TCP, TCP/IP, UDP, HTTP, DHCP
Plug-in 5P/15P Screw Terminal Blocks
10 - 30 V
DC
(24 V
DC
Standard)
System (1.6 Seconds)
Built-in TVS/ESD Protection
Power Reversal Protection
Over Voltage Protection: +/- 35 V
DC
Isolation Protection: 2500 V
DC
Power Consumption
3.5W @ 24 V
DC
Dimensions (W x H x D)
70 x 122 x 27 mm
Enclosure
PC
Mounting
DIN 35 Rail, Stack, Wall
Ordering Information
ADAM-6217
8-ch Isolated Analog Input Modbus TCP Module
Accessories
PWR-242
PWR-243
PWR-244
DIN-rail Power Supply (2.1A Output Current)
Panel Mount Power Supply (3A Output Current)
Panel Mount Power Supply (4.2A Output Current)
Software
PCLS-ADAMVIEW32
PCLS-OPC/MTP30
ADAMView Data Acquisition Software
OPC Server for Modbus/TCP protocol
Software
.NET Class Library (SDK)
Windows and Windows CE Class Library, VB and VC#
Sample Code for I/O Reading or Configuration and
Communication
Adam/Apax .NET Utility
Network setting, I/O Configuration, Data Stream, P2P,
GCL Configuration

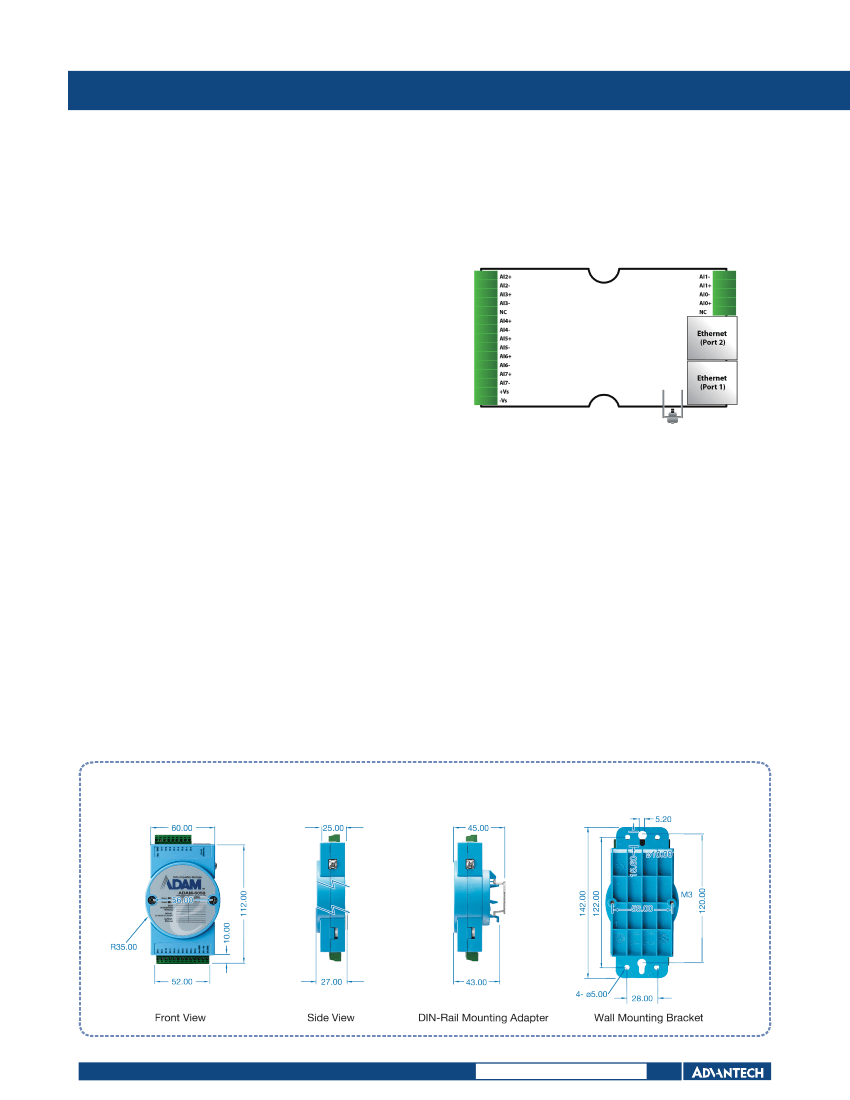

Dimensions
Unit: mm
Online Download
www.advantech.com/products
