CJD340TR datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> CJD340TR

CJD340TR: DescriptionTransistor; CategoryDiscrete semiconductor The transistor; File Size419KB，2 Pages; ManufacturerCentral Semiconductor

Download Datasheet Parametric Compare View All

CJD340TR Overview

Transistor

CJD340TR Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Reach Compliance Code	unknown
Maximum collector current (IC)	0.5 A
Configuration	Single
Minimum DC current gain (hFE)	30
Maximum operating temperature	150 °C
Polarity/channel type	NPN
Maximum power dissipation(Abs)	15 W
surface mount	YES
Base Number Matches	1

Preview

Download Datasheet

View All

CJD340 NPN

CJD350 PNP

SURFACE MOUNT

COMPLEMENTARY SILICON

POWER TRANSISTORS

w w w. c e n t r a l s e m i . c o m

DESCRIPTION:

The CENTRAL SEMICONDUCTOR CJD340, CJD350

types are Complementary Silicon Power Transistors

manufactured in a surface mount package designed for

high voltage general purpose applications.

MARKING: FULL PART NUMBER

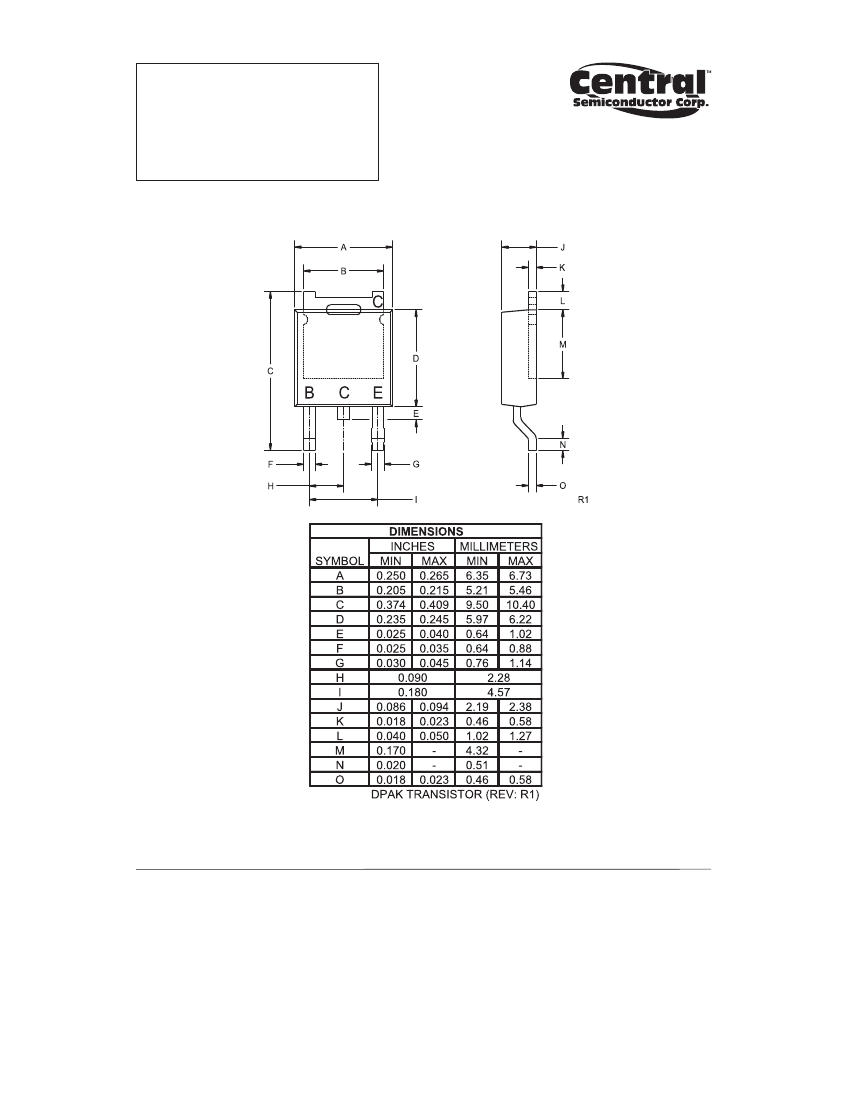

DPAK TRANSISTOR CASE

MAXIMUM RATINGS:

(TC=25°C unless otherwise noted)

Collector-Base Voltage

Collector-Emitter Voltage

Emitter-Base Voltage

Continuous Collector Current

Peak Collector Current

Power Dissipation

Power Dissipation (TA=25°C)

Operating and Storage Junction Temperature

Thermal Resistance

SYMBOL

VCBO

VCEO

VEBO

ICM

TJ, Tstg

300

3.0

500

750

1.56

-65 to +150

8.33

80.1

UNITS

°C

°C/W

ELECTRICAL CHARACTERISTICS:

(TC=25°C unless otherwise noted)

SYMBOL

TEST CONDITIONS

MIN

ICBO

IEBO

BVCEO

hFE

VCE=300V

VEB=3.0V

IC=1.0mA

VCE=10V, IC=50mA

300

MAX

100

240

UNITS

µA

R2 (4-January 2010)

CJD340TR Related Products

	CJD340TR	CJD350TR
Description	Transistor	Transistor
Is it Rohs certified?	incompatible	incompatible
Reach Compliance Code	unknown	unknown
Maximum collector current (IC)	0.5 A	0.5 A
Configuration	Single	Single
Minimum DC current gain (hFE)	30	30
Maximum operating temperature	150 °C	150 °C
Polarity/channel type	NPN	PNP
Maximum power dissipation(Abs)	15 W	15 W
surface mount	YES	YES
Base Number Matches	1	1
