DG126AP datasheet, PDF - EEWORLD Datasheet

DG126AP: DescriptionDG126AP; CategoryAnalog mixed-signal IC The signal circuit; File Size137KB，4 Pages; ManufacturerRenesas Electronics Corporation; Websitehttps://www.renesas.com/

Download Datasheet Parametric View All

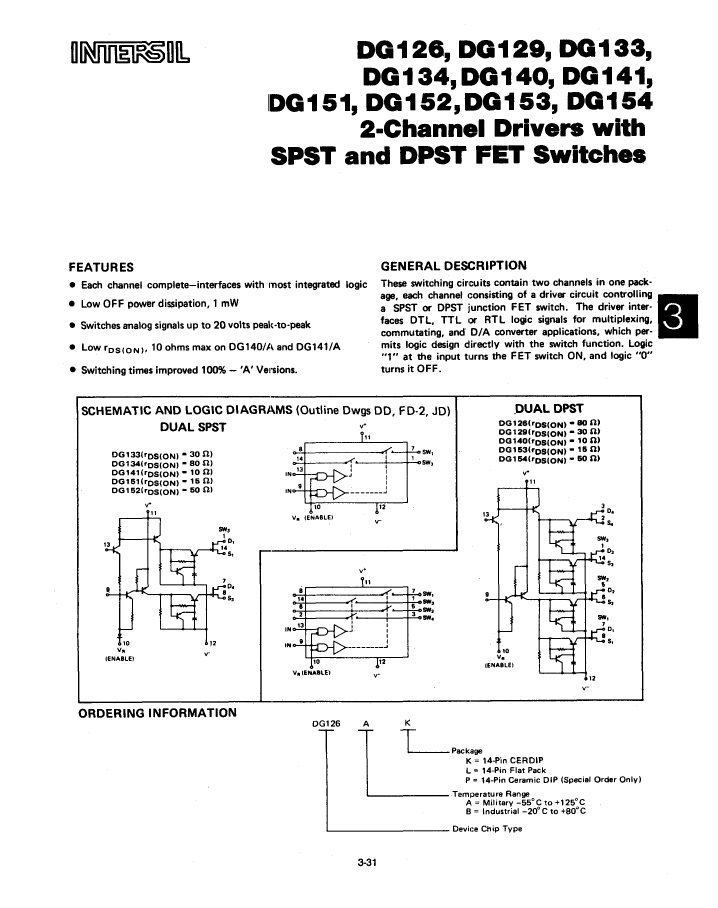

DG126AP Overview

DG126AP

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Parts packaging code	DIP
package instruction	CERAMIC, DIP-14
Contacts	14
Reach Compliance Code	not_compliant
Analog Integrated Circuits - Other Types	DPST
JESD-30 code	R-XDIP-T14
JESD-609 code	e0
normal position	NO
Number of functions	2
Number of terminals	14

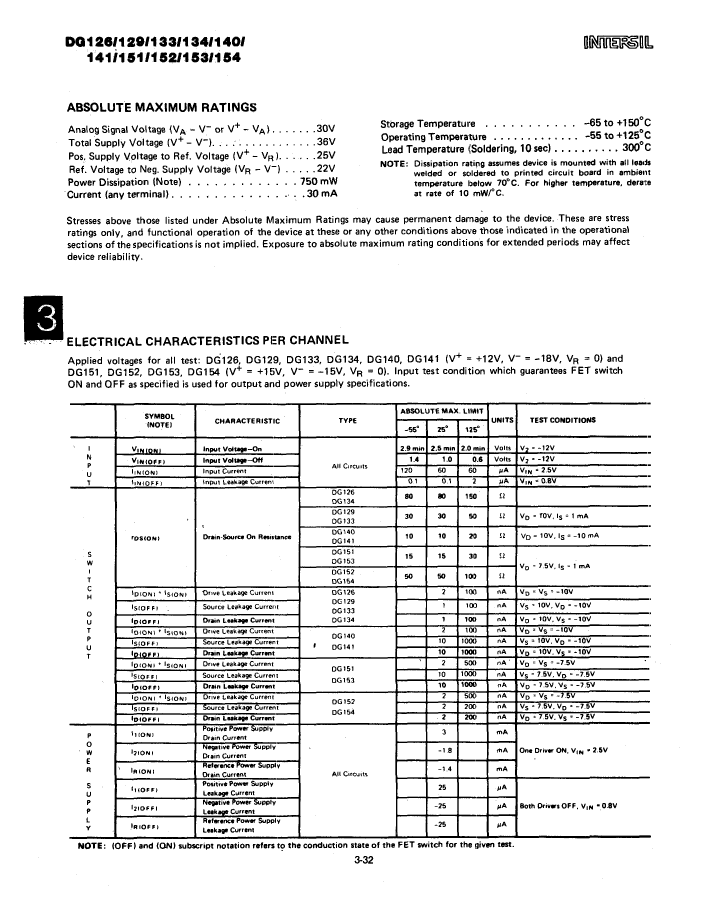

Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
output	SEPARATE OUTPUT
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP14,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
surface mount	NO

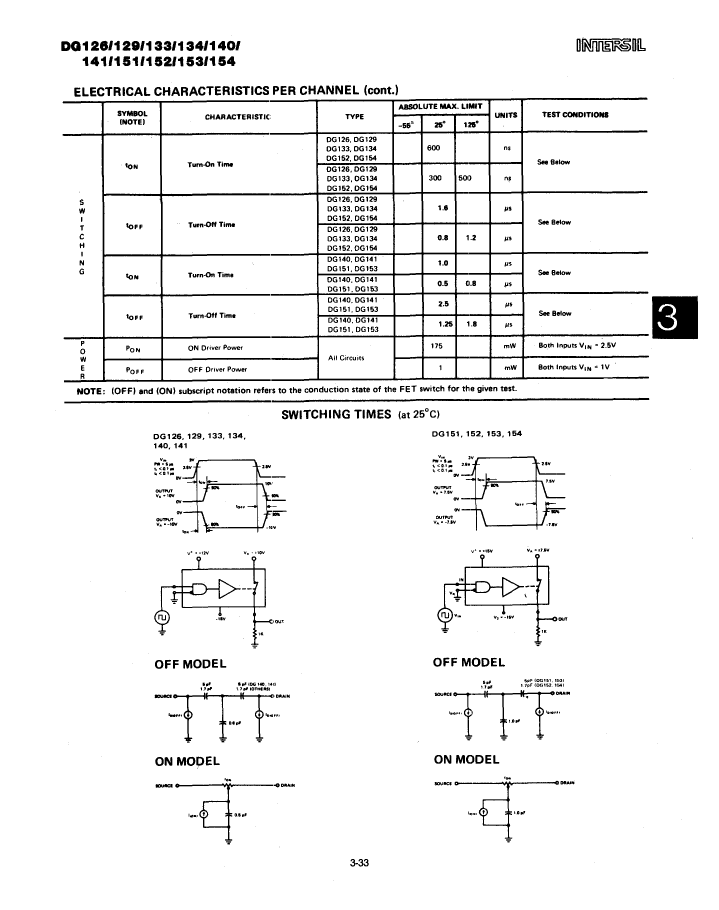

Maximum connection time	300 ns
switch	MAKE-BEFORE-BREAK
technology	BIPOLAR
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Base Number Matches	1
