MBM100480A-8ZF datasheet, PDF - EEWORLD Datasheet

MBM100480A-8ZF: DescriptionStandard SRAM, 16KX1, 8ns, ECL100K, CDFP20; Categorystorage storage; File Size230KB，10 Pages; ManufacturerFUJITSU; Websitehttp://edevice.fujitsu.com/fmd/en/index.html

Download Datasheet Parametric Compare View All

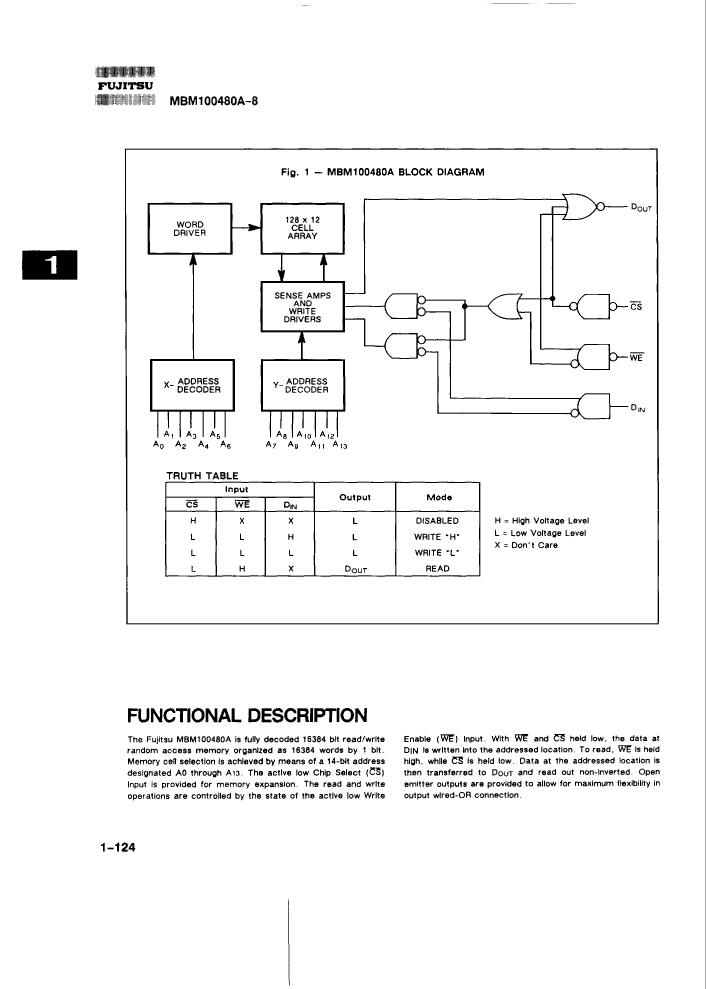

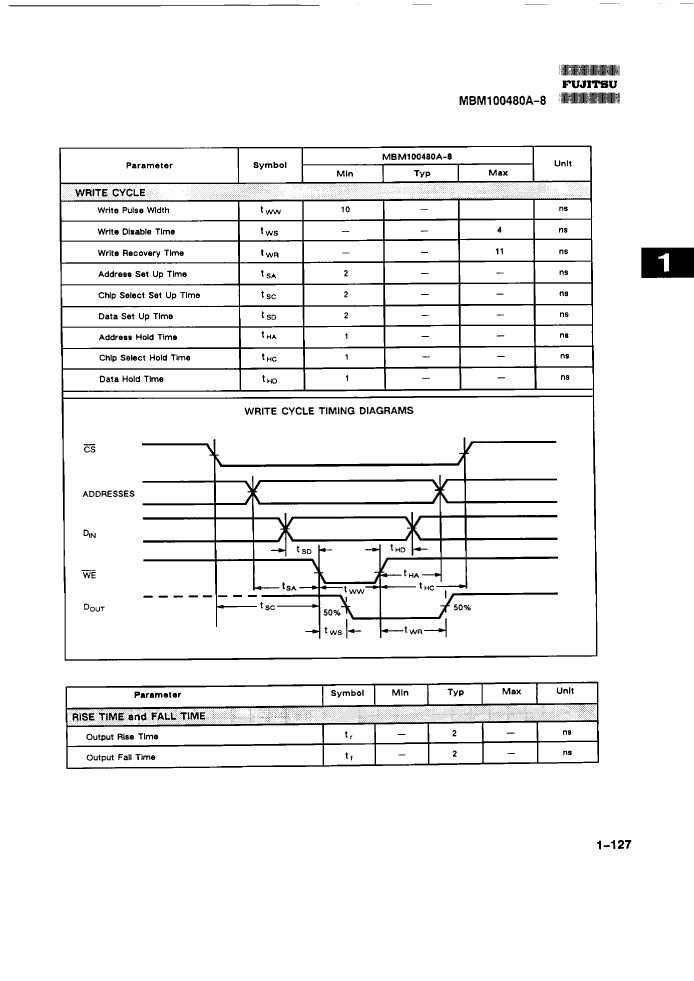

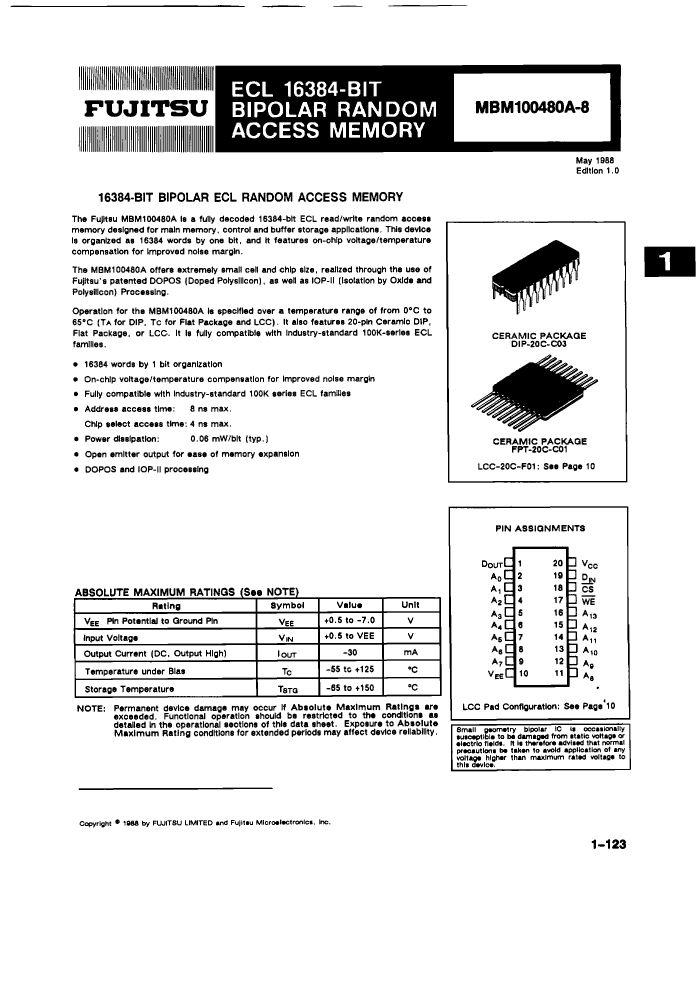

MBM100480A-8ZF Overview

Standard SRAM, 16KX1, 8ns, ECL100K, CDFP20

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Parts packaging code	DFP
package instruction	DFP, FL20,.3
Contacts	20
Reach Compliance Code	unknown

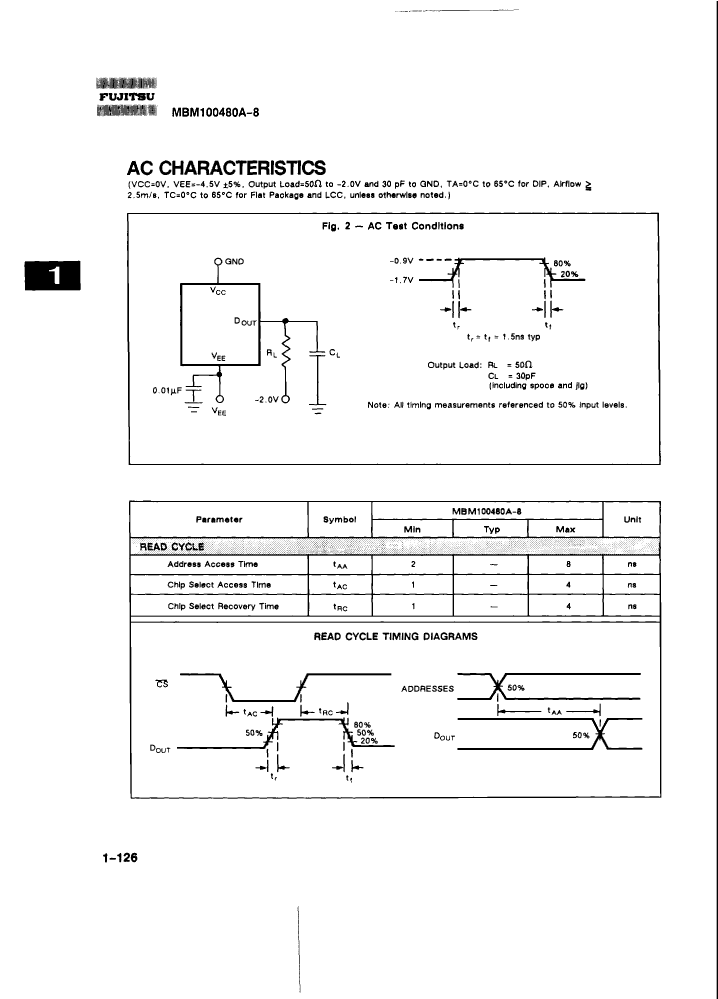

Maximum access time	8 ns
I/O type	SEPARATE
JESD-30 code	R-XDFP-F20
JESD-609 code	e0
memory density	16384 bit
Memory IC Type	STANDARD SRAM
memory width	1

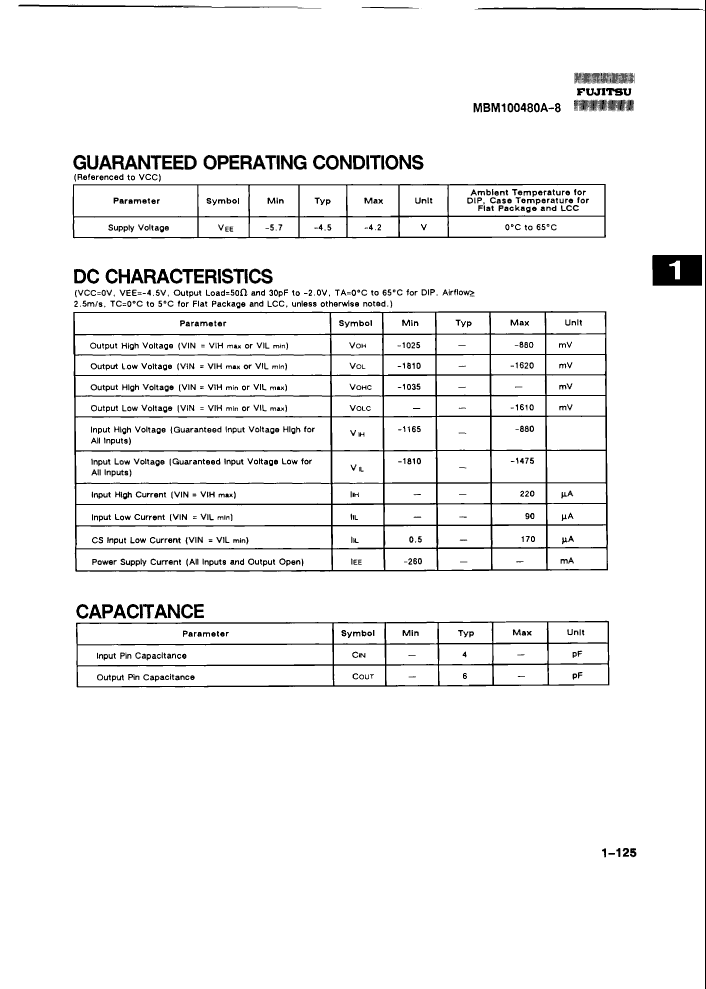

Negative supply voltage rating	-4.5 V
Number of terminals	20
word count	16384 words
character code	16000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	85 °C
Minimum operating temperature
organize	16KX1
Output characteristics	OPEN-EMITTER
Package body material	CERAMIC
encapsulated code	DFP
Encapsulate equivalent code	FL20,.3
Package shape	RECTANGULAR
Package form	FLATPACK
Parallel/Serial	PARALLEL
power supply	-4.5 V
Certification status	Not Qualified
Maximum slew rate	0.26 mA
surface mount	YES
technology	ECL100K
Temperature level	OTHER
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	FLAT
Terminal pitch	1.27 mm
Terminal location	DUAL
Base Number Matches	1

	MBM100480A-8ZF	MBM100480A-8CZ	MBM100480A-8CV
Description	Standard SRAM, 16KX1, 8ns, ECL100K, CDFP20	16KX1 STANDARD SRAM, 8ns, CDIP20, CERDIP-20	16KX1 STANDARD SRAM, 8ns, CQCC20, FRIT SEALED, CERAMIC, LCC-20
Parts packaging code	DFP	DIP	QLCC
package instruction	DFP, FL20,.3	DIP,	QCCN,
Contacts	20	20	20
Reach Compliance Code	unknown	unknown	unknown
Maximum access time	8 ns	8 ns	8 ns
JESD-30 code	R-XDFP-F20	R-GDIP-T20	R-CQCC-N20
memory density	16384 bit	16384 bit	16384 bit
Memory IC Type	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM
memory width	1	1	1
Negative supply voltage rating	-4.5 V	-4.5 V	-4.5 V
Number of terminals	20	20	20
word count	16384 words	16384 words	16384 words
character code	16000	16000	16000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	85 °C	65 °C	65 °C
organize	16KX1	16KX1	16KX1
Output characteristics	OPEN-EMITTER	OPEN-EMITTER	OPEN-EMITTER
Package body material	CERAMIC	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DFP	DIP	QCCN
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLATPACK	IN-LINE	CHIP CARRIER
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL
Certification status	Not Qualified	Not Qualified	Not Qualified
surface mount	YES	NO	YES
technology	ECL100K	TTL	TTL
Temperature level	OTHER	COMMERCIAL	COMMERCIAL
Terminal form	FLAT	THROUGH-HOLE	NO LEAD
Terminal pitch	1.27 mm	2.54 mm	1.27 mm
Terminal location	DUAL	DUAL	QUAD
Maker	-	FUJITSU	FUJITSU
ECCN code	-	EAR99	EAR99
length	-	24.13 mm	10.8 mm
Number of functions	-	1	1
Number of ports	-	1	1
Exportable	-	NO	NO
Maximum seat height	-	5.08 mm	2.54 mm
width	-	7.62 mm	7.24 mm
