LAB2/0-12 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> terminals> LAB2/0-12

LAB2/0-12: DescriptionWire Terminal; CategoryThe connector terminals; File Size174KB，1 Pages; ManufacturerPanduit; Websitehttp://www.panduit.com

Download Datasheet Parametric View All

LAB2/0-12 Overview

Wire Terminal

LAB2/0-12 Parametric

Parameter Name	Attribute value
Reach Compliance Code	compliant
ECCN code	EAR99
Manufacturer's serial number	LAB
terminal gender	FEMALE
Terminal and terminal strip types	WIRE TERMINAL
Wire gauge	0 AWG
Base Number Matches	1

Preview

Download Datasheet

View All

THIS COPY IS PROVIDED ON A RESTRICTED BASIS AND IS NOT TO BE USED IN ANY WAY DETRIMENTAL TO THE INTERESTS OF PANDUIT CORP.

NOTES:

1. MATERIAL: SEAMLESS ALUMINUM TUBING, TIN PLATED

2. BARREL COLOR CODED WITH DIE SET INDEX NUMBER

(2) PLS

3. FOR STRANDED ALUMINUM AND COPPER WIRE

4. UL LISTED & CSA CERTIFIED TEMPERATURE RATED 90 C (AL9CU)

5. UL LISTED & CSA CERTIFIED VOLTAGE RATING 35 KV

O.D.

6. ALL DIMENSIONS IN INCHES

P MIN

C REF

LISTED

CERTIFIED

4/0 STR

AL9CU

WHITE DIE

P66 (298)

PANDUIT

LAB4/0

(INTERNAL)

PLASTIC PLUG

REVISED W DIM FOR LAB1/0: 0.88 WAS 0.86

REVISED T DIM FOR LAB250: 0.31 WAS 0.33

REVISED P DIM FOR LAB250: 3.38 WAS 3.11

REVISED C DIM FOR LAB250: 1.00 WAS 0.73

REVISED OVERALL LENGTH "A" FOR LAB250-12-5: 6.05 WAS 5.28

TITLE

I.D.

BEVELED

WIRE ENTRY

OXIDE INHIBITOR

JOINT COMPOUND

12/15

11/15

8/15

3/15

3/13

JHNU JHNU RGB

N41153BA-C41153

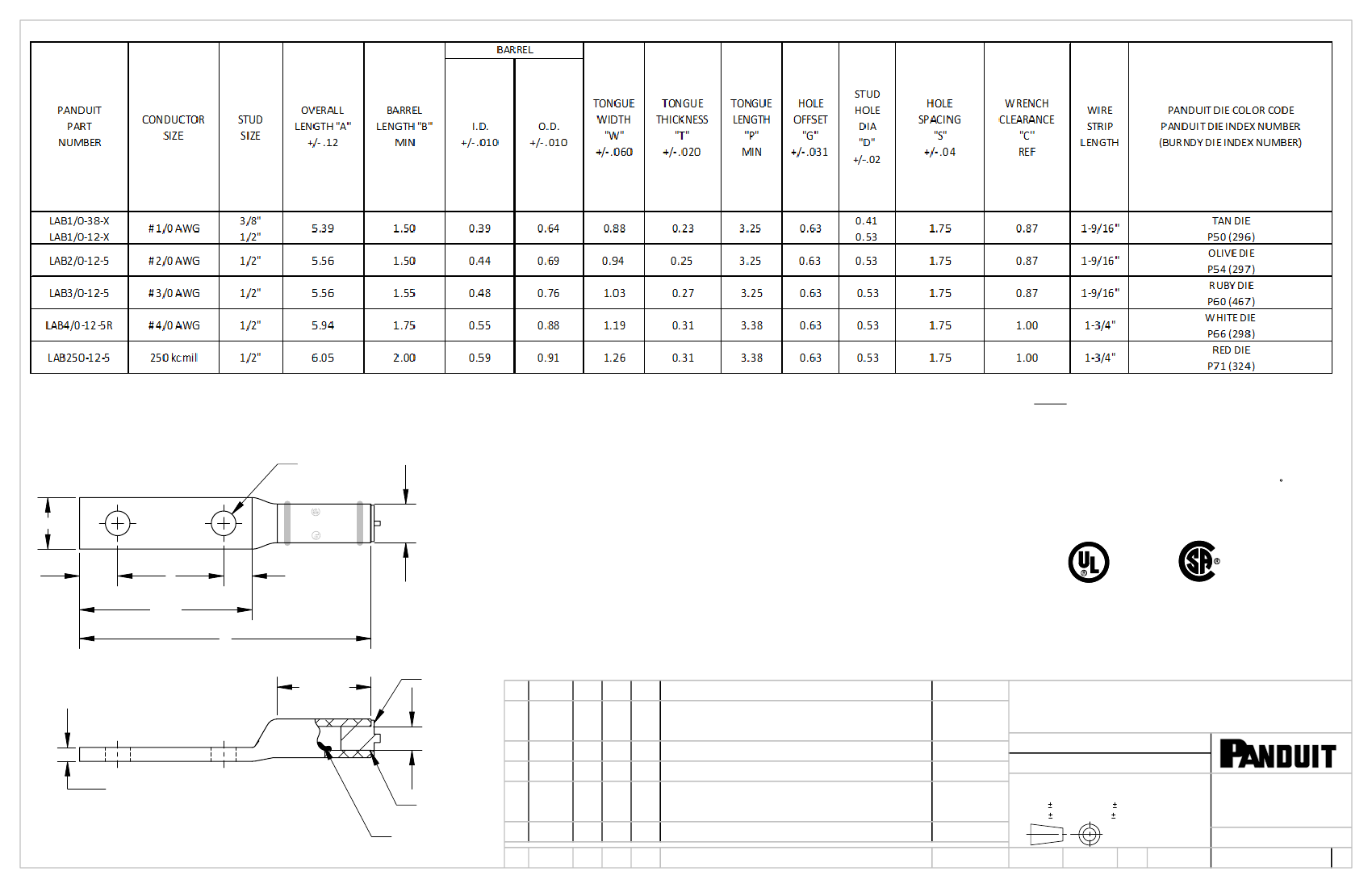

LAB SERIES 1/0-250kcmil ALUMINUM LUGS

CUSTOMER DRAWING

ITEM REVISION NAME

N41153BA-C41153

N41153BA-C41153/06

C41153/06.SLDDRW

MATERIAL

DATASET FILE NAME

JHNU JHNU RGB

ADDED "D" DIMENSION

JHNU JHNU RGB

REVISED DIMENSIONS, REVISED NOTES

ADDED BARREL MARKINGS

ADDED COLOR CODE/DIE INDEX NUMBER

REMOVED LAB4/0-12-5, ADDED LAB4/0-12-5R, LAB1/0-12-X

REVISED TITLE BLOCK

CONVERTED TO SOLIDWOKRS

UNLESS OTHERWISE SPECIFIED,

DIMENSIONAL TOLERANCES ARE: IN [mm]

.XXX

.XX

ANGLES

THIRD ANGLE

PROJECTION

DRAWN BY

SEE NOTES

DRAWING NUMBER

N41153BA-C41153

C41153

SIZE

REV

DATE

CHK APR

DESCRIPTION

ECN

DATE

4/95

CHK

SCALE

NONE

SHEET 1 0F 1
