TST20U45CWC0G datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> TST20U45CWC0G

TST20U45CWC0G: DescriptionRectifier Diode, Schottky, 1 Phase, 2 Element, 10A, 45V V(RRM), Silicon, TO-220AB,; CategoryDiscrete semiconductor diode; File Size205KB，5 Pages; ManufacturerTaiwan Semiconductor; Websitehttp://www.taiwansemi.com/

Download Datasheet Parametric View All

TST20U45CWC0G Overview

Rectifier Diode, Schottky, 1 Phase, 2 Element, 10A, 45V V(RRM), Silicon, TO-220AB,

TST20U45CWC0G Parametric

Parameter Name	Attribute value
package instruction	R-PSFM-T3
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	LOW POWER LOSS
application	EFFICIENCY
Shell connection	CATHODE
Configuration	COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	0.63 V
JEDEC-95 code	TO-220AB
JESD-30 code	R-PSFM-T3
Maximum non-repetitive peak forward current	200 A
Number of components	2
Phase	1
Number of terminals	3
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Maximum output current	10 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Maximum repetitive peak reverse voltage	45 V
Maximum reverse current	500 µA
surface mount	NO
technology	SCHOTTKY
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
Base Number Matches	1

Preview

Download Datasheet

View All

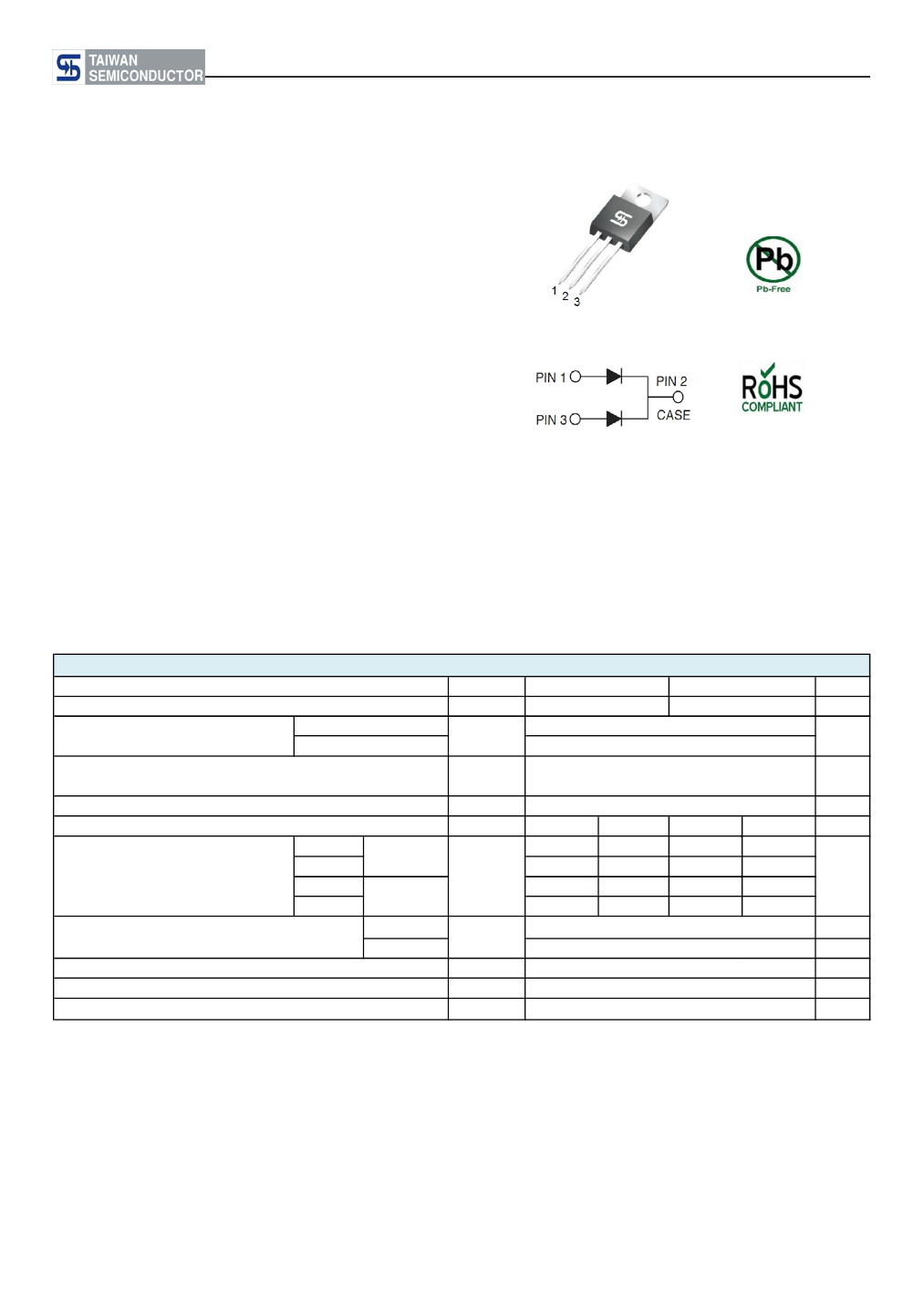

TST20U45CW - TST20U60CW

Taiwan Semiconductor

20A, 45V - 60V Trench Schottky Rectifiers

FEATURES

- Patented Trench Schottky technology

- Excellent high temperature stability

- Low forward voltage

- Low power loss/ High efficiency

- High forward surge capability

- Compliant to RoHS directive 2011/65/EU and

in accordance to WEEE 2002/96/EC

- Halogen-free according to IEC 61249-2-21

TO-220AB

TYPICAL APPLICATIONS

Trench Schottky barrier rectifier is designed for high frequency

miniature switched mode power supplies such as adapters, lighting

and on-board DC/DC converters.

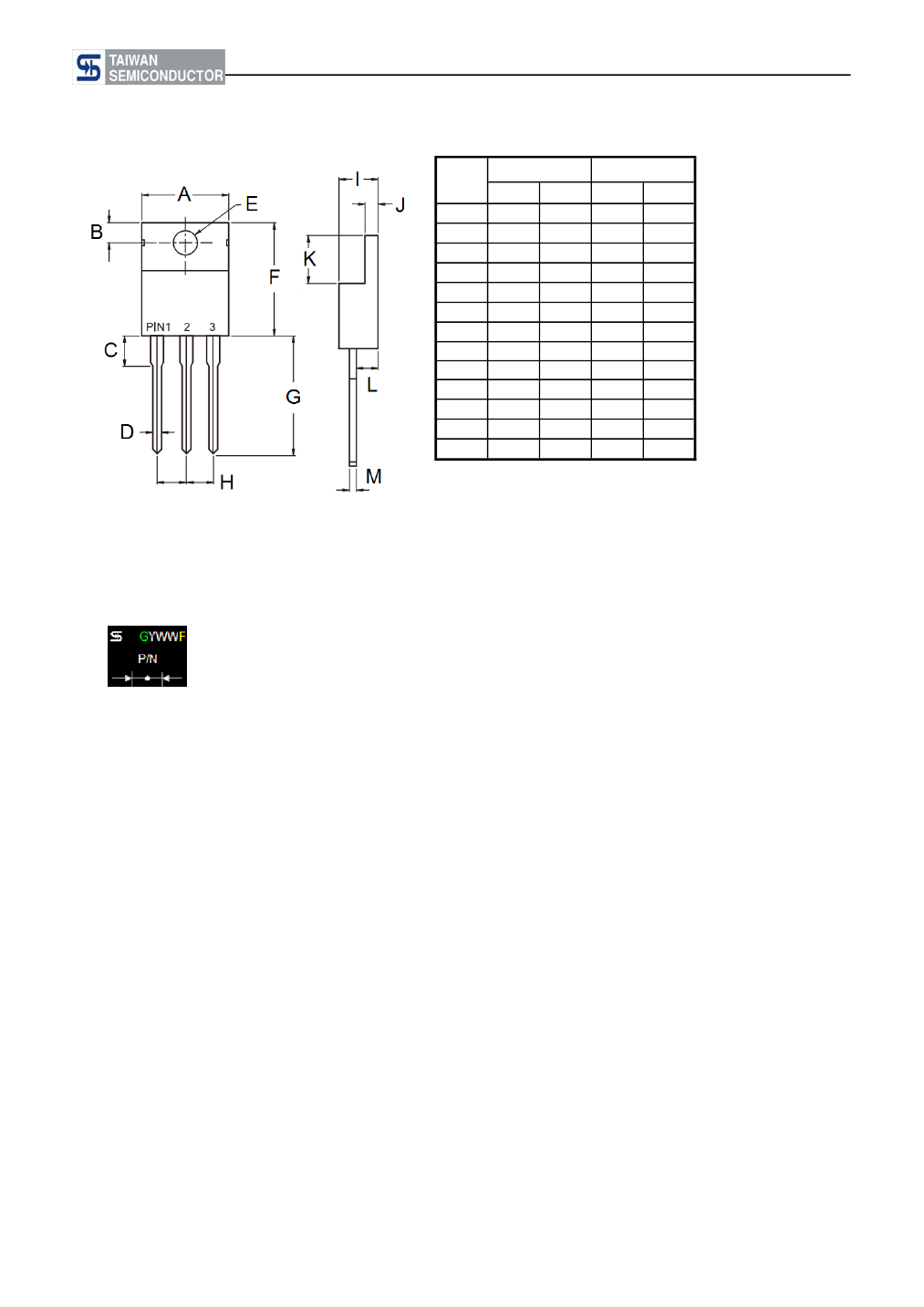

MECHANICAL DATA

Case:

TO-220AB

Molding compound meets UL 94 V-0 flammability rating

Packing code with suffix "G" means green compound (halogen-free)

Terminal:

Matte tin plated leads, solderable per JESD22-B102

Meet JESD 201 class 1A whisker test

Polarity:

As marked

Mounting torque:

0.56 Nm max.

Weight:

1.88 g (approximately)

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS

=25°C unless otherwise noted)

PARAMETER

Maximum repetitive peak reverse voltage

Maximum average forward rectified

current

per device

per diode

SYMBOL

RRM

F(AV)

FSM

dV/dt

TYP.

= 10A

Instantaneous forward voltage per diode

(Note1)

= 20A

= 10A

= 20A

Instantaneous reverse current per diode at rated

reverse voltage

Typical thermal resistance per diode

Operating junction temperature range

Storage temperature range

Note 1: Pulse test with pulse width=300μs, 1% duty cycle

= 25°C

= 125°C

= 25°C

= 125°C

θJC

STG

0.45

0.53

0.38

0.50

MAX.

0.51

0.59

0.44

0.56

500

100

- 55 to +150

TST20U45CW

200

1000

TYP.

0.48

0.57

0.42

0.55

MAX.

0.54

0.63

0.48

0.61

μA

°C/W

°C

TST20U60CW

UNIT

V/μs

Peak forward surge current, 8.3 ms single half sine-wave

superimposed on rated load per diode

Voltage rate of change (Rated V

)

Document Number: DS_D0000098

Version: A15
