FEATURES AND SPECIFICATIONS
Woodhead
®
Wide-Area Fluorescent
Light For Class I, Division 2 and
Zone 2 Applications
This light has been designed with direct customer
input to ensure its use meets the needs of a wide
range of applications. Already accepted in Canada
and several markets in the US, the pending UL Listing
will provide universal acceptance in all of North
America, particularly for those customers not accepting
compliance via a Canadian certification body.
For additional product information, please visit:
http://www.molex.com/link/widearea.html and
http://www.woodhead.com.
The most rugged, portable Wide-Area Fluorescent Light for Hazardous Locations on the market
Workers in all professions face job hazards that,
left unchecked, pose a serious threat to personal
safety, security and productivity. These are issues
that tie directly to every customer’s bottom line. For
many Molex customers, ignitable concentrations of
flammable gases, vapors or liquids pose a serious
threat to job-site safety. The Woodhead
Wide-Area
Fluorescent Light for Hazardous Locations
is
designed to operate safely in hazardous environments
while delivering high-output light in an extremely
rugged and durable fixture.
The light is certified by QPS (Quality Product Services)
to Class I, Division 2 standards. QPS is a Canadian
certification body nationally recognized in Canada and
6 US states.
This fixture provides task lighting for maintenance and
repair operations and wide-area light in potentially
hazardous locations. The enclosure is constructed of
sturdy, cast aluminum and is covered with a heavy-
duty, rubber-polycarbonate lens assembly that creates
an impact-resistant seal keeping out moisture and
contaminants.
The twin 55W fluorescent lamps are shock-mounted in
front of a specular aluminum reflector that produces
light equivalent to many higher-wattage units while
providing superior lamp life with respect to impact,
vibration and overheating.
Wide-Area Fluorescent Light For Class I, Division 2 and Zone 2 Applications
130243

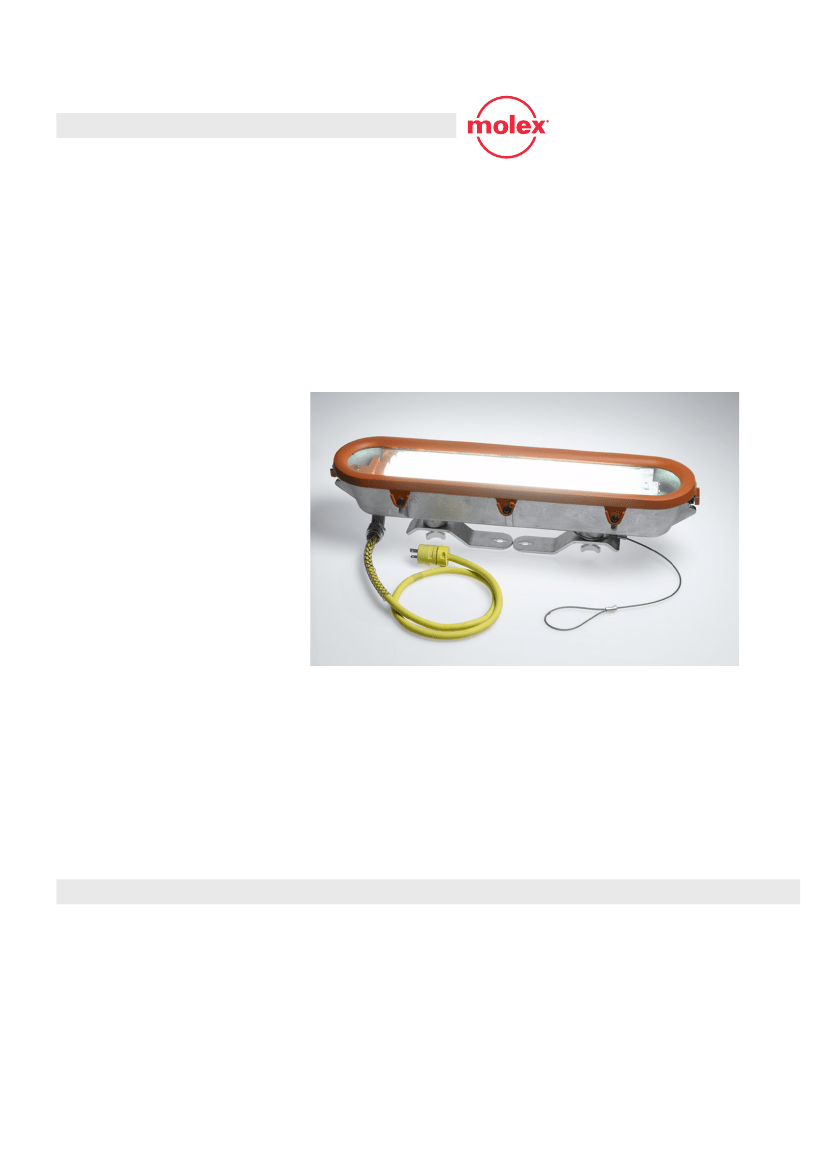

Wide-Area Fluorescent
Light (1075-HZ2)
Features and Benefits
n
Rugged cast-aluminum enclosure with unique
rubber lens-gasket assembly provides superior
strength & durability, impact and corrosion
resistance, simple maintenance
n
Two, 55W CFL lamps (110 Watts), shock mounted,
with integral aluminum reflector offers a rugged
lamp design with lamp supports that will resist
breakage while producing 9600 lumens
SPECIFICATIONS
Reference Information
Packaging: Unit or Each
QPS File No.: QFC3303-20
UL File No: Pending (available late 2009)
Electrical
Voltage (max.): 120VAC-277VAC/60 Hz
Current (max.): 1.2A per fixture at 120VAC
Total Wattage: 110 Watts
Lamp Type: Compact Fluorescent PL-L 55 Watts
Ballast Type: Rapid Start, 2 lamps
Mechanical
Enclosure Ratings: NEMA 3R
Weight: 15.5 lbs. without cable
Physical
Housing: Cast Aluminum
Cover: Silicone Rubber and Polycarbonate
Operating Temperature:
Low: -50°C
Service: -10°C
Ambient High: +40°C
Low Temperature start: -20°C
n
Energy-efficient, single ballast design ensures
product uses less energy; field repairs and
maintenance are simplified
n
Third-party certified to CSA Class I, Division 2
environments and suitable for Zone 2 Groups B, C,
and D T3A temperature rating; also outdoor rated;
safe in wet locations with potentially ignitable
gases of all groups and meets code
n
Operating range -50°C to +40°C with a cold-start
temperature of -20°C or colder allows design to be
used in a wide range of temperatures
n
Customizable mounting clamp/handle/cord wrap
and electrical cable fittings provide mounting
flexibility; can use a wide range of connectors
including BradPower
TM
for Zone 2
APPLICATIONS
Wide-Area Fluorescent Light
Petro-Chemical and Refinery Plants
Shipyards
Woodhead
®
Wide-Area Fluorescent
Light For Class I, Division 2 and
Zone 2 Applications
Pulp and Paper
n
Scaffold and Ingress/Egress Lighting
n
Vessel and Tank Task Lighting
Utility and Gas
n
Scaffold and Area Lighting
n
Confined-Space Task and Area Lighting
Water and Waste Water Treatment
n
Digester and Bleach Plant Maintenance Lighting
n
Chemical Recovery Maintenance Lighting
Aerospace
n
Scaffold and Area Lighting
n
Tunnels and Vault Areas
n
Covered Settling Tanks
n
Maintenance Task Lighting
n
Scaffold and Ingress/Egress Lighting
n
Fuselage Construction Task and Area Lighting
ORDERING INFORMATION
Order Number
1302430004
1302430002
1302430003
1302430001
1302430005
1302430007
1302430008
1302430009
1301900058
1301910093
1302011400
1301890009
Engineering Part Number
1075-HZ2N
1075-HZ2NK143F
1075-HZ2NK123F
1075-HZ25A143
1075-HZ25B143
1075-HZ2XA143F
1075-HZ2XB143F
1075-HZ2XK123F
33-1075
34-1075
50-1075
40-1075
Description
No Cable or cord grips
3' #14-3 SOW, FLYING LEADS
3' #12-3 SOW, FLYING LEADS
25' #14-3 SOW, 5-15 WTT PLUG/CONN
50' #14-3 SOW, 5-15 WTT PLUG/CONN
25' #14-3 SOW, XP PLUG/CONN
50' #14-3 SOW, XP PLUG/CONN
3' #12-3 SOW, XP PLUG/CONN
Replacement Ballast
Replacement Lamp 55Watt Compact Fluorescent
Replacement Reflector
Replacement Lens-Gasket Assembly- Includes Fasteners
