IDT71598L15DRT datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> IDT71598L15DRT

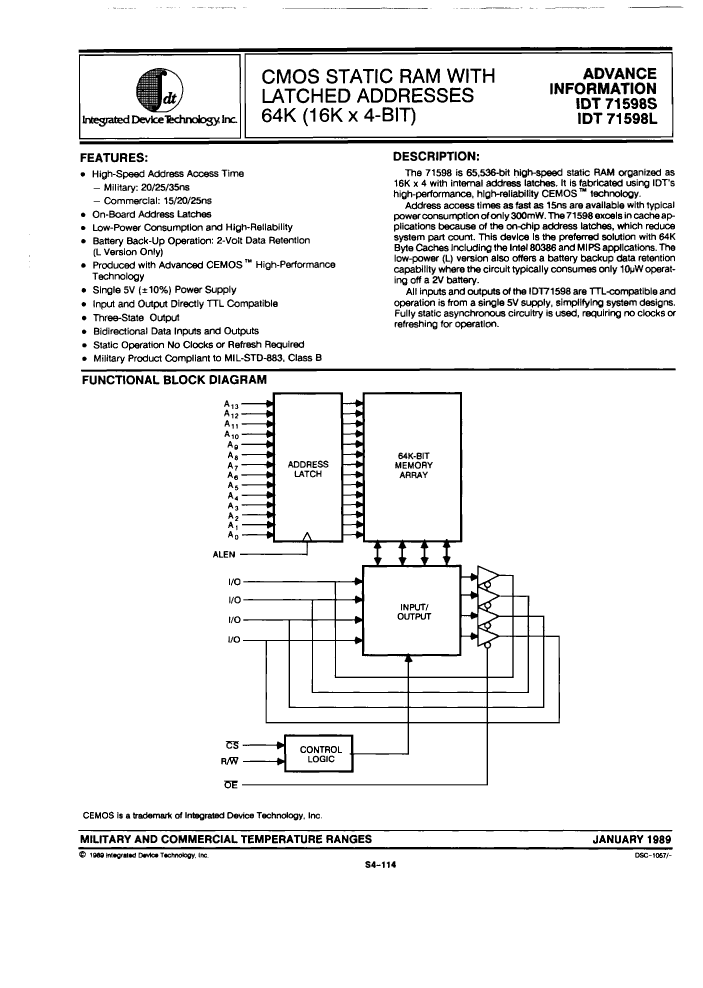

IDT71598L15DRT: DescriptionCache SRAM, 16KX4, 15ns; Categorystorage storage; File Size35KB，1 Pages; ManufacturerIDT (Integrated Device Technology)

Download Datasheet Parametric Compare View All

IDT71598L15DRT Overview

Cache SRAM, 16KX4, 15ns

IDT71598L15DRT Parametric

Parameter Name	Attribute value
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum access time	15 ns
Other features	BATTERY BACKUP OPERATION
JESD-609 code	e0
memory density	65536 bit
Memory IC Type	CACHE SRAM
memory width	4
Number of functions	1
word count	16384 words
character code	16000
Operating mode	ASYNCHRONOUS
organize	16KX4
Parallel/Serial	PARALLEL
Certification status	Not Qualified
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
technology	CMOS
Terminal surface	TIN LEAD
Base Number Matches	1

Preview

Download Datasheet

View All

IDT71598L15DRT Related Products

	IDT71598L15DRT	IDT71598L25DRT	IDT71598L20DRT	IDT71598L25DBRT	IDT71598S35DBRT	IDT71598S25DBRT	IDT71598S20DBRT	IDT71598L35DBRT
Description	Cache SRAM, 16KX4, 15ns	Cache SRAM, 16KX4, 25ns	Cache SRAM, 16KX4, 20ns	Cache SRAM, 16KX4, 25ns	Cache SRAM, 16KX4, 35ns	Cache SRAM, 16KX4, 25ns	Cache SRAM, 16KX4, 20ns	Cache SRAM, 16KX4, 35ns
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C
Maximum access time	15 ns	25 ns	20 ns	25 ns	35 ns	25 ns	20 ns	35 ns
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0
memory density	65536 bit	65536 bit	65536 bit	65536 bit	65536 bit	65536 bit	65536 bit	65536 bit
Memory IC Type	CACHE SRAM	CACHE SRAM	CACHE SRAM	CACHE SRAM	CACHE SRAM	CACHE SRAM	CACHE SRAM	CACHE SRAM
memory width	4	4	4	4	4	4	4	4
Number of functions	1	1	1	1	1	1	1	1
word count	16384 words	16384 words	16384 words	16384 words	16384 words	16384 words	16384 words	16384 words
character code	16000	16000	16000	16000	16000	16000	16000	16000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
organize	16KX4	16KX4	16KX4	16KX4	16KX4	16KX4	16KX4	16KX4
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Terminal surface	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD
Other features	BATTERY BACKUP OPERATION	BATTERY BACKUP OPERATION	BATTERY BACKUP OPERATION	BATTERY BACKUP OPERATION	-	-	-	BATTERY BACKUP OPERATION
Base Number Matches	1	1	1	1	1	-	-	-
Maximum operating temperature	-	-	-	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-	-	-	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Temperature level	-	-	-	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
