USP2BD

Description
RF Connector Adapter, BNC-BNC, Panel Mount, Cable Mount, Female-Female
CategoryThe connector    The connector
File Size108KB,1 Pages
ManufacturerL-com Global Connectivity
Download Datasheet Parametric View All

USP2BD Overview

RF Connector Adapter, BNC-BNC, Panel Mount, Cable Mount, Female-Female

USP2BD Parametric

Parameter NameAttribute value
Reach Compliance Codeunknown
Adapter typeBNC-BNC
Connector typeRF CONNECTOR ADAPTER
Contact point genderFEMALE-FEMALE
Coupling typeBAYONET
DIN complianceNO
Filter functionNO
IEC complianceNO
MIL complianceNO
Manufacturer's serial numberUSP2BD
Installation typeCABLE
Panel mountingYES
Base Number Matches1
8
7
6
5
4
REV
A
B
3
DESCRIPTION
RELEASED TO PRODUCTION
2
REVISIONS
DATE
1
APPROVED
R.CARRICK
B.MAZEJKA
THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE
PROPERTY OF L-COM, INC. ANY REPRODUCTION IN PART OR WHOLE
WITHOUT THE WRITTEN PERMISSION OF L-COM, INC. IS PROHIBITED.
06/07/00
03/01/04
ECN #1685 - ADDED 4-40 THRD'D HOLE & COMP SPEC TABLE
D
1.28
2.68
2X 2.20
C
L
D
B
4-40 UNC-2B
THRU
C
C
L
2X 2.76
3.23
C
B
B
.04
4X 6-32 UNC-2B
THRU
2X INSULATED BNC BULKHEAD ADAPTORS
(L-COM P/N: BA1089)
NOTES:
1. KIT CONTAINS FOUR (4) 6-32 SCREWS (NOT INSTALLED IN PANEL).
B
Component Specifications
45 BEECHWOOD DRIVE
NORTH ANDOVER, MA
01845
PRODUCT DESCRIPTION
06/02/2000
06/06/2000
06/07/2000
SIZE
A
Material
Panel
Hardware
Finish
Panel
Hardware
Matte Medium Blue Paint
Zinc Plated
CS-218
APPROVALS
DRAWN BY
R.CARRICK
CHECKED BY
D.PARHAM
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN INCHES
TOLERANCES ARE:
.X
.1
.XX
.05
.XXX .005
CABLE LENGTH TOLERANCE
<300" ±5% >300" ±2%
APPROVED BY
R.CARRICK
DATE
A
Cold Rolled Steel
Carbon Steel
2 BNC FEED-THRU ADAPTORS
DRAWING TITLE

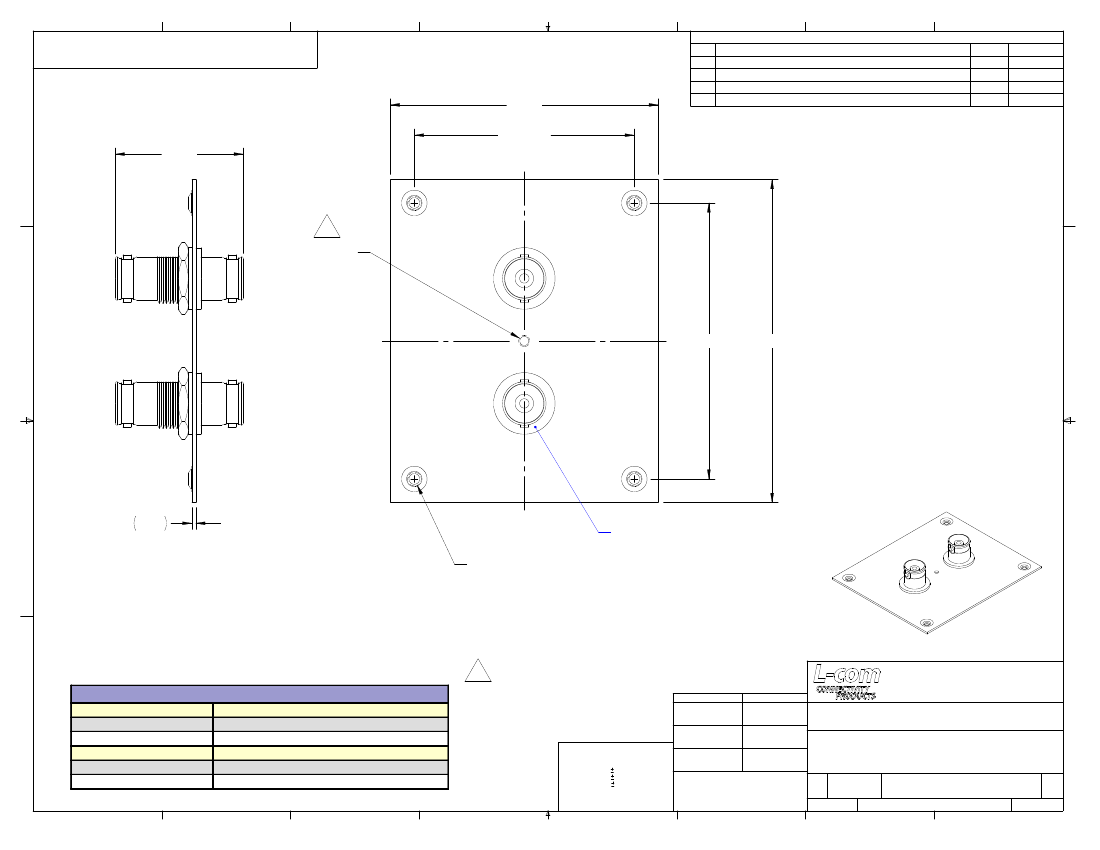

OUTLINE DRAWING
FSCM NO.
CONFIGURATION DETAILS OF
UNDIMENSIONED FEATURES
MAY VARY
A
43321
SCALE: 1:1
DWG. NO.
REV
USP2BD-OD1
1
B
SHEET 1 OF 1
CAD FILE: USP2BD-OD1.SLDDRW
8
7
6
5
4
3
2
