BB-HY033-C-TRB

Description
Single Color LED, Yellow, Water Clear, 2mm, SURFACE MOUNT PACKAGE-2
CategoryLED optoelectronic/LED    photoelectric
File Size264KB，2 Pages
ManufacturerBRIGHT
Websitehttp://www.brightled.co.kr/
Environmental Compliance
Download Datasheet Parametric Compare View All

BB-HY033-C-TRB Overview

Single Color LED, Yellow, Water Clear, 2mm, SURFACE MOUNT PACKAGE-2

BB-HY033-C-TRB Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
package instructionSURFACE MOUNT PACKAGE-2
Reach Compliance Codeunknown
Other featuresHIGH RELIABILITY
colorYELLOW
ConfigurationSINGLE
Maximum forward current0.02 A
Lens typeWATER CLEAR
Nominal luminous intensity6.0 mcd
Installation featuresSURFACE MOUNT
Number of functions1
Number of terminals2
Maximum operating temperature80 °C
Minimum operating temperature-25 °C
Optoelectronic device typesSINGLE COLOR LED
total height1.1 mm
method of packingTAPE AND REEL
peak wavelength583 nm
shapeRECTANGULAR
size2 mm
surface mountYES
Terminal pitch3.5 mm
perspective140 deg
Base Number Matches1

Preview

Download Datasheet

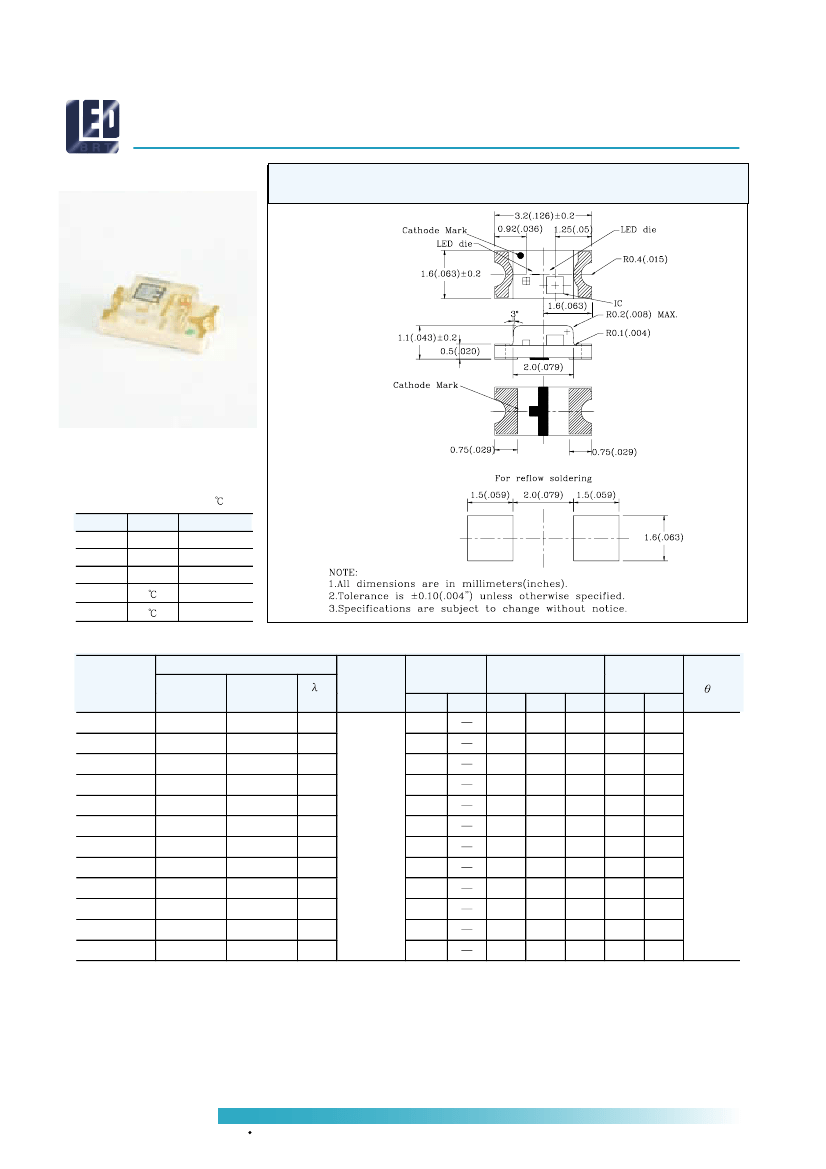

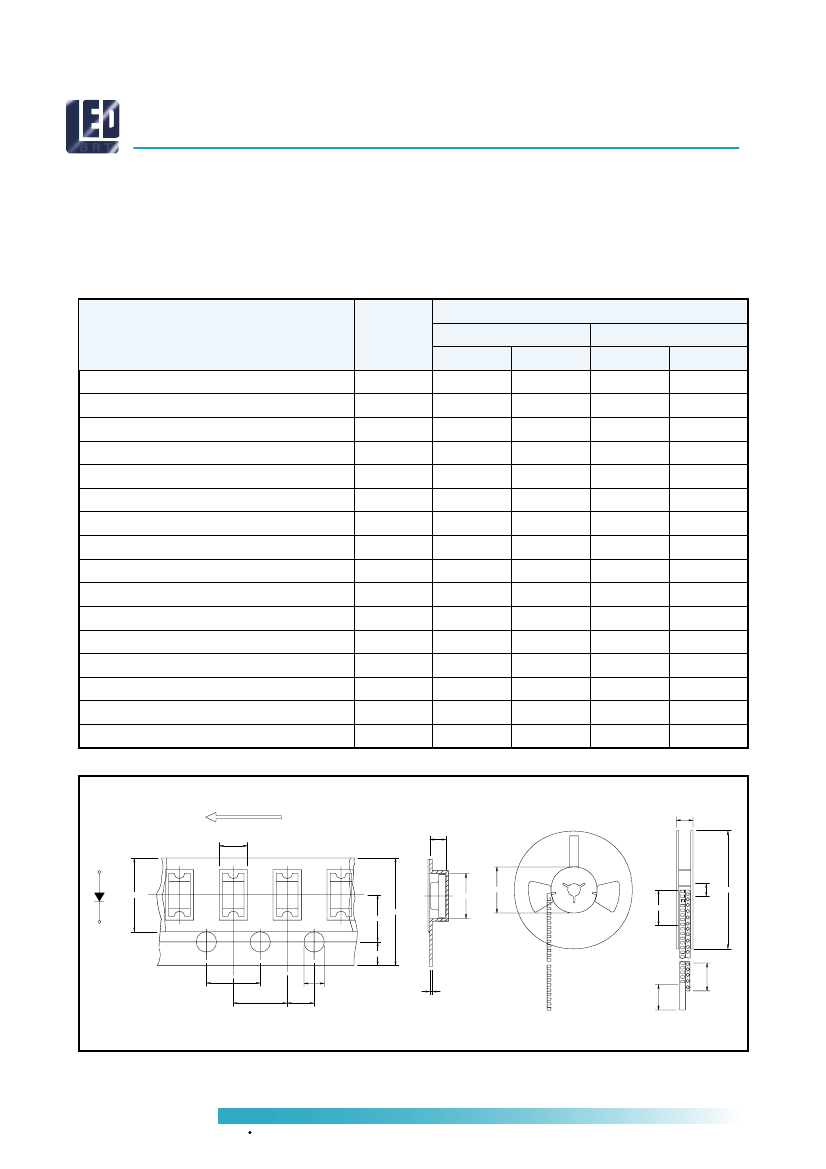

Surface Mount Blinking Chip LED Lamps
1206 Blinking BB-Hxxx3-C Series
Absolute Maximum Ratings(Ta=25 )
UNIT
IF
IFp
V
R
Topr
Tstg
mA
mA
V
SPEC.
20
100
5.0
-25~+80
-20~+85
Chip
Part No.
BB-HH033-C
BB-HG033-C
BB-HX133-C
BB-HW133-C
BB-HY033-C
BB-HE133-C
BB-HD133-C
BB-HJ033- C
BB-HK033-C
BB-HJ333- C
BB-HJF33- C
BB-HUB33-C
Material
GaP/GaP
GaP/GaP
GaP/GaP
GaP/GaP
GaAsP/GaP
GaAsP/GaP
GaA1As
A1GaInP
A1GaInP
A1GaInP
A1GaInP
A1GaInP
Emitted Color
Bright Red
Yellow Green
Hi-Eff Green
Pure Green
Yellow
Hi-Eff Red
Super Red
Super Orange
Super Yellow
Soft Orange
Soft Orange
Super Red
p
(nm)
700
568
568
557
583
640
660
620
590
630
610
645
Lens
Appearance
Forward
Current
Typ.
20
20
20
20
20
20
20
20
20
20
20
20
Max.
Pulse Rate(Hz)
VDD=5V
Min.
2.0
2.0
2.0
2.0
2.0
1.8
2.0
2.0
2.0
2.0
2.0
2.0
Typ.
2.4
2.4
2.4
2.4
2.4
2.4
2.4
2.4
2.4
2.4
2.4
2.4
Max.
3.0
3.0
3.0
3.0
3.0
3.0
3.0
3.0
3.0
3.0
3.0
3.0
Iv
(mcd)
Min.
2.4
8.2
5.5
1.6
2.4
2.4
8.2
28.0
28.0
42.0
28.0
28.0
Typ.
6.0
25.0
12.0
3.0
6.0
8.0
25.0
50.0
40.0
70.0
50.0
50.0
Viewing
Angle
2 1/2
(deg)
Water Clear
140
AMERICAN BRIGHT
(909) 628-5050 FAX (909) 628-5006
© 2003 American B right Optoelectronics C orporation. S pecifications subject to change without notice
.
w w w . a m e r ica n b r ig h tle d . co m
SMT-19

BB-HY033-C-TRB Related Products

BB-HY033-C-TRB BB-HUB33-C-TRB BB-HX133-C-TRB BB-HK033-C-TRB BB-HJ333-C-TRB BB-HD133-C-TRB BB-HG033-C-TRB BB-HW133-C-TRB BB-HE133-C-TRB BB-HJF33-C-TRB
Description Single Color LED, Yellow, Water Clear, 2mm, SURFACE MOUNT PACKAGE-2 Single Color LED, Super Red, Water Clear, 2mm, SURFACE MOUNT PACKAGE-2 Single Color LED, High Efficiency Green, Water Clear, 2mm, SURFACE MOUNT PACKAGE-2 Single Color LED, Super Yellow, Water Clear, 2mm, SURFACE MOUNT PACKAGE-2 Single Color LED, Soft Orange, Water Clear, 2mm, SURFACE MOUNT PACKAGE-2 Single Color LED, Super Red, Water Clear, 2mm, SURFACE MOUNT PACKAGE-2 Single Color LED, Yellow Green, Water Clear, 2mm, SURFACE MOUNT PACKAGE-2 Single Color LED, Pure Green, Water Clear, 2mm, SURFACE MOUNT PACKAGE-2 Single Color LED, High Efficiency Red, Water Clear, 2mm, SURFACE MOUNT PACKAGE-2 Single Color LED, Soft Orange, Water Clear, 2mm, SURFACE MOUNT PACKAGE-2
package instruction SURFACE MOUNT PACKAGE-2 SURFACE MOUNT PACKAGE-2 SURFACE MOUNT PACKAGE-2 SURFACE MOUNT PACKAGE-2 SURFACE MOUNT PACKAGE-2 SURFACE MOUNT PACKAGE-2 SURFACE MOUNT PACKAGE-2 SURFACE MOUNT PACKAGE-2 SURFACE MOUNT PACKAGE-2 SURFACE MOUNT PACKAGE-2
Reach Compliance Code unknown unknown unknown unknown unknown unknown unknown unknown unknown unknown
Other features HIGH RELIABILITY HIGH RELIABILITY HIGH RELIABILITY HIGH RELIABILITY HIGH RELIABILITY HIGH RELIABILITY HIGH RELIABILITY HIGH RELIABILITY HIGH RELIABILITY HIGH RELIABILITY
color YELLOW SUPER RED HIGH EFFICIENCY GREEN SUPER YELLOW SOFT ORANGE SUPER RED YELLOW GREEN PURE GREEN HIGH EFFICIENCY RED SOFT ORANGE
Configuration SINGLE SINGLE SINGLE SINGLE SINGLE SINGLE SINGLE SINGLE SINGLE SINGLE
Maximum forward current 0.02 A 0.02 A 0.02 A 0.02 A 0.02 A 0.02 A 0.02 A 0.02 A 0.02 A 0.02 A
Lens type WATER CLEAR WATER CLEAR WATER CLEAR WATER CLEAR WATER CLEAR WATER CLEAR WATER CLEAR WATER CLEAR WATER CLEAR WATER CLEAR
Nominal luminous intensity 6.0 mcd 50.0 mcd 12.0 mcd 40.0 mcd 70.0 mcd 25.0 mcd 25.0 mcd 3.0 mcd 8.0 mcd 50.0 mcd
Installation features SURFACE MOUNT SURFACE MOUNT SURFACE MOUNT SURFACE MOUNT SURFACE MOUNT SURFACE MOUNT SURFACE MOUNT SURFACE MOUNT SURFACE MOUNT SURFACE MOUNT
Number of functions 1 1 1 1 1 1 1 1 1 1
Number of terminals 2 2 2 2 2 2 2 2 2 2
Maximum operating temperature 80 °C 80 °C 80 °C 80 °C 80 °C 80 °C 80 °C 80 °C 80 °C 80 °C
Minimum operating temperature -25 °C -25 °C -25 °C -25 °C -25 °C -25 °C -25 °C -25 °C -25 °C -25 °C
Optoelectronic device types SINGLE COLOR LED SINGLE COLOR LED SINGLE COLOR LED SINGLE COLOR LED SINGLE COLOR LED SINGLE COLOR LED SINGLE COLOR LED SINGLE COLOR LED SINGLE COLOR LED SINGLE COLOR LED
total height 1.1 mm 1.1 mm 1.1 mm 1.1 mm 1.1 mm 1.1 mm 1.1 mm 1.1 mm 1.1 mm 1.1 mm
method of packing TAPE AND REEL TAPE AND REEL TAPE AND REEL TAPE AND REEL TAPE AND REEL TAPE AND REEL TAPE AND REEL TAPE AND REEL TAPE AND REEL TAPE AND REEL
peak wavelength 583 nm 645 nm 568 nm 590 nm 630 nm 660 nm 568 nm 557 nm 640 nm 610 nm
shape RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR
size 2 mm 2 mm 2 mm 2 mm 2 mm 2 mm 2 mm 2 mm 2 mm 2 mm
surface mount YES YES YES YES YES YES YES YES YES YES
Terminal pitch 3.5 mm 3.5 mm 3.5 mm 3.5 mm 3.5 mm 3.5 mm 3.5 mm 3.5 mm 3.5 mm 3.5 mm
perspective 140 deg 140 deg 140 deg 140 deg 140 deg 140 deg 140 deg 140 deg 140 deg 140 deg
Maker - - BRIGHT - - BRIGHT BRIGHT BRIGHT BRIGHT BRIGHT
