BI15-CP40-VN4X2/S100-S10
Inductive sensor – With extended temperature range
Features
■
Rectangular, height 40 mm
■
Variable orientation of active face in 9 directions
■
Plastic, PBT‐GF30‐V0
■
High luminance corner LEDs
■
Optimum view on supply voltage and switching
state from any position
■
Temperatures up to +100 °C
■
DC 4-wire, 10…65 VDC
■
Changeover contact, PNP output
■
Terminal chamber

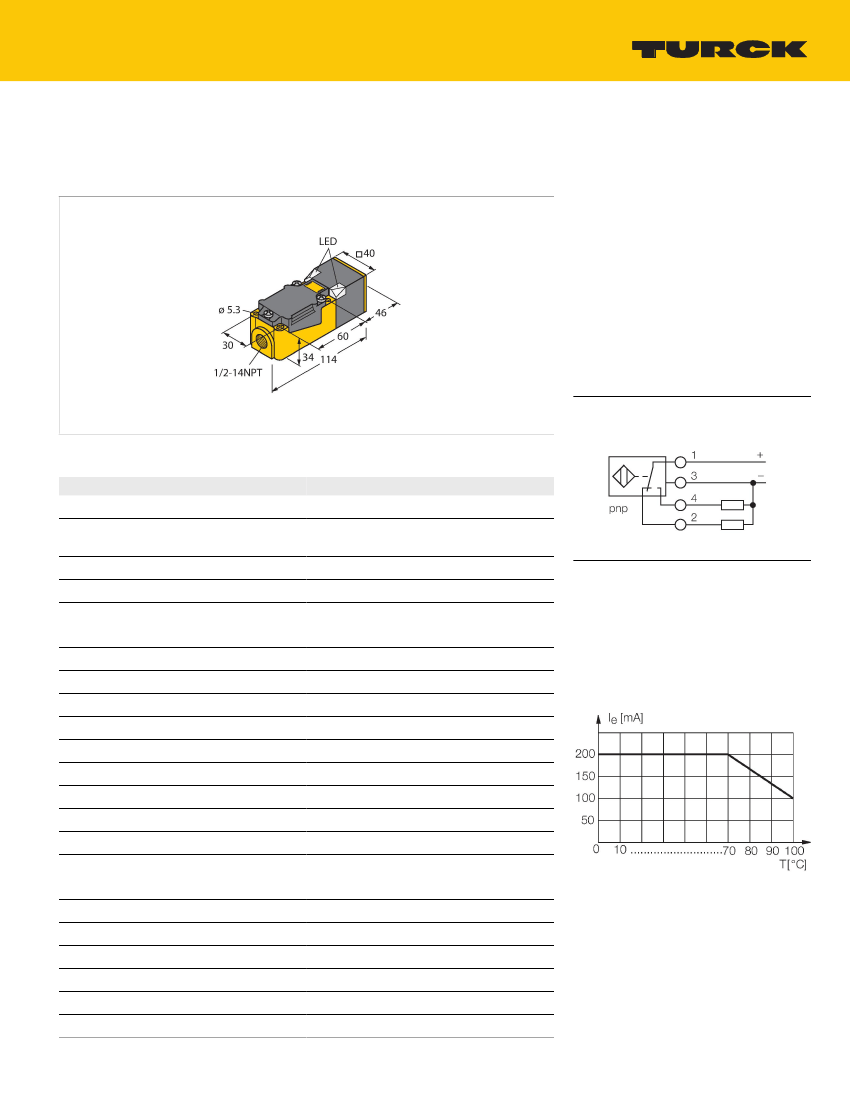

Wiring diagram
Technical data
Type
Ident. no.
Special version
Rated switching distance
Mounting conditions
Secured operating distance
Correction factors
Repeat accuracy
Temperature drift
Hysteresis
Ambient temperature
Operating voltage
Residual ripple
DC rated operational current
Rated operational current
No-load current
Residual current
Isolation test voltage
Short-circuit protection
Voltage drop at
Wire breakage/Reverse polarity protection
Output function
Switching frequency
BI15-CP40-VN4X2/S100-S10
15144
S100-S10 = Mounting base with 1/2-14NPT
thread; temperature range up to 100 °C
15 mm
Flush
≤ (0,81 x Sn) mm
St37 = 1; Al = 0.3; stainless steel = 0.7; Ms = 0.4
≤ 2 % of full scale
≤ ± 10 %
≤ ± 20 %, ≥ +70 °C
3…15 %
-25…+100 °C
10…65 VDC
≤ 10 % U
ss
≤ 200 mA
See derating curve
≤ 15 mA
≤ 0.1 mA
≤ 0.5 kV
yes / Cyclic
≤ 1.8 V
yes / Complete
4-wire, Complementary contact, PNP
0.15 kHz
Functional principle
Inductive sensors detect metal objects contactless
and wear-free. For this purpose they use a high-
frequency electromagnetic AC field that interacts
with the target. The sensors hosting a ferrite core
coil generate the AC field through an LC resonant
circuit.
Special versions are available for ambient
temperatures between ‐60°C and +250°C.
TURCK Inc. | 3000 Campus Drive Minneapolis, MN 55441-2656 | Phone: 763-553-7300 | Application Support: 1-800-544-7769 | Fax 763-553-0708 | www.turck.com
1|2
BI15-CP40-VN4X2/S100-S10| 09/09/2019 15-09 | technical changes reserved
Technical data
Design
Dimensions
Housing material
Active area material
Electrical connection
Clamping ability
Vibration resistance
Shock resistance
Protection class
MTTF
Power-on indication
Switching state
Rectangular,CP40
114 x 40 x 40 mm
Plastic, PBT-GF30-V0, Black
Plastic, PBT-GF30-V0, yellow
Terminal chamber
≤ 2.5 mm
2
55 Hz (1 mm)
30 g (11 ms)
IP67
2283 years acc. to SN 29500 (Ed. 99) 40 °C
2 × LEDs,Green
2 × LEDs, Yellow

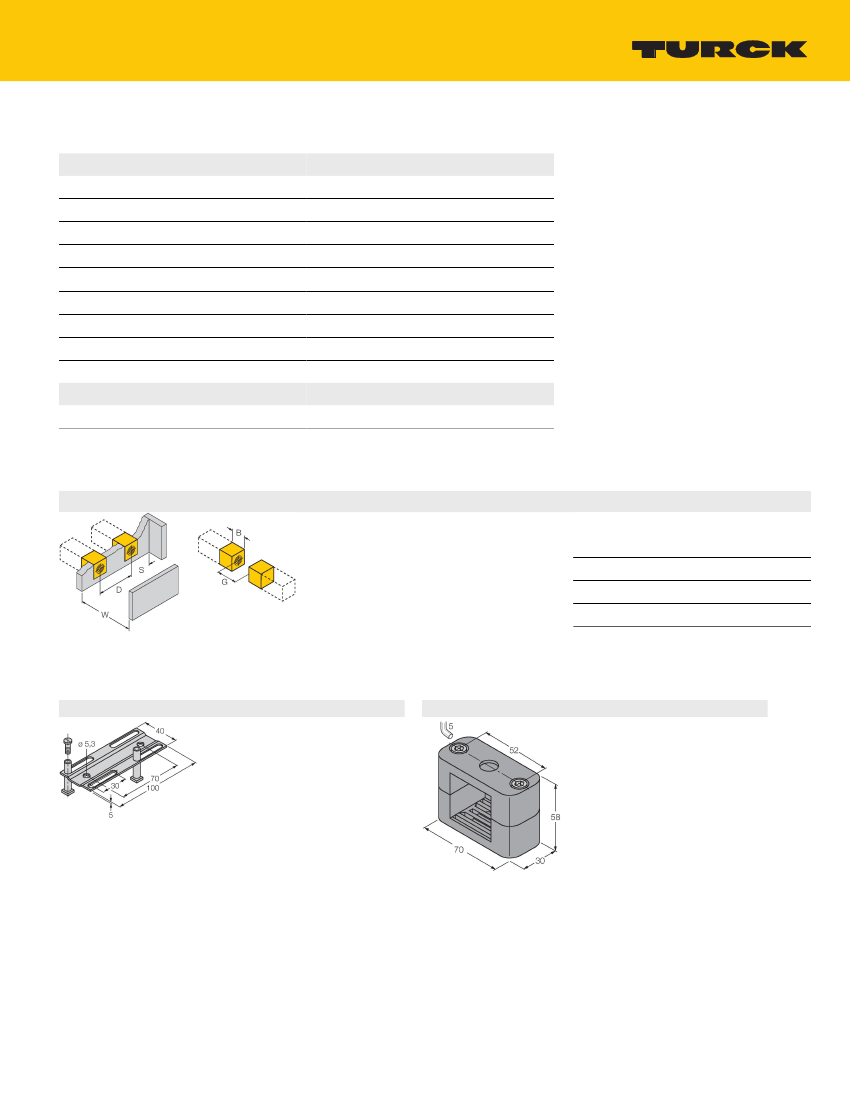

Mounting instructions
Mounting instructions/Description
Distance D
Distance W
Distance S
Distance G
Width active area B
2xB
3 x Sn
1xB
6 x Sn
40 mm
JS025/037
69429
Adjusting bar for rectangular housings
CK/CP40; material: VA 1.4301
BSS-CP40
6901318
Mounting bracket for rectangular
devices; material: Polypropylene
TURCK Inc. | 3000 Campus Drive Minneapolis, MN 55441-2656 | Phone: 763-553-7300 | Application Support: 1-800-544-7769 | Fax 763-553-0708 | www.turck.com
2|2
BI15-CP40-VN4X2/S100-S10| 09/09/2019 15-09 | technical changes reserved
